Alpine PSS-23WRA Powered Subwoofer Sound System 2018- Up Jeep Wrangler Unlimited
$1,699.95
$2,000.00
Alpine PSS-23WRA Powered Sound System Upgrade for 2018 - Up Jeep Wrangler Unlimited
Powered System Upgrade for 2018-Up Jeep® Wrangler Unlimited JL
TAKE YOUR WRANGLER’S SOUND BEYOND THE FACTORYEnjoy premium sound quality even with your JL’s top-off! The PSS-23WRA is a 300-watt system upgrade featuring a powered subwoofer, amplifier, and tweeters for the 2018-Up Jeep Wrangler Unlimited JL without the factory amplified system. The PSS-23WRA provides excellent sound performance whether the JL’s top is on or off.SOUND THAT WILL TURN HEADS WITH THE TOP ON OR OFFThe PWE-S8 subwoofer is engineered to load and disperse lower-frequency sound into the passenger’s footwell area to maximize bass extension throughout the Jeep for great sound with the top on or off. The subwoofer includes a remote bass knob so you can control the bass level from the convenience of your dashboard. The included 4-channel amplifier more than doubles the power over the factory system, allowing you to enjoy your tunes with the top off.
EASY BOLT-IN INSTALLATIONThe PWE-S8 Powered Subwoofer and KTP-445U Power Pack Amplifier don’t take up much space since they mount under the passenger’s seat. The two products come pre-connected for easy bolt-in installation with simple wire routing. Mounting brackets for the products are included as well.SIMPLE TWEETER REPLACEMENTThe SPR-10TW Component Tweeters replace the factory tweeters on the top of the dash. These high-performance tweeters add much-needed high-frequency response that is lacking in the factory Jeep JL systems. An EQ Ring improves the tweeter’s dispersion characteristics and delivers a wide, flat frequency response.WORKS WITH ANY RADIOThe included T-harness gets the necessary audio signal connections from behind the Wrangler’s radio, making installation a breeze. The PSS-23WRA is compatible with Alpine universal head units, the factory Jeep base radio, or other aftermarket radios.
General Features:
Complete Direct Fit Audio System Upgrade
Compatible with 2018-Up Jeep Wrangler Unlimited JL
Compatible with models that don't have a factory-amplified system
All installation hardware, such as speaker adapters and amplifier wiring, is included
CEA-2006 Compliant System
300 Watt RMS sound system
The system consists of:
8" Powered Subwoofer
Universal Power Pack Amplifier
2" Component Tweeters
Tweeter Adapters
Authorized Dealer
1-year Manufacturer's Warranty
PWE-S8 Subwoofer Features:
Peak: 240 watts
RMS: 120 watts
8" woofer high-excursion cone
built-in Class D amplifier
frequency response: 32-150 Hz
variable low-pass crossover (80-200 Hz)
variable phase control (0-180 degrees)
preamp- and speaker-level inputs
Dimensions: 13-1/2"W x 3"D x 9"H
KTP-445U Amplifier Features:
RMS Power Rating:
4 ohms: 45 watts x 4 Channel
2 ohms: 45 watts x 4 Channel
4 ohms: 90 watts x 2 Channel (Bridged)
Total RMS power output: 180 watts
CEA-2006 compliant amplifier
Increases the output of any head unit without having to install a full-size amplifier and amp install kit
The Independent front/Rear gain switch is adjustable from high to low
Runs off the receiver's power circuit
High-Pass Filter: selectable 60/80/120 Hz @ 12 dB/octave
Fast and simple installation
4-channel operation for four speakers
Minimum impedance of 2 ohms
Frequency response: 20-20,000 Hz
Fuse Rating: 15A x 1
SPR-10TW Component Tweeters:
2" Type-R Series Car Tweeters
Power Handling:
Peak: 450 watts per pair / 225 watts each
RMS: 150 watts per pair / 75 watts each
Silk Dome tweeter construction
4 ohms impedance
Copper-Clad Aluminum high-temperature voice coil
75% smaller external crossover filter removes harmful frequencies
4-way tweeter level attenuation
High-grade Neodymium magnet structure
Surface / Bottom / Flush Mountable
CEA-2031 compliant speakers
Sensitivity: 88dB
Frequency response: 1,000-29,000 Hz
Top-mount depth: 11/16"
Vehicle Compatibility:
JEEP
2018 - Up Wrangler Unlimited JL
Compatible with Wrangler JL Models that don't have a factory amplified system
What's in the PSS-23WRA package:
KTP-445U amplifier
PWE-S8 powered subwoofer (both pre-attached to vehicle mounting bracket)
7' Signal harness
12' Loomed power wire w/ inline 20A fuse
52-Pin t-harness
Four 10" speaker to RCA harnesses
Two SPR-10TW tweeters w/ integrated mounting plates and 8" wire loom w/ inline crossovers
Remote bass-level control w/ attached 16' cable
3" Strip of hook-and-loop fastener
Ten 6" wire-ties
1/2" Self-tapping screw
Star-washer
2 Alpine logos
Installation guide
Warranty sheet
Alpine PSS-23WRA owner's manual
Warning:This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to P65Warnings.ca.
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC

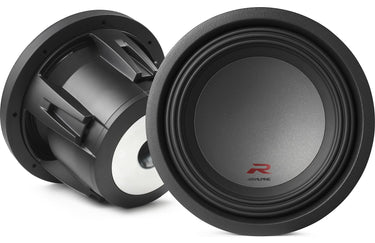

2 Alpine R2-W12D4 2250W 12" R-Series Dual 4-Ohm Car Subwoofer + KTE-12G.3 Grille
$1,079.80
$1,000.00
2 Alpine R2-W12D4 2250W Max (750W RMS) 12" R-Series Dual 4-Ohm Car Subwoofer + KTE-12G.3 Grille
The new 2022 R-Series subwoofers are here - drawing from decades of Subwoofer engineering experience. They deliver deep, clean, accurate bass and feature Alpine’s HAMR Surround for maximum cone excursion, delivering tons of bass output. The new ceramic dust cap is lightweight and rigid, keeping distortion at an absolute minimum. The enlarged motor structure ensures better woofer control for a strong, clean bass response.
General Features:
12" Dual 4 ohm Type-R Subwoofer
Peak Power Handling: 2250watts
RMS Power Handling: 750 watts
Recommended power range: 300 - 750W RMS
CTA-2031 compliant power ratings
Parabolic pulp/kevlar cone
H.A.M.R. surround
Polypropylene, mica, and talc dust cap
Reinforced cone neck and spider joint
Cast aluminum frame with integral shorting sleeve
8AWG push terminals with VC configuration jumpers
2.6" High excursion overhung voice coil
127 oz. Strontium ferrite segmented magnet
Top-mount depth: 6-3/8"
Cutout diameter: 10-7/8"
Frequency Response: 24 - 200Hz
Sensitivity: 84.3dB
Resonance Frequency (Fs): 27Hz
Authorized Dealer
1-year Manufacturer's Warranty
What's in the R2-W12D4 package:
R2-W12D2 owner's manual
One 12" Dual 4-ohm voice coil subwoofer
Two 3" jumper cables
R-Series Subwoofer Application Guide
Online product registration information
Warranty Information
https://www.youtube.com/watch?v=ihjWBSOYVxE&t=179s
⚠️Warning:This product can expose you to, known to the State of California to cause cancer. For more information, go to P65Warnings.ca.
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Alpine R2-W12D4 2250W 12" R-Series Dual 4-Ohm Car Subwoofer + KTE-12G.3 Grille
$539.95
$500.00
Alpine R2-W12D4 2250W Max (750W RMS) 12" R-Series Dual 4-Ohm Car Subwoofer + KTE-12G.3 Grille
The new 2022 R-Series subwoofers are here - drawing from decades of Subwoofer engineering experience. They deliver deep, clean, accurate bass and feature Alpine’s HAMR Surround for maximum cone excursion, delivering tons of bass output. The new ceramic dust cap is lightweight and rigid, keeping distortion at an absolute minimum. The enlarged motor structure ensures better woofer control for a strong, clean bass response.
General Features:
12" Dual 4 ohm Type-R Subwoofer
Peak Power Handling: 2250watts
RMS Power Handling: 750 watts
Recommended power range: 300 - 750W RMS
CTA-2031 compliant power ratings
Parabolic pulp/kevlar cone
H.A.M.R. surround
Polypropylene, mica, and talc dust cap
Reinforced cone neck and spider joint
Cast aluminum frame with integral shorting sleeve
8AWG push terminals with VC configuration jumpers
2.6" High excursion overhung voice coil
127 oz. Strontium ferrite segmented magnet
Top-mount depth: 6-3/8"
Cutout diameter: 10-7/8"
Frequency Response: 24 - 200Hz
Sensitivity: 84.3dB
Resonance Frequency (Fs): 27Hz
Authorized Dealer
1-year Manufacturer's Warranty
What's in the R2-W12D4 package:
R2-W12D2 owner's manual
One 12" Dual 4-ohm voice coil subwoofer
Two 3" jumper cables
R-Series Subwoofer Application Guide
Online product registration information
Warranty Information
https://www.youtube.com/watch?v=ihjWBSOYVxE&t=179s
⚠️Warning:This product can expose you to, known to the State of California to cause cancer. For more information, go to P65Warnings.ca.
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
2 Alpine R2-W8D2 8" R Series 1,000 Watt Car Audio Subwoofer, 2 Ohm, Dual VC Sub + KTE-8G.3 Grille
$679.80
$800.00
2 Alpine R2-W8D2 8" R-Series next generation 2 Ohm 1000 Max, 350W RMS DVC Car Audio Subwoofer + KTE-8G.3 Grille
The new 2022 R-Series subwoofers are here - drawing from decades of Subwoofer engineering experience. They deliver deep, clean, accurate bass and feature Alpine’s HAMR Surround for maximum cone excursion, delivering tons of bass output. The new ceramic dust cap is lightweight and rigid, keeping distortion at an absolute minimum. The enlarged motor structure ensures better woofer control for a strong, clean bass response.
General Features:
8" Dual 2 ohms Type-R Series Subwoofer
Peak Power Handling: 1000 watts
RMS Power Handling: 350 watts
Kevlar Reinforced Pulp Paper Cone
High-Amplitude Multi-Roll (H.A.M.R) Surround
Push-Type Speaker Terminals (Up To 8AWG Wire Size)
Oversized Dust Cap
1.6" High-Temperature Voice coil
12 mm Xmax
56 oz. Double Stacked magnet motor structure
Frequency Response: 30 - 200 Hz
Resonance Frequency (Fs): 43 Hz
Sensitivity: 83.7 dB
Sealed box volume: .15 cubic feet
Ported box volume: .35 cubic feet
Top-mount depth: 4.38"
Cutout diameter: 6.94"
Authorized Internet Dealer
1-year Manufacturer's Warranty
What is in the R2-W8D2 package:
R2-W8D2 owner's manual
One 8" Dual 2-ohm voice coil subwoofer
Plastic trim ring
Two 4.5" jumper wires
Application guide
Online product registration information
Warranty Information
Important Notice
⚠️Warning:This product can expose you to, known to the State of California, to cause cancer. For more information, go to P65Warnings.ca.
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Alpine R2-W8D2 8" R Series 1,000 Watt Car Audio Subwoofer, 2 Ohm, Dual VC Sub + KTE-8G.3 Grille
$339.90
$400.00
Alpine R2-W8D2 8" R-Series next generation 2 Ohm 1000 Max, 350W RMS DVC Car Audio Subwoofer + KTE-8G.3 Grille
The new 2022 R-Series subwoofers are here - drawing from decades of Subwoofer engineering experience. They deliver deep, clean, accurate bass and feature Alpine’s HAMR Surround for maximum cone excursion, delivering tons of bass output. The new ceramic dust cap is lightweight and rigid, keeping distortion at an absolute minimum. The enlarged motor structure ensures better woofer control for a strong, clean bass response.
General Features:
8" Dual 2 ohms Type-R Series Subwoofer
Peak Power Handling: 1000 watts
RMS Power Handling: 350 watts
Kevlar Reinforced Pulp Paper Cone
High-Amplitude Multi-Roll (H.A.M.R) Surround
Push-Type Speaker Terminals (Up To 8AWG Wire Size)
Oversized Dust Cap
1.6" High-Temperature Voice coil
12 mm Xmax
56 oz. Double Stacked magnet motor structure
Frequency Response: 30 - 200 Hz
Resonance Frequency (Fs): 43 Hz
Sensitivity: 83.7 dB
Sealed box volume: .15 cubic feet
Ported box volume: .35 cubic feet
Top-mount depth: 4.38"
Cutout diameter: 6.94"
Authorized Internet Dealer
1-year Manufacturer's Warranty
What is in the R2-W8D2 package:
R2-W8D2 owner's manual
One 8" Dual 2-ohm voice coil subwoofer
Plastic trim ring
Two 4.5" jumper wires
Application guide
Online product registration information
Warranty Information
Important Notice
⚠️Warning:This product can expose you to, known to the State of California, to cause cancer. For more information, go to P65Warnings.ca.
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
2 Alpine R2-W8D2 8" R Series 1,000 Watt Car Audio Subwoofer, 2 Ohm, Dual VC Sub
$599.90
$800.00
2 Alpine R2-W8D2 8" R-Series next generation 2 Ohm 1000 Max, 350W RMS DVC Car Audio Subwoofer
The new 2022 R-Series subwoofers are here - drawing from decades of Subwoofer engineering experience. They deliver deep, clean, accurate bass and feature Alpine’s HAMR Surround for maximum cone excursion, delivering tons of bass output. The new ceramic dust cap is lightweight and rigid, keeping distortion at an absolute minimum. The enlarged motor structure ensures better woofer control for a strong, clean bass response.
General Features:
8" Dual 2 ohms Type-R Series Subwoofer
Peak Power Handling: 1000 watts
RMS Power Handling: 350 watts
Kevlar Reinforced Pulp Paper Cone
High-Amplitude Multi-Roll (H.A.M.R) Surround
Push-Type Speaker Terminals (Up To 8AWG Wire Size)
Oversized Dust Cap
1.6" High-Temperature Voice coil
12 mm Xmax
56 oz. Double Stacked magnet motor structure
Frequency Response: 30 - 200 Hz
Resonance Frequency (Fs): 43 Hz
Sensitivity: 83.7 dB
Sealed box volume: .15 cubic feet
Ported box volume: .35 cubic feet
Top-mount depth: 4.38"
Cutout diameter: 6.94"
Authorized Internet Dealer
1-year Manufacturer's Warranty
What is in the R2-W8D2 package:
R2-W8D2 owner's manual
One 8" Dual 2-ohm voice coil subwoofer
Plastic trim ring
Two 4.5" jumper wires
Application guide
Online product registration information
Warranty Information
Important Notice
⚠️Warning:This product can expose you to, known to the State of California, to cause cancer. For more information, go to P65Warnings.ca.
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Alpine R2-W8D2 8" R Series 1,000 Watt Car Audio Subwoofer, 2 Ohm, Dual VC Sub
$299.95
$400.00
Alpine R2-W8D2 8" R-Series next generation 2 Ohm 1000 Max, 350W RMS DVC Car Audio Subwoofer
The new 2022 R-Series subwoofers are here - drawing from decades of Subwoofer engineering experience. They deliver deep, clean, accurate bass and feature Alpine’s HAMR Surround for maximum cone excursion, delivering tons of bass output. The new ceramic dust cap is lightweight and rigid, keeping distortion at an absolute minimum. The enlarged motor structure ensures better woofer control for a strong, clean bass response.
General Features:
8" Dual 2 ohms Type-R Series Subwoofer
Peak Power Handling: 1000 watts
RMS Power Handling: 350 watts
Kevlar Reinforced Pulp Paper Cone
High-Amplitude Multi-Roll (H.A.M.R) Surround
Push-Type Speaker Terminals (Up To 8AWG Wire Size)
Oversized Dust Cap
1.6" High-Temperature Voice coil
12 mm Xmax
56 oz. Double Stacked magnet motor structure
Frequency Response: 30 - 200 Hz
Resonance Frequency (Fs): 43 Hz
Sensitivity: 83.7 dB
Sealed box volume: .15 cubic feet
Ported box volume: .35 cubic feet
Top-mount depth: 4.38"
Cutout diameter: 6.94"
Authorized Internet Dealer
1-year Manufacturer's Warranty
What is in the R2-W8D2 package:
R2-W8D2 owner's manual
One 8" Dual 2-ohm voice coil subwoofer
Plastic trim ring
Two 4.5" jumper wires
Application guide
Online product registration information
Warranty Information
Important Notice
⚠️Warning:This product can expose you to, known to the State of California, to cause cancer. For more information, go to P65Warnings.ca.
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
2 Alpine R2-W8D4 8" R Series 1,000 Watt Car Audio Subwoofer, 4 Ohm, Dual VC Sub + KTE-8G.3 Grille
$679.80
$800.00
2 Alpine R2-W8D4 8" R-Series next generation 4 Ohm 1000 Max, 350W RMS DVC Car Audio Subwoofer + KTE-8G.3 Grille
The new 2022 R-Series subwoofers are here - drawing from decades of Subwoofer engineering experience. They deliver deep, clean, accurate bass and feature Alpine’s HAMR Surround for maximum cone excursion, delivering tons of bass output. The new ceramic dust cap is lightweight and rigid, keeping distortion at an absolute minimum. The enlarged motor structure ensures better woofer control for a strong, clean bass response.
General Features:
8" Dual 4 ohms Type-R Series Subwoofer
Peak Power Handling: 1000 watts
RMS Power Handling: 350 watts
Kevlar Reinforced Pulp Paper Cone
High-Amplitude Multi-Roll (H.A.M.R) Surround
Push-Type Speaker Terminals (Up To 8AWG Wire Size)
Oversized Dust Cap
1.6" High-Temperature Voice coil
12 mm Xmax
56 oz. Double Stacked magnet motor structure
Frequency Response: 30 - 200 Hz
Resonance Frequency (Fs): 43 Hz
Sensitivity: 83.7 dB
Sealed box volume: .15 cubic feet
Ported box volume: .35 cubic feet
Top-mount depth: 4.38"
Cutout diameter: 6.94"
Authorized Internet Dealer
1-year Manufacturer's Warranty
What is in the R2-W8D4 package:
R2-W8D4 owner's manual
One 8" Dual 4-ohm voice coil subwoofer
Plastic trim ring
Two 4.5" jumper wires
Application guide
Online product registration information
Warranty Information
Important Notice
⚠️Warning:This product can expose you to, known to the State of California, to cause cancer. For more information, go to P65Warnings.ca.
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Alpine R2-W8D4 8" R Series 1,000 Watt Car Audio Subwoofer, 4 Ohm, Dual VC Sub + KTE-8G.3 Grille
$679.80
$400.00
Alpine R2-W8D4 8" R-Series next generation 4 Ohm 1000 Max, 350W RMS DVC Car Audio Subwoofer + KTE-8G.3 Grille
The new 2022 R-Series subwoofers are here - drawing from decades of Subwoofer engineering experience. They deliver deep, clean, accurate bass and feature Alpine’s HAMR Surround for maximum cone excursion, delivering tons of bass output. The new ceramic dust cap is lightweight and rigid, keeping distortion at an absolute minimum. The enlarged motor structure ensures better woofer control for a strong, clean bass response.
General Features:
8" Dual 4 ohms Type-R Series Subwoofer
Peak Power Handling: 1000 watts
RMS Power Handling: 350 watts
Kevlar Reinforced Pulp Paper Cone
High-Amplitude Multi-Roll (H.A.M.R) Surround
Push-Type Speaker Terminals (Up To 8AWG Wire Size)
Oversized Dust Cap
1.6" High-Temperature Voice coil
12 mm Xmax
56 oz. Double Stacked magnet motor structure
Frequency Response: 30 - 200 Hz
Resonance Frequency (Fs): 43 Hz
Sensitivity: 83.7 dB
Sealed box volume: .15 cubic feet
Ported box volume: .35 cubic feet
Top-mount depth: 4.38"
Cutout diameter: 6.94"
Authorized Internet Dealer
1-year Manufacturer's Warranty
What is in the R2-W8D4 package:
R2-W8D4 owner's manual
One 8" Dual 4-ohm voice coil subwoofer
Plastic trim ring
Two 4.5" jumper wires
Application guide
Online product registration information
Warranty Information
Important Notice
⚠️Warning:This product can expose you to, known to the State of California, to cause cancer. For more information, go to P65Warnings.ca.
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
2 Alpine R2-W8D4 8" R Series 1,000 Watt Car Audio Subwoofer, 4 Ohm, Dual VC Sub
$599.90
$800.00
Alpine R2-W8D4 10" R-Series next generation 4 Ohm 1000 Max, 350W RMS DVC Car Audio Subwoofer
The new 2022 R-Series subwoofers are here - drawing from decades of Subwoofer engineering experience. They deliver deep, clean, accurate bass and feature Alpine’s HAMR Surround for maximum cone excursion, delivering tons of bass output. The new ceramic dust cap is lightweight and rigid, keeping distortion at an absolute minimum. The enlarged motor structure ensures better woofer control for a strong, clean bass response.
General Features:
8" Dual 4 ohms Type-R Series Subwoofer
Peak Power Handling: 1000 watts
RMS Power Handling: 350 watts
Kevlar Reinforced Pulp Paper Cone
High-Amplitude Multi-Roll (H.A.M.R) Surround
Push-Type Speaker Terminals (Up To 8AWG Wire Size)
Oversized Dust Cap
1.6" High-Temperature Voice coil
12 mm Xmax
56 oz. Double Stacked magnet motor structure
Frequency Response: 30 - 200 Hz
Resonance Frequency (Fs): 43 Hz
Sensitivity: 83.7 dB
Sealed box volume: .15 cubic feet
Ported box volume: .35 cubic feet
Top-mount depth: 4.38"
Cutout diameter: 6.94"
Authorized Internet Dealer
Alpine KTE-8G
1-year Manufacturer's Warranty
What is in the R2-W8D4 package:
R2-W8D4 owner's manual
One 8" Dual 4-ohm voice coil subwoofer
Plastic trim ring
Two 4.5" jumper wires
Application guide
Online product registration information
Warranty Information
Important Notice
⚠️Warning:This product can expose you to, known to the State of California, to cause cancer. For more information, go to P65Warnings.ca.
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Alpine R2-W8D4 8" R Series 1,000 Watt Car Audio Subwoofer, 4 Ohm, Dual VC Sub
$299.95
$400.00
Alpine R2-W8D4 8" R-Series next generation 4 Ohm 1000 Max, 350W RMS DVC Car Audio Subwoofer
The new 2022 R-Series subwoofers are here - drawing from decades of Subwoofer engineering experience. They deliver deep, clean, accurate bass and feature Alpine’s HAMR Surround for maximum cone excursion, delivering tons of bass output. The new ceramic dust cap is lightweight and rigid, keeping distortion at an absolute minimum. The enlarged motor structure ensures better woofer control for a strong, clean bass response.
General Features:
8" Dual 4 ohms Type-R Series Subwoofer
Peak Power Handling: 1000 watts
RMS Power Handling: 350 watts
Kevlar Reinforced Pulp Paper Cone
High-Amplitude Multi-Roll (H.A.M.R) Surround
Push-Type Speaker Terminals (Up To 8AWG Wire Size)
Oversized Dust Cap
1.6" High-Temperature Voice coil
12 mm Xmax
56 oz. Double Stacked magnet motor structure
Frequency Response: 30 - 200 Hz
Resonance Frequency (Fs): 43 Hz
Sensitivity: 83.7 dB
Sealed box volume: .15 cubic feet
Ported box volume: .35 cubic feet
Top-mount depth: 4.38"
Cutout diameter: 6.94"
Authorized Internet Dealer
1-year Manufacturer's Warranty
What is in the R2-W8D4 package:
R2-W8D4 owner's manual
One 8" Dual 4-ohm voice coil subwoofer
Plastic trim ring
Two 4.5" jumper wires
Application guide
Online product registration information
Warranty Information
Important Notice
⚠️Warning:This product can expose you to, known to the State of California, to cause cancer. For more information, go to P65Warnings.ca.
00
DAYS 00
HRS 00
MIN 00
SEC
DAYS 00
HRS 00
MIN 00
SEC
Alpine R2-W10D4 10" R-Series 4 Ohm 2250 Max DVC Car Audio Subwoofer + KTE-10G.3 Grill
$439.90
$700.00
Alpine R2-W10D4 10" R-Series next generation 4 Ohm 2250 Max, 750W RMS DVC Car Audio Subwoofer + KTE-10G.3 Grills
Alpine R2-W10D4 2250W Max (750W RMS) 10" R-Series Dual 4-Ohm Car Subwoofer
The new R-Series subwoofers take a great platform to the next level. Although the R-Series subwoofers are new for 2017, they come from an impressive Alpine lineage – the Type-R subwoofers. Type-R subwoofers have been known for their power handling, clean output, and deep bass excursion at a mid-line price. Using the highly successful Type-R subwoofers as a foundation, we applied various performance and hardware improvements to the design, fundamentally transforming them into the new R-Series subwoofers – The Next Evolution of Proven Performance. STRONGER CONE ASSEMBLYR-Series subwoofers feature a Kevlar-treated cone for durability. This cone and the Santoprene surround allow the subwoofer to deliver 19mm X-max for incredible, hard-hitting bass. A new method of attaching the spider and cone to the voice coil ensures rigidity throughout the motor structure and increases the subwoofer's accuracy.
MORE RIGID DUST CAP
Talc, a common mineral used in products such as baby powder and paint, has been found to have incredible damping properties while being less dense than the traditional Mica filler used in dust caps. By adding a calculated amount of talc to the mica polypropylene in the dust cap, we increased the cap's vibration absorption while lowering its density. The lighter dust cap contributes to a faster attack and a more accurate reproduction of low frequencies.
NEW POWER RATING
All four R-Series subwoofers are rated at 750W RMS. They perfectly match the PDR-M65 Mono Power Density Amplifier, creating an efficient system.
General Features:
10" Dual 4 ohm Type-R Subwoofer
Peak Power Handling: 2250 watts
RMS Power Handling: 750 watts
Recommended power range: 300 - 750W RMS
CTA-2031 compliant power ratings
Parabolic pulp/kevlar cone
H.A.M.R. surround
Polypropylene, mica, and talc dust cap
Reinforced cone neck and spider joint
Cast aluminum frame with integral shorting sleeve
8AWG push terminals with VC configuration jumpers
2.6" High excursion overhung voice coil
111 oz. Strontium ferrite segmented magnet
Top-mount depth: 5-7/8"
Cutout diameter: 9-1/16"
Frequency Response: 26 - 200Hz
Sensitivity: 82.4dB
Resonance Frequency (Fs): 30Hz
Authorized Dealer
1-year Manufacturer's Warranty
What's in the R2-W10D4 package:
R2-W10D4 owner's manual
10" Dual 4-ohm voice coil subwoofer
1 Rubber concealing ring
Four 3" jumper cables
R-Series Subwoofer Application Guide
Online product registration information
Warranty Information
Important Notice!
Warning:This product can expose you to, known to the State of California to cause cancer. For more information, go to P65Warnings.ca.
https://www.alpine-usa.com/product/r-series-subwoofer-r2w10d4
https://www.youtube.com/watch?v=J8g6EZzZQyI&t=131s
