6x9" Component Car Speaker (11)

Alpine S-S69C 520W Max (170W RMS) 6" x 9" Type-S Series 2-Way Component Car Speakers Alpine's S-Series Speakers have been redesigned with voice coil size and cone material upgrades to provide premium sound quality. The new benchmark for entry OEM upgrades! UNIVERSAL APPLICATIONSTo meet the needs of the most common applications in speaker replacement today, we’ve introduced a new 6x9-inch component speaker set to offer newer domestic trucks and cars the ability to upgrade the sound quality of their vehicle. This component set, with its innovative technology makes it a simple solution to getting Alpine sound in many of these vehicles on the road today. EFFICIENT PERFORMANCE The S-Series speakers are the first in the industry to use CFRP (Carbon Fiber Reinforced Plastic), a very lightweight yet rigid material. The edges are naturally weaker than the center on a standard, off-the-shelf oval cone due to the elongated shape. Since the CFRP material is directional, it can be manipulated during the molding process to strengthen the areas of the normally weak cone. The result is rigidity throughout the cone that delivers accurate and efficient performance. The ability to manipulate the CFRP material during molding is currently exclusive to Alpine and the S-Series speakers. Alpine has three patent-pending procedures in support of this innovative manufacturing process. General Features: 6" x 9" Type-S Series 2-Way Component System Power Handling: Peak: 520 watts per set / 260 watts on each side RMS: 175 watts per set / 85 watts on each side Carbon-reinforced polypropylene cone Rubber surround 1" Silk dome tweeter CEA-2031 compliant speakers Top-mount Depth: 2-15/16" 4 ohms impedance Frequency Response: 65 - 22000 Hz Sensitivity: 90dB 1-year Manufacture Warranty What is in the box: 2 Woofers 2 Tweeters (each has a 29" length of wire attached) 2 Flush mount housings (with tweeters installed) 2 Tweeter grilles Two 37" Tweeter wires with in-line crossovers 2 Flush mount retention rings 2 Stealth brackets Eight 1-3/16" Screws Eight M4x60mm Machine screws (each screw has a lock washer attached) Eight M4 Nuts 8 Speed clips 8 Split lock washers 8 Spacers Alpine S-S69C owner's manual Warranty information ⚠️Warning:This product can expose you to, known to the State of California to cause cancer. For more information, go to P65Warnings.ca.

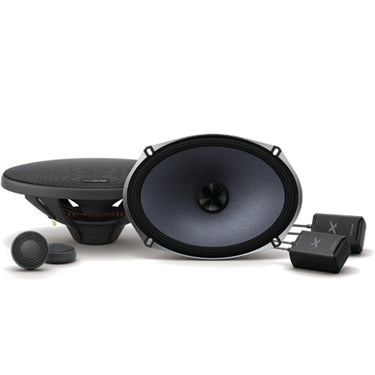

2 Alpine X-S69C 6" x 9" Component System 720W Max, 240W RMS 6" x 9" X-Type 2-Way Component Car Speakers EXPERIENCE DETAIL YOU’VE NEVER HEARD BEFORE The new X-Series speakers combine proven technologies, superior materials, and innovative design to reproduce sound so accurately that you’ll feel right in front of the performance. HI-RESOLUTION AUDIO Hi-Res Audio is the next level of digital audio for music fans alike and requires an incredibly wide dynamic range to reproduce music with amazing realism and depth. The X-Series speakers are Hi-Rez compatible and, when paired with other X-Series components, provide an incredible Hi-Rez Audio experience. CARBON GRAPHITE TWEETER The tweeter’s diaphragm is built from a sheet of carbon graphite which enables it to reproduce frequency ranges in the upper 55kHz range, usually achieved using a harsher, hard dome tweeter like Aluminum or Titanium. Carbon graphite allows us to hit those High-rez audio-compatible frequencies while maintaining the softer, more damped sound qualities of a soft dome. NEW CONE MATERIAL The X-Series speaker cone is made from a tightly interwoven Nano-fiber material. The small diameter fibers create a damped, rigid cone structure while staying lightweight. Because of this light rigidity, the X-Series speaker can produce highly accurate sound while maintaining a soft tonality. The cone’s resistance to flex ensures it is very little to no discoloration of sound and phase shifts. The result is a highly accurate speaker that is well-staged in front of you. General Features: 6" x 9" X-Type 2-Way Component System Power Handling: Max: 720 W per set/ 360 W per side RMS: 240 W per set/ 120 W per side Recommended power range: 10 - 120W RMS Hi-Res Audio compatible Nano-fiber woofer cone H.A.M.R. surround 1" carbon graphite tweeter Tweeters swivel within flush mounts Adjustable tweeter attenuation: 0dB, +3dB, -3dB Adjustable tweeter phase: Normal or reverse A-Pole type neodymium magnet Top-mount depth: 3-1/16" Cutout Dimensions: 5-7/8" x 8-7/8" 4 ohms impedance Frequency Response: 45 - 50,000 Hz Sensitivity: 89 dB Authorized Dealer 1-year Manufacturer's Warranty What is in the X-S69C package 2 Woofers 2 Woofer grilles+ 2 Grille badges 2 Tweeters (each has a 26" length of wire attached) 2 Tweeter grilles (installed) 2 Surface mount housings (with tweeters installed) 2 Bottom mount brackets Two tweeter crossovers (each has attached 32" input and 14" output wires) 2 Rectangular adhesives backed pads (crossover) 2 Circular adhesive-backed discs (tweeter) Eight M4x60mm Machine screws (with washers attached) 8 Flat washers & 8 Split lock washers Eight 1-1/8" Screws & Eight 5/8" Screws 8 Speed-clips & 4 Speed nuts Four 5" Zip ties Warranty information Important Notice Online product registration information Templates and specs on the box X-S69C owner’s Manual ⚠️Warning:This product can expose you to, known to the State of California to cause cancer. For more information, go to P65Warnings.ca.

2 Pair Alpine X-S69C 6" x 9" Component System 720W Max, 240W RMS 6" x 9" X-Type 2-Way Component Car Speakers EXPERIENCE DETAIL YOU’VE NEVER HEARD BEFORE The new X-Series speakers combine proven technologies, superior materials, and innovative design to reproduce sound so accurately, you’ll feel like you’re right in front of the performance. HI-RESOLUTION AUDIO Hi-Res Audio is the next level of digital audio for music fans alike and requires an incredibly wide dynamic range to reproduce music with amazing realism and depth. The X-Series speakers are Hi-Rez compatible and when paired with other X-Series components, provide an incredible Hi-Rez Audio experience. CARBON GRAPHITE TWEETER The tweeter’s diaphragm is built from a sheet of carbon graphite which enables it to reproduce frequency ranges in the upper 55kHz range, usually achieved using a harsher, hard dome tweeter like Aluminum or Titanium. Carbon graphite allows us to hit those High-rez audio-compatible frequencies while maintaining the softer, more damped sound qualities of a soft dome. NEW CONE MATERIAL The X-Series’ speaker cone is made from a tightly interwoven Nano-fiber material. The extremely small diameter fibers create a damped, rigid cone structure while staying lightweight. Because of this light rigidity, the X-Series speaker is capable of highly accurate sound reproduction while maintaining a soft tonality. The cone’s resistance to flex ensures it is very little to no discoloration of sound and phase shifts. The result is a highly accurate speaker that is well-staged in front of you. General Features: 6" x 9" X-Type 2-Way Component System Power Handling: Max: 720 W per set/ 360 W per side RMS: 240 W per set/ 120 W per side Recommended power range: 10 - 120W RMS Hi-Res Audio compatible Nano-fiber woofer cone H.A.M.R. surround 1" carbon graphite tweeter Tweeters swivel within flush mounts Adjustable tweeter attenuation: 0dB, +3dB, -3dB Adjustable tweeter phase: Normal or reverse A-Pole type neodymium magnet Top-mount Depth: 3-1/16" Cutout Dimensions: 5-7/8" x 8-7/8" 4 ohms impedance Frequency Response: 45 - 50,000 Hz Sensitivity: 89 dB Authorized Dealer 1-year Manufacturer's Warranty What is in the X-S69C package 2 Woofers 2 Woofer grilles+ 2 Grille badges 2 Tweeters (each has a 26" length of wire attached) 2 Tweeter grilles (installed) 2 Surface mount housings (with tweeters installed) 2 Bottom mount brackets Two tweeter crossovers (each has attached 32" input and 14" output wires) 2 Rectangular adhesives backed pads (crossover) 2 Circular adhesives backed discs (tweeter) Eight M4x60mm Machine screws (with washers attached) 8 Flat washers & 8 Split lock washers Eight 1-1/8" Screws & Eight 5/8" Screws 8 Speed-clips & 4 Speed nuts Four 5" Zip ties Warranty information Important Notice Online product registration information Templates and specs on the box X-S69C owner’s Manual ⚠️Warning:Cancer and Reproductive Harm-www.P65Warnings.ca.gov

Alpine S-S69C 520W Max (170W RMS) 6" x 9" Type-S Series 2-Way Component Car Speakers Alpine's S-Series Speakers have been redesigned with upgrades to voice coil size and cone material to provide premium sound quality. The new benchmark for entry OEM upgrades! UNIVERSAL APPLICATIONSTo meet the needs of the most common applications in speaker replacement today, we’ve introduced a new 6x9-inch component speaker set to offer newer domestic trucks and cars the ability to upgrade the sound quality in their vehicle. This component set with its innovative technology makes it a simple solution to getting Alpine sound in many of these vehicles on the road today. EFFICIENT PERFORMANCE The S-Series speakers are the first in the industry to use a material called CFRP (Carbon Fiber Reinforced Plastic), a very lightweight yet rigid material. On a standard, off-the-shelf oval cone, the edges are naturally weaker than the center due to the elongated shape. Since the CFRP material is directional, it can be manipulated during the molding process to strengthen the areas of the cone that are normally weak. The result is rigidity throughout the cone that delivers accurate and efficient performance. The ability to manipulate the CFRP material during the molding process is currently exclusive to Alpine and the S-Series speakers. Alpine has three patent-pending procedures in support of this innovative manufacturing process. General Features: 6" x 9" Type-S Series 2-Way Component System Power Handling: Peak: 520 watts per set / 260 watts each side RMS: 175 watts per set / 85 watts each side Carbon-reinforced polypropylene cone Rubber surround 1" Silk dome tweeter CEA-2031 compliant speakers Top-mount Depth: 2-15/16" 4 ohms impedance Frequency Response: 65 - 22000 Hz Sensitivity: 90dB 1 year manufactures warranty What is in the box: 2 Woofers 2 Tweeters (each has a 29" length of wire attached) 2 Flush mount housings (with tweeters installed) 2 Tweeter grilles Two 37" Tweeter wires with in-line crossovers 2 Flush mount retention rings 2 Stealth brackets Eight 1-3/16" Screws Eight M4x60mm Machine screws (each screw has a lock washer attached) Eight M4 Nuts 8 Speed clips 8 Split lock washers 8 Spacers Alpine S-S69C owner's manual Warranty information ⚠️Warning:Cancer and Reproductive Harm-www.P65Warnings.ca.gov

Alpine S-S69C 520W Max (170W RMS) 6" x 9" Type-S Series 2-Way Component Car Speakers Alpine's S-Series Speakers have been redesigned with upgrades to voice coil size and cone material to provide premium sound quality. The new benchmark for entry OEM upgrades! UNIVERSAL APPLICATIONSTo meet the needs of the most common applications in speaker replacement today, we’ve introduced a new 6x9-inch component speaker set to offer newer domestic trucks and cars the ability to upgrade the sound quality in their vehicle. This component set with its innovative technology makes it a simple solution to getting Alpine sound in many of these vehicles on the road today. EFFICIENT PERFORMANCE The S-Series speakers are the first in the industry to use a material called CFRP (Carbon Fiber Reinforced Plastic), a very lightweight yet rigid material. On a standard, off-the-shelf oval cone, the edges are naturally weaker than the center due to the elongated shape. Since the CFRP material is directional, it can be manipulated during the molding process to strengthen the areas of the cone that are normally weak. The result is rigidity throughout the cone that delivers accurate and efficient performance. The ability to manipulate the CFRP material during the molding process is currently exclusive to Alpine and the S-Series speakers. Alpine has three patent-pending procedures in support of this innovative manufacturing process. General Features: 6" x 9" Type-S Series 2-Way Component System Power Handling: Peak: 520 watts per set / 260 watts each side RMS: 175 watts per set / 85 watts each side Carbon-reinforced polypropylene cone Rubber surround 1" Silk dome tweeter CEA-2031 compliant speakers Top-mount Depth: 2-15/16" 4 ohms impedance Frequency Response: 65 - 22000 Hz Sensitivity: 90dB 1 year manufactures warranty What is in the box: 2 Woofers 2 Tweeters (each has a 29" length of wire attached) 2 Flush mount housings (with tweeters installed) 2 Tweeter grilles Two 37" Tweeter wires with in-line crossovers 2 Flush mount retention rings 2 Stealth brackets Eight 1-3/16" Screws Eight M4x60mm Machine screws (each screw has a lock washer attached) Eight M4 Nuts 8 Speed clips 8 Split lock washers 8 Spacers Alpine S-S69C owner's manual Warranty information ⚠️Warning:Cancer and Reproductive Harm-www.P65Warnings.ca.gov

2 Pair Alpine R-S69C.2 Component System 600W Peak, 200W RMS R-Series 6x9" Component 2-Way Speakers FOR LIVING LOUD AND HAVING FUN If you play your music loud and want others to know, the R-Series speakers are the match for you. You will enjoy a center sound stage with speakers that play loud and clear without distortion. The R-Series speakers are tuned with an emphasis on the high- and low-end frequencies, so they deliver power while naturally producing bright, active sound. They are the perfect power and performance match for the R-Series subwoofers and amplifiers. MORE OUTPUT FOR MORE FUN The woofers have a large, 35-millimeter (mm) voice coil which allows for more coil windings to fit in the gap. This results in greater heat dissipation and increased power handling, for superior control and output. The R-Series speakers incorporate Alpine’s patented High-Amplitude Multi-Roll Surround (H.A.M.R.) for control and accuracy. The component models use a crossover with in-line, passive design, and reduced footprint, which contributes to easier installation. EXCLUSIVE CONE TECHNOLOGY The R-Series speakers use Alpine’s exclusive cone technology, Carbon Fiber Reinforced Polymer (CFRP), which is a high-strength, lightweight material. CFRP can be custom formed so that its fibers align in the same direction as the curve and shape of the cone, thereby reducing resonant peaks and increasing the speakers’ mid-bass performance and dynamic range. CFRP is also used as a tweeter diaphragm, enabling the speakers to perform into the 45kHz range and making them compliant with High-Resolution Audio playback. BETTER FITMENT WITHOUT SACRIFICING MOTOR FORCE The R-Series speakers use a neodymium magnet which gives them a shorter overall height, compared to other speaker brands. The R-Series speakers also use a new, shallower grill design. The result: An improved fitment design that lets the R-Series speakers fit into tighter install locations without sacrificing motor force. Product Details: Alpine R-S69C.2 Alpine R-Series 6"x9" 2-Way Component Car Speakers (Pair) Power Handling: RMS: 100 Watts Peak: 300 Watts Impedance: 4 Ohms Carbon-fiber reinforced polymer (CFRP) woofer Carbon-fiber reinforced polymer dome tweeter Frequency response: 60Hz - 40 kHz Sensitivity: 90 dB Top-mount depth: 2-7/8" Grilles included Authorized Dealer 1-year Manufacturer's Warranty What is in the R-S69C.2 package: 2 Woofers 2 Woofer grilles 2 Grille badges 2 Tweeters (each has an attached 30" length of wire) 2 Tweeter grilles (installed) 2 Swivel flush mount housings (with tweeters installed) Two crossovers (each has attached input and output wires) 2 Flush mount retention rings 2 Stealth brackets 2 Foam self-adhesive pads 2 Foam self-adhesive rings Eight 1-1/8" Screws 8 Speed-clips Eight M4x60mm Machine screws 8 Nuts 8 Flat washers 8 Split lock washers Four 5" Zip ties 2 Pieces of two-sided tape Warranty information Online product registration notes Important Notice sheet Template and specs on the box R-S69C.2 Owner’s Manual ⚠️Warning:Cancer and Reproductive Harm-www.P65Warnings.ca.gov

Alpine R-S69C.2 Component System 600W Peak, 200W RMS R-Series 6x9" Component 2-Way Speakers + AudioControl DQDX Digital Signal Processor FOR LIVING LOUD AND HAVING FUN If you play your music loud and want others to know, the R-Series speakers match you. You will enjoy a center sound stage with speakers that play loud and clear without distortion. The R-Series speakers are tuned with an emphasis on the high- and low-end frequencies, so they deliver power while naturally producing bright, active sound. They are the perfect power and performance match for the R-Series subwoofers and amplifiers. MORE OUTPUT FOR MORE FUN The woofers have a large, 35-millimeter (mm) voice coil, allowing more coil windings to fit in the gap. This results in greater heat dissipation and increased power handling for superior control and output. The R-Series speakers incorporate Alpine’s patented High-Amplitude Multi-Roll Surround (H.A.M.R.) for control and accuracy. The component models use a crossover with an in-line, passive design and reduced footprint, contributing to easier installation. EXCLUSIVE CONE TECHNOLOGY The R-Series speakers use Alpine’s exclusive cone technology, Carbon Fiber Reinforced Polymer (CFRP), a high-strength, lightweight material. CFRP can be custom formed so that its fibers align in the same direction as the curve and shape of the cone, thereby reducing resonant peaks and increasing the speakers’ mid-bass performance and dynamic range. CFRP is also used as a tweeter diaphragm, enabling the speakers to perform into the 45kHz range and making them compliant with High-Resolution Audio playback. BETTER FITMENT WITHOUT SACRIFICING MOTOR FORCE The R-Series speakers use a neodymium magnet which gives them a shorter overall height, compared to other speaker brands. The R-Series speakers also use a new, shallower grill design. The result: An improved fitment design that lets the R-Series speakers fit into tighter install locations without sacrificing motor force. Product Details: Alpine R-S69C.2 Alpine R-Series 6"x9" 2-Way Component Car Speakers (Pair) Power Handling: RMS: 100 Watts Peak: 300 Watts Impedance: 4 Ohms Carbon-fiber reinforced polymer (CFRP) woofer Carbon-fiber reinforced polymer dome tweeter Frequency response: 60Hz - 40 kHz Sensitivity: 90 dB Top-mount depth: 2-7/8" Grilles included Authorized Dealer 1-year Manufacturer's Warranty What is in the R-S69C.2 package: 2 Woofers 2 Woofer grilles 2 Grille badges 2 Tweeters (each has an attached 30" length of wire) 2 Tweeter grilles (installed) 2 Swivel flush mount housings (with tweeters installed) Two crossovers (each has attached input and output wires) 2 Flush mount retention rings 2 Stealth brackets 2 Foam self-adhesive pads 2 Foam self-adhesive rings Eight 1-1/8" Screws 8 Speed-clips Eight M4x60mm Machine screws 8 Nuts 8 Flat washers 8 Split lock washers Four 5" Zip ties 2 Pieces of two-sided tape Warranty information Online product registration notes Important Notice sheet Template and specs on the box R-S69C.2 Owner’s Manual AudioControl DQDX Black 6 Channel Performance Digital Signal Processor Designed for maximum sound quality & enhanced audio performance, the DQDX is the latest AudioControl processor to incorporate Signal Delay. This process corrects for the varying speaker locations in the vehicle.   General Features: black 6-channel digital sound processor with EQ, crossover, and signal delay 24 dB/octave Linkwitz-Riley crossover selectable crossover frequency: 50-500 Hz separate 7-band graphic EQ for front/rear/subwoofer front/rear/subwoofer level matching with input/output level controls L/R: 10ms Front/sub: 35ms high voltage line driver (maximum output level: 7.5Vrms ACR-3 Dash Control Remote included 12-volt 1-amp turn-on lead output frequency response: 10-22,000 Hz recommended fuse: 2-amp dimensions: 10-1/4"W x 1-3/8"H x 6-1/4"D weight: 3 lbs. warranty: 5 years What is in the DQDX package: 6-Channel DSP/Equalizer/Crossover ACR-3 wired remote control 19.5' Remote cable (RJ-14 plug on both ends) Owner's manual QC checklist Quick reference card ⚠️Warning:This product can expose you to, known to the State of California to cause cancer. For more information, go to P65Warnings.ca.

2 Alpine R-S69C.2 Component System 600W Peak, 200W RMS R-Series 6x9" Component 2-Way Speakers + AudioControl DQDX Digital Signal Processor FOR LIVING LOUD AND HAVING FUN If you play your music loud and want others to know, the R-Series speakers are the match for you. You will enjoy a center sound stage with speakers that play loud and clear without distortion. The R-Series speakers are tuned with an emphasis on the high- and low-end frequencies, so they deliver power while naturally producing bright, active sound. They are the perfect power and performance match for the R-Series subwoofers and amplifiers. MORE OUTPUT FOR MORE FUN The woofers have a large, 35-millimeter (mm) voice coil which allows for more coil windings to fit in the gap. This results in greater heat dissipation and increased power handling, for superior control and output. The R-Series speakers incorporate Alpine’s patented High-Amplitude Multi-Roll Surround (H.A.M.R.) for control and accuracy. The component models use a crossover with in-line, passive design, and reduced footprint, which contributes to easier installation. EXCLUSIVE CONE TECHNOLOGY The R-Series speakers use Alpine’s exclusive cone technology, Carbon Fiber Reinforced Polymer (CFRP), which is a high-strength, lightweight material. CFRP can be custom formed so that its fibers align in the same direction as the curve and shape of the cone, thereby reducing resonant peaks and increasing the speakers’ mid-bass performance and dynamic range. CFRP is also used as a tweeter diaphragm, enabling the speakers to perform into the 45kHz range and making them compliant with High-Resolution Audio playback. BETTER FITMENT WITHOUT SACRIFICING MOTOR FORCE The R-Series speakers use a neodymium magnet which gives them a shorter overall height, compared to other speaker brands. The R-Series speakers also use a new, shallower grill design. The result: An improved fitment design that lets the R-Series speakers fit into tighter install locations without sacrificing motor force. Product Details: Alpine R-S69C.2 Alpine R-Series 6"x9" 2-Way Component Car Speakers (Pair) Power Handling: RMS: 100 Watts Peak: 300 Watts Impedance: 4 Ohms Carbon-fiber reinforced polymer (CFRP) woofer Carbon-fiber reinforced polymer dome tweeter Frequency response: 60Hz - 40 kHz Sensitivity: 90 dB Top-mount depth: 2-7/8" Grilles included Authorized Dealer 1-year Manufacturer's Warranty What is in the R-S69C.2 package: 2 Woofers 2 Woofer grilles 2 Grille badges 2 Tweeters (each has an attached 30" length of wire) 2 Tweeter grilles (installed) 2 Swivel flush mount housings (with tweeters installed) Two crossovers (each has attached input and output wires) 2 Flush mount retention rings 2 Stealth brackets 2 Foam self-adhesive pads 2 Foam self-adhesive rings Eight 1-1/8" Screws 8 Speed-clips Eight M4x60mm Machine screws 8 Nuts 8 Flat washers 8 Split lock washers Four 5" Zip ties 2 Pieces of two-sided tape Warranty information Online product registration notes Important Notice sheet Template and specs on the box R-S69C.2 Owner’s Manual AudioControl DQDX Black 6 Channel Performance Digital Signal Processor Designed for maximum sound quality & enhanced audio performance, the DQDX is the latest AudioControl processor to incorporate Signal Delay. This process corrects for the varying speaker locations in the vehicle. General Features: black 6-channel digital sound processor with EQ, crossover, and signal delay 24 dB/octave Linkwitz-Riley crossover selectable crossover frequency: 50-500 Hz separate 7-band graphic EQ for front/rear/subwoofer front/rear/subwoofer level matching with input/output level controls L/R: 10ms Front/sub: 35ms high voltage line driver (maximum output level: 7.5Vrms ACR-3 Dash Control Remote included 12-volt 1-amp turn-on lead output frequency response: 10-22,000 Hz recommended fuse: 2-amp dimensions: 10-1/4"W x 1-3/8"H x 6-1/4"D weight: 3 lbs. warranty: 5 years What is in the DQDX package: 6-Channel DSP/Equalizer/Crossover ACR-3 wired remote control 19.5' Remote cable (RJ-14 plug on both ends) Owner's manual QC checklist Quick reference card ⚠️Warning:Cancer and Reproductive Harm-www.P65Warnings.ca.gov

Alpine X-S69C 6" x 9" Component System 720W Max, 240W RMS 6" x 9" X-Type 2-Way Component Car Speakers EXPERIENCE DETAIL YOU’VE NEVER HEARD BEFORE The new X-Series speakers combine proven technologies, superior materials, and innovative design to reproduce sound so accurately, you’ll feel like you’re right in front of the performance. HI-RESOLUTION AUDIO Hi-Res Audio is the next level of digital audio for music fans alike and requires an incredibly wide dynamic range to reproduce music with amazing realism and depth. The X-Series speakers are Hi-Rez compatible and when paired with other X-Series components, provide an incredible Hi-Rez Audio experience. CARBON GRAPHITE TWEETER The tweeter’s diaphragm is built from a sheet of carbon graphite which enables it to reproduce frequency ranges in the upper 55kHz range, usually achieved using a harsher, hard dome tweeter like Aluminum or Titanium. Carbon graphite allows us to hit those High-rez audio-compatible frequencies while maintaining the softer, more damped sound qualities of a soft dome. NEW CONE MATERIAL The X-Series’ speaker cone is made from a tightly interwoven Nano-fiber material. The extremely small diameter fibers create a damped, rigid cone structure while staying lightweight. Because of this light rigidity, the X-Series speaker is capable of highly accurate sound reproduction while maintaining a soft tonality. The cone’s resistance to flex ensures it is very little to no discoloration of sound and phase shifts. The result is a highly accurate speaker that is well-staged in front of you. General Features: 6" x 9" X-Type 2-Way Component System Power Handling: Max: 720 W per set/ 360 W per side RMS: 240 W per set/ 120 W per side Recommended power range: 10 - 120W RMS Hi-Res Audio compatible Nano-fiber woofer cone H.A.M.R. surround 1" carbon graphite tweeter Tweeters swivel within flush mounts Adjustable tweeter attenuation: 0dB, +3dB, -3dB Adjustable tweeter phase: Normal or reverse A-Pole type neodymium magnet Top-mount Depth: 3-1/16" Cutout Dimensions: 5-7/8" x 8-7/8" 4 ohms impedance Frequency Response: 45 - 50,000 Hz Sensitivity: 89 dB Authorized Dealer 1-year Manufacturer's Warranty What is in the X-S69C package 2 Woofers 2 Woofer grilles+ 2 Grille badges 2 Tweeters (each has a 26" length of wire attached) 2 Tweeter grilles (installed) 2 Surface mount housings (with tweeters installed) 2 Bottom mount brackets Two tweeter crossovers (each has attached 32" input and 14" output wires) 2 Rectangular adhesives backed pads (crossover) 2 Circular adhesives backed discs (tweeter) Eight M4x60mm Machine screws (with washers attached) 8 Flat washers & 8 Split lock washers Eight 1-1/8" Screws & Eight 5/8" Screws 8 Speed-clips & 4 Speed nuts Four 5" Zip ties Warranty information Important Notice Online product registration information Templates and specs on the box X-S69C owner’s Manual ⚠️Warning:Cancer and Reproductive Harm-www.P65Warnings.ca.gov

Alpine R-S69C.2 Component System 600W Peak, 200W RMS R-Series 6x9" Component 2-Way Speakers FOR LIVING LOUD AND HAVING FUN If you play your music loud and want others to know, the R-Series speakers are the match for you. You will enjoy a center sound stage with speakers that play loud and clear without distortion. The R-Series speakers are tuned with an emphasis on the high- and low-end frequencies, so they deliver power while naturally producing bright, active sound. They are the perfect power and performance match for the R-Series subwoofers and amplifiers. MORE OUTPUT FOR MORE FUN The woofers have a large, 35-millimeter (mm) voice coil which allows for more coil windings to fit in the gap. This results in greater heat dissipation and increased power handling, for superior control and output. The R-Series speakers incorporate Alpine’s patented High-Amplitude Multi-Roll Surround (H.A.M.R.) for control and accuracy. The component models use a crossover with in-line, passive design, and reduced footprint, which contributes to easier installation. EXCLUSIVE CONE TECHNOLOGY The R-Series speakers use Alpine’s exclusive cone technology, Carbon Fiber Reinforced Polymer (CFRP), which is a high-strength, lightweight material. CFRP can be custom formed so that its fibers align in the same direction as the curve and shape of the cone, thereby reducing resonant peaks and increasing the speakers’ mid-bass performance and dynamic range. CFRP is also used as a tweeter diaphragm, enabling the speakers to perform into the 45kHz range and making them compliant with High-Resolution Audio playback. BETTER FITMENT WITHOUT SACRIFICING MOTOR FORCE The R-Series speakers use a neodymium magnet which gives them a shorter overall height, compared to other speaker brands. The R-Series speakers also use a new, shallower grill design. The result: An improved fitment design that lets the R-Series speakers fit into tighter install locations without sacrificing motor force. Product Details: Alpine R-S69C.2 Alpine R-Series 6"x9" 2-Way Component Car Speakers (Pair) Power Handling: RMS: 100 Watts Peak: 300 Watts Impedance: 4 Ohms Carbon-fiber reinforced polymer (CFRP) woofer Carbon-fiber reinforced polymer dome tweeter Frequency response: 60Hz - 40 kHz Sensitivity: 90 dB Top-mount depth: 2-7/8" Grilles included Authorized Dealer 1-year Manufacturer's Warranty What is in the R-S69C.2 package: 2 Woofers 2 Woofer grilles 2 Grille badges 2 Tweeters (each has an attached 30" length of wire) 2 Tweeter grilles (installed) 2 Swivel flush mount housings (with tweeters installed) Two crossovers (each has attached input and output wires) 2 Flush mount retention rings 2 Stealth brackets 2 Foam self-adhesive pads 2 Foam self-adhesive rings Eight 1-1/8" Screws 8 Speed-clips Eight M4x60mm Machine screws 8 Nuts 8 Flat washers 8 Split lock washers Four 5" Zip ties 2 Pieces of two-sided tape Warranty information Online product registration notes Important Notice sheet Template and specs on the box R-S69C.2 Owner’s Manual ⚠️Warning:Cancer and Reproductive Harm-www.P65Warnings.ca.gov

2 Alpine X-S69C 6" x 9" Component System 720W Max, 240W RMS 6" x 9" X-Type 2-Way Component Car Speakers EXPERIENCE DETAIL YOU’VE NEVER HEARD BEFORE The new X-Series speakers combine proven technologies, superior materials, and innovative design to reproduce sound so accurately, you’ll feel like you’re right in front of the performance. HI-RESOLUTION AUDIO Hi-Res Audio is the next level of digital audio for music fans alike and requires an incredibly wide dynamic range to reproduce music with amazing realism and depth. The X-Series speakers are Hi-Rez compatible and when paired with other X-Series components, provide an incredible Hi-Rez Audio experience. CARBON GRAPHITE TWEETER The tweeter’s diaphragm is built from a sheet of carbon graphite which enables it to reproduce frequency ranges in the upper 55kHz range, usually achieved using a harsher, hard dome tweeter like Aluminum or Titanium. Carbon graphite allows us to hit those High-rez audio-compatible frequencies while maintaining the softer, more damped sound qualities of a soft dome. NEW CONE MATERIAL The X-Series’ speaker cone is made from a tightly interwoven Nano-fiber material. The extremely small diameter fibers create a damped, rigid cone structure while staying lightweight. Because of this light rigidity, the X-Series speaker is capable of highly accurate sound reproduction while maintaining a soft tonality. The cone’s resistance to flex ensures it is very little to no discoloration of sound and phase shifts. The result is a highly accurate speaker that is well-staged in front of you. General Features: 6" x 9" X-Type 2-Way Component System Power Handling: Max: 720 W per set/ 360 W per side RMS: 240 W per set/ 120 W per side Recommended power range: 10 - 120W RMS Hi-Res Audio compatible Nano-fiber woofer cone H.A.M.R. surround 1" carbon graphite tweeter Tweeters swivel within flush mounts Adjustable tweeter attenuation: 0dB, +3dB, -3dB Adjustable tweeter phase: Normal or reverse A-Pole type neodymium magnet Top-mount depth: 3-1/16" Cutout Dimensions: 5-7/8" x 8-7/8" 4 ohms impedance Frequency Response: 45 - 50,000 Hz Sensitivity: 89 dB Authorized Dealer 1-year Manufacturer's Warranty What is in the X-S69C package: 2 Woofers 2 Woofer grilles+ 2 Grille badges 2 Tweeters (each has a 26" length of wire attached) 2 Tweeter grilles (installed) 2 Surface mount housings (with tweeters installed) 2 Bottom mount brackets Two tweeter crossovers (each has attached 32" input and 14" output wires) 2 Rectangular adhesives backed pads (crossover) 2 Circular adhesives backed discs (tweeter) Eight M4x60mm Machine screws (with washers attached) 8 Flat washers & 8 Split lock washers Eight 1-1/8" Screws & Eight 5/8" Screws 8 Speed-clips & 4 Speed nuts Four 5" Zip ties Warranty information Important Notice Online product registration information Templates and specs on the box X-S69C owner’s Manual ⚠️Warning:Cancer and Reproductive Harm-www.P65Warnings.ca.gov
