Diamond Audio DPUS8 DMD Series 8" Active Slim Subwoofer w/Bass Enhancement
Guaranteed Fitment
Always the correct partIn-House Experts
We know our products

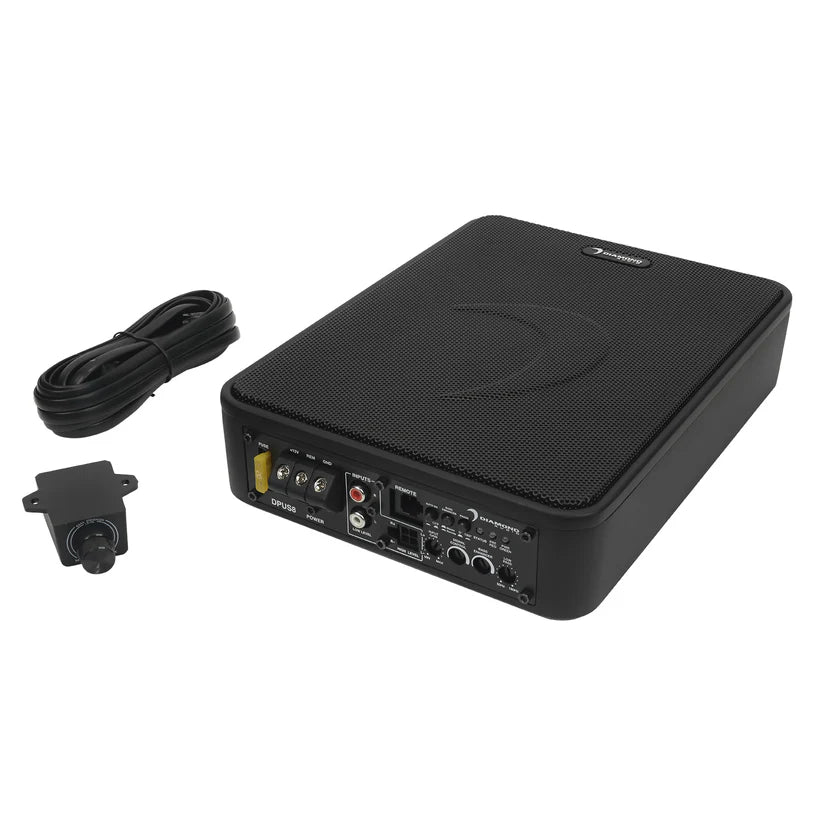

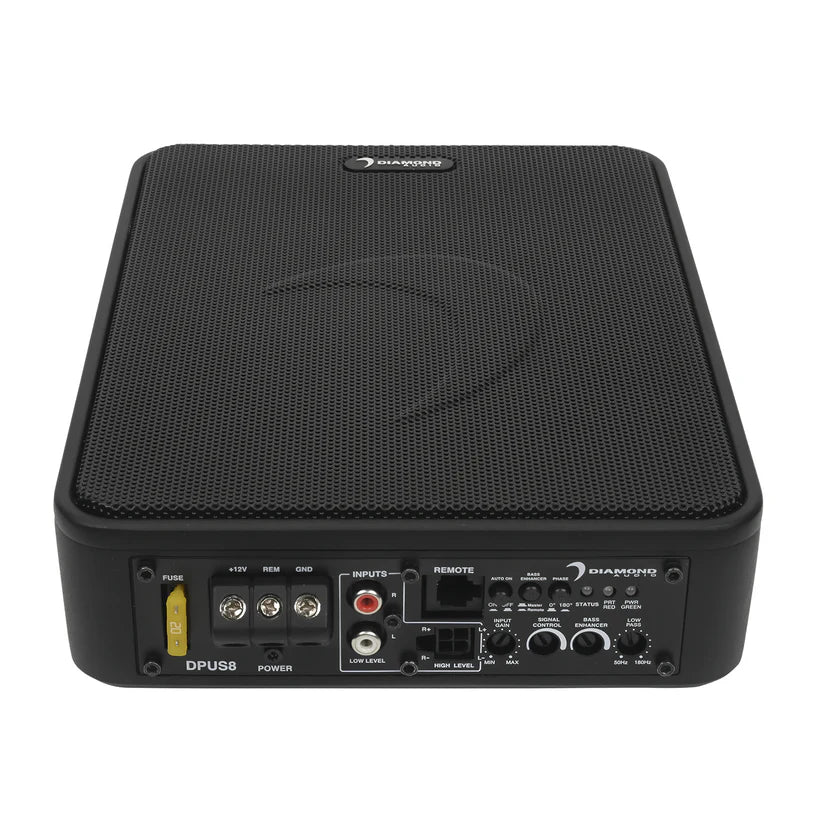

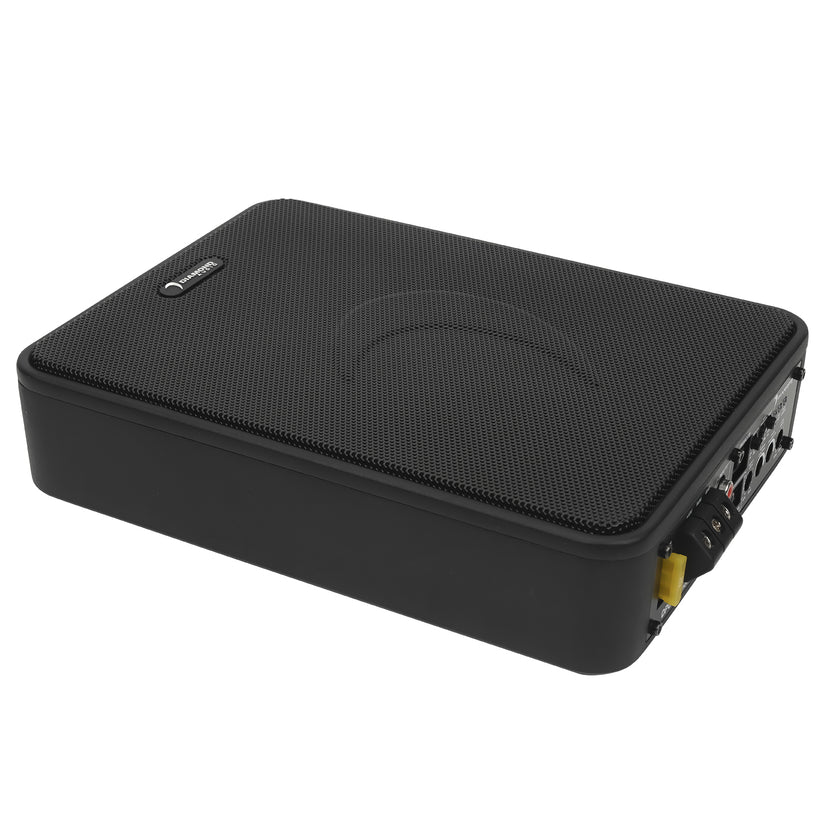

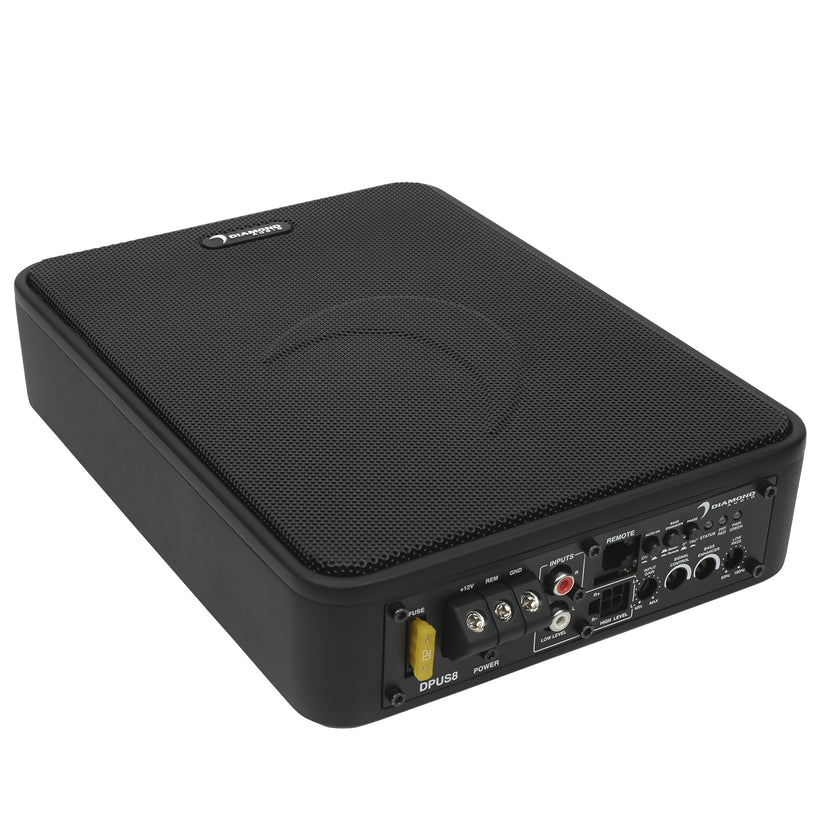

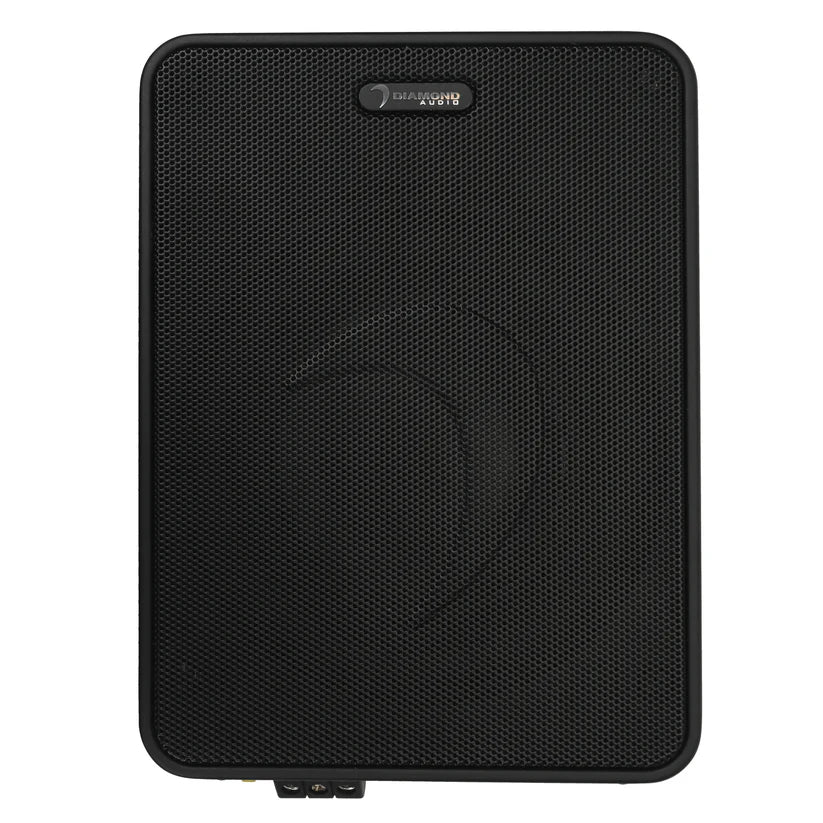

Diamond Audio DPUS8 DMD Series 8" Active Slim Subwoofer w/Bass Enhancement
The DPUS8, an addition to Diamond’s line of under-seat enclosures, boasts a range of unique features designed to simplify installation, address audio issues from OEM vehicle’s audio signal, and alleviate space concerns. For OEM integration, the DPUS8 offers 20V line-level inputs and auto turn-on circuits. To com-bat poor OEM signal quality, the DPUS8 features dual bass controls, one for level and the second with Diamonds’ exclusive bass enhancement circuit. The DPUS8 also includes the standard low-pass and subsonic filters, as well as phase adjustments. Notably, the enclosure/amplifier housing is remarkably compact, ensuring it fits a wide range of applications while still delivering impressive output from the onboard 8” subwoofer and 100WRMS amplifier.
General Features:
- Single 8" Sealed Loaded Subwoofer Enclosure with Built-In Amplifier
- Power Handling:
- Peak: 250 watts
- RMS: 100 watts
- Final Impedance:
- Built-in Class D amplifier

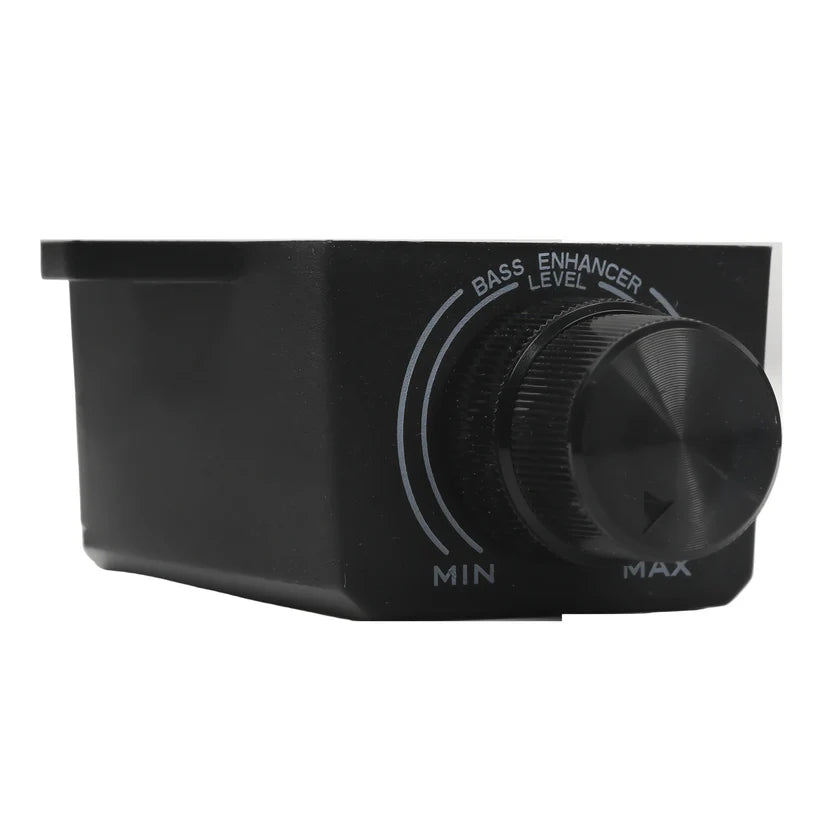

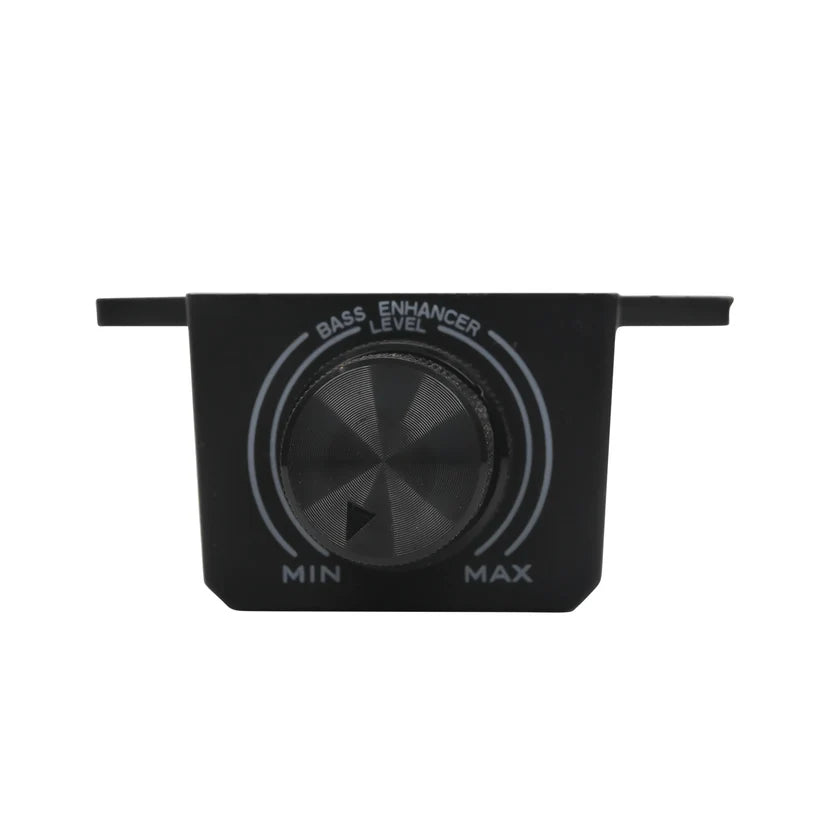

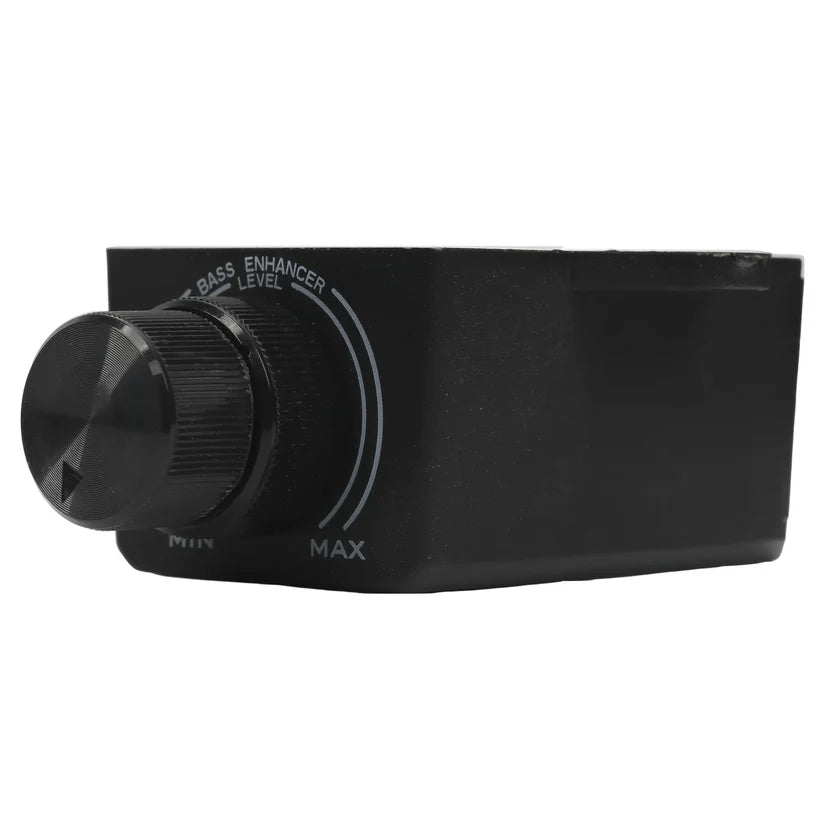

- Includes Remote Bass Level Controller
- Sealed Underseat enclosure
- Compact and fits under vehicle seat without compromising storage
- Simple installation, no major modification required
- 4 AWG gauge power and ground wiring is recommended for installation
- Enclosure Dimensions: 7.1" TD x 7.1" W x 8.84" H
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
Subwoofer Features:
- 8" Subwoofer
- Polypropylene Cone material
- Rubber Surround material
- Magnet Motor Structure
- DMD Series
Amplifier Features:
- Class D Monoblock Amplifier
- Diamond bass enhancement circuit
- PWM MOSFET power supply
- Adjustable input sensitivity (low level and high level)
- Power/Protect/Status LED indicator
- Thermal, short, overload protection
- Phase Adjustment: 0 - 180 degree
- Low-Pass Crossover Frequency: 50 - 180 Hz
- Bass Boost: 0 - 16 dB
- Subsonic Filter: 20 Hz (fixed)
- Speaker-level (high-level) inputs (20 volts)
- Fuse Rating: 20A x 1
Enclosure Features:
- 8" Sealed Enclosure
- Super slim enclosure design
- Box Finish: Die-cast Black Aluminum
Warning:
This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to P65Warnings.ca.
