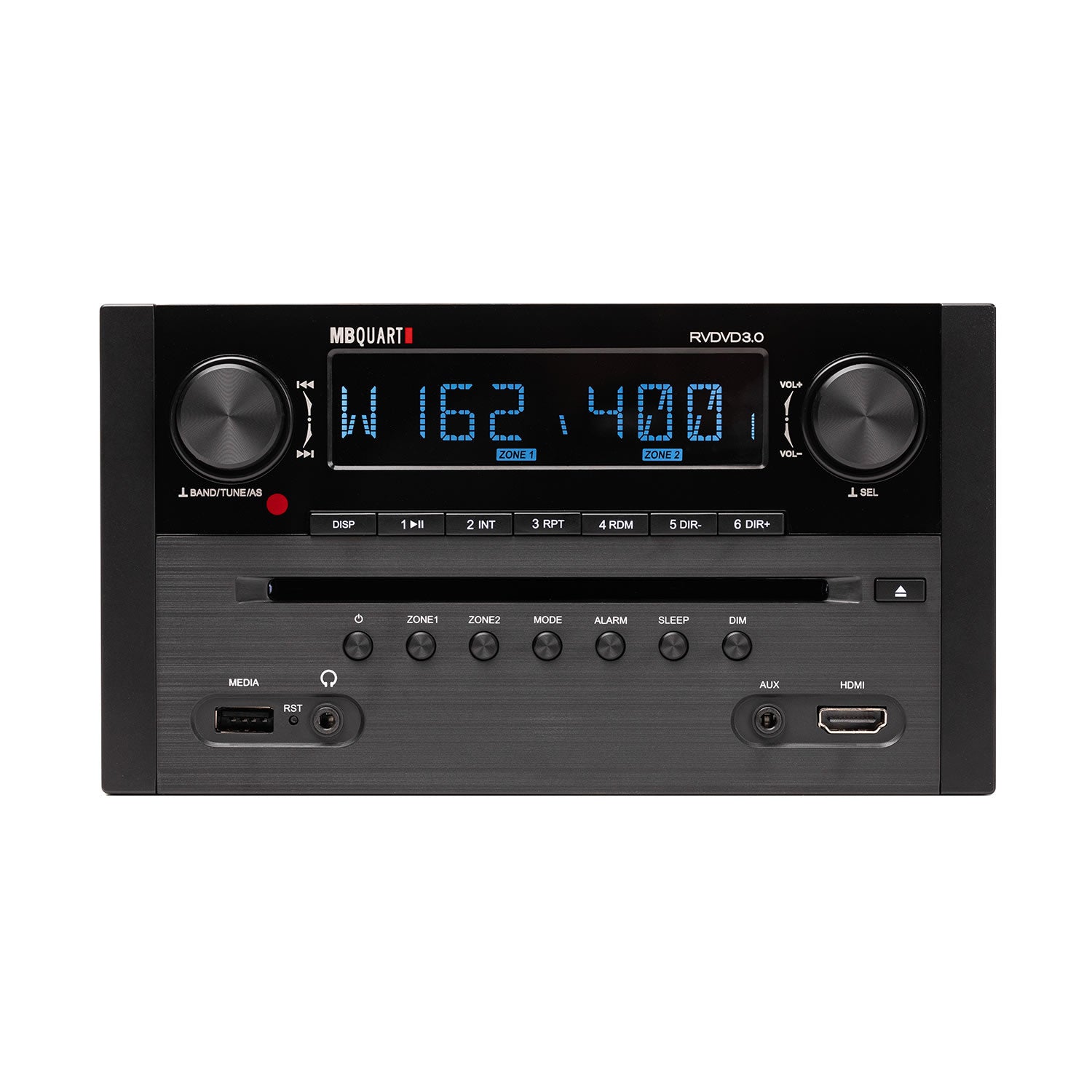

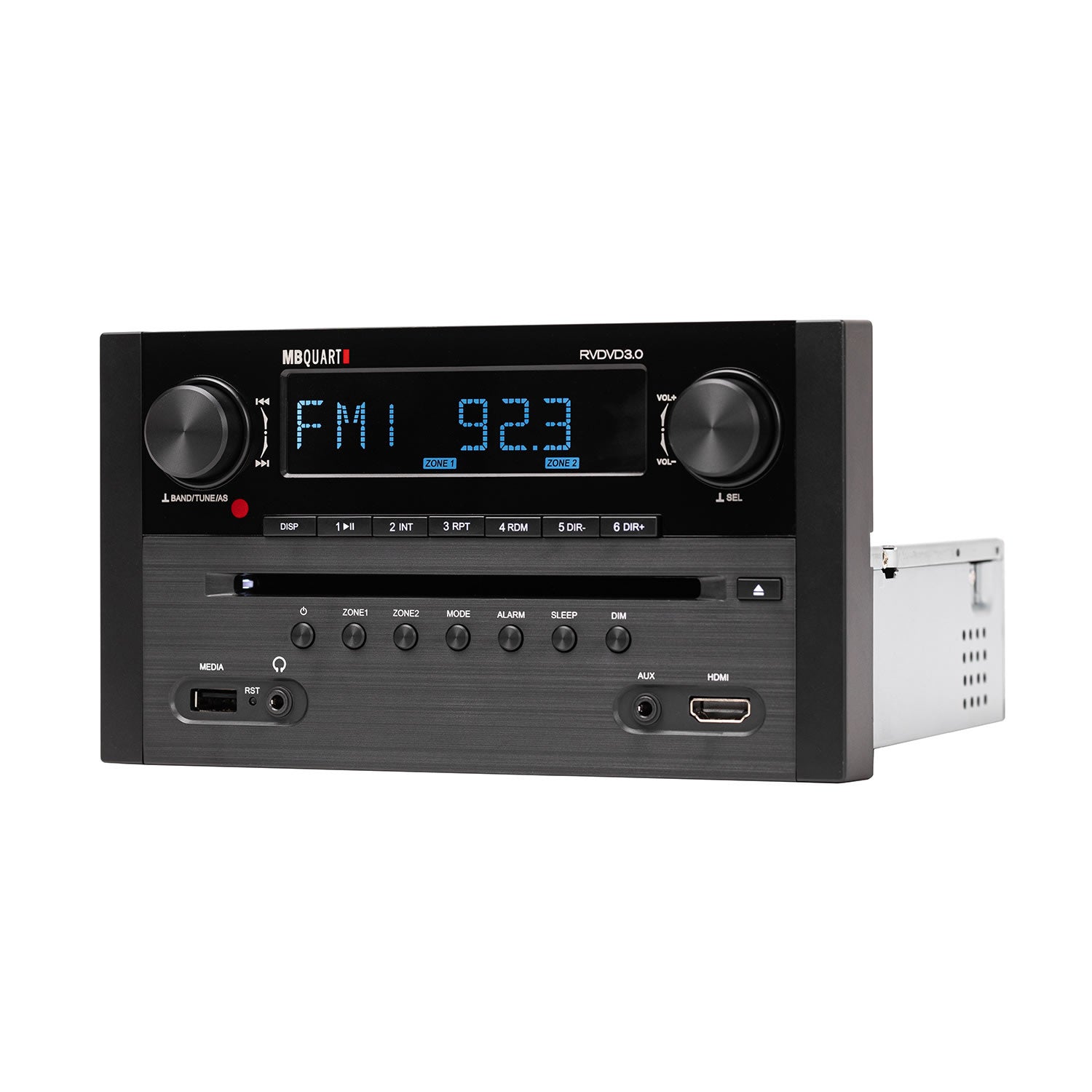

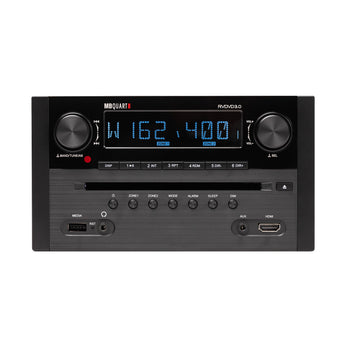

MB Quart RVDVD3.0 digital multimedia, multi-zone audio control, 160 Watt RV source unit with DVD, AM/FM, weather band and Bluetooth 4.0. Full function remote included.
General Features:
-
Apple® Control
Quick control and access of iTunes collection with iPhone, iPod and iPad. -
Source Type
AM/FM/Bluetooth®, DVD -
Input Types
Bluetooth, RCA, USB, HDMI. Audio: CDDA,MP3,AC3,DTS,WMA. Picture: JPG, JPEG. Video: 720x576 - DAT, MPG, MPEG, MPA, MPE, VOB, AVI, MP4, DIV, DIVX, MOV, 3GP, M4A, FLV, SWF. -
Bluetooth® Connect
Bluetooth® Connect allows your phone or other Bluetooth enabled device to be quickly paired to the controller without a complicated pairing process. -
Secure Simple Pairing™
Quick and secure wireless connection between your Bluetooth enabled device. This reliable connection is impervious to outside interference, providing a lock-tight connection to your audio system. -
Quick-Pair™
No more frustration with trying to pair. When the unit powers up, it immediately connects to the last device connected. For a first time connection, you only have to select "MB Quart" from your Bluetooth menu and you are connected, QUICKLY. -
Built-In Power
Four channels of output. These channels remain active when running external amplifiers (RCA Output) to run additional speakers in the vehicle. -

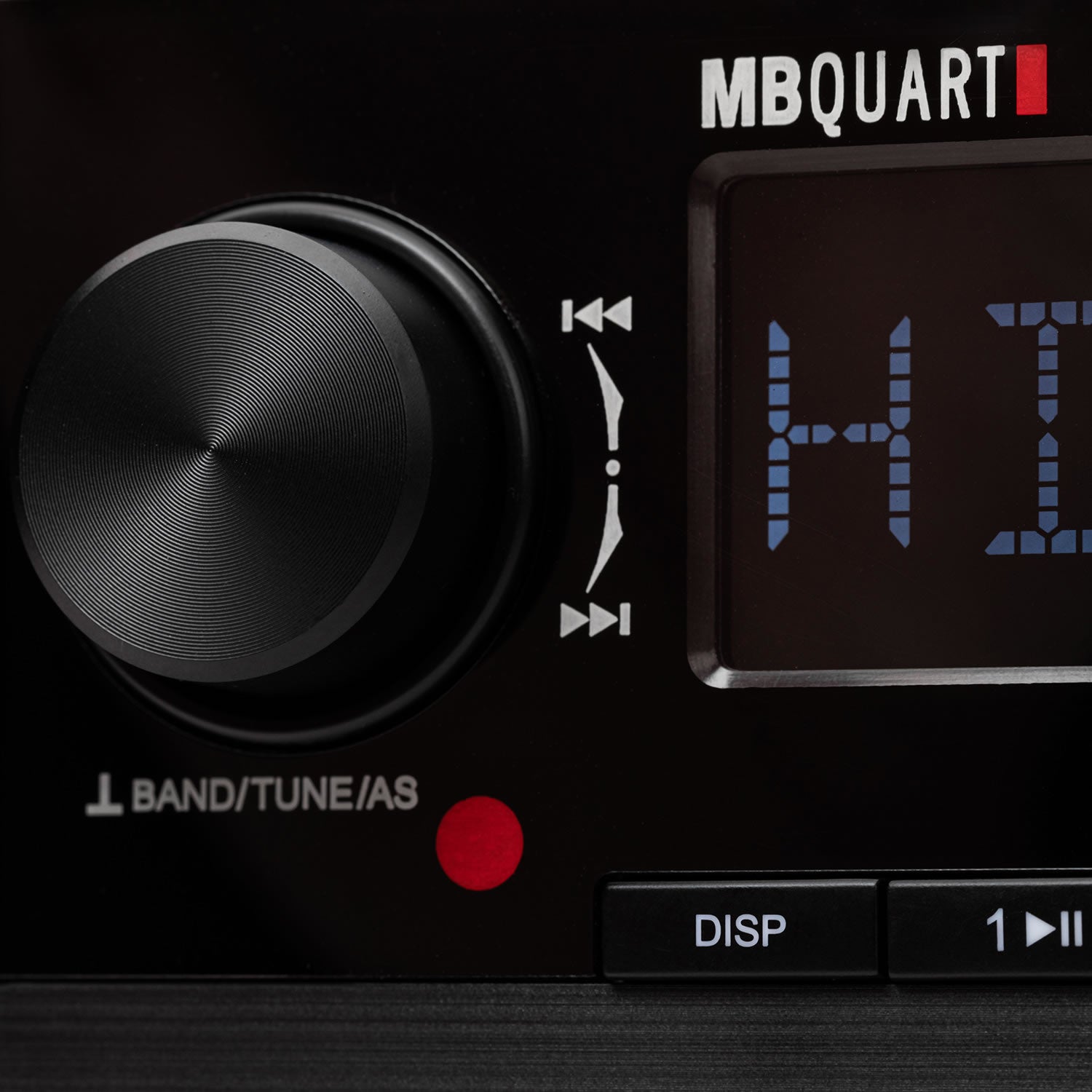

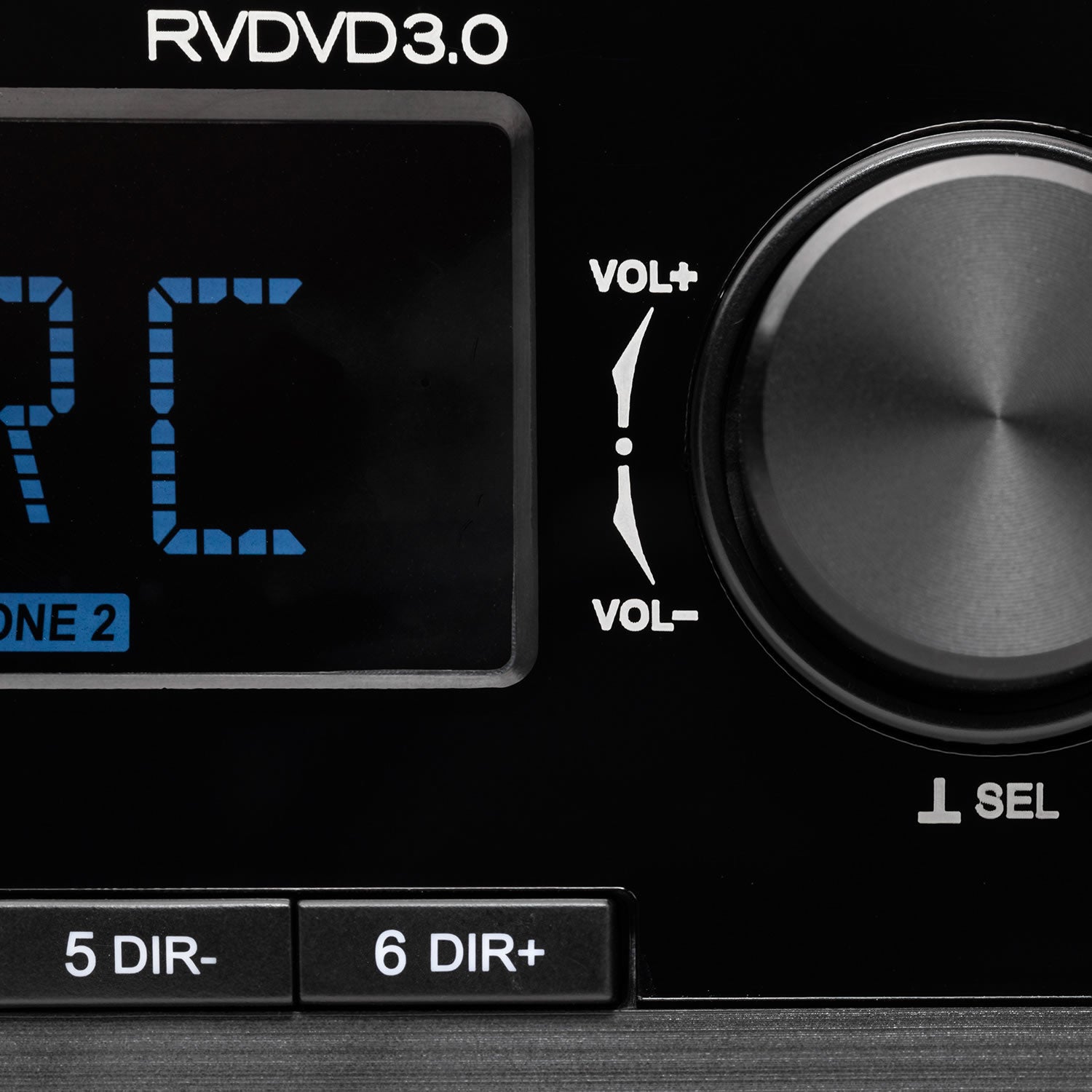

Control Method
Unit is adjusted by master knob and menu selection. -
AM/FM Tuner Presets
AM: 12 station, FM: 18 station. AM1, AM2, FM1, FM2, FM3 each memorize 6 stations. 5 Weather Band Stations: Are preset from factory. -
Frequency Range
FM: 87.5-108MHz, AM: 520-1710kHz, Weather Band: 162.400-2162.550MHz -
Weather Band
Stay alert to changing weather conditions when on the road. -
Video Input

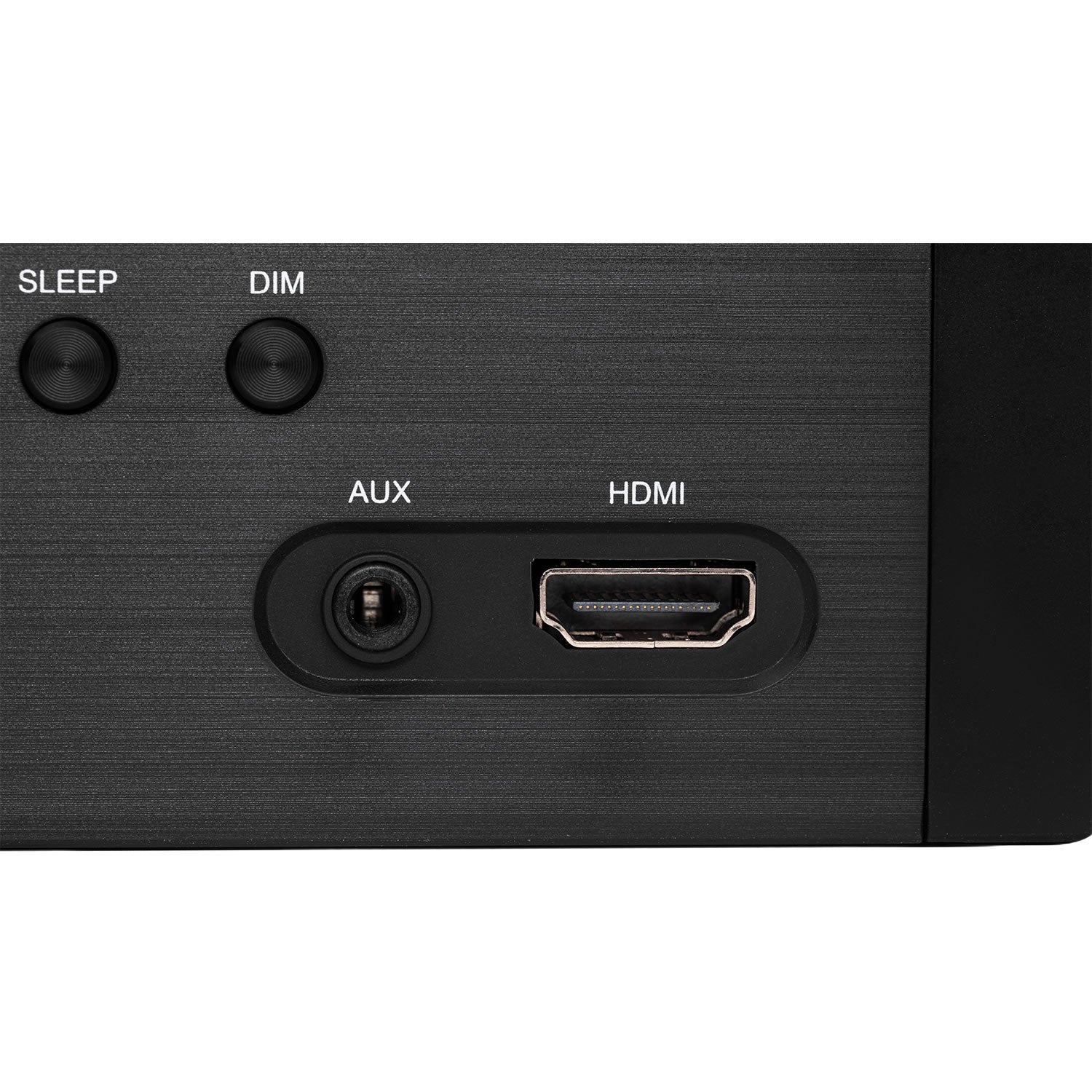

HDMI & RCA (In/Out) -
Additional Inputs
HDMI THRU PUT: All audio and video from satellite or other digital services are pushed to the TV monitor and audio system. -

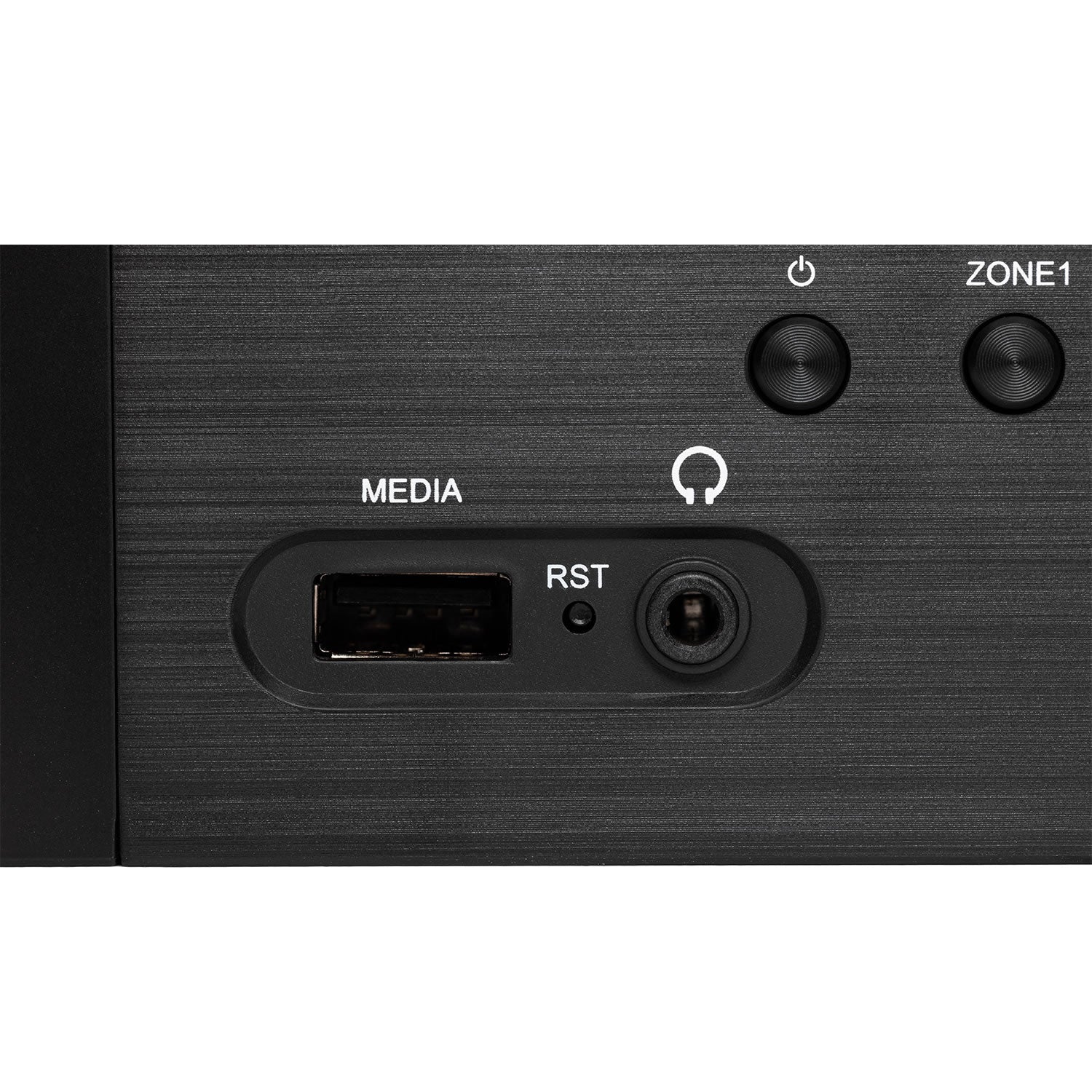

USB / Apple® / Charging Port
Yes -
Bluetooth® Version
Version 4.0 -
User Presets
FM1, FM2, FM3, AM, WB -
Dual Audio Zone Capability
Control volume in two different areas independently, such as passenger area and outdoor speakers. -
Additional Features
ALARM CLOCK: On/Off Options, Alarm, Sleep, Power Up, Beep.
Specifications:
-
Type
Source Unit -
Brand
MB Quart -
Series
RV -
Category
RV -
Condition
New -
Color
Black -
Model Replaced
RVDVD2.0 -
Warranty
1 Year -
Compatible Vehicles
Universal -
Source Unit Tuner Section FM Stereo Frequency Range
87.5MHz-108MHz -
Source Unit Bluetooth Range (ft)
32 -
Source Unit RMS Power Output (watts)
4 x 20 -
Source Unit Peak Power Output (watts)
4 x 40 -

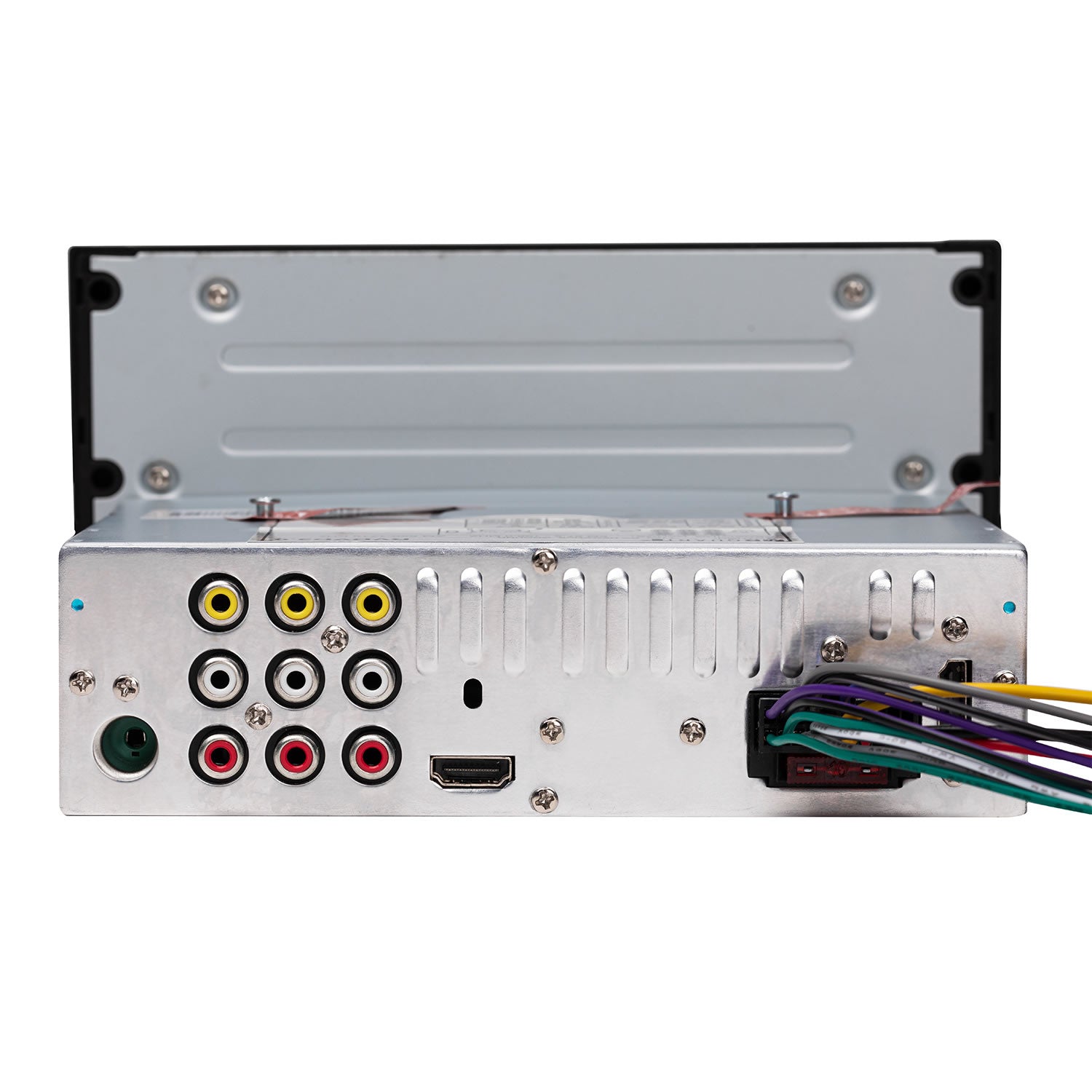

Source Unit Pre-amp Outputs (Y/N #)
AUDIO: 2 RCA Pair – Front/Rear, AUDIO: Headphones – Front Panel, VIDEO: 1 Video RCA – Video Output, VIDEO: Video 2 – In/Out, Yes -
Source Unit Pre-amp Voltage
2.0V -
Source Unit Minimum Impedance (ohms)
4 -
Source Unit Display Type
LCD -
Source Unit Display Backlit
Yes -
Source Unit Dimensions Mounting Hole (in)
7.0 x 2.0 -

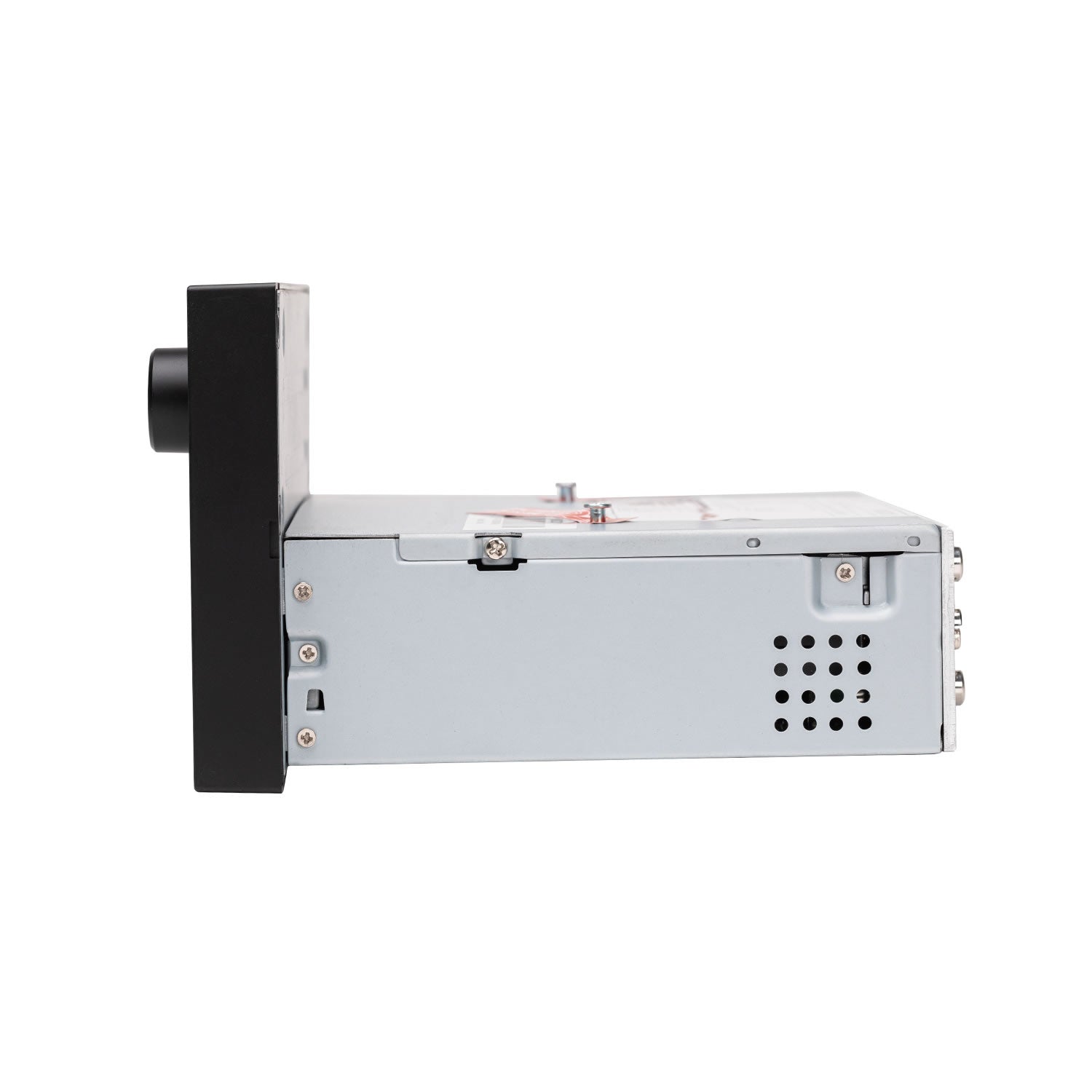

Source Unit Dimensions Total Mounting Depth (in)
5.9 -
Source Unit Dimensions Mounting Bezel (Round) (in)
7.87 x 4.33 x 0.74 - Additional Details MAXIMUM THD+N AT 4 OHMS: 83.3dBA, IDLE CURRENT: 0.3A, MAXIMUM UNDISTORTED PREAMP VOLTAGE (WITH 20K OHM LOAD): 2 Volts, SIGNAL TO NOISE RATIO OF LINE LEVEL OUTPUTS (AT MAX VOLUME): -89.3dBA, PREAMP FREQUENCY RESPONSE (+/- 3.0DB): DVD/CD 20Hz-20KHz / Bluetooth 20Hz-20KHz / Aux 10Hz-20KHz, AMPLIFIER FREQUENCY RESPONSE (+/- 3.0DB): DVD/CD 20Hz-20KHz / Aux 10Hz-20KHz / Bluetooth: 20Hz-16.8KHz, STEREO SEPARATION (AUX INPUT): -64dB @ 5kHz, FM MONO USABLE SENSITIVITY: 5.2μV, AM MONO USABLE SENSITIVITY: 21.5μV, DISC LOAD TIME: 14.9s, TRACK CHANGE TIME: 2.2s
