Yorkville Sound PSA1, Paraline Series Loudspeaker System with Active Full Range - 700W
Guaranteed Fitment
Always the correct partIn-House Experts
We know our productsThe Yorkville Sound PSA1 is Paraline Series active full-range loudspeaker system that delivers the clarity and precision of a complex line array system in a compact, user-friendly format. Innovative cabinet design uses Yorkville Sound's proven Paraline high-frequency lens technology pioneered in our flagship VTC Elevation Series line array cabinets.

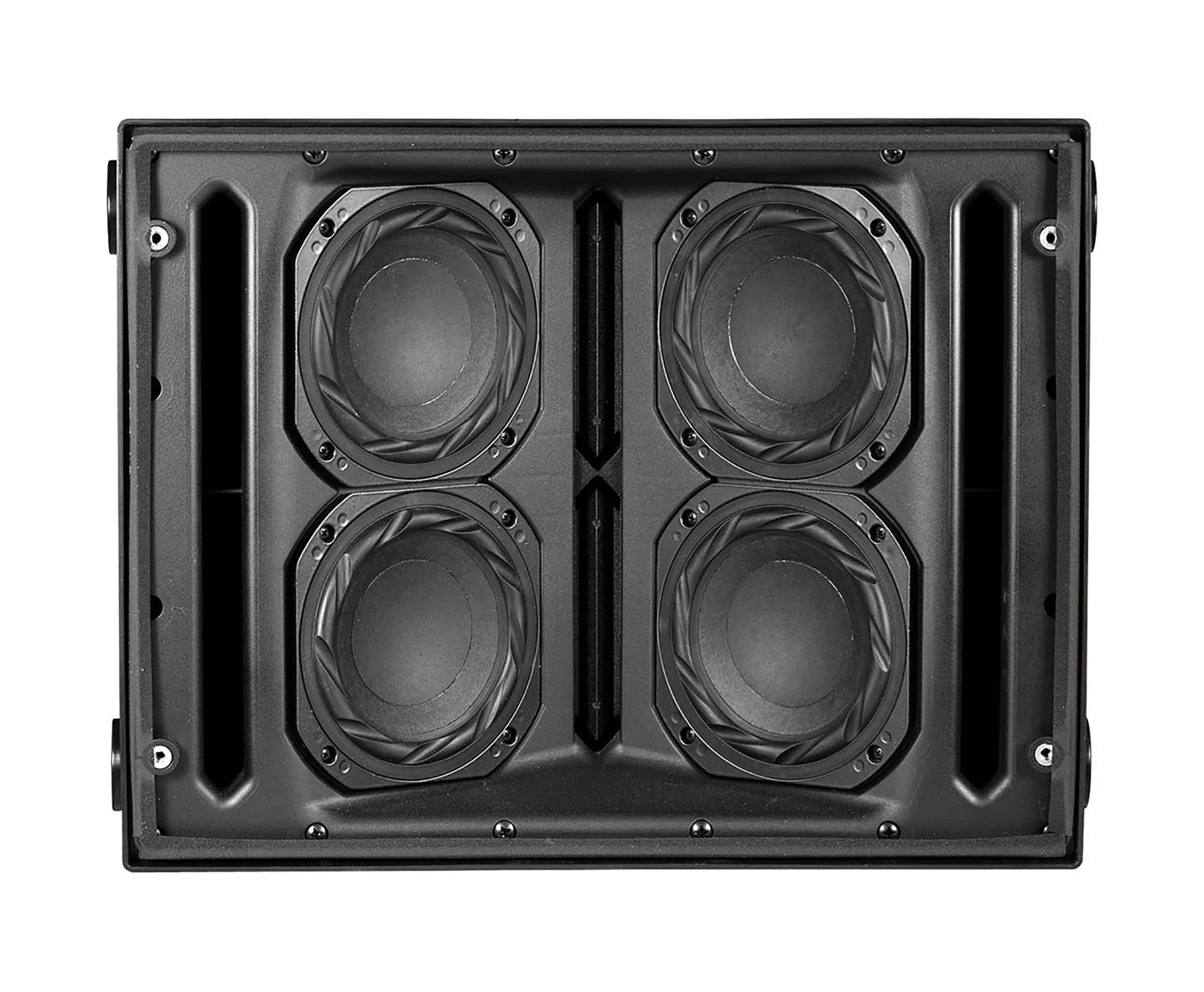

Two BMS 1.75-inch compression drivers mounted to the patented Paraline lens delivers a focused 15-degree vertical dispersion and wide 110-degree horizontal coverage. The 6-inch woofers provide a tight and ultra-responsive low-frequency program.

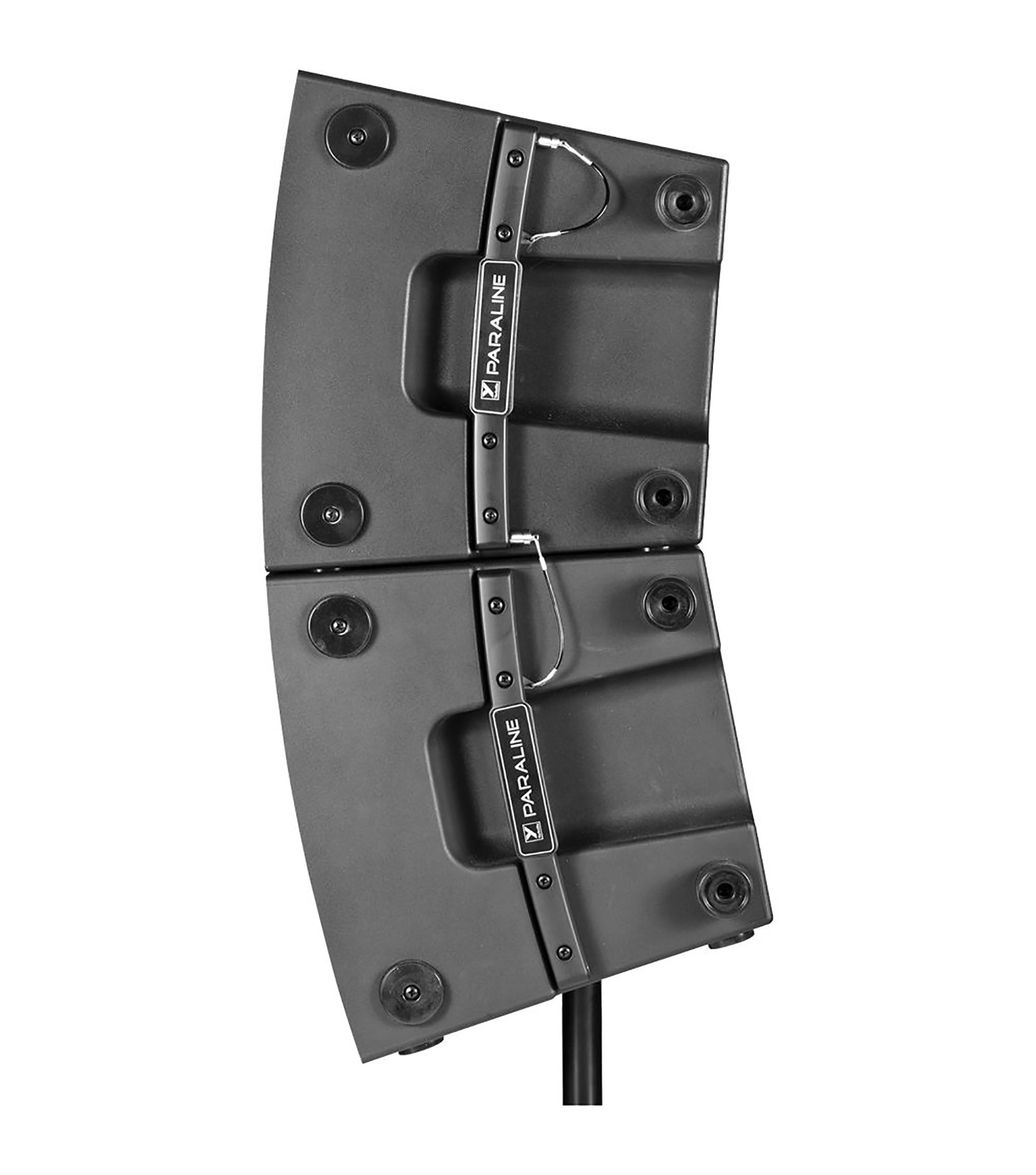

Ideal for mobile PA applications in venues where access to complex trussing or roof hangs isn't practical, the Yorkville PSA1 cabinet mounts quickly and securely on a typical speaker stand. Innovative dual position stand mount offers two potential cabinet angles for expanded setup options. Up to two PSA1 cabinets can be stacked safely and securely on a single traditional stand.
Product Specifications:
Active or Passive: Active
Max SPL (dB): 128dB Peak (125dB Continuous)
Frequency Response (Hz +/- 3dB): 75Hz-20K
Crossover Frequency (Hz): 1.2K
Driver Configuration: 2x1", 4x6"
LF Driver(s): 4x6-inch neo with 45mm VC
LF Program Power (Watts): 675 Watts Program (1000 Watts Peak)
LF Impedance (Ohms): 2 Ohm Load
LF Protection: Excursion, RMS
HF Power Amplifier (Watts): 75W
HF Amplifier Type: 2-Tier Class H
LF Power Amplifier (Watts): 625W
LF Amplifier Type: Class D
Power Switch: Yes
Power Consumption (typ/max) 135 VA / 225 VA
Inputs 1 Combijack (XLR / 1/4-inch)
EQ Controls: HF Boost switch, Fullrange/Sub switch
LED Indicators: Power, Limit, Clip
Dimensions (DWH xbackW, inches): 14.5 x20.5 x16
Weight (lbs/kg): 52 / 23.6
