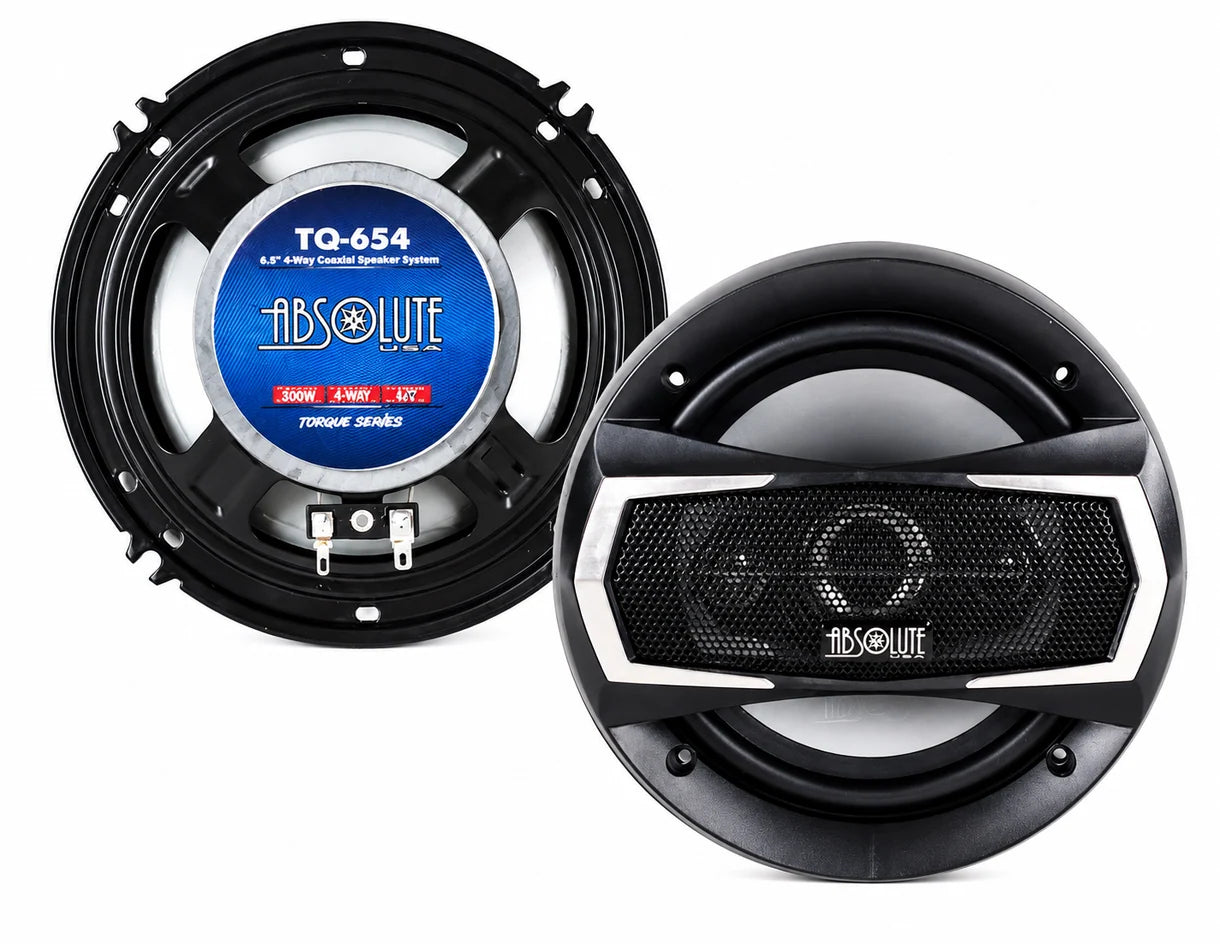

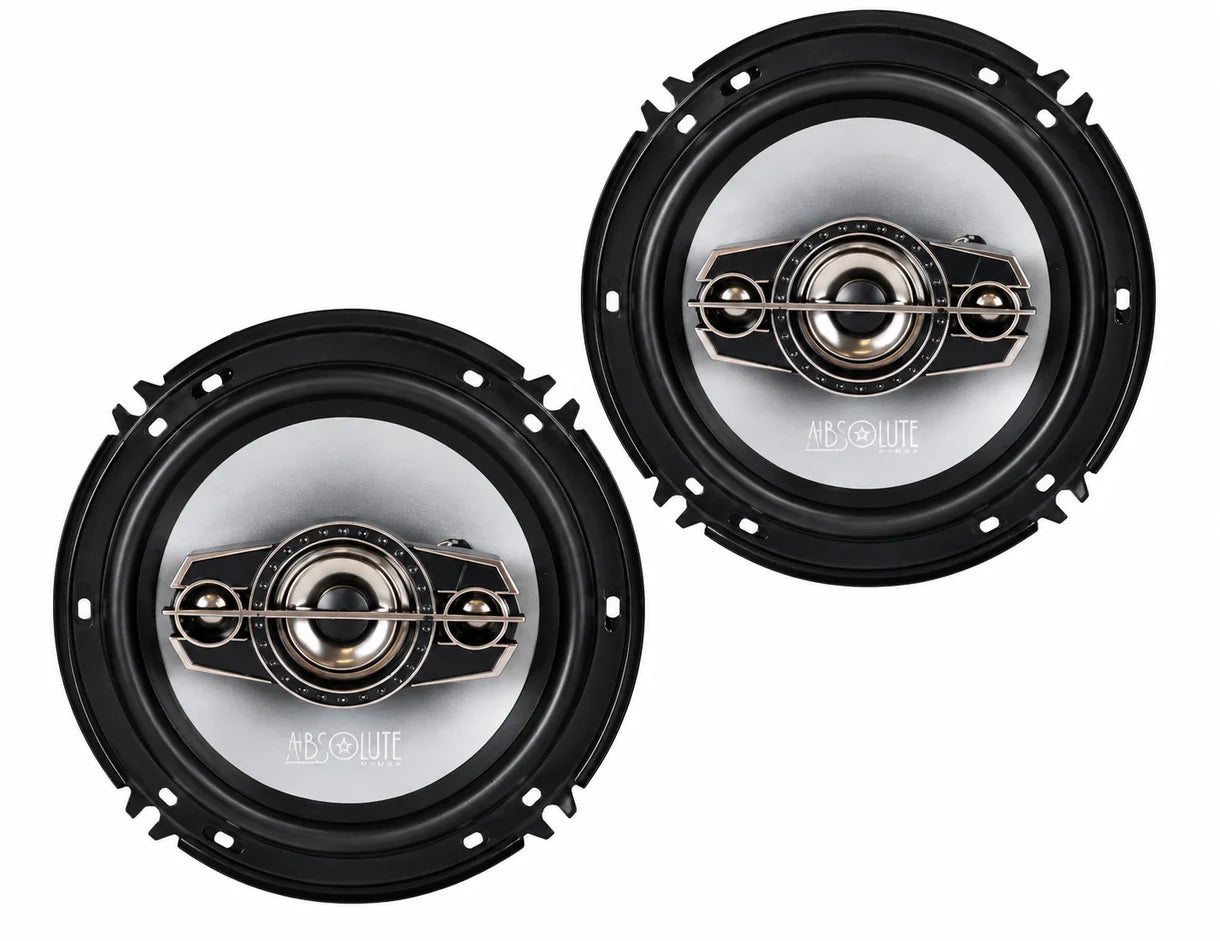

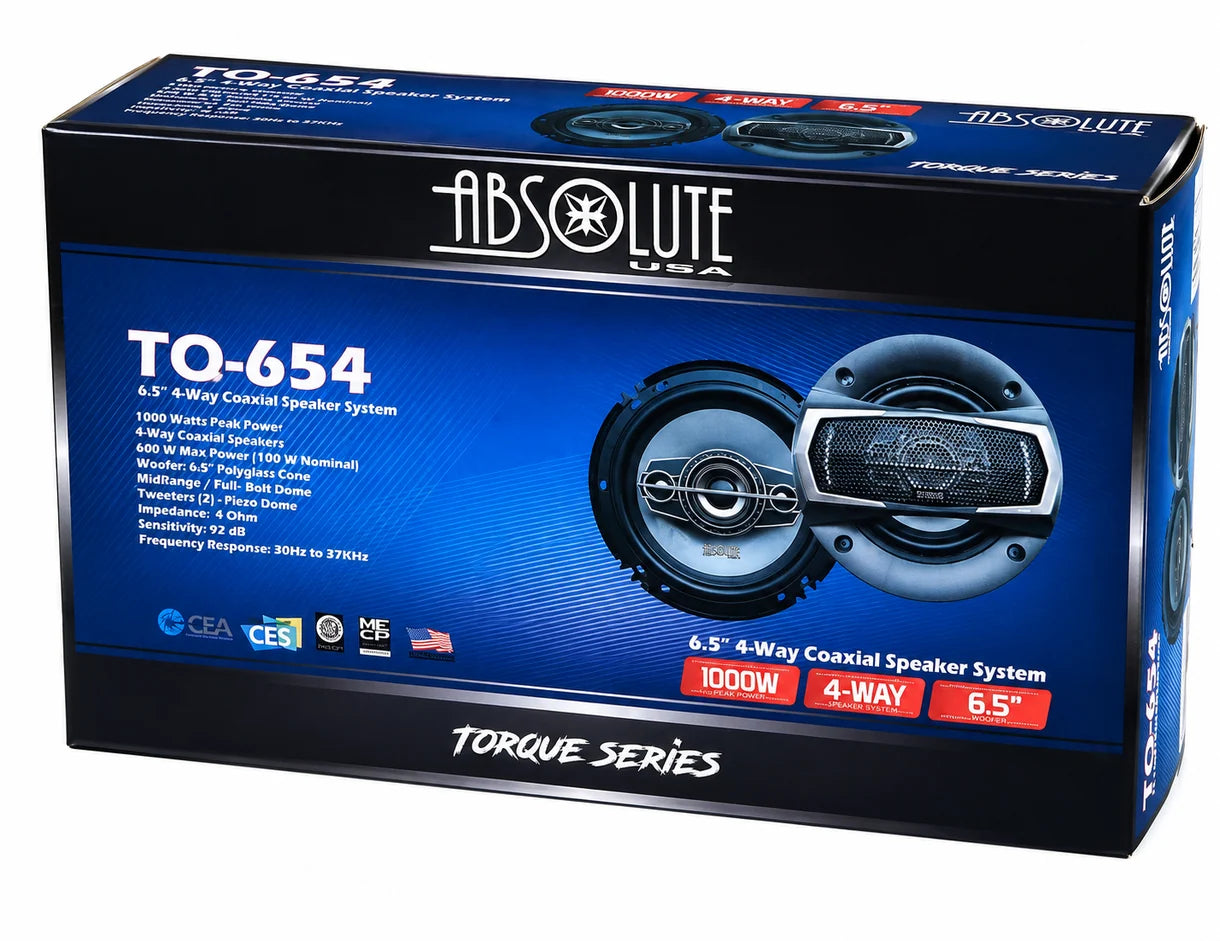

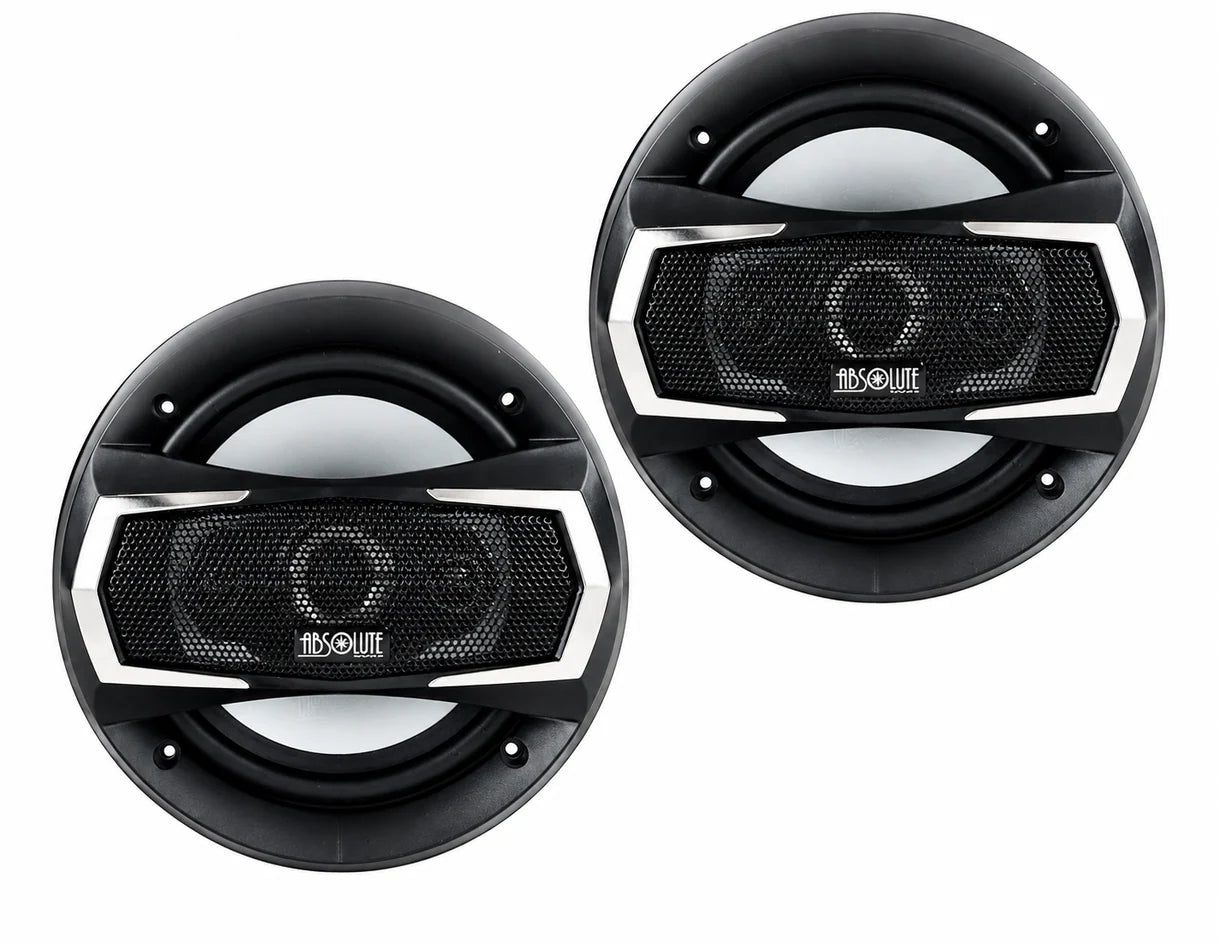

Absolute USA TQ-654 6.5" 4-Way Front & Rear Car Speakers with Metra 82-5605 Mounting Adapters and 72-5602 Wiring Harnesses for 2015–2022 Ford Transit

Upgrade your Ford Transit's factory audio system with this Absolute USA TQ-654 6.5-inch 4-way front-and-rear speaker bundle. Designed for compatible 2015–2022 Ford Transit models, this package includes four TQ Series coaxial speakers, two pairs of Metra 82-5605 speaker mounting adapters, and two pairs of Metra 72-5602 speaker wiring harnesses for replacing compatible factory speaker locations.

Each Absolute USA TQ-654 speaker features a grey polycarbonate woofer cone, a durable butyl rubber surround, a 1-inch polypropylene dome tweeter, plus additional piezo tweeter and midrange components for full-range sound reproduction. With 400 watts maximum power handling per pair, 4-ohm impedance, 92dB sensitivity, and a 30Hz–27kHz frequency response, these speakers are designed to deliver clear vocals, detailed high frequencies, and balanced audio performance in compatible factory and aftermarket car audio systems.

General Features

• Ford Transit Speaker Upgrade Bundle: Designed for compatible 2015–2022 Ford Transit models with supported factory speaker locations.

• Four 6.5-Inch Coaxial Speakers: Includes two pairs of Absolute USA TQ-654 speakers for compatible front and rear applications.

• 4-Way Full-Range Design: Multiple speaker elements reproduce low, midrange, and high frequencies for detailed audio reproduction.

• 400W Maximum Power Per Pair: Each pair of TQ-654 speakers is rated for 400 watts maximum power handling.

• 50W RMS Power Per Pair: Designed for compatible factory head units and aftermarket audio systems.

• Combined Speaker Power Handling: Two pairs provide 100W RMS and 800W maximum rated power handling.

• Grey Polycarbonate Woofer Cones: Designed for responsive midrange and low-frequency sound reproduction.

• Butyl Rubber Speaker Surrounds: Durable rubber construction supports controlled speaker movement.

• 1-Inch Polypropylene Dome Tweeters: Reproduce detailed high-frequency audio.

• Additional Piezo Drivers: Piezo tweeter and midrange components support the 4-way speaker configuration.

• Integrated Tweeter Crossovers: Built-in crossover components help distribute audio frequencies to the appropriate speaker elements.

• High-Temperature Aluminum Voice Coils: 1-inch voice coils support dependable speaker operation.

• 30 oz Magnet Structures: Provide the magnetic motor assembly for the speaker drivers.

• Heavy-Duty Stamped Steel Baskets: Offer a stable speaker mounting structure.

• 4-Ohm Speaker Impedance: Suitable for compatible factory and aftermarket car audio equipment.

• 92dB Sensitivity: Supports efficient sound reproduction with properly matched audio systems.

• Wide Frequency Response: 30Hz–27kHz frequency range supports full-range music playback.

• 2.5-Inch Mounting Depth: Designed for compatible vehicle speaker openings with adequate clearance.

• Metra Speaker Mounting Adapters: Includes two pairs of Metra 82-5605 mounting plates for compatible Ford applications.

• Factory Speaker Wiring Harnesses: Includes two pairs of Metra 72-5602 harnesses to connect aftermarket speakers to compatible Ford factory wiring.

• Protective Speaker Grilles Included: Speaker grilles are supplied with the TQ-654 speaker sets.

• Mounting Hardware Included: Speaker mounting hardware is supplied for compatible applications.

• Factory Speaker Replacement: Provides a convenient combination of speakers and installation accessories for compatible vehicle audio upgrades.

Specifications

Absolute USA TQ-654 Speakers

• Brand: Absolute USA

• Model: TQ-654

• Series: TQ Series

• Product Type: Automotive Coaxial Speakers

• Speaker Size: 6.5"

• Speaker Configuration: 4-Way

• Speaker Design: Full-Range Coaxial

• Quantity: 4 Speakers (2 Pairs)

• Nominal Impedance: 4 Ohms

• Frequency Response: 30Hz–27kHz

• Sensitivity: 92dB

Power Handling

• RMS Power Handling: 50 Watts Per Pair

• Maximum Power Handling: 400 Watts Per Pair

• Combined RMS Power Handling: 100 Watts (2 Pairs)

• Combined Maximum Power Handling: 800 Watts (2 Pairs)

Woofer Construction

• Woofer Cone Material: Grey Polycarbonate

• Woofer Surround: Butyl Rubber

• Voice Coil Size: 1"

• Voice Coil Type: High-Temperature Aluminum

• Magnet Structure: 30 oz

• Speaker Basket: Heavy-Duty Stamped Steel

High-Frequency Components

• Main Tweeter: 1" Polypropylene Dome

• Additional Drivers: Piezo Tweeter and Midrange Components

• Crossover: Integrated Tweeter Crossover

• Speaker Configuration: 4-Way Coaxial

Mounting Dimensions

• Speaker Size: 6.5"

• Mounting Depth: 2.5"

• Mounting Application: Compatible Ford Factory Speaker Locations

• Speaker Grilles: Included

• Mounting Hardware: Included

Metra 82-5605 Speaker Mounting Adapters

• Brand: Metra

• Model: 82-5605

• Product Type: Aftermarket Speaker Mounting Plates

• Speaker Size: 6.5"

• Vehicle Application: Select Ford Vehicles

• Quantity: 2 Pairs (4 Adapters)

• Purpose: Adapt Compatible Factory Speaker Openings for Aftermarket Speakers

Metra 72-5602 Speaker Wiring Harnesses

• Brand: Metra

• Model: 72-5602

• Product Type: Aftermarket Speaker Wiring Harness

• Vehicle Application: Select Ford Vehicles

• Quantity: 2 Pairs (4 Harnesses)

• Connection Type: Factory Speaker Wiring to Aftermarket Speakers

• Purpose: Simplify Compatible Speaker Wiring Connections

Compatibility

Designed for select Ford vehicles with compatible factory speaker locations, including:

• Ford Transit: 2015–2022

• Ford EcoSport: 2018

• Ford Edge: 2015–2018

• Ford Escape: 2013–2017

• Ford Focus: 2012–2018

• Ford Fusion: 2013–2018

• Ford Mustang: 2015–2022

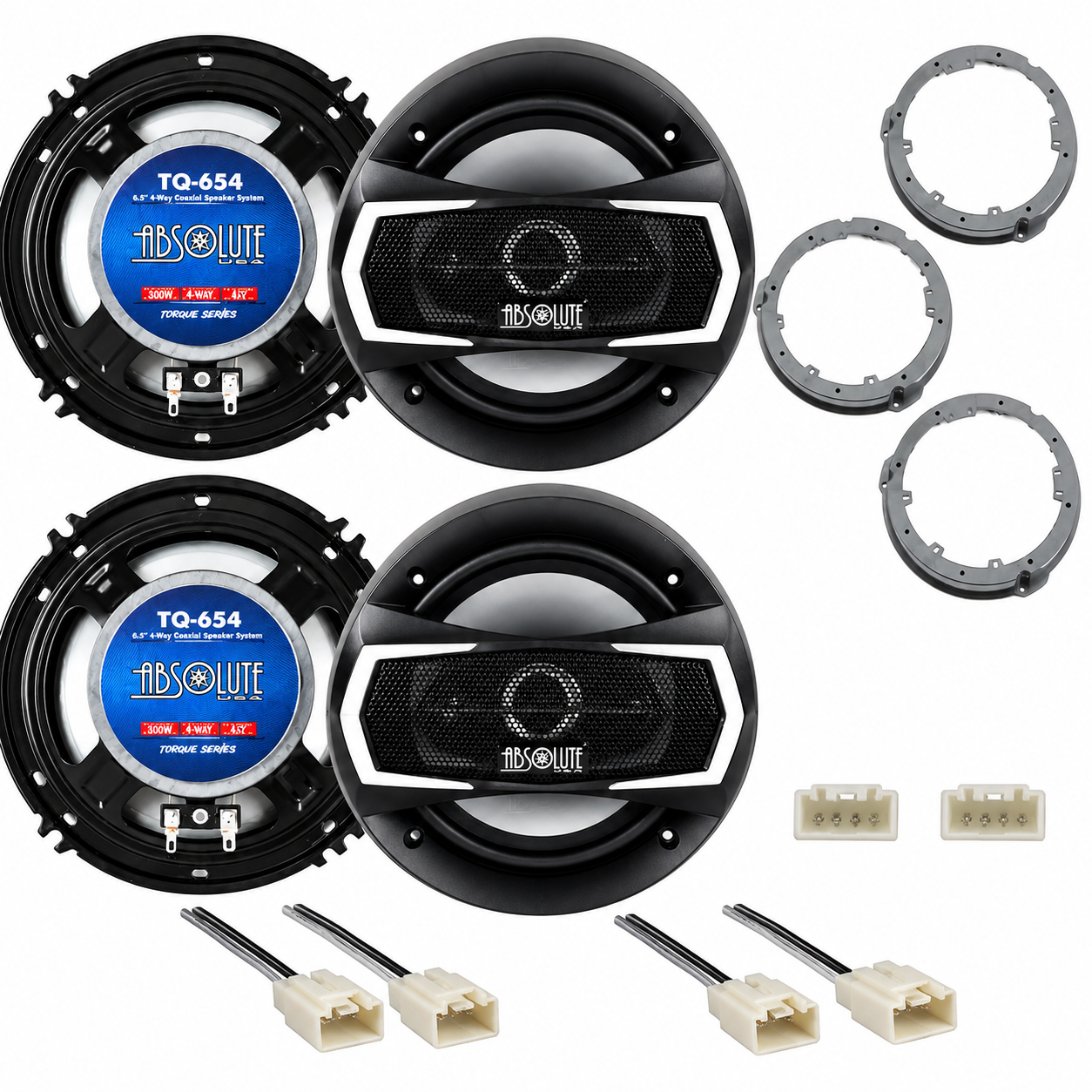

Package Includes

• (2 Pairs) Absolute USA TQ-654 6.5" 4-Way Coaxial Car Speakers

• (2 Pairs) Metra 82-5605 Speaker Mounting Adapters (2 Pairs)

• (2 Pairs) Metra 72-5602 Speaker Wiring Harnesses (2 Pairs)
