Rockford Fosgate Two Punch P3 12" Subwoofers in a Ported Enclosure with a Punch Series P1000X1bd Amplifier
Guaranteed Fitment
Always the correct partIn-House Experts
We know our products
Rockford Fosgate Two Punch P3 12" Subwoofers in a Ported Enclosure with a Punch Series P1000X1bd Amplifier
Rockford Fosgate Punch P1000X1bd Mono subwoofer amplifier 1,000 watts RMS x 1 at 1 ohm
The Punch P1000X1bd mono amplifier pumps out 1,000 Watts into a 1-Ohm load. The Class-BD technology produces bass more efficiently over traditional amps, and its frequency response is optimized for subwoofers. With its super-efficient Class-BD circuit topology, the P1000X1bd assures maximum BOOM for your buck! Due to its dedicated low-frequency response, this amplifier is optimized for mid-bass speakers or subwoofers only. No need to worry because its 1-ohm capability will easily drive a pair of 4-ohm DVC subwoofers or quad-configuration of 2-ohm DVC subwoofers.
General Features:
- Punch BD Series Monoblock Class BD Car Amplifier
- RMS Power Rating:
- 4 ohms: 300 watts x 1 channel
- 2 ohms: 500 watts x 1 channel
- 1 ohm: 1000 watts x 1 channel
- CEA-2006 compliant amplifier
- Features C.L.E.A.N. Set-up with the 10-step set-up procedure
- w/ input/output clip detection and indicator LEDs
- MOSFET power supply
- Muted turn on
- Cast aluminum heatsink
- 12dB/octave Butterworth crossover
- Stealth top-mounted control panel
- LED power, thermal, and protection indicators
- Nickel-plated captive C-clamp terminals
- Ultra-efficient Class BD circuitry to maximize amplifier power efficiency
- On-board differential inputs eliminate noise picked up by the signal cable
- Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
- High-level input capable with Auto Turn-On circuit (RFIF2SW required, sold separately)
- MESHA3 reduces MOSFET temperatures, lowers distortion, increases durability, and prolongs the output device life span
- Built-in NOMAD is a "real-time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances
- Cast aluminum convection heatsink with DTM (Dynamic Thermal Management) evenly distributes excess heat across the entire amplifier heatsink to efficiently keep the amplifier temperatures low
- DSM (Discrete Surface Mounted Components) utilize 1% tight-tolerances improving the efficiency of the circuit and lowering the operating temperature and potential for noise - similar to circuit boards designed by aerospace manufacturers
- Input sensitivity: 150mV - 12V
- On-board Punch EQ with +18dB boost @ 45Hz.
- Variable low-pass filter: 50-250 Hz
- Selectable infrasonic filter: off / 28 Hz
- Frequency response: 20 - 250 Hz
- Total Harmonic Distortion: <1.0%
- Dimensions: 13-5/16"L x 7-3/4"W x 2-3/8"H
- 8 AWG to 18 AWG speaker wire output terminals
- 4 gauge power and ground wiring is recommended for installation.
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
What is in the P1000X1bd package:
- P1000X1bd owner's manual
- Mono subwoofer amplifier
- Four 1-1/2" Self-tapping screws
- 5mm Allen wrench
- Quick setup instructions

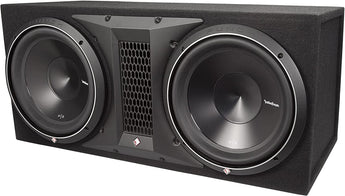

Rockford Fosgate P3-2X12 Punch Dual P3 12" Loaded Enclosure Ported Subwoofer
The P3-2X12 is a dual P3 12” vented enclosure with 1200 Watts RMS power handling wired to a 1-Ohm load. The enclosure is constructed with 5/8” MDF, covered in high-density carpet, and features quick-release compression terminals.
General Features:
Subwoofer Features:
- 12" Punch P3 Series Subwoofers
- Power Handling:
- Peak: 2400 watts
- RMS: 1200 watts
- Recommended power range: 600 - 1400 watts RMS @ 1 ohm
- CEA-2031 Compliant
- Klippel Verified
- Flex-fit Mounting pattern
- Proprietary spider venting/cooling technique
- StampCast basket with integrated spider venting
- Sturdy 16 gauge compound bend frame geometry
- High modulus Kevlar re-inforced paper-pulp cone
- Semi-flexible, PVC removable protective motor cover
- Multi-point high-temp/high-strength neck joint bonding technique
- Tall-profile VAST Santoprene surround for a larger surface area
- Dual tear & fatigue resistant poly-cotton spider with woven tinsel leads
- Fatigue-resistant and reduced strain "stitched on" flexible lead wire design
- Proprietary all metal, radially oriented compression input terminal assembly
- Optimized motor magnetics with extended pole and bumped vented backplate
- High temp 2.5" voice coil w/ spun-laced Nome insulating reinforcement collar
- Die-Cast aluminum soft-touch painted trim ring allows for optional integrated grill
- Magnet Weight: 96 oz
- Frequency Response: 27.7 - 250 Hz
- Xmax: 15.9mm
- Sensitivity: 85 dB @ 1 watt / 1 meter
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
Enclosure Features:
- Dual Punch P3 12" Loaded Subwoofer Enclosure
- Constructed with durable 5/8" MDF
- High current binding posts
- Proprietary high-flow, low-noise port
- Durable black carpet covering
- Computer-optimized design
- Final Impedance: 1 ohm
- Dimensions: 15-3/4”D x 33-7/8”W x 15-1/8”H
- Shipping Weight: 89.65 Lbs. (40.66 kg)
