MR DJ 100pcs Lock Quick Splice Wire Terminals Snap Lock Red 18-22 AWG
Pickup available at 1800 E Washington Blvd
Usually ready in 24 hours
Have Questions?
- Tel: +1 213 744 11 44
- Tel: +1 800 674 27 24
Brand: MR DJ USA
Description

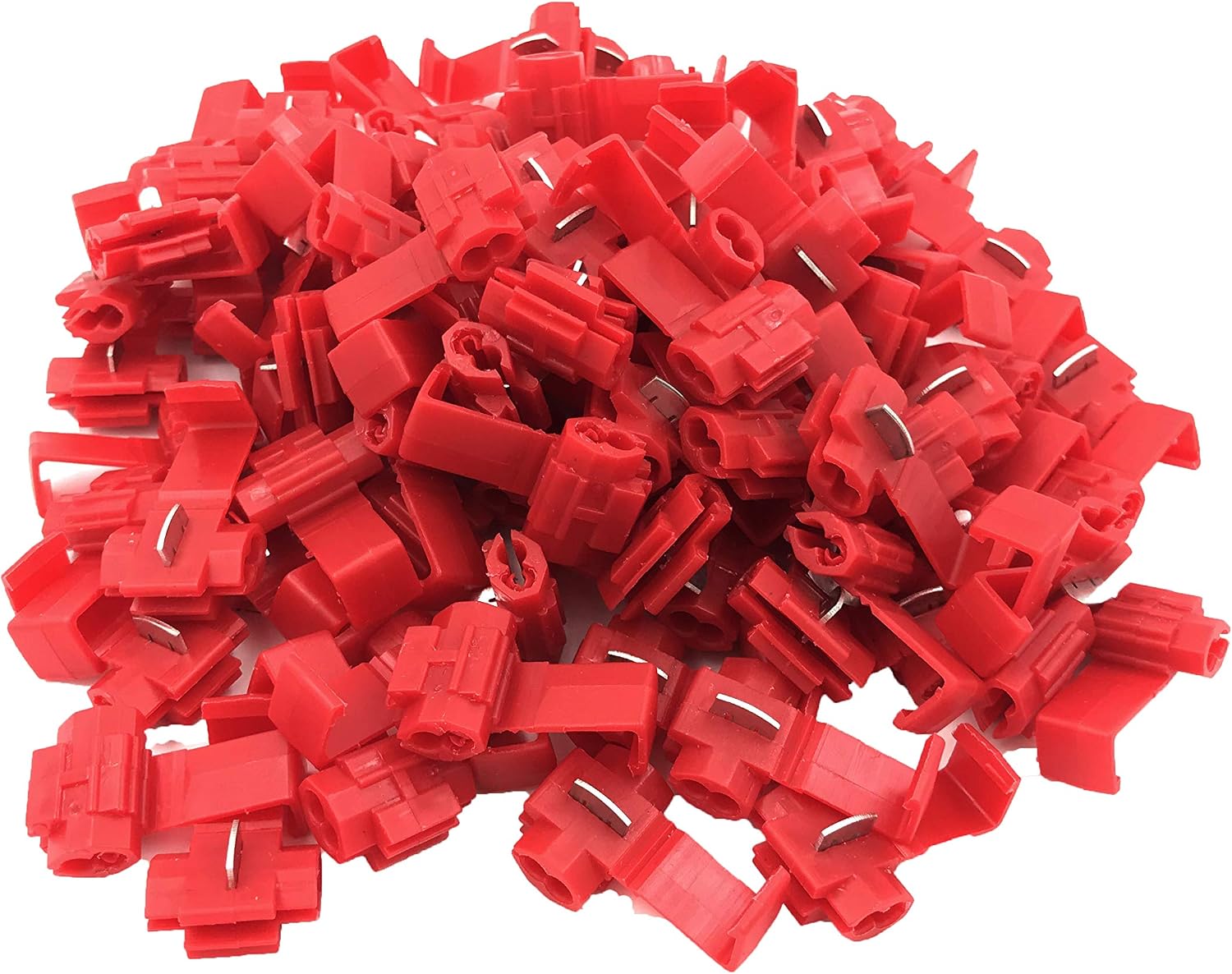

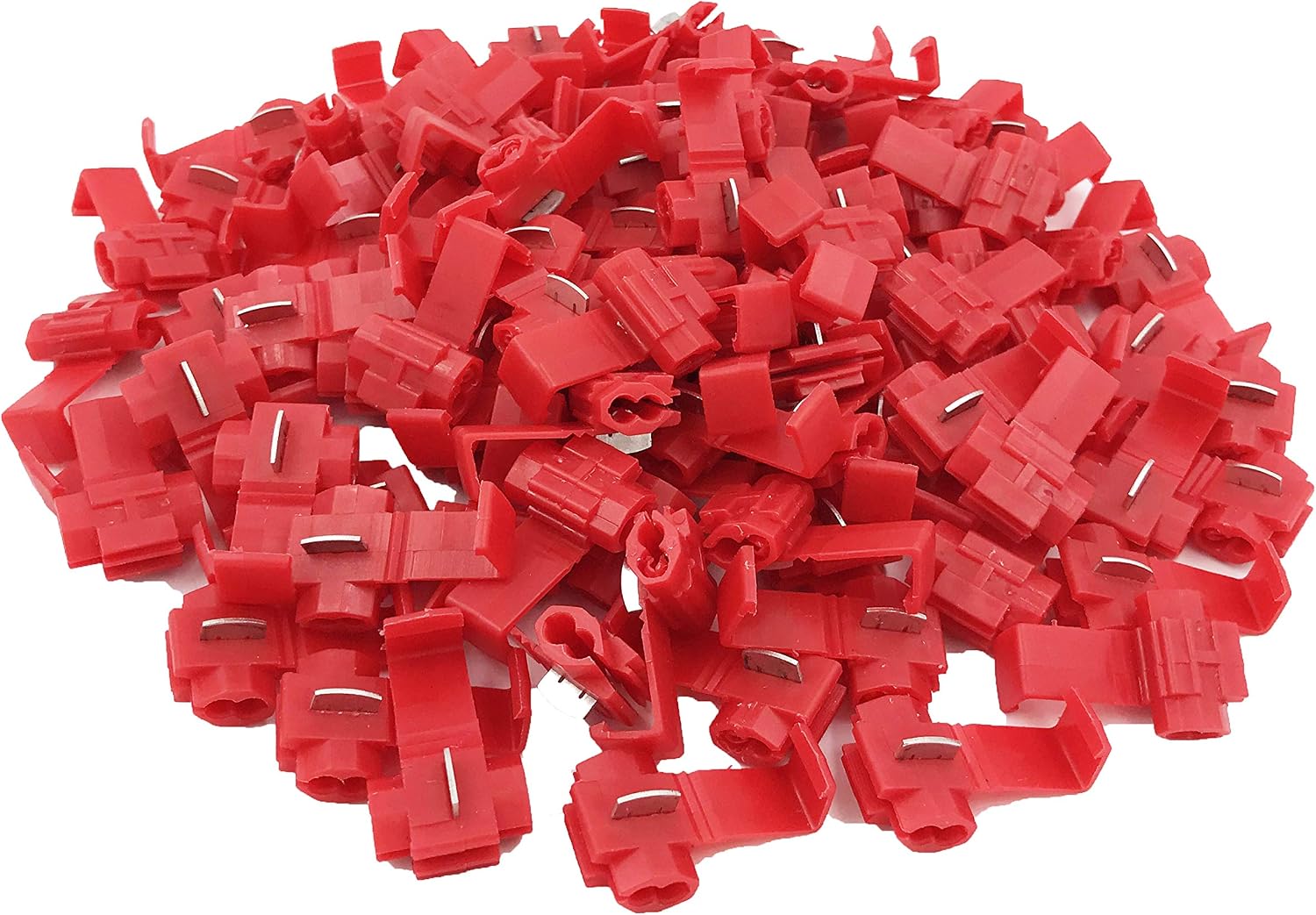

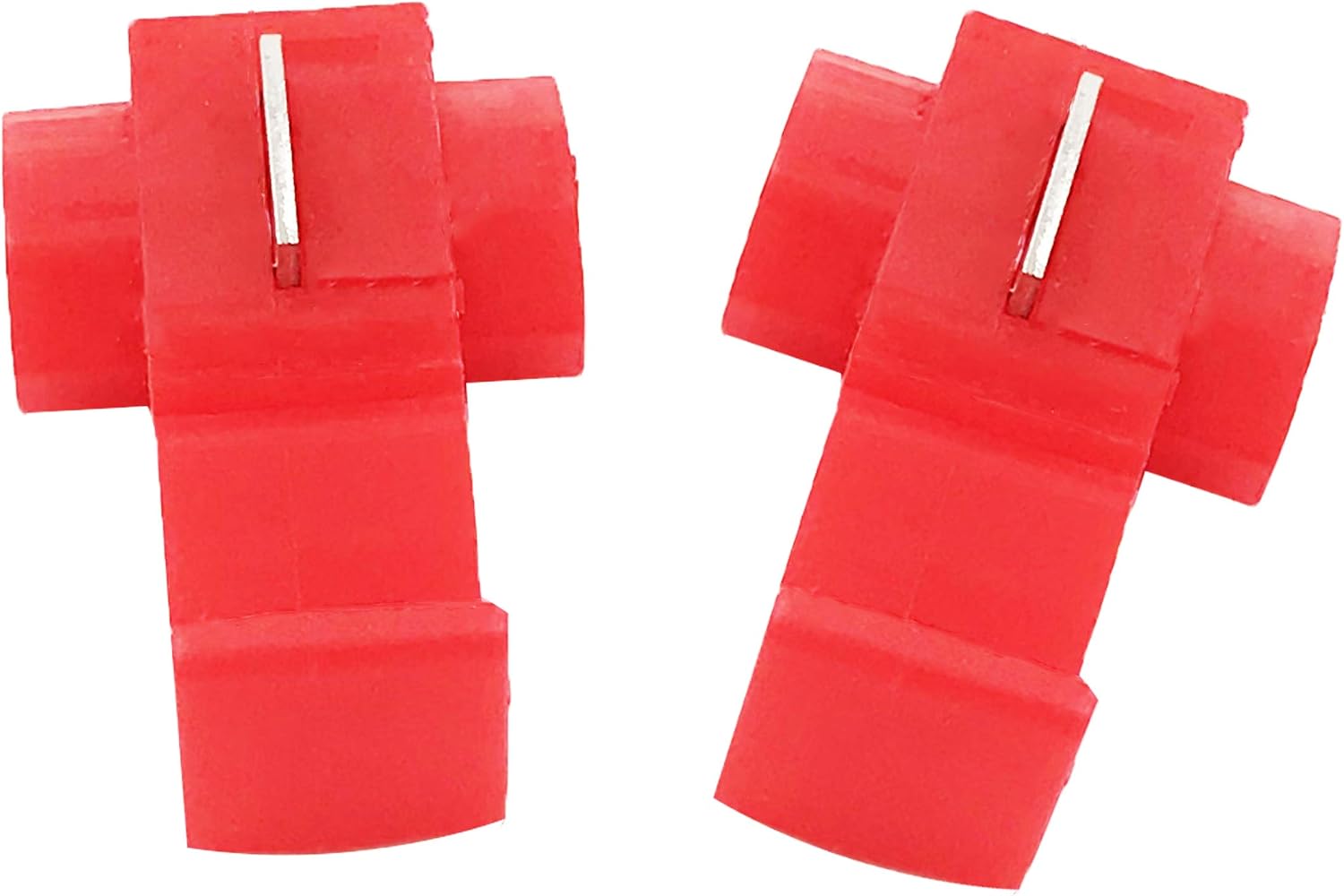

MR DJ USA SPL1822R 100-Pack 18-22 AWG Red Quick Splice Wire Terminals – Self-Stripping Auto-Tap Connectors
The MR DJ SPL1822R is a 100-pack of red quick-splice wire connectors designed for 18-22 AWG wire. These self-stripping IDC-style connectors provide a fast and convenient way to tap into an existing wire without cutting or stripping the insulation first.
Simply place the existing wire and the new wire into the connector, press the metal contact blade down with pliers, and close the locking cover. The internal metal blade pierces the insulation and creates the electrical connection between the wires.
Ideal for automotive, car audio, accessory wiring, lighting, marine, and general low-voltage electrical applications.
Key Features
🔴 100-PACK RED QUICK SPLICE CONNECTORS – Includes 100 red wire tap connectors for professional installations, repair work, and bulk wiring projects.
⚡ 18-22 AWG WIRE COMPATIBILITY – Designed for compatible 18-22 gauge wire commonly used in automotive, audio, lighting, and accessory circuits.
✂️ NO WIRE STRIPPING REQUIRED – The internal metal contact blade pierces the wire insulation to create the connection without requiring the conductor to be stripped first.
🔧 FAST & EASY INSTALLATION – Slide the connector over the existing wire, insert the additional wire, compress the metal blade with pliers, and close the locking cover.
🔌 QUICK TAP & SPLICE DESIGN – Useful for adding accessory wires or branching from an existing circuit without fully cutting the original wire.
🚗 AUTOMOTIVE WIRING APPLICATIONS – Ideal for car audio systems, lighting, accessories, alarms, remote wires, and other compatible low-voltage vehicle wiring.
🚤 MARINE & GENERAL ELECTRICAL USE – Suitable for compatible marine and low-voltage electrical installations when used in an appropriate protected environment.
🛡️ NYLON INSULATING BODY – Durable nylon connector body helps insulate and protect the metal contact area.
🔩 IDC METAL CONTACT BLADE – Internal insulation-displacement contact is designed to cut through insulation and make contact with the conductor.
🧰 INSTALLS WITH STANDARD PLIERS – No specialized crimping tool is required for basic installation.
General Features
-
Quick Splice / Auto-Tap Wire Connectors
-
Self-Stripping IDC Design
-
Red Color
-
100 Pieces
-
Designed for 18-22 AWG Wire
-
No Wire Stripping Required
-
Quick Tap Connection
-
Nylon Insulating Body
-
Metal Contact Blade
-
Locking Clamshell Design
-
Easy Installation with Pliers
-
Suitable for Low-Voltage Wiring
-
Ideal for Automotive Wiring
-
Ideal for Car Audio Installations
-
Suitable for Lighting & Accessory Circuits
-
Useful for Wire Tapping & Branch Connections
-
Approximate Temperature Rating: Up to 200°F
-
Professional Installation Recommended
Specifications
-
Brand: MR DJ
-
Model: SPL1822R
-
Product Type: Quick Splice / Auto-Tap Wire Connector
-
Quantity: 100 Pieces
-
Color: Red
-
Wire Range: 18-22 AWG
-
Connection Type: IDC / Insulation Displacement
-
Connector Style: Quick Splice / Tap
-
Body Material: Nylon
-
Contact Type: Metal Blade
-
Installation Method: Compression with Pliers
-
Wire Stripping Required: No
-
Approximate Connector Size: 30 x 19 x 14 mm
-
Approximate Package Weight: 144 g / 5.08 oz
-
Temperature Rating: Up to 200°F
Ideal Applications
-
Car Audio Wiring
-
Remote Turn-On Wires
-
Automotive Lighting
-
Accessory Wiring
-
Alarm Systems
-
Dash Accessories
-
Low-Voltage Electrical Circuits
-
Marine Wiring in Protected Locations
-
DIY Wiring Projects
-
Repair & Installation Shops
How to Install
-
Place the existing wire into the main channel of the connector.
-
Insert the new wire into the second channel.
-
Use pliers to press the metal contact blade completely into the connector.
-
Close the locking cover until it snaps securely into place.
-
Check the connection before completing the installation.
Package Includes
-
(100) MR DJ SPL1822R Red 18-22 AWG Quick Splice Wire Connectors
Installation Note
Always verify the actual wire gauge, conductor type, current requirements, and application before installation. Quick-splice connectors are intended for compatible low-voltage circuits and should not be used where the connection type, environmental exposure, vibration, or current load requires a different termination method.
California Proposition 65 Warning
This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to P65Warnings.ca.
