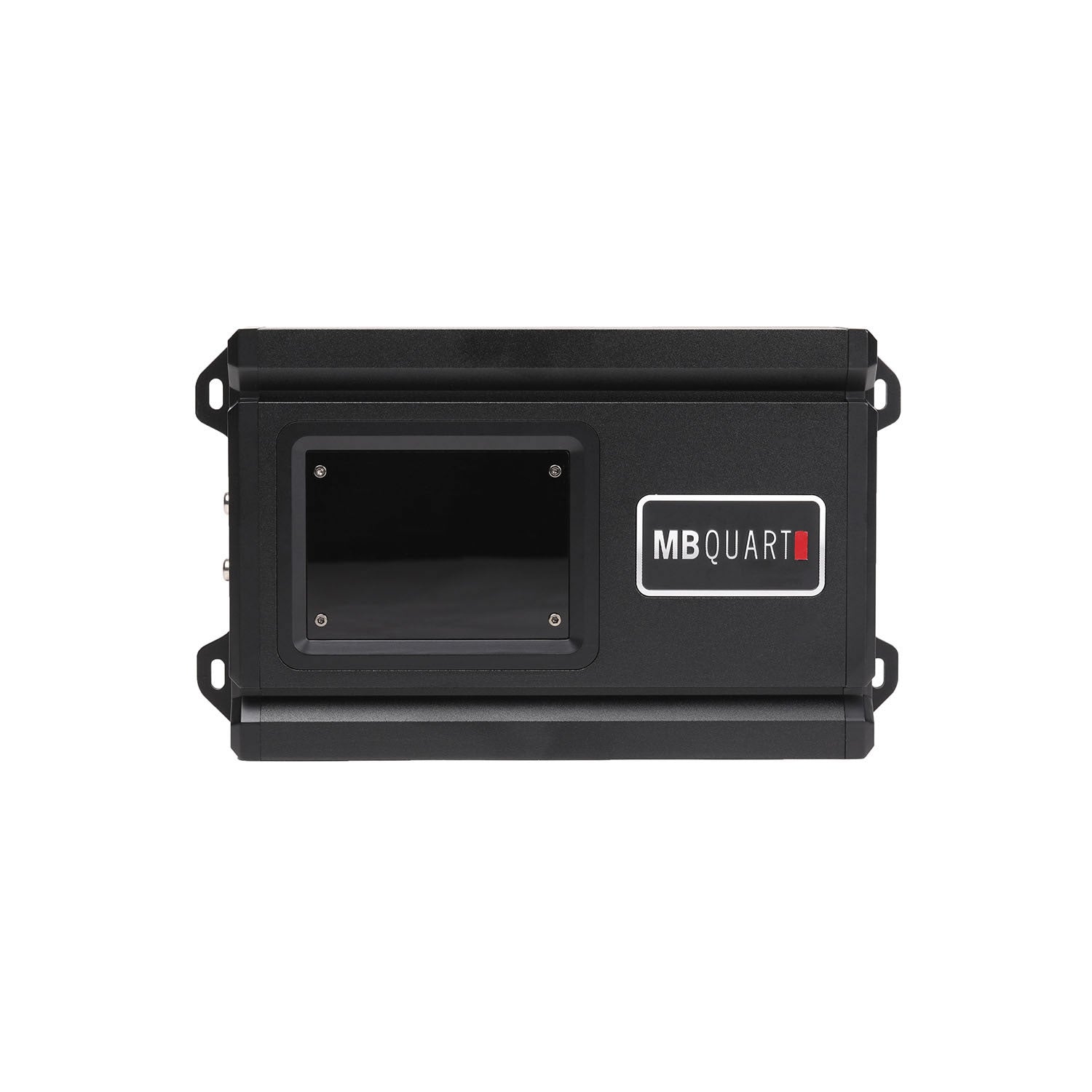

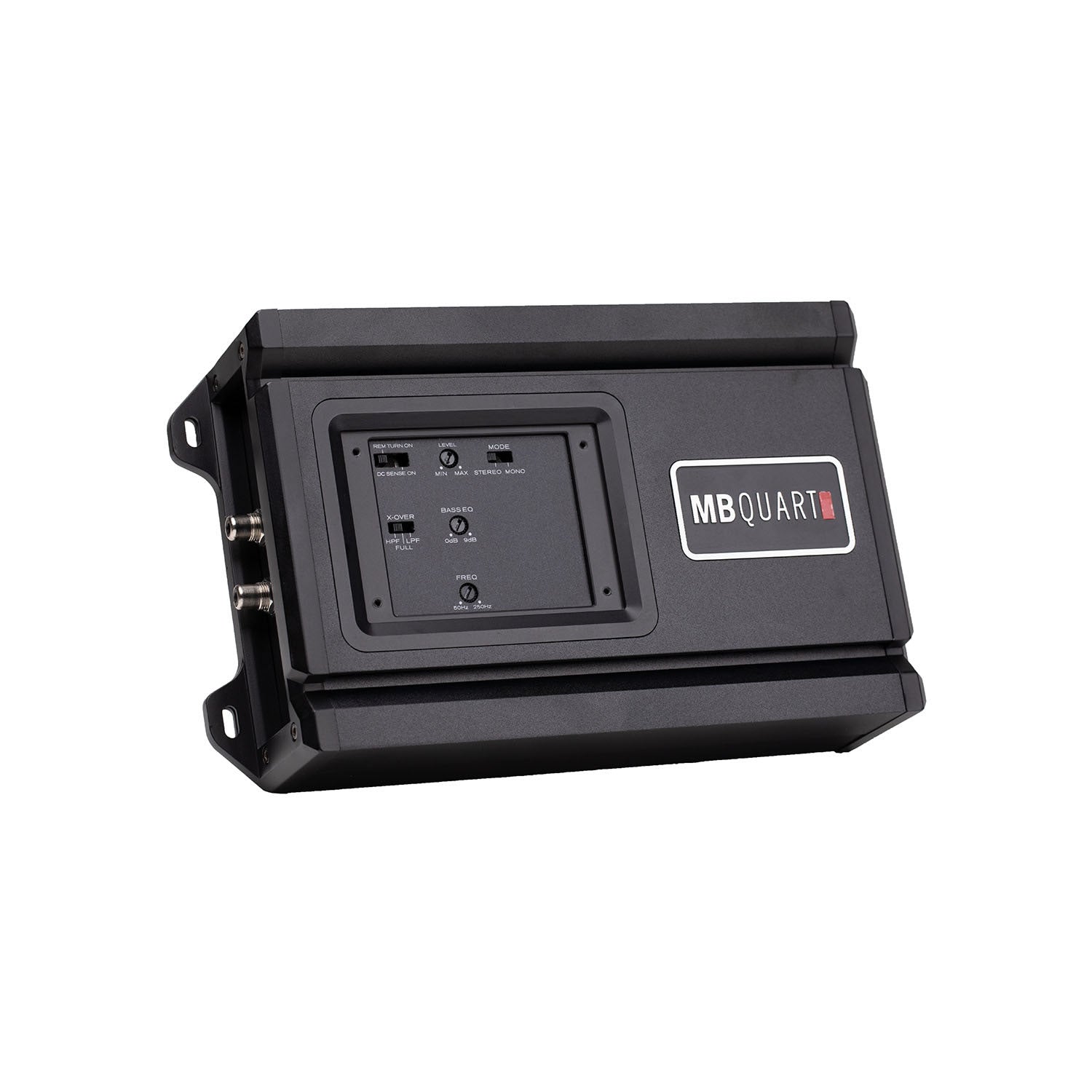

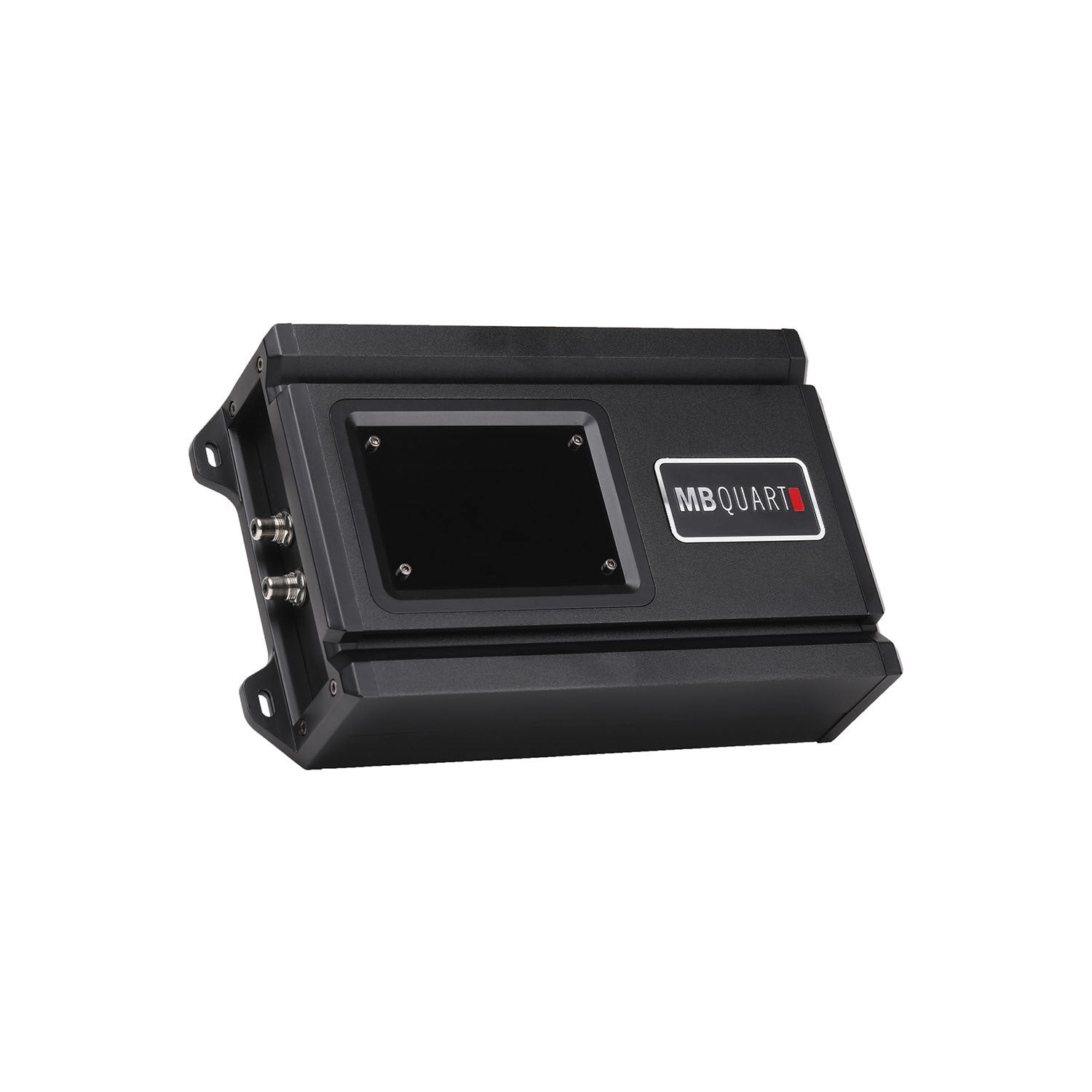

MB Quart Reference series two channel car audio amplifier featuring innovative sound quality and power technology. The RA1-150.2 is a 150 watt car audio amplifier. Reference amplifiers feature DC Sensing to allow any amplifier to be easy integrated into an OEM system by simply adapting a RCA cable from the source unit.
General Features:
-
Low Noise Preamplifier Circuit
Q-Stasis Pre Amplifier Stage: Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion. -

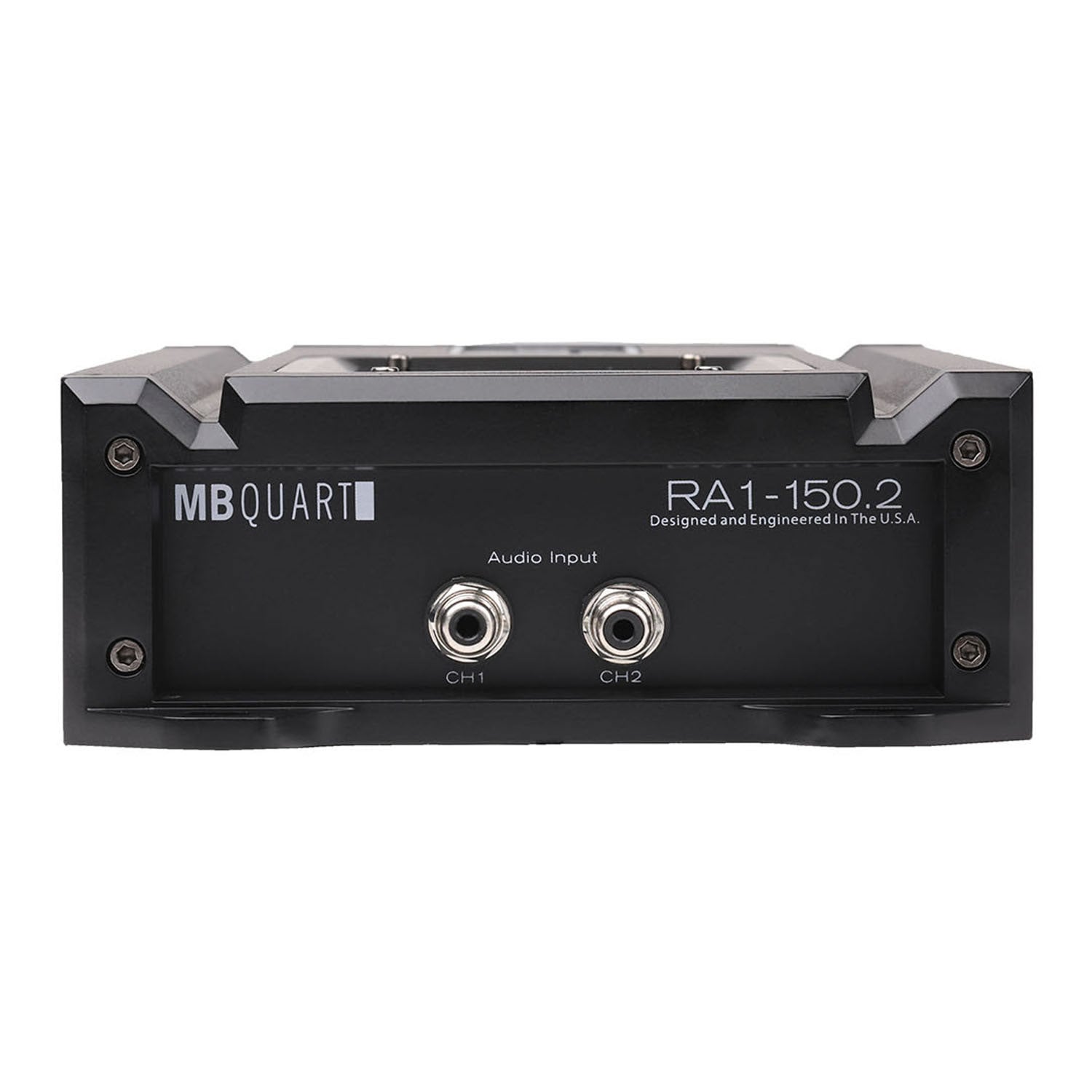

RCA Inputs
Nickel-Plated: High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant. -
High Level Inputs
See Auto-Sense Feature. -
Operation Mode
2 Channel -
Crossover Type
Variable electronic crossovers allow for complete control of the sound. -
Electronic Equalizer
Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specifications for specific frequencies for this amplifier. -
Class / Topology
Class SQ: Multi-channel amplifiers utilize the unique MB Quart Class SQ topology. Matched with Q-Stasis the sonic accuracy and clarity exceeds standard Class D amplifiers. -
Output Device Technology
FLUID-FETS: MB Quart output devices, FLUID-FETS are painstakingly selected for their ability to efficiently produce power and mimic the sound quality of the highest end home amplifiers. -
Heat Sink
Aluminum: Quickly dissipates heat to allow the amplifier to run lower impedance for longer duration. -
Power Supply
Rugged MOSFET Pulse Width Modulation power supply: Allows amplifier to produce efficient power without taxing the vehicle electrical system. -

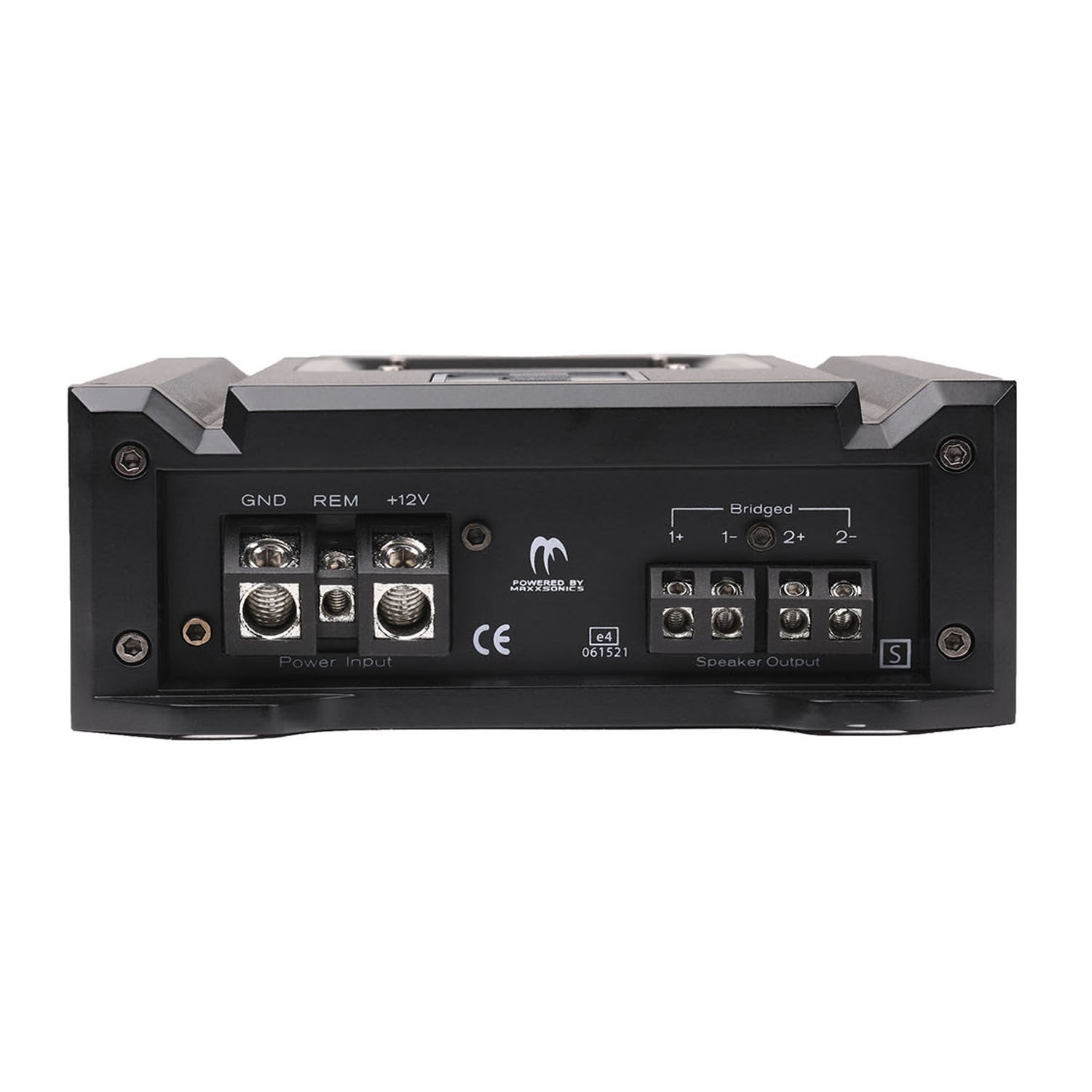

Output Connections
Heavy duty connections allow for secure electrical signal to pass into wiring and resist erosion which will add longevity to the amplifier. -
Connection Type
Secure connection for all power, ground and speaker connections. -
Auto Turn-On
DC SIGNAL SENSE: The DC SIGNAL SENSE switch will allow the amp to turn on when a signal is received on the RCA inputs, so an amplifier remote turn on wire is not needed to turn on the amplifier. This feature can also be turned off.
Specifications:
-
Type
Amplifier -
Brand
MB Quart -
Series
Reference -
Category
Mobile -
Condition
New -
Color
Black -
Warranty
1 Year -
Compatible Vehicles
Universal -
Amp Class
Class SQ (Class D) -
Amp Total Channels
2 -
Amp Max Power (watts)
150 -
Amp Power @ 2 Ohms (ch x watts)
2 x 100 -
Amp Power @ 4 Ohms (ch x watts)
2 x 50 -
Amp Mono Bridged @ 4 Ohms (ch x watts)
1 x 200 -
Amp Crossover
Electronic -
Amp Variable High Pass Crossover 12dB per Octave
CH1 & CH2: Switched Full/HPF/LPF 50Hz-250Hz -
Amp Variable Low Pass Crossover 12dB per Octave
CH1 & CH2: Switched Full/HPF/LPF 50Hz-250Hz -
Amp Bass Boost
0-9dB -
Amp Variable Voltage
0.02-9V -
Amp Signal to Noise
> 101dB -
Amp Frequency Response
10Hz-35Hz -
Amp Total Harmonic Distortion (THD)
< 0.09% -
Amp Speaker Level Audio Inputs
RCA -
Amp Power Terminal 12v/GND
4 AWG -
Amp Speaker Terminal Wire Gauge
12 AWG -
Amp Fusing
20A External
