MB Quart PA1-800.4 Premium Pro 800 Watt 4-Channel Amplifier

$249.99 Sold out
Shipping calculated at checkout.

Pickup currently unavailable at 1800 E Washington Blvd

Have Questions?
PA1-800.4

Brand: MB Quart

Description

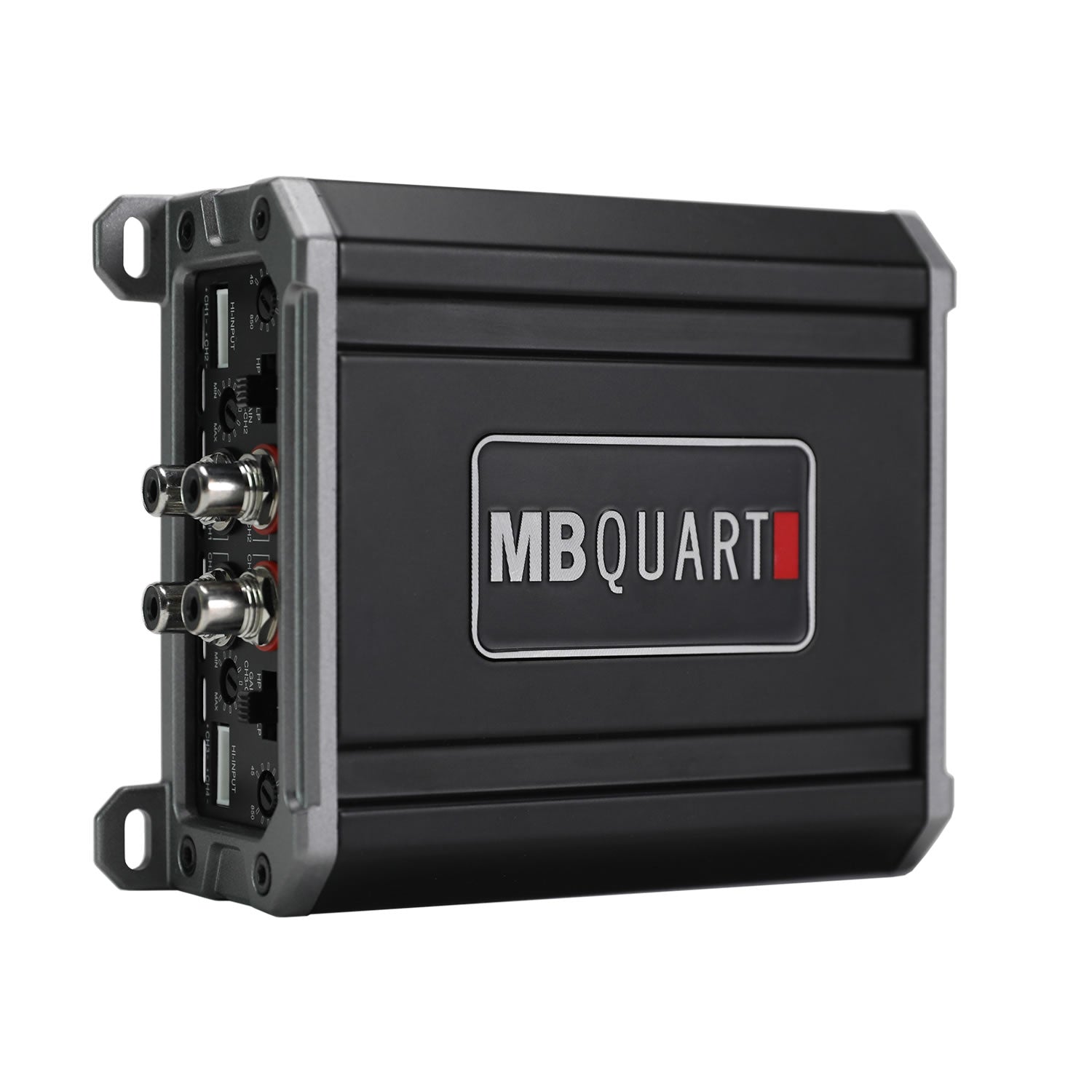

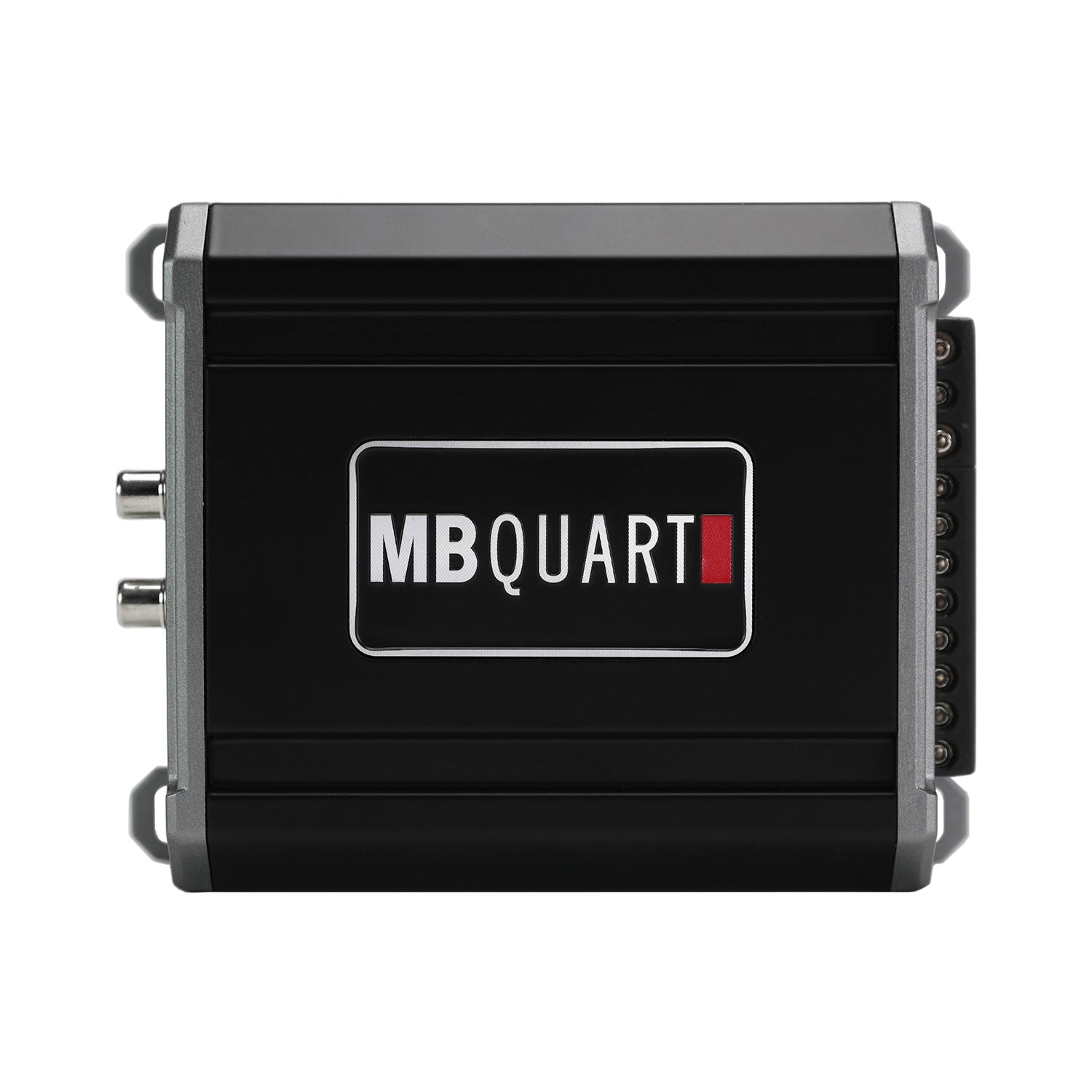

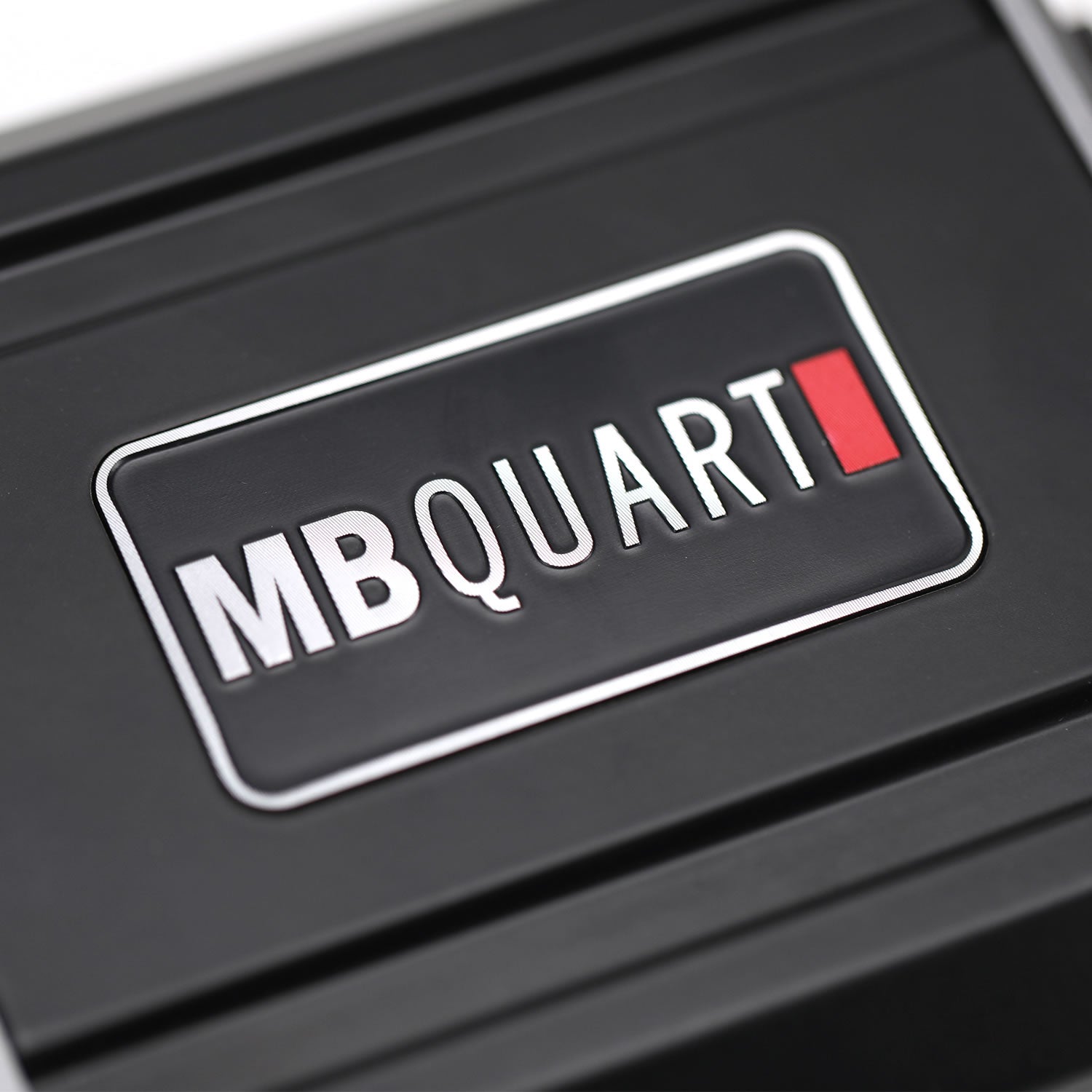

MB Quart PA1-800.4 Premium Pro 800 Watt 4-Channel Amplifier

MB Quart PA1-800.4 Premium Pro 800 watt four channel amplifier designed to produce higher power output in an efficient form factor.

General Features:

  • Low Noise Preamplifier Circuit
    Engineered pre-amplifier stage reduces incoming noise from source units and dramatically improves sound quality.

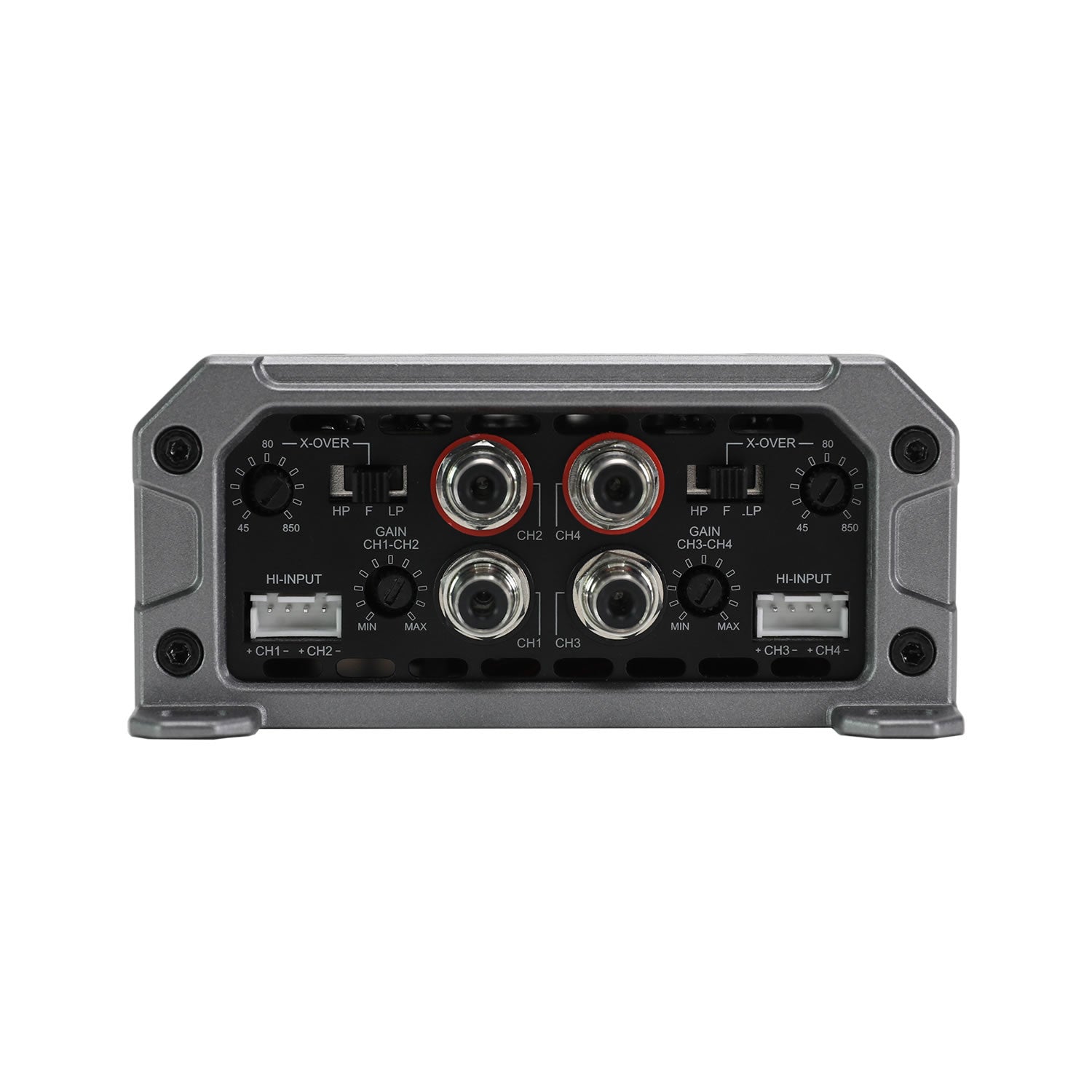

  • RCA Inputs
    2 pair tiffany style nickel-plated RCA jacks create an efficient connection that is corrosion-resistant.

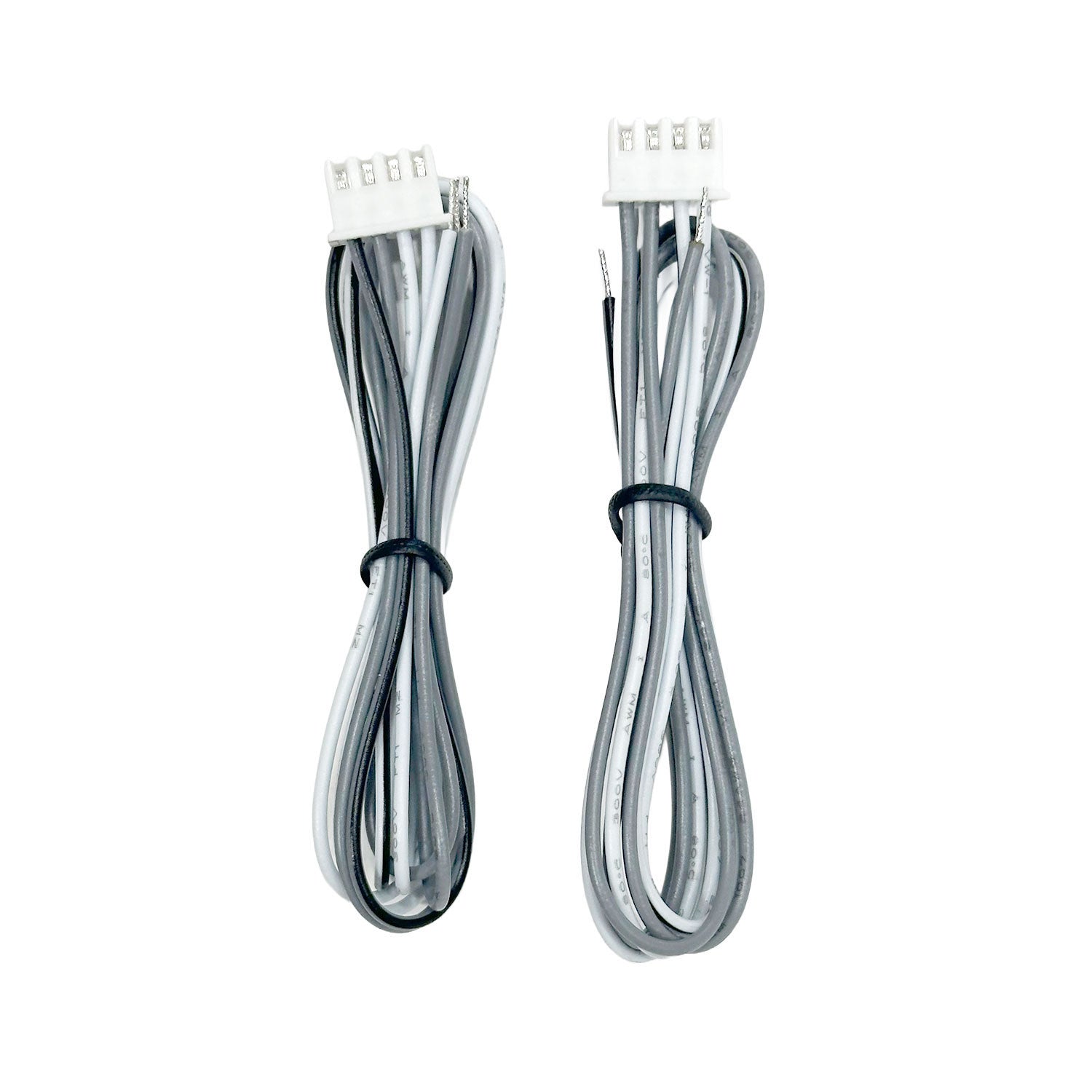

  • High Level Inputs
    Easily tie into OEM audio systems that do not offer RCA output to maximize after market amplifier power.
  • Operation Mode
    Four channel operation: Flexible installation allows this amplifier to run in four channel or bridged mono mode.

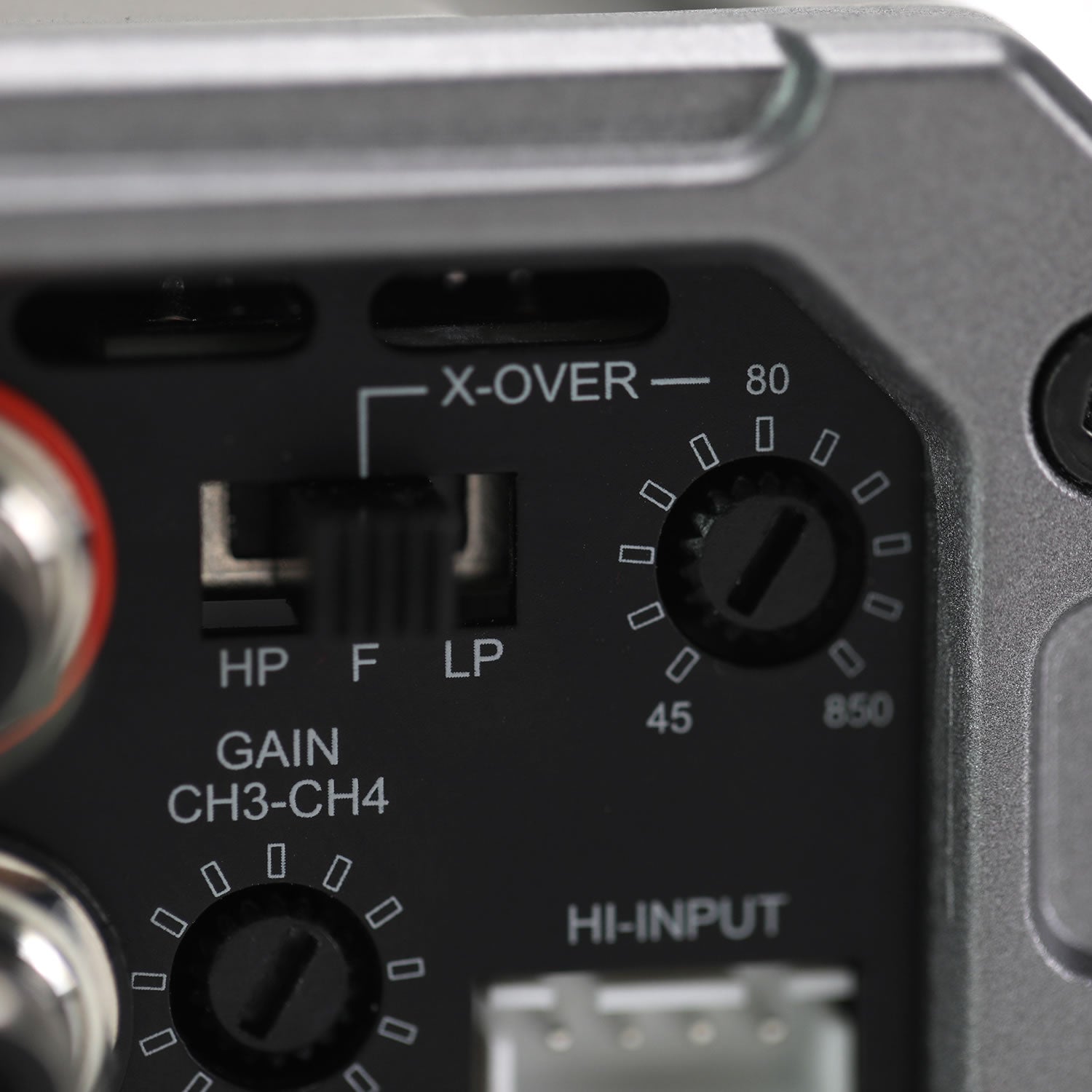

  • Crossover Type
    Switched HPF / FULL / LPF: Complete control of amplifier signal, essential when using two or more amplifiers.
  • Class / Topology
    Full Range Class D: Highly efficient circuit topology which helps the amplifer develop a lot of power in a very small heatsink.
  • Output Device Technology
    PWM MOSFET Power Supply: Stable power through the PC board with minimal heat generation.

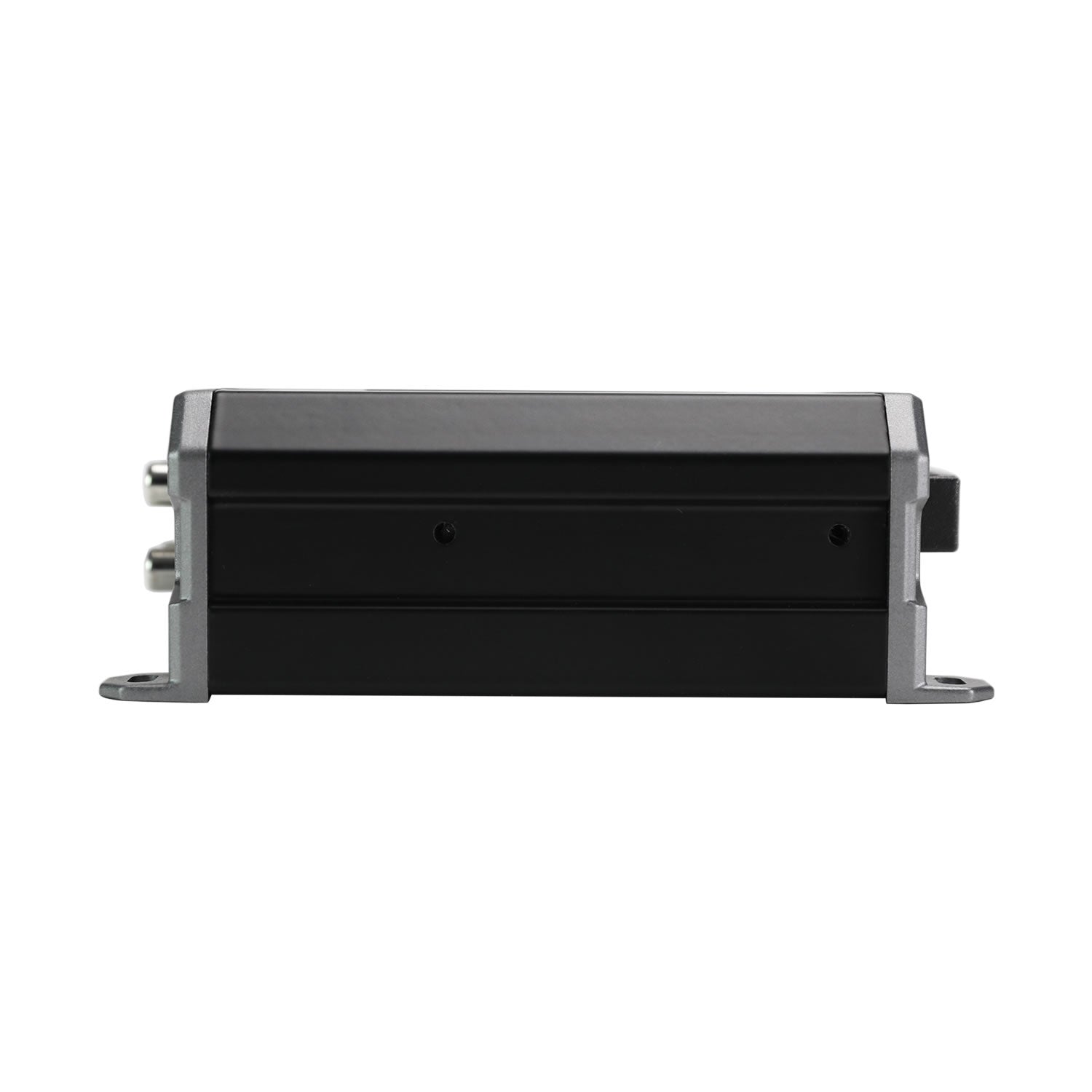

  • Heat Sink
    Extruded aluminum heat sink paired with built in fans quickly dissapates heat to allow the amplifer to run lower impedance for longer duration.
  • Power Supply
    MOSFET Pulse Width Modulation power supply that allows the amplifier to produce efficient power without taxing the electrical system.

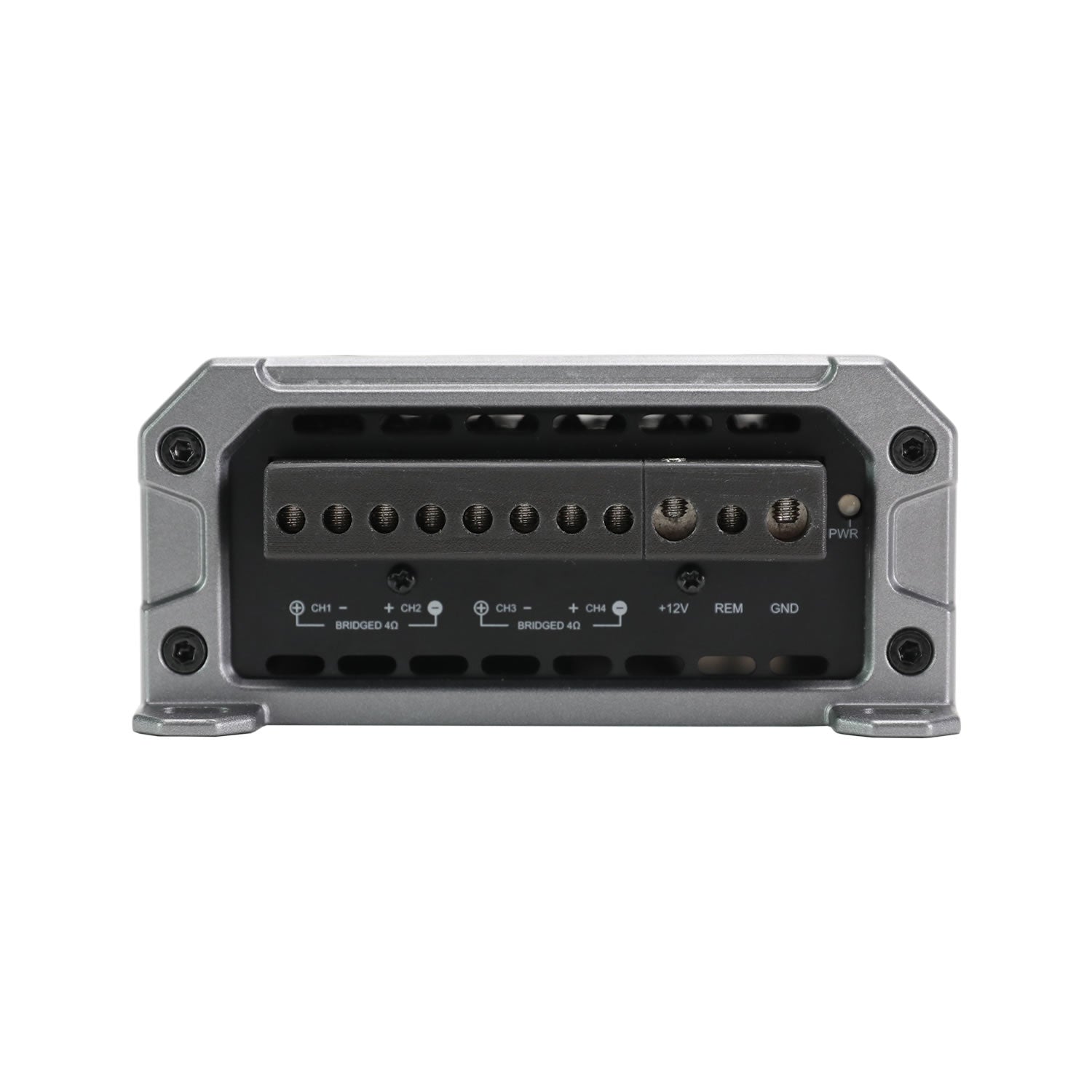

  • Output Connections
    Heavy duty output terminals allows for secure connection so electrical signal can pass into wiring and resist corrosion.
  • Connection Type
    Nickel plated corrosion resistant connections.
  • LED System Protection Circuitry Diagnostics
    Three-stage protection circuits: Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel.

Specifications:

  • Type
    Amplifier
  • Brand
    MB Quart
  • Series
    Premium
  • Category
    Mobile
  • Condition
    New
  • Color
    Black
  • Warranty
    1 Year
  • Compatible Vehicles
    Universal
  • Amp Class
    Full Range Class D
  • Amp Total Channels
    4
  • Amp Max Power (watts)
    800
  • Amp Power @ 2 Ohms (ch x watts)
    4 x 200
  • Amp Power @ 4 Ohms (ch x watts)
    4 x 100
  • Amp Mono Bridged @ 4 Ohms (ch x watts)
    2 x 400
  • Amp Crossover
    CH1 & CH2: Switched HPF/Full/LPF, CH3 & CH4: Switched HPF/Full/LPF
  • Amp Variable High Pass Crossover 12dB per Octave
    45Hz-850Hz
  • Amp Variable Low Pass Crossover 12dB per Octave
    45Hz-850Hz
  • Amp Variable Voltage
    High: 2.8-40V, Low: 0.3-5.5V
  • Amp Signal to Noise
    > 102dB
  • Amp Frequency Response
    10Hz-30kHz
  • Amp Total Harmonic Distortion (THD)
    1.0%
  • Amp Speaker Level Audio Inputs
    Yes
  • Amp Power Terminal 12v/GND
    8 AWG
  • Amp Speaker Terminal Wire Gauge
    10 AWG
  • Amp Fusing
    External 80A
