MB Quart MDR2.0 multimedia digital receiver with 160 watt internal amplifier featuring AM/FM, Bluetooth®, USB.
General Features:
-
Compatible Vehicle Fitment
Universal -
Marine Grade Protection / IPX Rating
Meets or exceeds IPX5 requirements for water and dust proofing. LIFE SHIELD: This product has been designed and tested against the elements. Waterproof, dustproof, snowproof or shockproof. Built to handle the outdoors. -
Apple® Control
Quick control and access of music apps via iPhone, iPod and iPad. -
Source Type
AM/FM/Bluetooth® Radio allows all access to radio stations and content from Bluetooth enabled devices. -
Input Types
Bluetooth, RCA, USB: Nearly nothing the device can not play. -

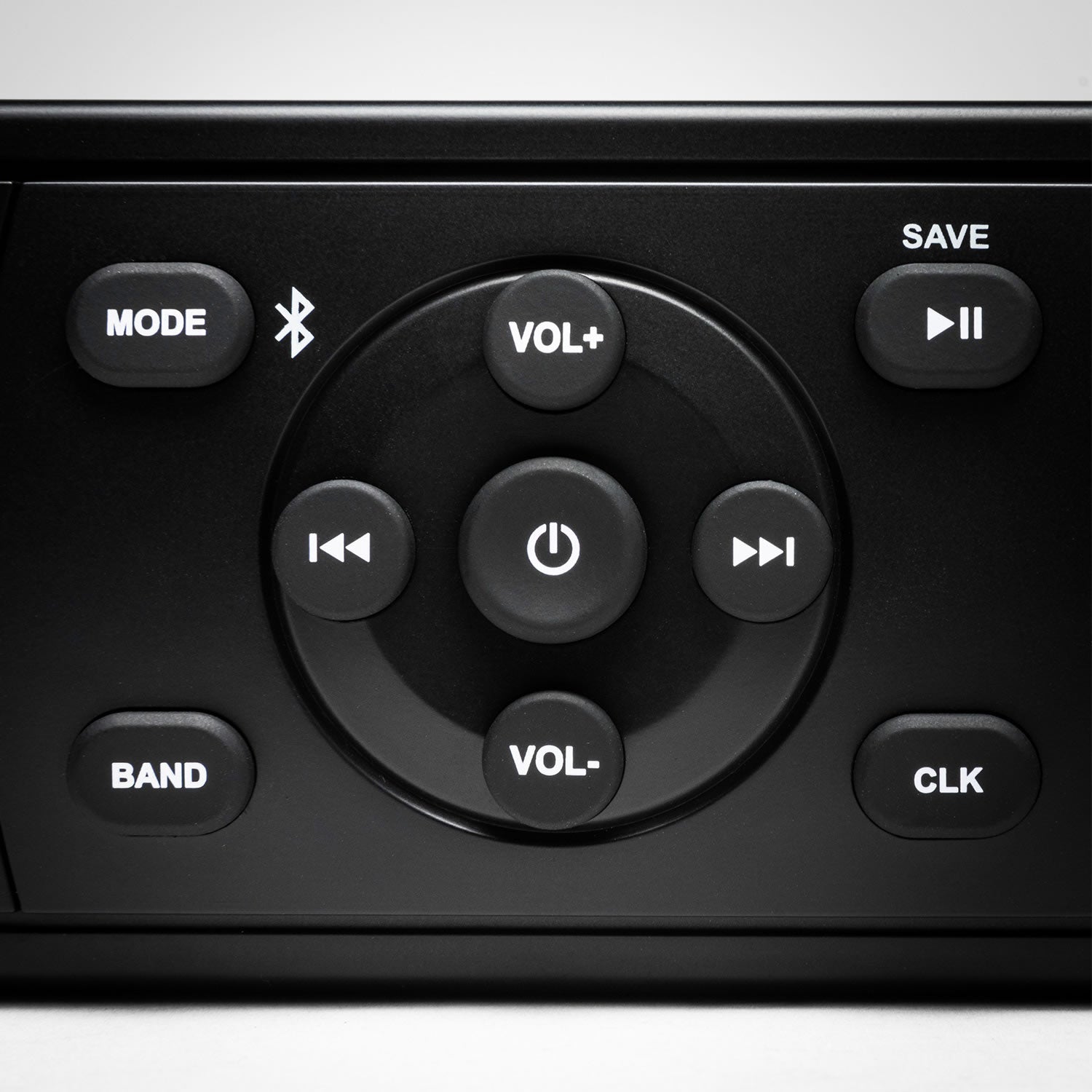

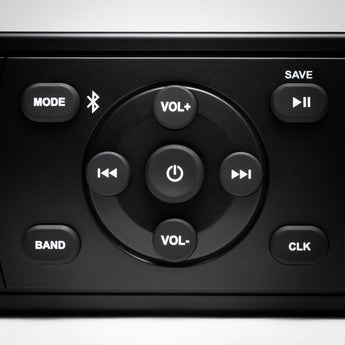

Control Buttons
Front facing buttons to engage and adjust all features. -
Bluetooth® Connect
Bluetooth® Connect allows your phone or other Bluetooth enabled device to be quickly paired to the controller without a complicated pairing process. -
Secure Simple Pairing™
Quick and secure wireless connection between your Bluetooth enabled device. This reliable connection is impervious to outside interference, providing a lock-tight connection to your audio system. -
Quick-Pair™
No more frustration with trying to pair. When the unit powers up, it immediately connects to the last device connected. For a first time connection, you only have to select "MB Quart" from your Bluetooth menu and you are connected, QUICKLY. -
Built-In Power
Four channels of output. These channels remain active when running external amplifiers (RCA Output) to run additional speakers in the vehicle. -
Control Method
9 control buttons on faceplate. -
Frequency Range
FM: 87.5-108, AM: 530-1710 -

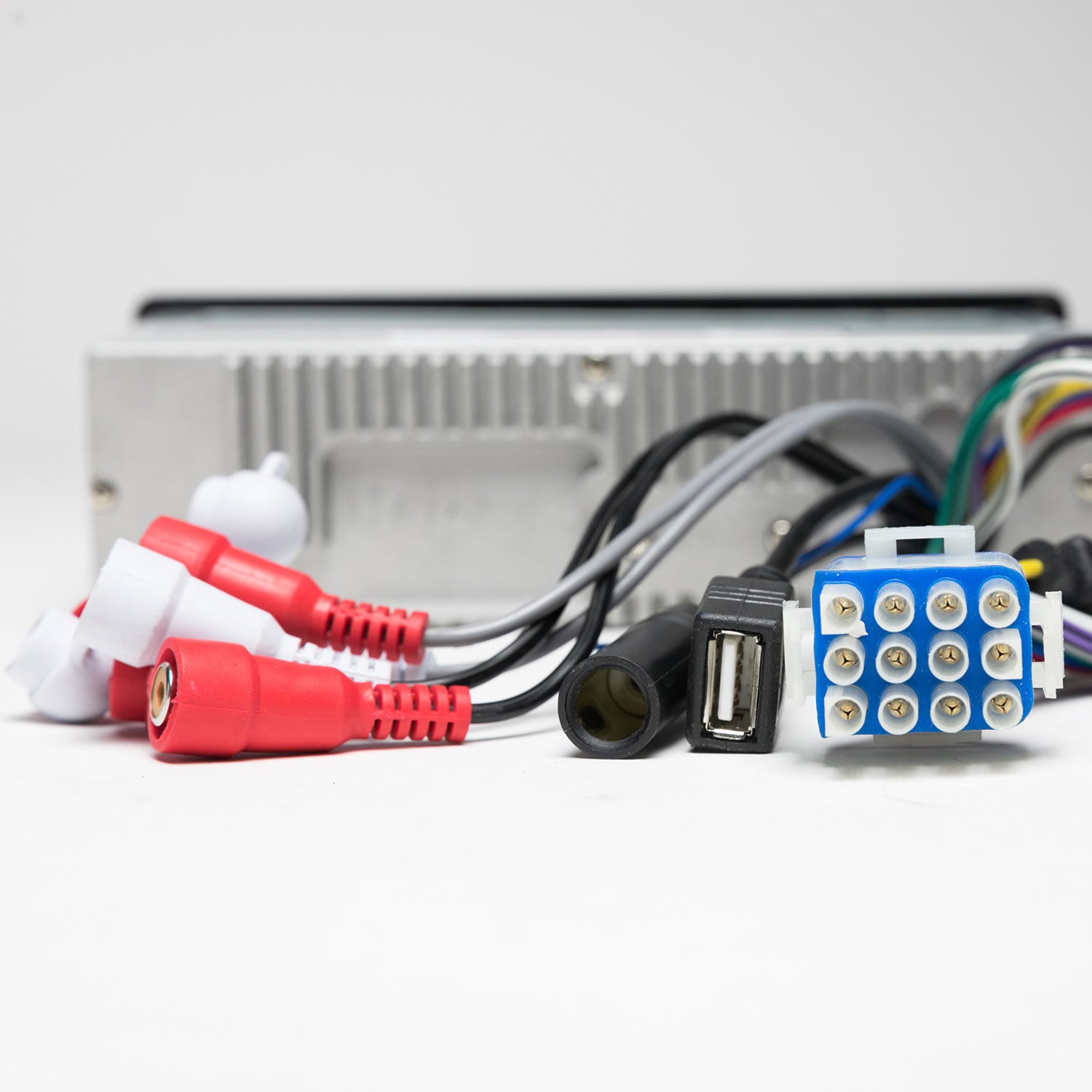

Additional Inputs
1 Pair (Aux), 1 USB -
USB / Apple® / Charging Port
1 USB -
Bluetooth® Version
Version 4.0
Specifications:
-
Type
Source Unit -
Brand
MB Quart -
Series
MDR -
Category
Marine, RV -
Condition
New -
Color
Black -
Crutchfield Available
Yes -
Crutchfield Link
https://www.crutchfield.com/p_049MDR20/MB-Quart-MDR2-0.html -
Warranty
1 Year -
IPX Rating
IPX5 -
Compatible Vehicles
Universal -
Source Unit Tuner Section FM Stereo Frequency Range
87.5MHz-108MHz -
Source Unit Tuner Section S/N Ratio
86.4dBA -
Source Unit Bluetooth Range (ft)
32 -
Source Unit RMS Power Output (watts)
4 x 16 -
Source Unit Peak Power Output (watts)
4 x 40 -
Source Unit S/N @1W
90.6dBA -
Source Unit Frequency Response (Aux In)
20Hz-20kHz -
Source Unit Pre-amp Outputs (Y/N #)
1 Pair, Yes -
Source Unit Pre-amp Voltage
5.9V -
Source Unit Minimum Impedance (ohms)
4 -
Source Unit Display Type
LCD -
Source Unit Dimensions Mounting Hole (in)
7.0 x 2.0 -
Source Unit Dimensions Total Mounting Depth (in)
4.5 - Additional Details MAXIMUM THD+N AT 4 OHMS: 15.8 watts, MAXIMUM UNDISTORTED PREAMP VOLTAGE (WITH 20K OHM LOAD): 5.9 Volts, SIGNAL TO NOISE (CTA-2006B): -86.4dBA AUX / -84.7dBA Bluetooth, SIGNAL TO NOISE RATIO OF LINE LEVEL OUTPUTS (AT MAX VOLUME): Bluetooth -88.4dBA / Aux -90.6dBA, PREAMP FREQUENCY RESPONSE (+/- 3.0DB): 20Hz–19.5kHz AUX / 34Hz–15.6kHz Bluetooth, AMPLIFIER FREQUENCY RESPONSE (+/- 3.0DB): 20Hz–20.0kHz AUX / 27Hz–20.0kHz Bluetooth, STEREO SEPARATION (AUX INPUT): -65.1dB @ 5kHz, FM MONO USABLE SENSITIVITY: 12.7dBf, AM MONO USABLE SENSITIVITY: 12-14µV
