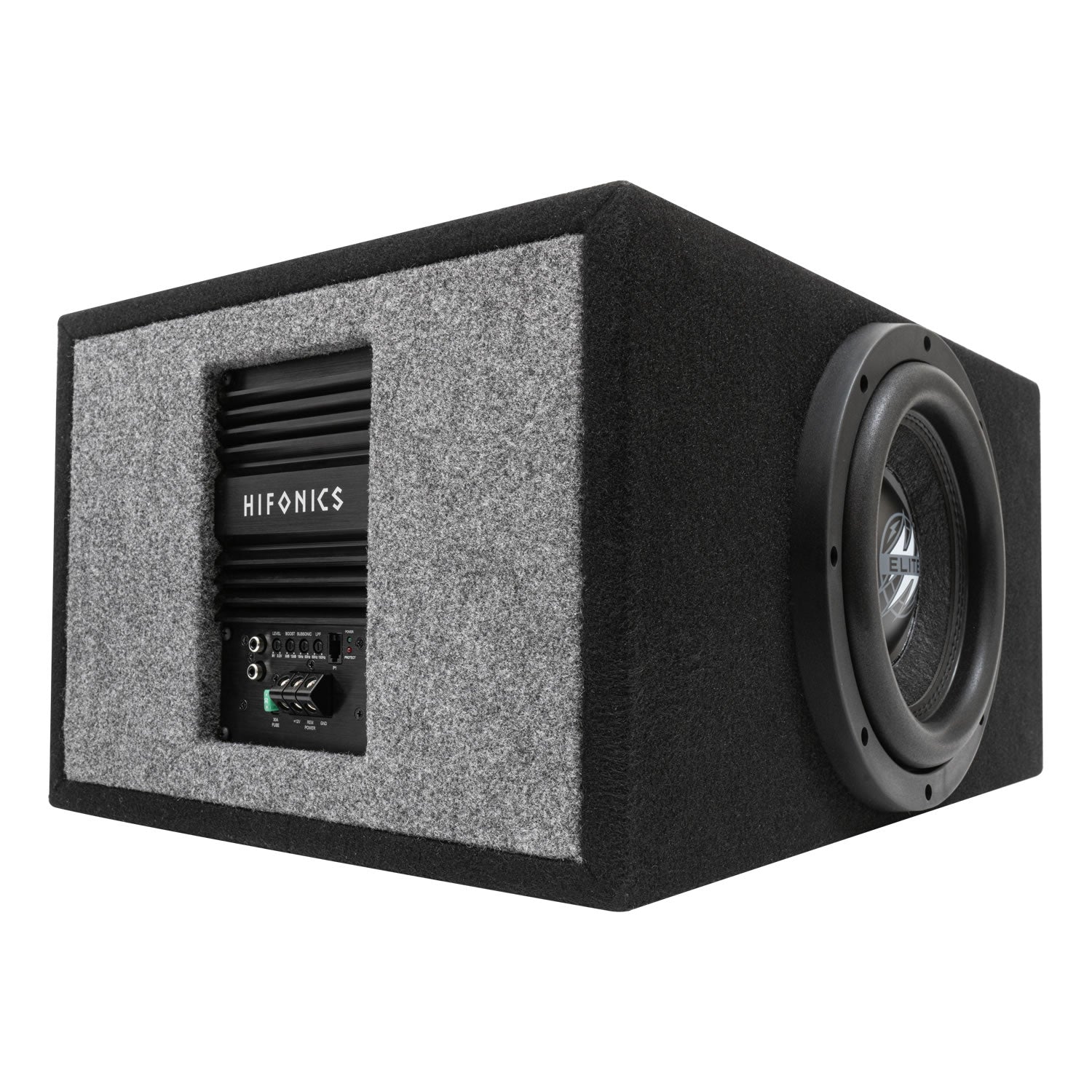

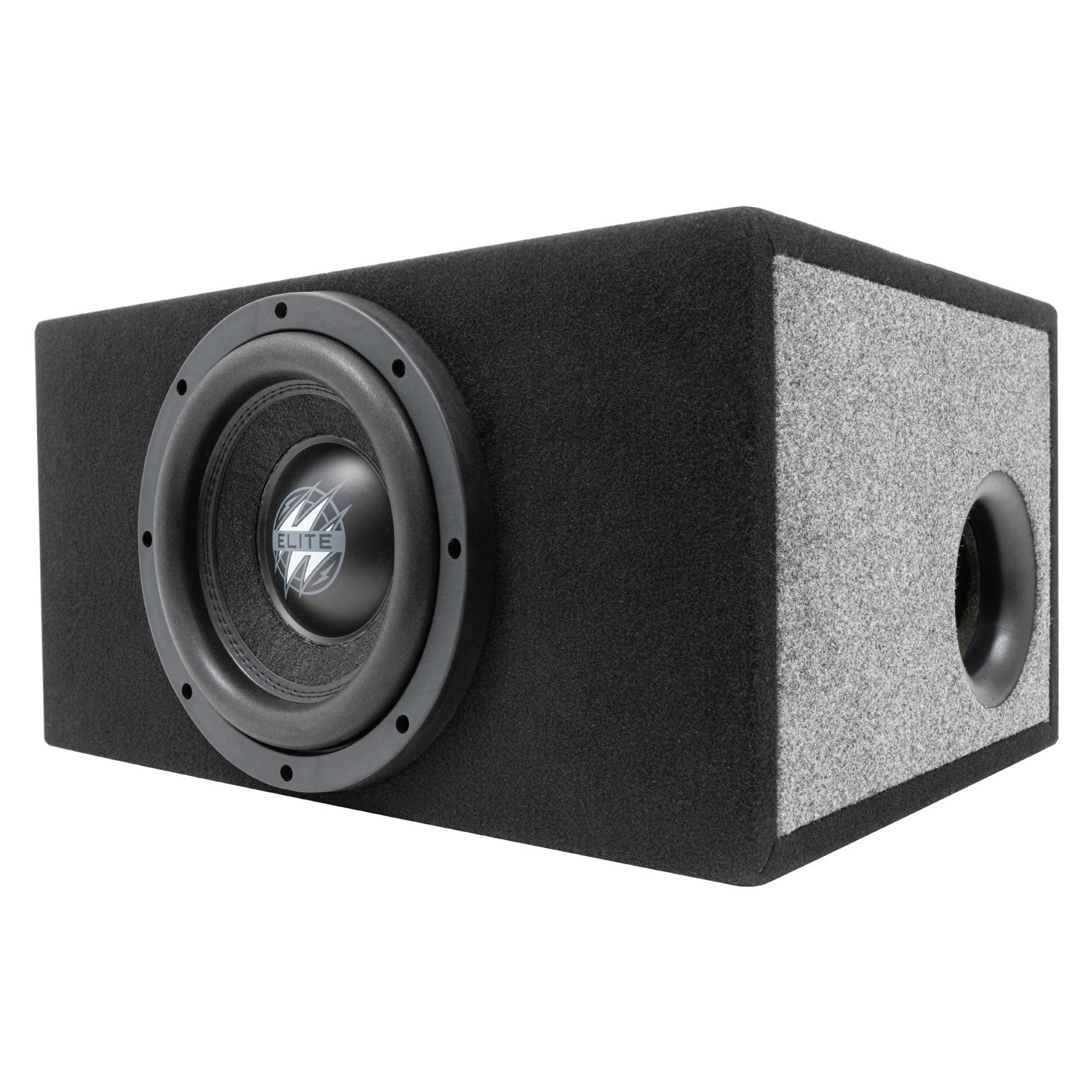

Hifonics HEW10D4-500P 10-inch ELITE series dual voice coil 4 ohm subwoofer powered by a 500 watt Class D amplifier in a ported and tuned MDF enclosure.
General Features:
-
Compatible Vehicle Fitment
Universal -
Subwoofer Terminal Type
Push & insert style terminals for easy installation. -
Subwoofer Configuration
Round -
Subwoofer Surround / Cone Coupling
The pressure treated double stitched foam surround along with the dual poly cotton spider helps keep the piston motion of the subwoofer linear and distortion free. -
Subwoofer Voice Coil / Former Assembly
Vented aluminum former holds a 3" voice coil while allowing the heat to be exchanged. (Less heat means less distortion) -
Subwoofer Spider
Specialized Hifonics dual poly cotton spider with double centering allows the woofer to handle more power with minimum distortions. -
Subwoofer Frame / Venting
Hifonics heavy duty aluminum die-cast basket allows back venting, which exchanges heat with cool air, resulting in more power handling and increased reliability. -
Subwoofer Motor
Vented high energy motor assembly with heavy duty magnets increases power handling and increases SPL. -
Amp RCA Inputs
Nickel Plated: High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant. -
Amp Operation Mode
1 Channel operation -
Amp Crossover Type
Variable electronic crossovers allow for complete control of the sound. -
Amp Heat Sink
Heavy duty heat-sink efficiently moves heat from the MOSFET where it can be cooled. -
Amp Power Supply
Rugged MOSFET Pulse Width Modulation power supply: Allows amplifier to product efficient power without taxing the vehicle electrical system. -
Amp Output Connections
Heavy duty connections allow for secure electrical signal to pass into wiring and resist erosion which will add longevity to the amplifier. -
Amp Connection Type
Secure connection for all power, ground, and speaker connections. -
Amp LED System Protection Circuitry Diagnostics
Monitor overload and speaker short protection with illuminated indicators on the amplifier panel. -
Amp Bass Remote Included
Included. This allows the driver to make subtle changes to the bass response of the audio system from the seated listening position.
Specifications:
-
Type
Powered Subwoofer -
Brand
Hifonics -
Series
HEW -
Category
Mobile -
Condition
New -
Color
Black -
Compatible Vehicles
Universal -
Subwoofer Sensitivity (1 watt/1 meter)
80dB -
Subwoofer Size (in)
10 -
Amp Class
Class D -
Amp Total Channels
1 -
Amp Max Power (watts)
500 -
Amp Power @ 2 Ohms (ch x watts)
500 -
Amp Power @ 4 Ohms (ch x watts)
250 -
Amp Crossover
Electronic -
Amp Variable Low Pass Crossover 12dB per Octave
50Hz-150Hz -
Amp Bass Boost
0-12dB -
Amp Subsonic Filter
15Hz-50Hz -
Amp Variable Voltage
0.2-9.0V -
Amp Signal to Noise
> 100dB -
Amp Frequency Response
15Hz-160Hz -
Amp Speaker Level Audio Inputs
RCA Jack -
Amp Power Terminal 12v/GND
8 AWG -
Amp Fusing
30A
