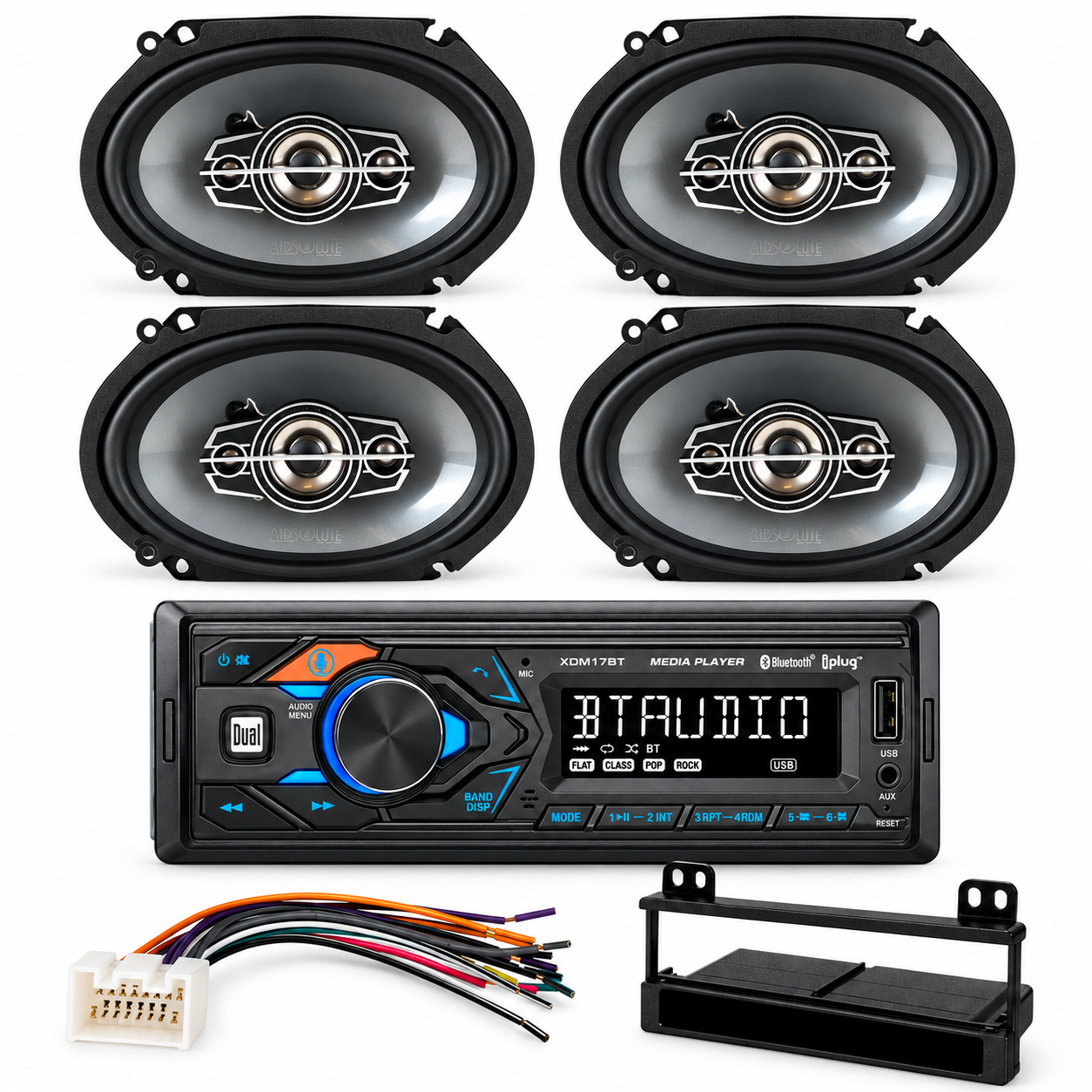

Dual Electronics XDM17BT Bluetooth AM/FM Car Stereo + 2 Pairs Absolute USA TQ-684 6x8" 4-Way Speakers + FMK-550 Dash Kit + FWH-598 Wiring Harness Compatible with 1999-2003 Ford F-150

Upgrade the factory audio system in your 1999-2003 Ford F-150 with the Dual Electronics XDM17BT Bluetooth digital media receiver and two pairs of Absolute USA TQ-684 6x8-inch 4-way coaxial speakers. This complete radio and four-speaker package also includes the FMK-550 Single-DIN installation dash kit and FWH-598 wiring harness for compatible non-amplified factory audio systems.

General Features

• Includes Refurbished Dual Electronics XDM17BT Digital Media Receiver

• Includes 2 Pairs / 4 Absolute USA TQ-684 6x8" 4-Way Speakers

• Includes FMK-550 Single-DIN Installation Dash Kit

• Includes FWH-598 Radio Wiring Harness

• Compatible with Select 1999-2003 Ford F-150 Applications

• Designed for Non-Amplified Factory Audio Systems

• Built-In Bluetooth®

• Hands-Free Calling & Wireless Audio Streaming

• AM/FM Radio

• Front USB Input

• Front 3.5mm AUX Input

• MP3 Playback

• 200 Watts Maximum Receiver Power

• Four Full-Range 6x8" Door Speakers

• 4-Ohm Speaker Impedance

• Shallow-Mount Receiver Design

• Does Not Play CDs

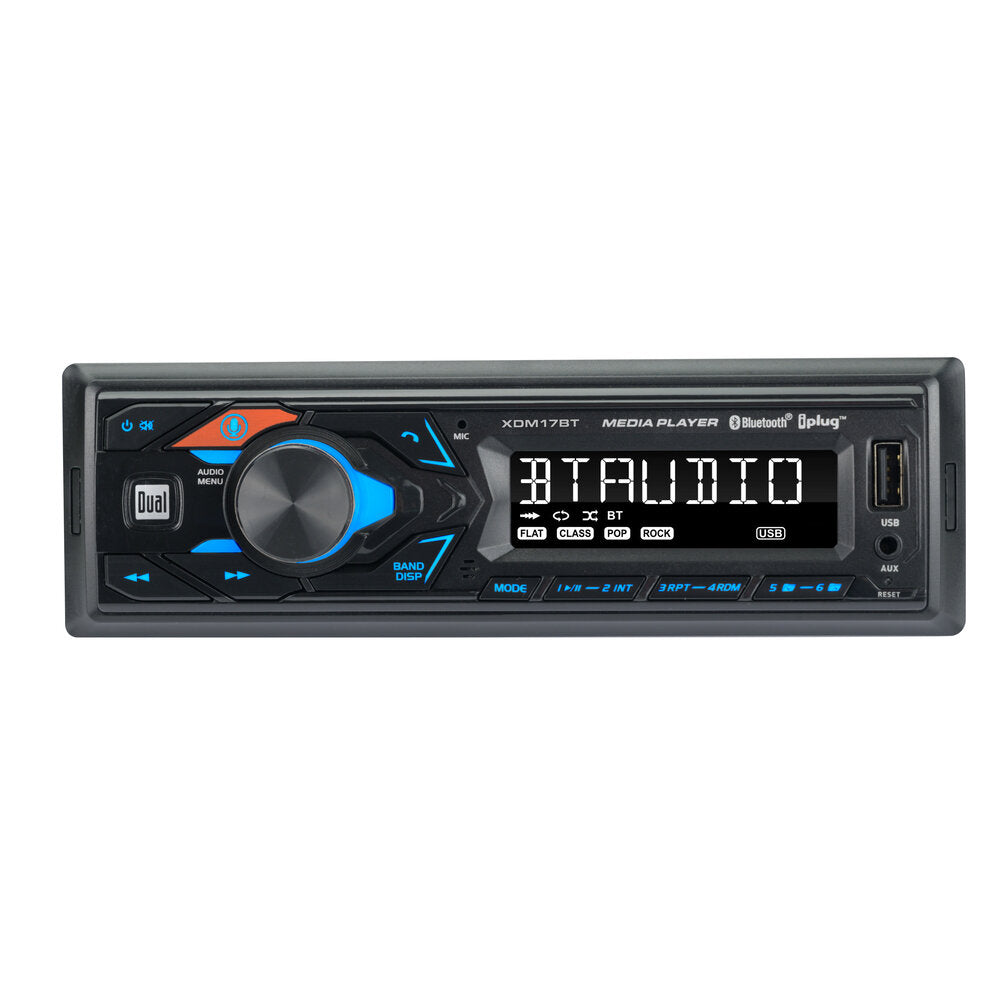

Dual Electronics XDM17BT Bluetooth Digital Media Receiver

The Dual Electronics XDM17BT is a compact digital media receiver that brings Bluetooth connectivity, AM/FM radio, USB playback, and auxiliary audio input to compatible vehicles. Its shallow-mount chassis makes it well-suited for installations where space behind the dashboard is limited.

Receiver Features

• Refurbished Dual Electronics XDM17BT

• Single-DIN Digital Media Receiver

• Built-In Bluetooth®

• Hands-Free Calling

• Wireless Audio Streaming

• Bluetooth Audio Player Control

• Built-In Bluetooth Microphone

• AM/FM Radio

• 30 Station Presets

• 18 FM Presets

• 12 AM Presets

• Front USB Input

• Front 3.5mm AUX Input

• MP3 Playback

• 7-Character LCD Display

• Very Shallow-Mount Design

• Does Not Play CDs

Receiver Power & Audio Features

• Maximum Power: 50 Watts x 4 Channels

• Total Maximum Power: 200 Watts

• 1 Pair RCA Preamp Outputs

• RCA Output Configurable for Front or Rear

• 2-Band Tone Control

• Bass Adjustment

• Treble Adjustment

• 4 Preset EQ Curves

• Classic EQ

• Rock EQ

• Pop EQ

• Flat EQ

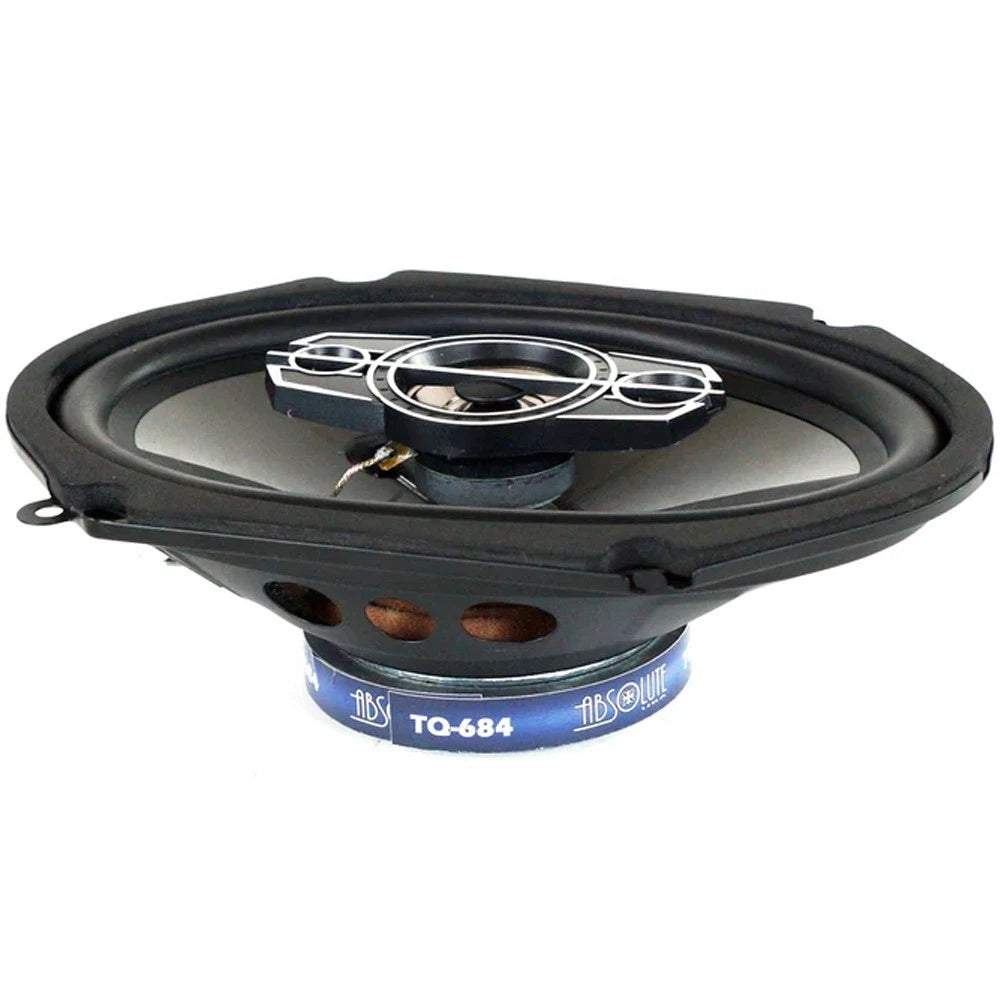

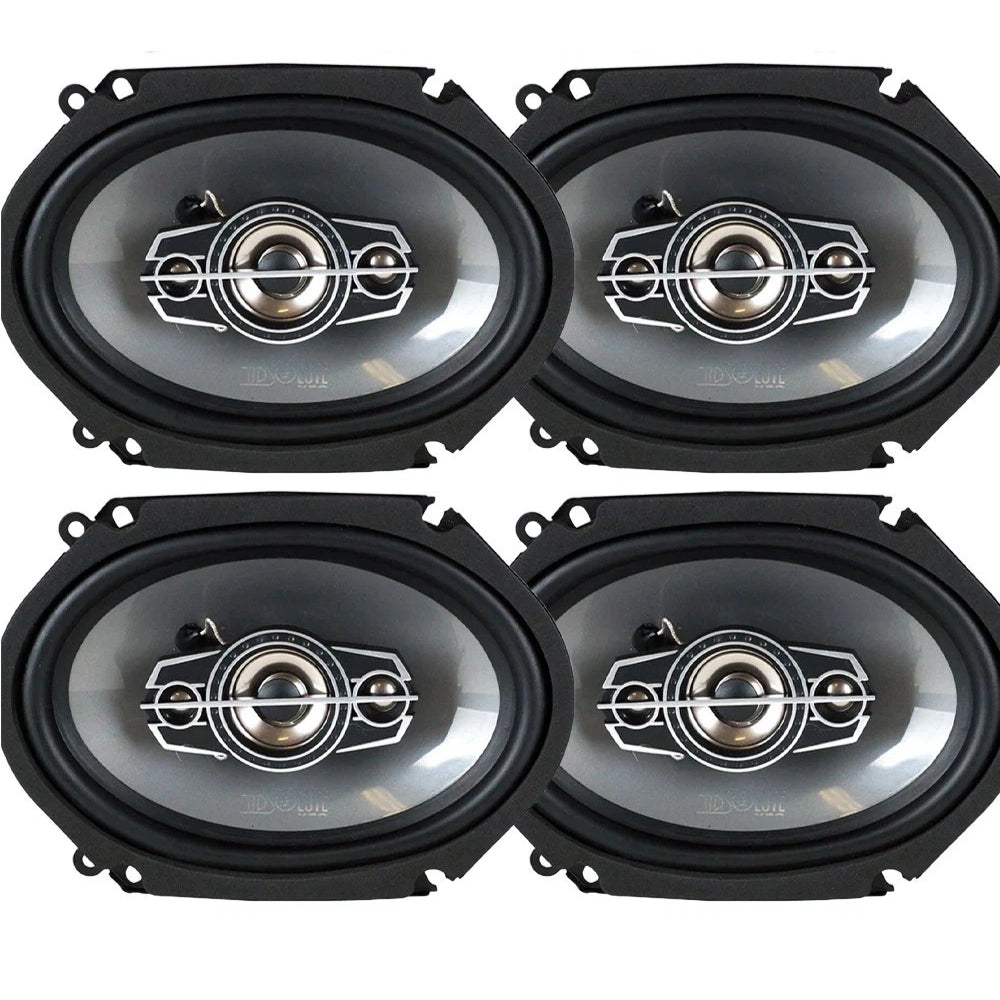

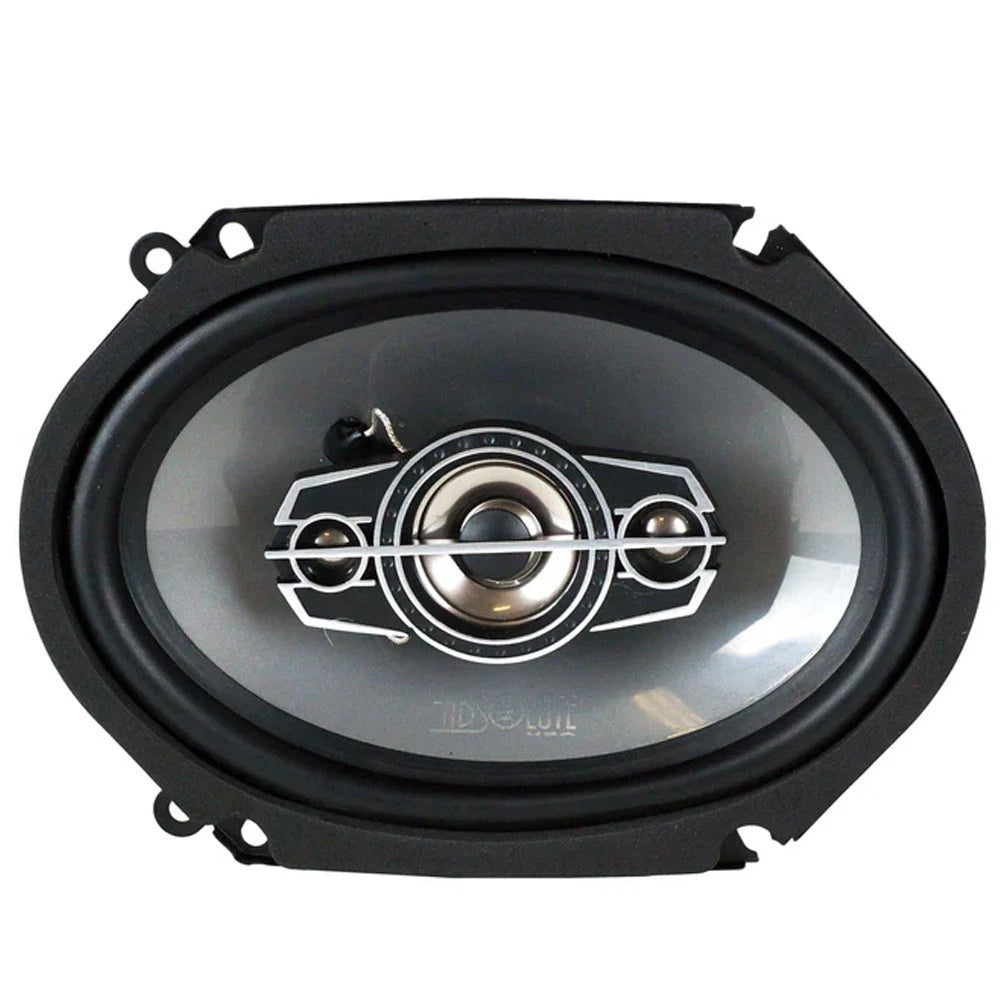

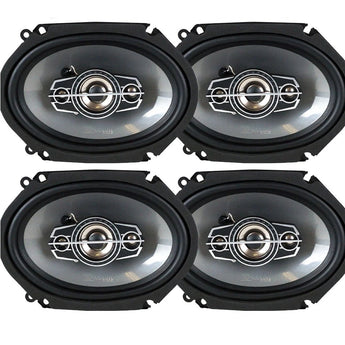

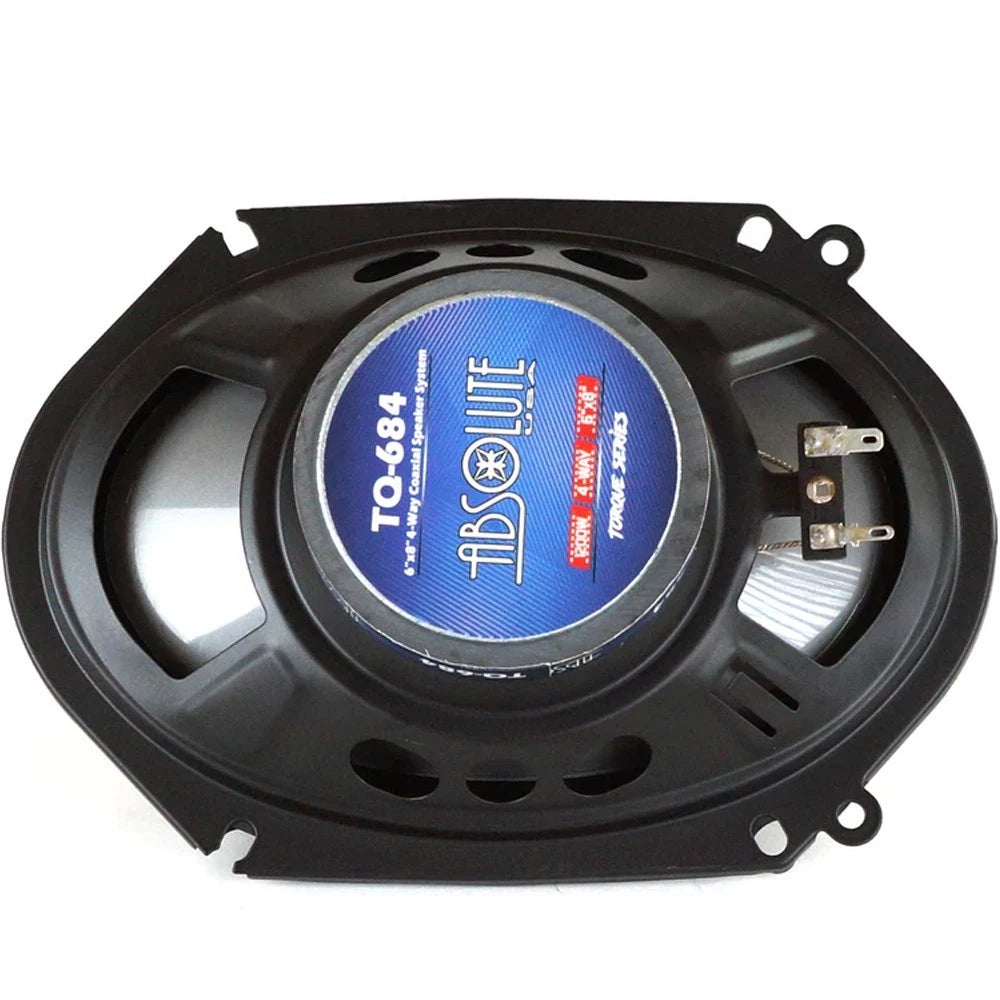

2 Pairs Absolute USA TQ-684 6x8" 4-Way Coaxial Speakers

This package includes two pairs of Absolute USA TQ-684 6x8-inch 4-way full-range speakers, providing four speakers for compatible front and rear factory locations. The multi-driver coaxial design reproduces bass, midrange, vocals, and high frequencies from a single speaker assembly.

Speaker Key Features

• Includes 2 Pairs / 4 Speakers

• 6" x 8" / 5" x 7" Compatible Size

• 4-Way Coaxial Design

• Full-Range Automotive Speakers

• 500 Watts Peak Power

• 100 Watts RMS

• 4-Ohm Impedance

• 92 dB Sensitivity

• 30 Hz-37 kHz Frequency Response

• Designed for Compatible Factory Door Speaker Locations

• Compatible with Factory and Aftermarket Car Stereo Systems

• Speaker Grilles Not Included

Speaker Specifications

• Brand: Absolute USA

• Model: TQ-684

• Speaker Size: 6" x 8"

• Alternate Size Classification: 5" x 7"

• Speaker Type: 4-Way Coaxial

• Configuration: Full-Range

• Quantity: 4 Speakers / 2 Pairs

• Impedance: 4 Ohms

• Sensitivity: 92 dB

• Frequency Response: 30 Hz-37 kHz

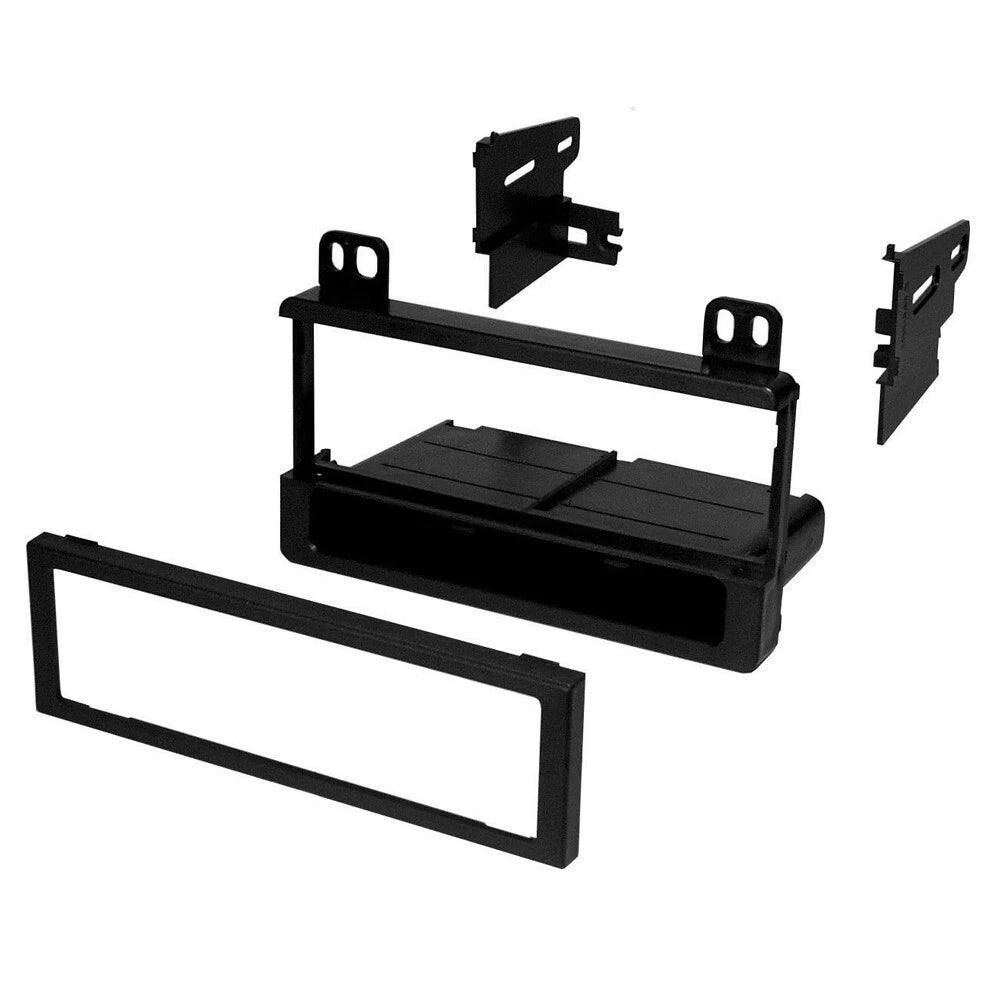

FMK-550 Single-DIN Installation Dash Kit

The FMK-550 installation kit is designed to mount a compatible Single-DIN aftermarket radio in select Ford, Lincoln, and Mercury vehicles and help provide a clean, properly finished dashboard installation.

Dash Kit Features

• Single-DIN Aftermarket Radio Installation

• Designed for Select 1995-2008 Ford, Lincoln & Mercury Vehicles

• Vehicle-Specific Installation Design

• Helps Provide a Finished Factory-Style Appearance

• Includes Radio Housing

• Includes Trim Plate

• Includes Mounting Brackets

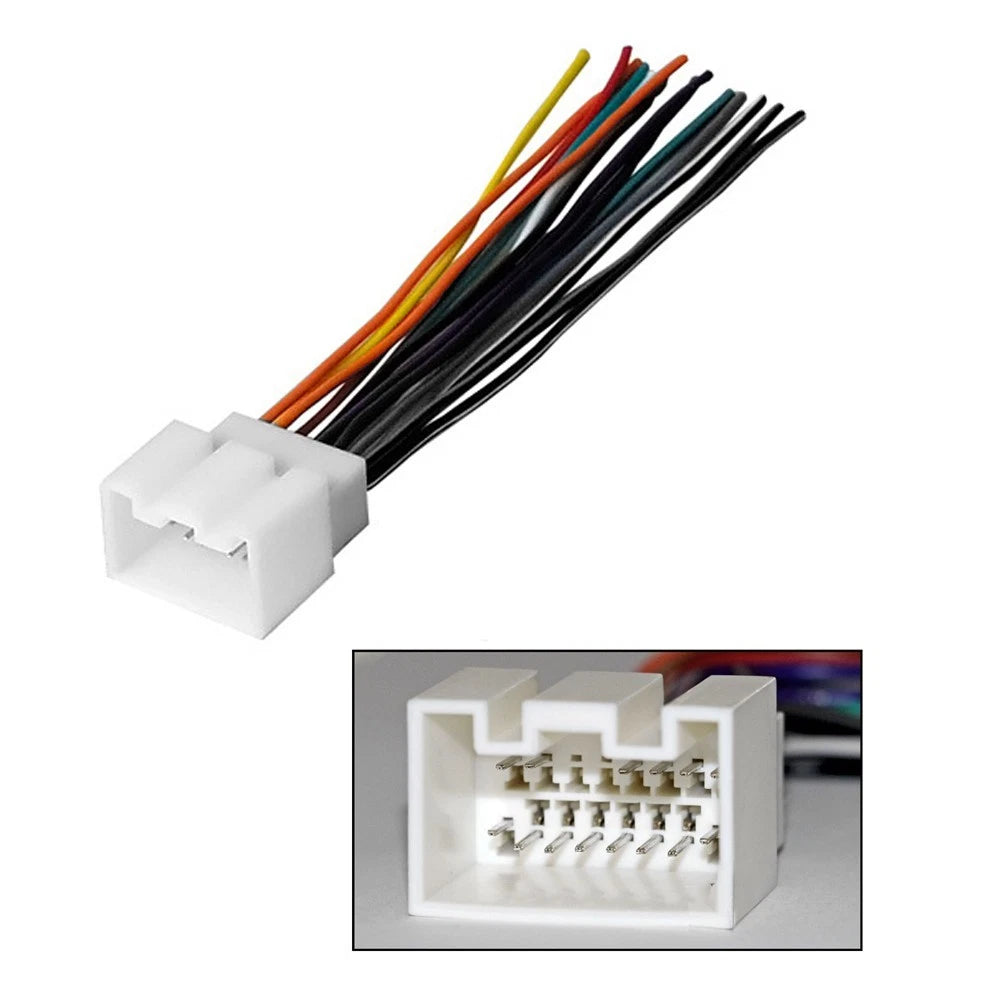

FWH-598 Radio Wiring Harness

The FWH-598 wiring harness connects a compatible aftermarket receiver to the factory radio wiring in select Ford, Lincoln, and Mercury vehicles.

Wiring Harness Features

• Designed for Aftermarket Radio Installation

• Connects Aftermarket Stereo to Compatible Factory Wiring

• Helps Reduce the Need to Cut Factory Radio Wiring

• Compatible with Select 1998-2008 Ford, Lincoln & Mercury Vehicles

• Color-Coded Wiring for Installation Convenience

Vehicle Compatibility

Ford

• F-150: 1999

• F-150: 2000

• F-150: 2001

• F-150: 2002

• F-150: 2003

Important Vehicle Requirements

• Designed for Compatible Non-Amplified Models

• Not Compatible with Vehicles Equipped with a Factory Subwoofer

• Not Intended for Factory Amplified Audio Systems

• Factory radio and speaker configurations should be verified before installation

Perfect For

• 1999 Ford F-150 Radio & Speaker Upgrade

• 2000 Ford F-150 Radio & Speaker Upgrade

• 2001 Ford F-150 Radio & Speaker Upgrade

• 2002 Ford F-150 Radio & Speaker Upgrade

• 2003 Ford F-150 Radio & Speaker Upgrade

• Replacing Factory Radio

• Replacing Four Compatible Factory Door Speakers

• Bluetooth Audio Streaming

• Hands-Free Calling

• AM/FM Radio Listening

• USB & AUX Audio Playback

• Non-Amplified Factory Audio Systems

What's in this Package

• (1) Refurbished Dual Electronics XDM17BT Bluetooth Digital Media Receiver

• (2 Pairs / 4 Speakers) Absolute USA TQ-684 6x8" 4-Way Coaxial Car Speakers

• (1) FMK-550 Single-DIN Installation Dash Kit

• (1) FWH-598 Radio Wiring Harness

Installation Notes

• This package is designed for compatible 1999-2003 Ford F-150 non-amplified applications.

• This package will not work with vehicles equipped with a factory subwoofer or factory amplified audio system.

• Verify your factory radio configuration, speaker size, speaker connectors, mounting depth, and audio system before purchasing.

• Speaker grilles are not included.

• Additional installation accessories may be required depending on the exact factory configuration.

• Professional installation is recommended.
