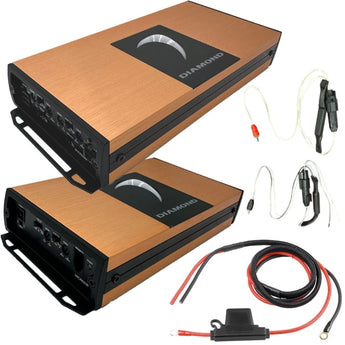

Diamond Audio MICRO4V2 & MICRO2V2 4-Channel and 2-Channel Class D Amplifier Bundle with MSPWHR Wiring Kit, MSRCA2 RCA Harness, BT1700 Electrical Tape & Phone Holder

Expand your compatible audio system with this Diamond Audio dual-amplifier bundle, featuring the MICRO4V2 four-channel amplifier and MICRO2V2 two-channel amplifier. Both use full-range Class D amplification in compact housings, providing flexible power options for systems with limited mounting space.

Adjustable crossovers, selectable turn-on modes, and a wide input sensitivity range help match the amplifiers to compatible audio equipment. The bundle includes an MSRCA2 two-channel RCA output harness, an MSPWHR power and ground wiring kit, a MICRO2V2 remote bass knob, Absolute BT1700 electrical tape, and a universal mobile phone holder.

General Features

• Dual Amplifier Package: Includes one MICRO4V2 four-channel amplifier and one MICRO2V2 two-channel amplifier.

• Full-Range Class D Design: Provides compact amplification for compatible audio systems.

• MICRO4V2 Power: Delivers 80W x 4 at 4 ohms or 150W x 4 at 2 ohms.

• MICRO2V2 Power: Delivers 150W x 2 at 4 ohms or 250W x 2 at 2 ohms.

• Bridged Operation: MICRO4V2 supports 300W x 2 at 4 ohms bridged; MICRO2V2 supports 500W x 1 at 4 ohms bridged.

• Adjustable Crossovers: Features 40–400Hz filtering with selectable LPF, FLAT, and HPF modes.

• Selectable Turn-On Modes: Both amplifiers support REM, VOX, and DC options.

• Flexible Input Matching: Both amplifiers offer 0.2–10V input sensitivity.

• Selectable MICRO4V2 Input Mode: Supports two-channel or four-channel input configurations.

• Remote Bass Control: Includes a remote bass knob for the MICRO2V2.

• Motorcycle RCA Harness: MSRCA2 provides two-channel RCA outputs with integrated load resistors for compatible Harley-Davidson systems.

• Power Wiring Kit: MSPWHR includes 8-gauge power and ground wires, remote wire, an inline fuse holder, and a 60A fuse.

• Electrical Tape Included: Comes with Absolute BT1700 electrical tape.

• Phone Holder Included: Includes a universal mobile phone holder.

Specifications

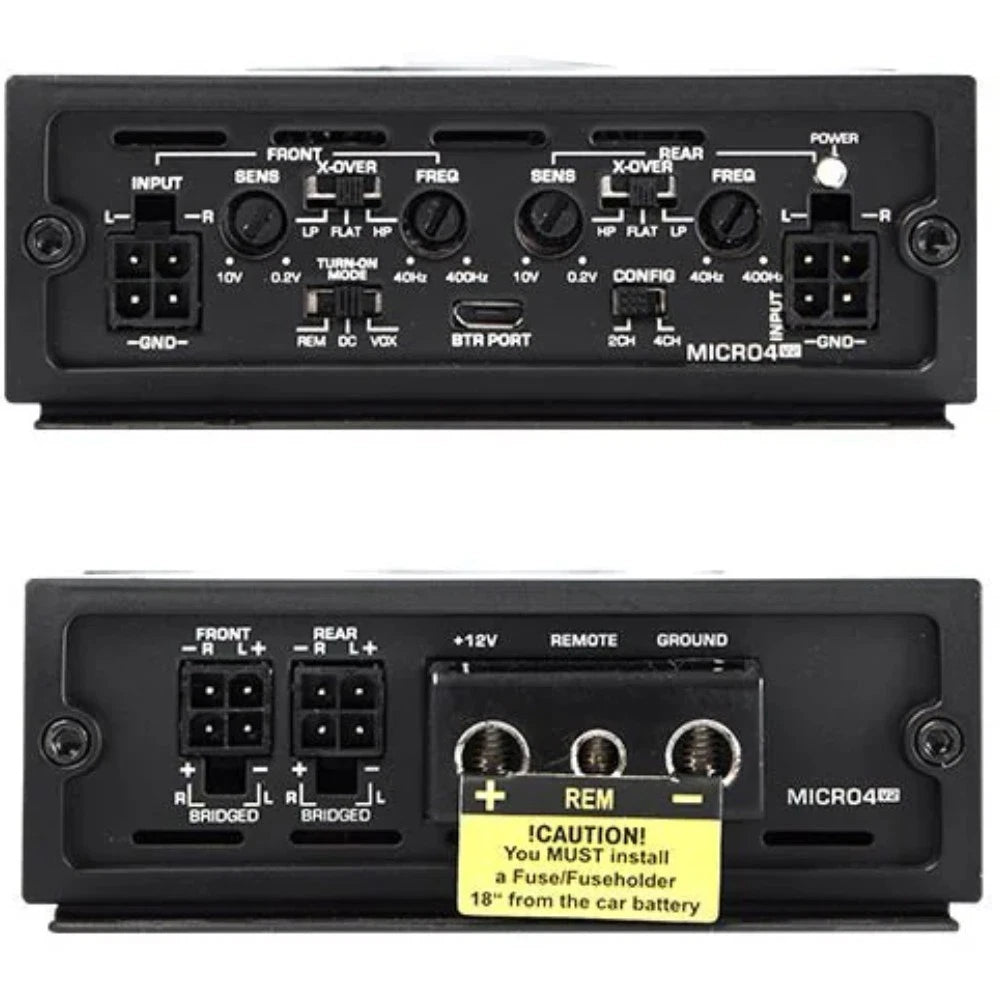

Diamond Audio MICRO4V2 Amplifier

• Amplifier Type: Four-Channel, Full-Range Class D

• RMS Power at 4 Ohms: 80W x 4

• RMS Power at 2 Ohms: 150W x 4

• Bridged Power at 4 Ohms: 300W x 2

• Input Sensitivity: 0.2–10V

• Crossover Filter Range: 40–400Hz

• Crossover Slope: 12dB per Octave

• Crossover Modes: LPF / FLAT / HPF

• Input Modes: Selectable 2CH / 4CH

• Turn-On Modes: REM / VOX / DC

• Frequency Response: 10Hz–33kHz

• Dimensions: 230.5 × 103 × 37.2mm

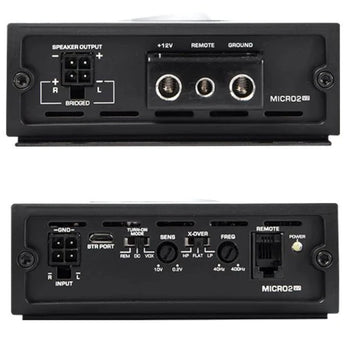

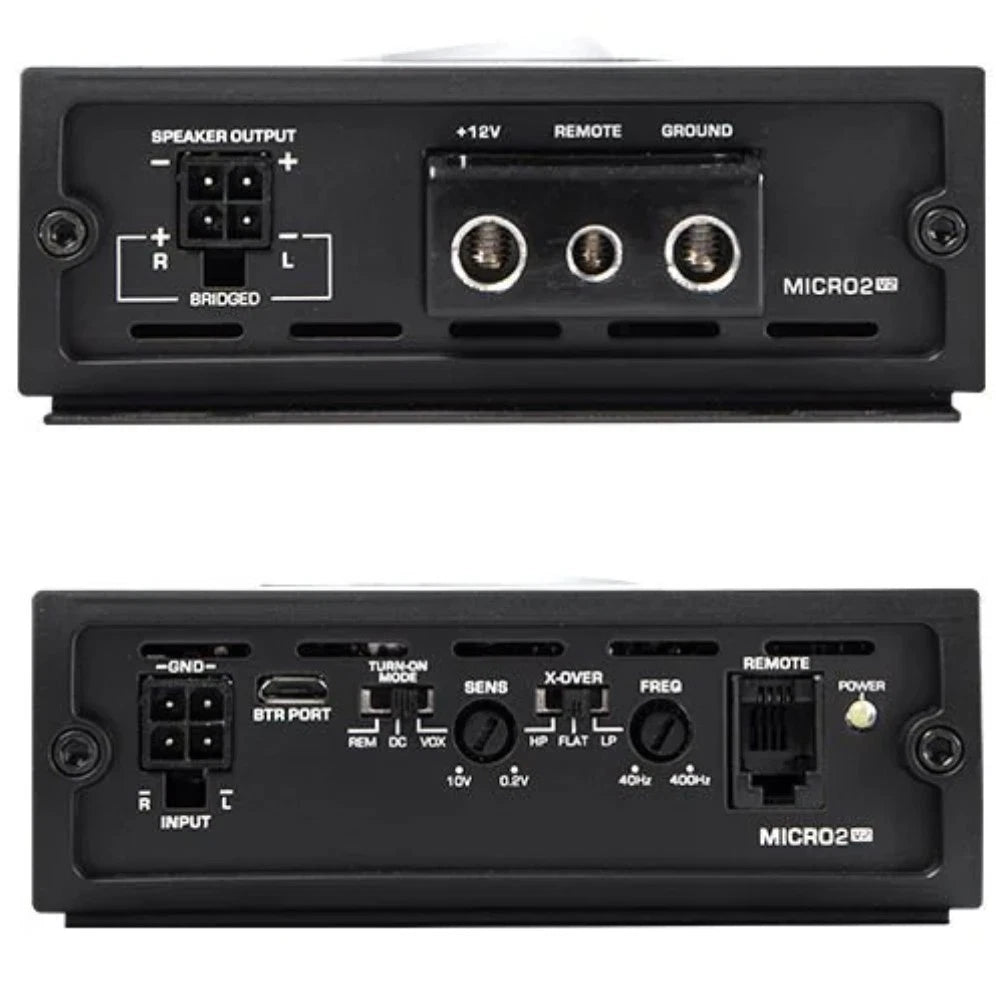

Diamond Audio MICRO2V2 Amplifier

• Amplifier Type: Two-Channel, Full-Range Class D

• RMS Power at 4 Ohms: 150W x 2

• RMS Power at 2 Ohms: 250W x 2

• Bridged Power at 4 Ohms: 500W x 1

• Input Sensitivity: 0.2–10V

• Crossover Filter Range: 40–400Hz

• Crossover Slope: 12dB per Octave

• Crossover Modes: LPF / FLAT / HPF

• Turn-On Modes: REM / VOX / DC

• Frequency Response: 10Hz–33kHz

• Dimensions: 200.5 × 103 × 37.2mm

• Remote Bass Knob: Included

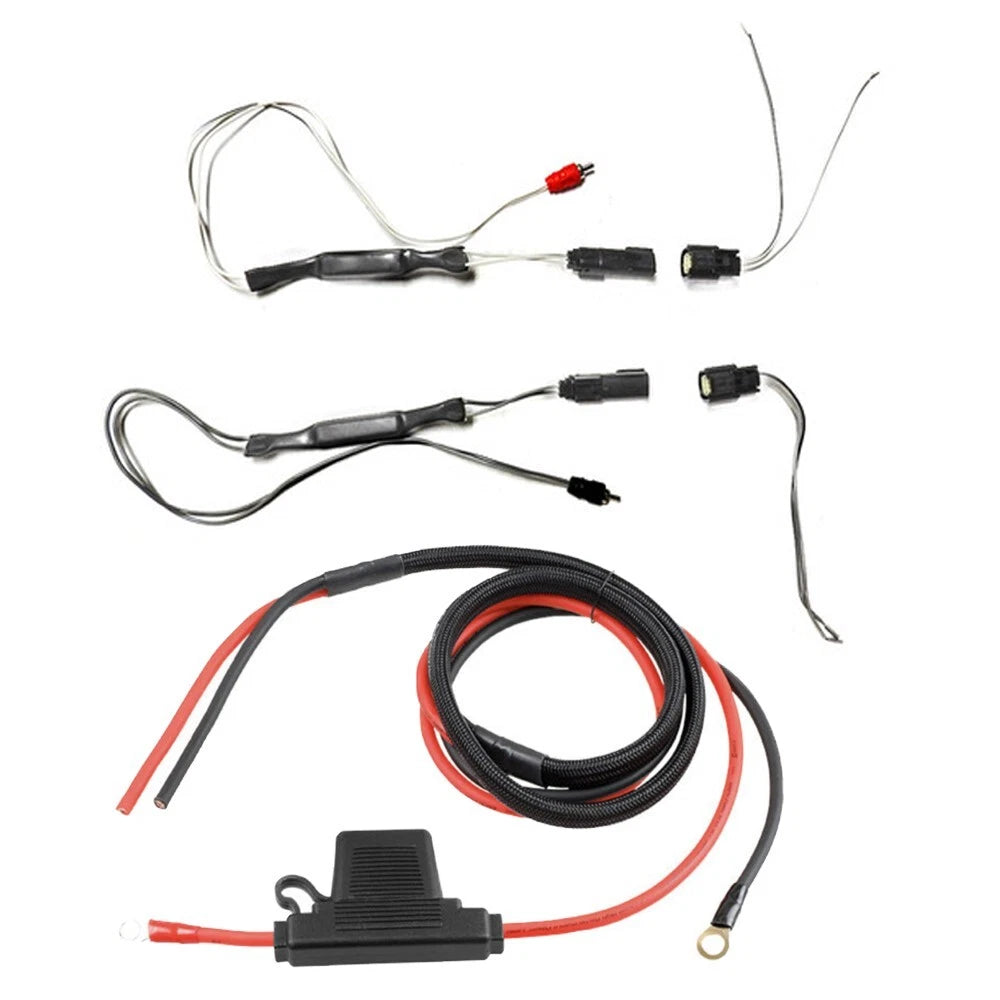

Diamond Audio MSRCA2 RCA Output Harness

• Product Type: Motorsport Two-Channel RCA Output Harness

• Output Configuration: Two-Channel RCA

• Integrated Components: Load Resistors

• Application: Compatible Factory Audio System to Aftermarket Amplifier Connection

• Listed Vehicle Compatibility: Select 2014-Up Harley-Davidson Touring Models

Diamond Audio MSPWHR Wiring Kit

• Product Type: Amplifier Power and Ground Wiring Kit

• Power Wire: 6-Foot Red 8-Gauge Wire with Preinstalled Ring Terminal

• Ground Wire: 5-Foot Black 8-Gauge Wire with Preinstalled Ring Terminal

• Remote Wire: 16-Inch Blue 18-Gauge Wire with Preinstalled Spade Terminal

• Fuse Holder: Weather-Resistant Inline Maxi Fuse Holder

• Included Fuse: 60A Maxi-Style

Vehicle Compatibility

MSRCA2 harness applications listed in the supplied product information:

• Harley-Davidson Street Glide: Select 2014-up models

• Harley-Davidson Electra Glide: Select 2014-up models

• Harley-Davidson Ultra Glide: Select 2014-up applications; confirm exact model designation

Compatibility Note: Confirm your exact motorcycle model, year, factory audio configuration, signal connections, and available amplifier space before purchasing. Harness compatibility does not guarantee amplifier fitment. This bundle includes one power wiring kit and one two-channel RCA harness; additional power distribution, fuse protection, or signal connections may be required for the dual-amplifier setup.

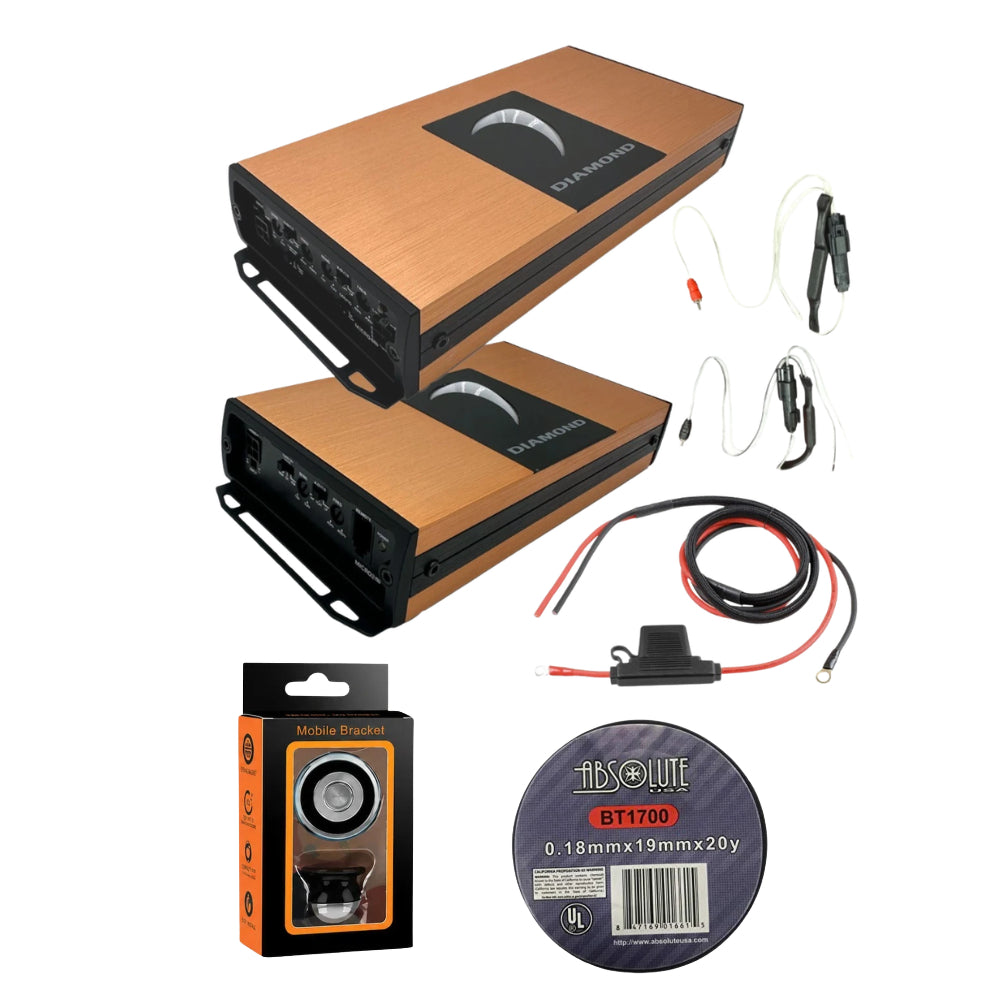

Package Includes

• (1) Diamond Audio MICRO4V2 Four-Channel Class D Amplifier

• (1) Diamond Audio MICRO2V2 Two-Channel Class D Amplifier

• (1) Remote Bass Knob for the MICRO2V2

• RCA Input and Speaker Output Harness Kits Supplied with the Amplifiers

• (1) Diamond Audio MSRCA2 Two-Channel RCA Output Harness

• (1) Diamond Audio MSPWHR 8-Gauge Power and Ground Wiring Kit, Including Remote Wire, Weather-Resistant Inline Maxi Fuse Holder, and 60A Fuse

• (1) Absolute BT1700 Electrical Tape

• (1) Universal Mobile Phone Holder
