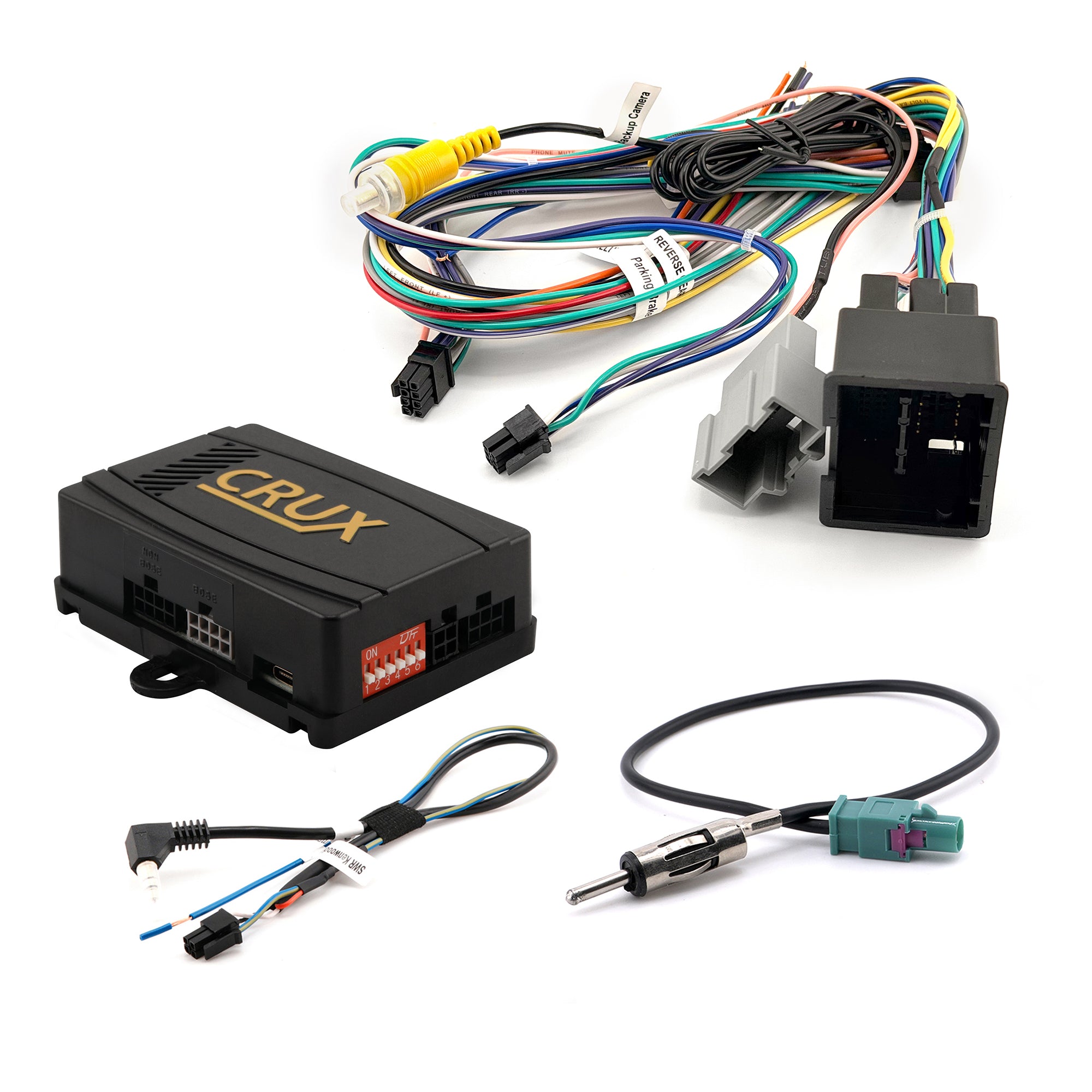

Crux SWRGM-50N Radio Replacement Interface with Steering Wheel Control, CGI Screen, Backup Camera & Chime Retention for Select 2010-2017 GM LAN Bus Vehicles

Upgrade select General Motors LAN Bus vehicles with an aftermarket radio while retaining important factory features using the Crux SWRGM-50N Radio Replacement Interface. Designed for supported amplified and non-amplified GM audio systems, the SWRGM-50N retains factory steering wheel controls, warning chimes, backup camera, Retained Accessory Power, and supported CGI display functions. It also retains center-dash control illumination and factory monochrome or color display functions in compatible applications for a cleaner, more factory-integrated radio replacement.

General Features

• Crux SWRGM-50N Radio Replacement Interface

• Designed for Select 2010-2017 GM LAN Bus Vehicles

• Supports Aftermarket Radio Installation

• Retains Factory Steering Wheel Controls

• Built-In Pre-Programmed SWC Interface

• Retains Factory Warning Chimes

• Retains RAP / Retained Accessory Power

• Retains Factory Backup Camera

• Retains Supported Factory CGI Screen

• Retains Factory Monochrome Display Functions in Select Applications

• Retains Factory Color Display Backlighting in Supported Applications

• Retains Factory Display Button Functions

• Retains Center Dash Control Illumination

• Compatible with Amplified Audio Systems

• Compatible with Non-Amplified Audio Systems

• Provides Navigation / Installation Outputs

• Includes Antenna Adapter

• Does Not Retain OnStar

CGI Screen & Factory Display Retention

The SWRGM-50N is designed to retain supported factory display functionality after replacing the original radio.

• Retains Factory CGI Screen Functions

• Retains Factory Monochrome Screen in Select Applications

• Retains Monochrome Display Button Functions

• Retains Backlight for Supported Factory Color Displays

• Retains Factory Display Button Functionality

• Retains Upper Dash Control Backlighting

• Retains Center Dash Control Illumination

Steering Wheel Control Retention

A built-in, pre-programmed interface retains supported factory steering wheel controls with a compatible aftermarket radio.

• Factory Steering Wheel Control Retention

• Built-In SWC Interface

• Pre-Programmed Operation

• Designed for Compatible Aftermarket Radios

Factory Feature Retention

• Factory Warning Chimes

• Steering Wheel Controls

• Factory Backup Camera

• Retained Accessory Power

• CGI Screen Functions

• Factory Monochrome Display Functions in Supported Applications

• Factory Color Display Backlighting

• Center Dash Control Illumination

Amplified & Non-Amplified System Support

• Compatible with Amplified Factory Audio Systems

• Compatible with Non-Amplified Factory Audio Systems

• Interface Provides Required Amplifier Activation in Supported Applications

Important Amplifier Wiring Note

Do not connect the amplifier turn-on lead from the aftermarket radio. According to the supplied installation information, the SWRGM-50N interface provides the necessary amplifier activation.

Navigation & Installation Outputs

• Amplifier Turn-On Output

• Illumination Output

• Parking Brake Output

• Reverse Gear Output

• Vehicle Speed Sense Output

Factory Backup Camera Retention

• Retains Supported Factory Backup Camera

• Designed to Integrate Factory Camera with Compatible Aftermarket Radio

• Vehicle Must Have a Compatible Factory Camera System

Included Antenna Adapter

The SWRGM-50N includes an antenna adapter for connecting the supported factory antenna system to a compatible aftermarket receiver.

• Antenna Adapter Included

• Designed for Compatible GM Antenna Connections

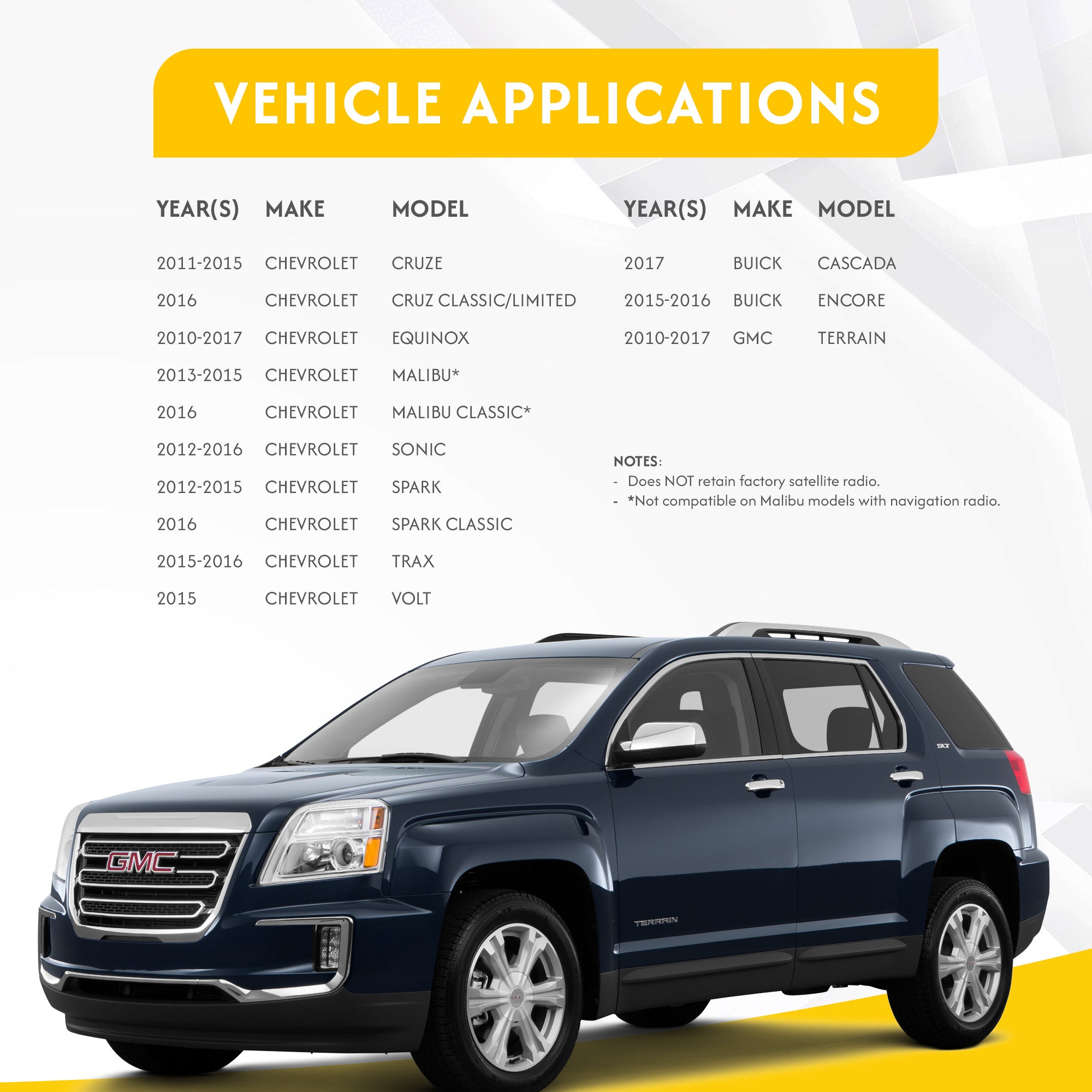

Vehicle Compatibility

Buick

• 2017 Buick Cascada

• 2015-2016 Buick Encore

Chevrolet

• 2011-2015 Chevrolet Cruze

• 2016 Chevrolet Cruze Classic

• 2010-2016 Chevrolet Equinox

• 2013-2015 Chevrolet Malibu*

• 2016 Chevrolet Malibu Classic*

• 2012-2015 Chevrolet Sonic

• 2012-2015 Chevrolet Spark

• 2016 Chevrolet Spark Classic

• 2015-2016 Chevrolet Trax

• 2015 Chevrolet Volt

GMC

• 2010-2017 GMC Terrain

Important Compatibility Notes

• *Not compatible with Chevrolet Malibu models equipped with a factory navigation radio.

• Does not retain factory OnStar.

• For applications requiring OnStar retention, the supplied information recommends the Crux SOOGM-19N.

• Factory screen, button, illumination, backup camera, and steering wheel control retention depend on the vehicle having the supported factory equipment.

• Verify vehicle year, model, factory radio, display type, amplifier configuration, and navigation system before ordering.

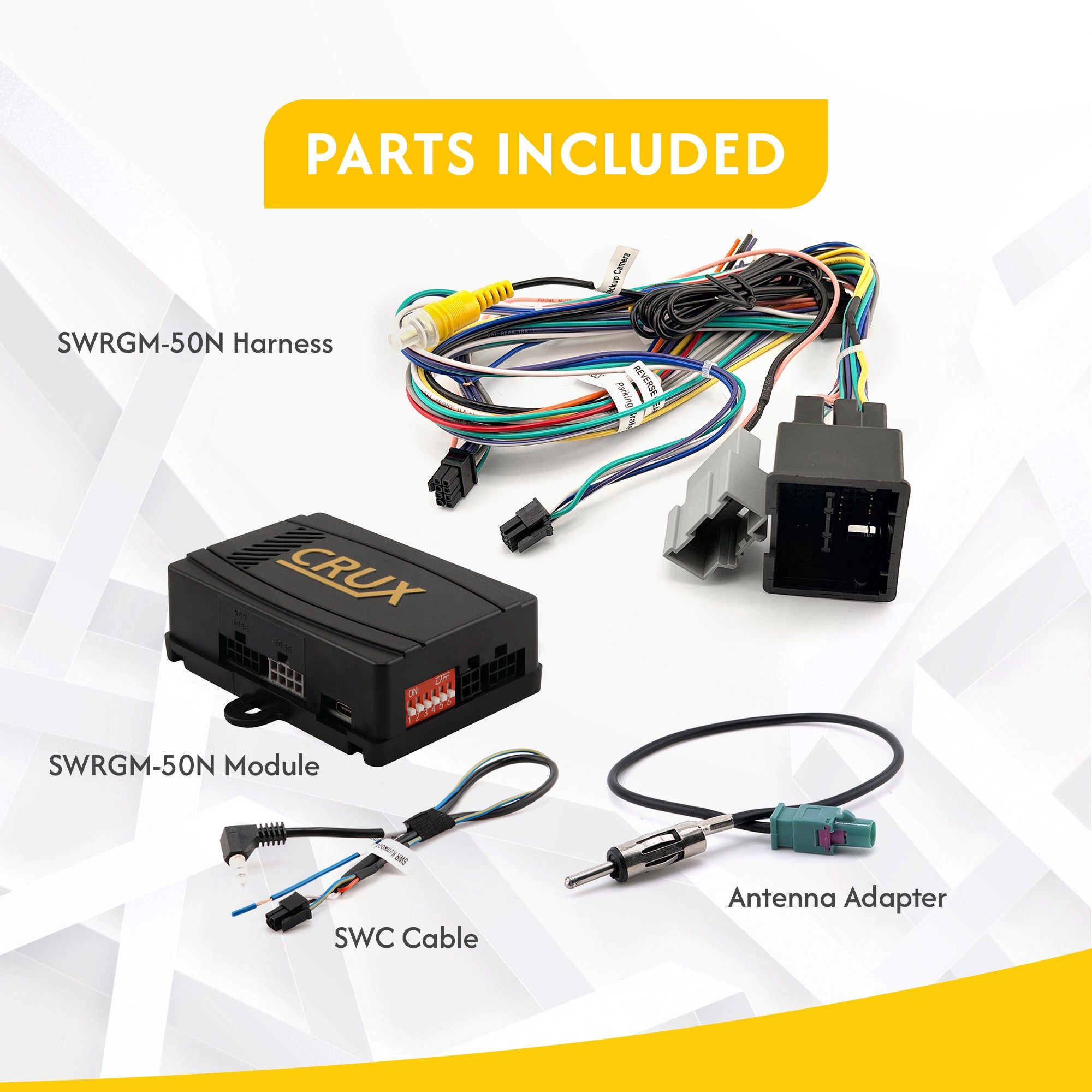

What's in this Package

• (1) Crux SWRGM-50N Radio Replacement Interface

• (1) Antenna Adapter

Installation Notes

• Designed for select GM LAN Bus applications from 2010-2017 as listed.

• Supports both amplified and non-amplified factory audio systems as specified.

• Do not connect the aftermarket radio's amplifier remote turn-on lead when the interface is supplying amplifier activation.

• The interface does not retain OnStar.

• Malibu applications equipped with factory navigation radios are not compatible according to the supplied fitment information.

• Steering wheel control operation depends on compatibility with the installed aftermarket receiver.

• Factory backup camera retention requires a compatible factory camera and an aftermarket radio capable of displaying the camera image.

• Additional dash kits, radio-specific wiring, or other installation accessories may be required and are not stated as included.

• Professional installation is recommended for proper GM LAN Bus integration, display retention, and factory-feature operation.
