Crux SWRGM-49R Chevy GMC Radio Interface 2019-2023 + BT1700 Tape & Phone Holder
Pickup available at 1800 E Washington Blvd
Usually ready in 24 hours
Have Questions?
- Tel: +1 213 744 11 44
- Tel: +1 800 674 27 24
Brand: Crux
Description

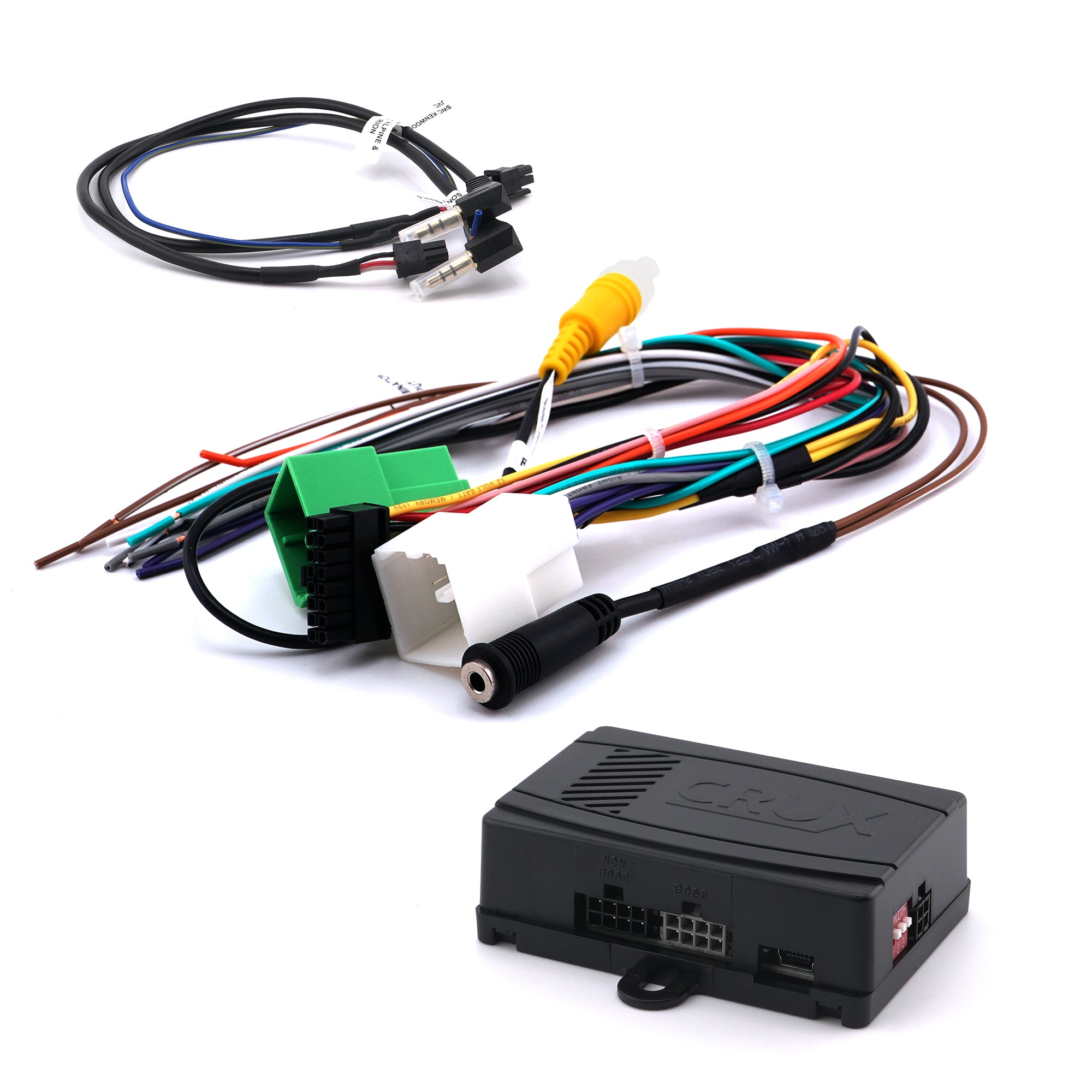

Crux SWRGM-49R Radio Replacement Interface with Steering Wheel Control Retention for Select 2019–2023 Chevrolet & GMC Vehicles with BT1700 Electrical Tape & Phone Holder
Upgrade your factory radio with the Crux SWRGM-49R, a radio replacement interface designed for select 2019–2023 Chevrolet and GMC vehicles with GM IOR systems and a 56-pin head unit connector. This bundle includes Absolute BT1700 electrical tape and a universal mobile phone holder.
The interface supports aftermarket stereo integration while retaining compatible factory steering wheel controls, chimes, and accessory power. Dedicated illumination, parking brake, reverse, and speed sense outputs support compatible aftermarket radios. The SWRGM-49R is intended for non-amplified systems or applications where the factory amplifier is bypassed.
General Features
-
Aftermarket Radio Integration: Connects a compatible aftermarket stereo to supported Chevrolet and GMC factory systems.
-
GM IOR Compatibility: Designed for select vehicles equipped with an IOR factory radio system.
-
56-Pin Connector Design: Supports the specified factory head unit connection.
-
Steering Wheel Control Retention: Pre-programmed to retain compatible factory steering wheel audio controls.
-
Factory Chime Retention: Preserves factory chimes in supported applications.
-
Accessory Power Retention: Maintains the accessory power function for the replacement radio.
-
Dedicated Signal Outputs: Provides illumination, parking brake, reverse, and speed sense outputs.
-
Factory Camera Retention Support: Works with the Crux GMCB-09, sold separately, for compatible factory camera applications.
-
Non-Amplified System Support: Suitable for non-amplified vehicles or systems where the factory amplifier is bypassed.
-
Optional Extension Harness: Supports the Crux GM49R-EXT 5-foot harness, sold separately, for applicable passenger-side radio module locations.
-
Electrical Tape Included: Comes with Absolute BT1700 electrical tape.
-
Phone Holder Included: Includes a universal mobile phone holder.
Specifications
-
Brand: Crux
-
Model: SWRGM-49R
-
Product Type: Radio Replacement Interface Bundle
-
Application: Aftermarket Stereo Integration
-
Vehicle Makes: Select Chevrolet and GMC
-
Listed Model Years: 2019–2023, Depending on Application
-
Factory Radio System: GM IOR
-
Factory Connector: 56-Pin
-
Steering Wheel Controls: Retained in Compatible Applications
-
Programming: Pre-Programmed for Steering Wheel Control Retention
-
Factory Chimes: Retained
-
Accessory Power: Retained
-
Signal Outputs: Illumination, Parking Brake, Reverse, and Speed Sense
-
System Compatibility: Non-Amplified or Factory Amplifier Bypassed
-
OnStar Retention: Not Supported
-
Bose Amplifier Retention: Not Supported
-
Camera Retention Accessory: Crux GMCB-09, Sold Separately
-
Optional Extension Harness: Crux GM49R-EXT, Sold Separately
-
Included Electrical Tape: Absolute BT1700
-
Included Phone Holder: Universal Mobile Phone Holder

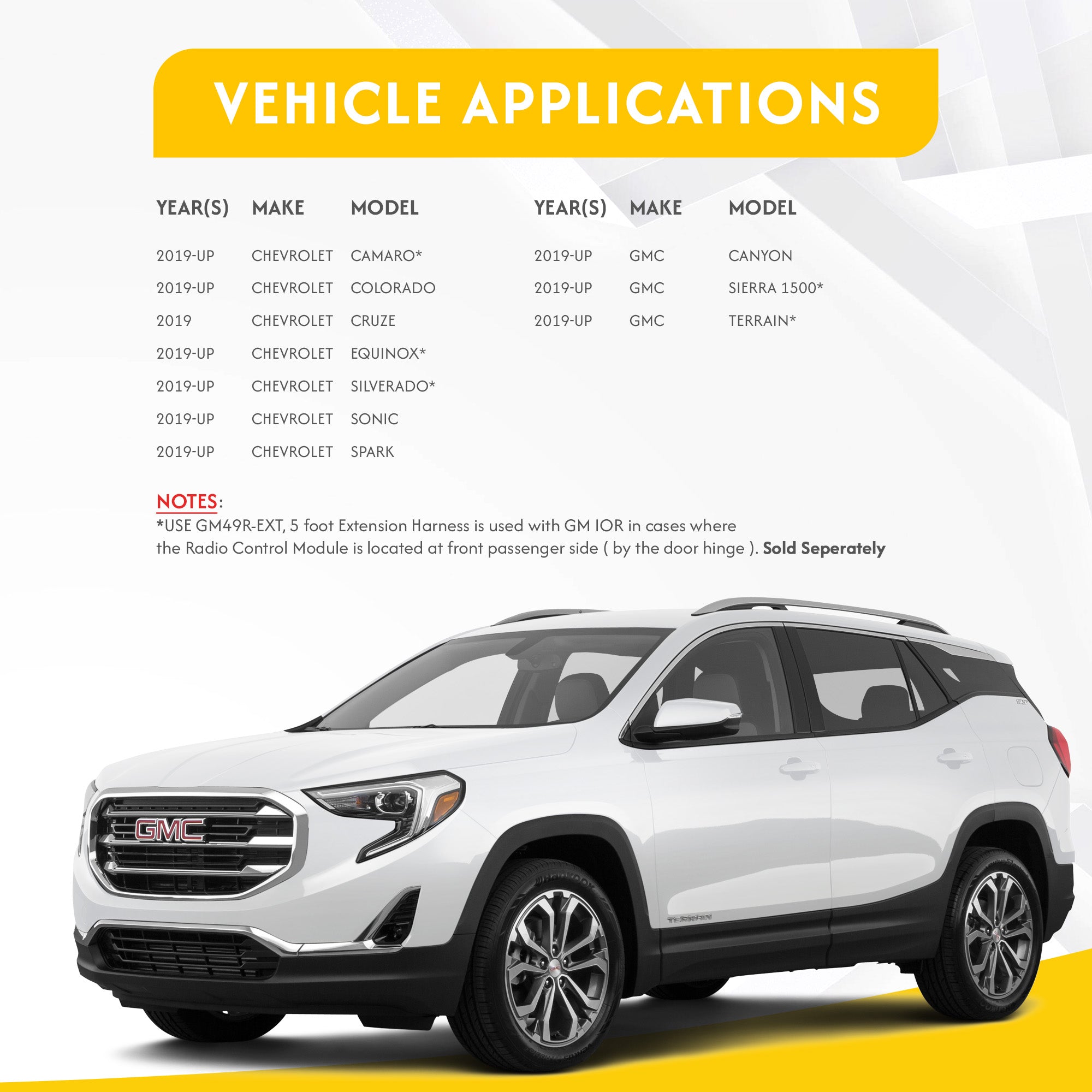

Vehicle Compatibility
-
Chevrolet: Select 2019–2023 models
-
GMC: Select 2019–2023 models
-
Required Radio Configuration: GM IOR System
-
Required Connector: 56-Pin Head Unit Connector
Fitment Note: Confirm your exact vehicle year, model, factory radio configuration, connector, and amplifier equipment before purchasing. This interface does not retain OnStar or the factory Bose amplifier. Factory backup camera retention is not supported in 2019-up Camaro IOR applications. Compatible camera retention applications require the Crux GMCB-09, sold separately. Refer to the manufacturer’s application guide for confirmed fitment.

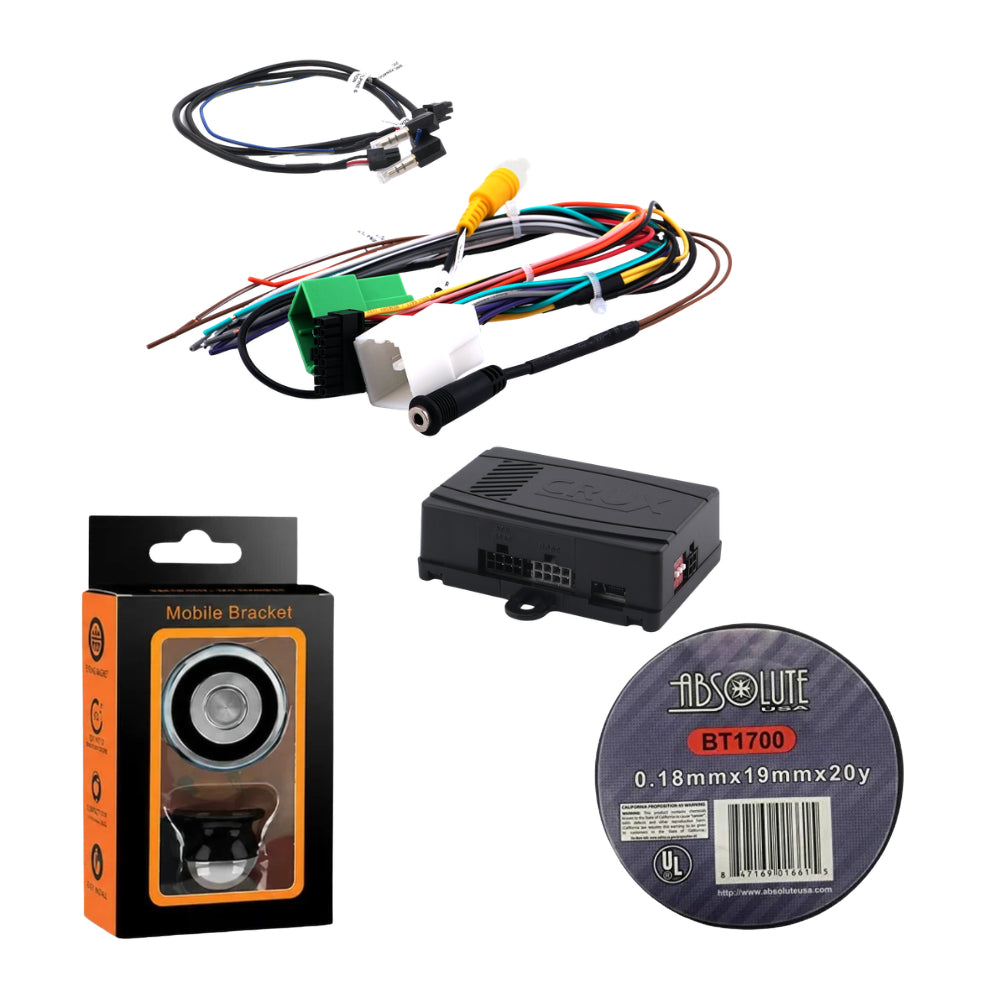

Package Includes
-
(1) Crux SWRGM-49R Radio Replacement Interface
-
(1) Absolute BT1700 Electrical Tape
-
(1) Universal Mobile Phone Holder
