Crux
Crux SWRGM-47 GM Radio Interface OnStar SWC + BT1700 Tape & Phone Holder
Pickup available at 1800 E Washington Blvd
Usually ready in 24 hours
Have Questions?
- Tel: +1 213 744 11 44
- Tel: +1 800 674 27 24
Brand: Crux
Description
Crux SWRGM-47 Radio Replacement Interface with Steering Wheel Control, OnStar, Chime & Backup Camera Retention for Select 2016–2019 GM Vehicles with BT1700 Electrical Tape & Phone Holder
Upgrade your factory radio with the Crux SWRGM-47, a radio replacement interface designed for select Chevrolet and GMC vehicles equipped with a compatible 7-inch factory screen, IOA or IOB radio configuration, and a non-amplified audio system.
The interface retains supported factory steering wheel controls, OnStar, warning chimes, backup camera functionality, backup sensors, and park assist. This bundle includes an antenna adapter, Absolute BT1700 electrical tape, and a universal mobile phone holder.
General Features
-
Aftermarket Radio Integration: Connects a compatible replacement stereo to supported Chevrolet and GMC factory systems.
-
Steering Wheel Control Retention: Pre-programmed to preserve supported factory audio controls.
-
OnStar Retention: Maintains factory OnStar functionality in compatible applications.
-
Factory Chime Retention: Preserves supported factory warning chimes.
-
Backup Camera Retention: Retains compatible cameras that display through the factory radio screen.
-
Backup Sensor & Park Assist Retention: Maintains supported factory parking assistance features.
-
Voice Recognition Support: Supports select iPhone voice recognition functions through factory steering wheel controls.
-
Bluetooth Call Controls: Supports compatible answer, end-call, and call-toggle functions.
-
Music Control Support: Supports AVRCP track control and seek functions with compatible aftermarket radios.
-
Non-Amplified System Compatibility: Designed for supported GM IOA or IOB systems with a 7-inch factory screen.
-
Color-Coded Wiring: Features EIA color-coded wiring for connection identification.
-
Antenna Adapter Included: Provides an adapter for compatible factory antenna connections.
-
Electrical Tape Included: Comes with Absolute BT1700 electrical tape.
-
Phone Holder Included: Includes a universal mobile phone holder.
Specifications
-
Brand: Crux
-
Model: SWRGM-47
-
Product Type: Radio Replacement Interface Bundle
-
Application: Aftermarket Stereo Integration
-
Vehicle Makes: Select Chevrolet and GMC
-
Model Years: Select 2016–2019 Applications
-
Required Factory Screen Size: 7 Inches
-
Compatible Factory Radio RPO Codes: IOA and IOB
-
Audio System Compatibility: Non-Amplified
-
Steering Wheel Controls: Retained in Compatible Applications
-
Steering Wheel Control Programming: Pre-Programmed
-
OnStar: Retained in Compatible Applications
-
Factory Chimes: Retained
-
Factory Backup Camera: Supported for Compatible Radio-Screen Display Applications
-
Backup Sensors: Retained Where Supported
-
Park Assist: Retained Where Supported
-
Voice Recognition & Bluetooth Controls: Dependent on Compatible Phone and Aftermarket Radio
-
Music Controls: AVRCP Track and Seek Functions Where Supported
-
Factory MOST Fiber Optic Features: Not Retained
-
Wiring Identification: EIA Color-Coded
-
Antenna Adapter: Included
-
Included Electrical Tape: Absolute BT1700
-
Included Phone Holder: Universal Mobile Phone Holder
Vehicle Compatibility
Chevrolet
-
Camaro: 2016–2018
-
Cruze: 2016–2018
-
Malibu: 2016–2018
-
Silverado 1500: 2016–2018
-
Silverado 1500 LD: 2019
-
Silverado 2500 HD: 2016–2017
-
Sonic: 2017–2018
-
Trax: 2017
GMC
-
Acadia: 2017
-
Sierra 1500: 2016–2017
-
Sierra 2500 HD: 2016–2017
-
Sierra 3500 HD: 2016–2017
Fitment Note: Confirm your exact vehicle year, model, factory screen size, radio RPO code, and audio configuration before purchasing. Requires a compatible 7-inch IOA or IOB factory system with non-amplified audio. Factory cameras displaying in the rear-view mirror are not retained. Factory MOST fiber optic features are not retained. Steering wheel, phone, and media functions depend on the capabilities of the connected equipment.

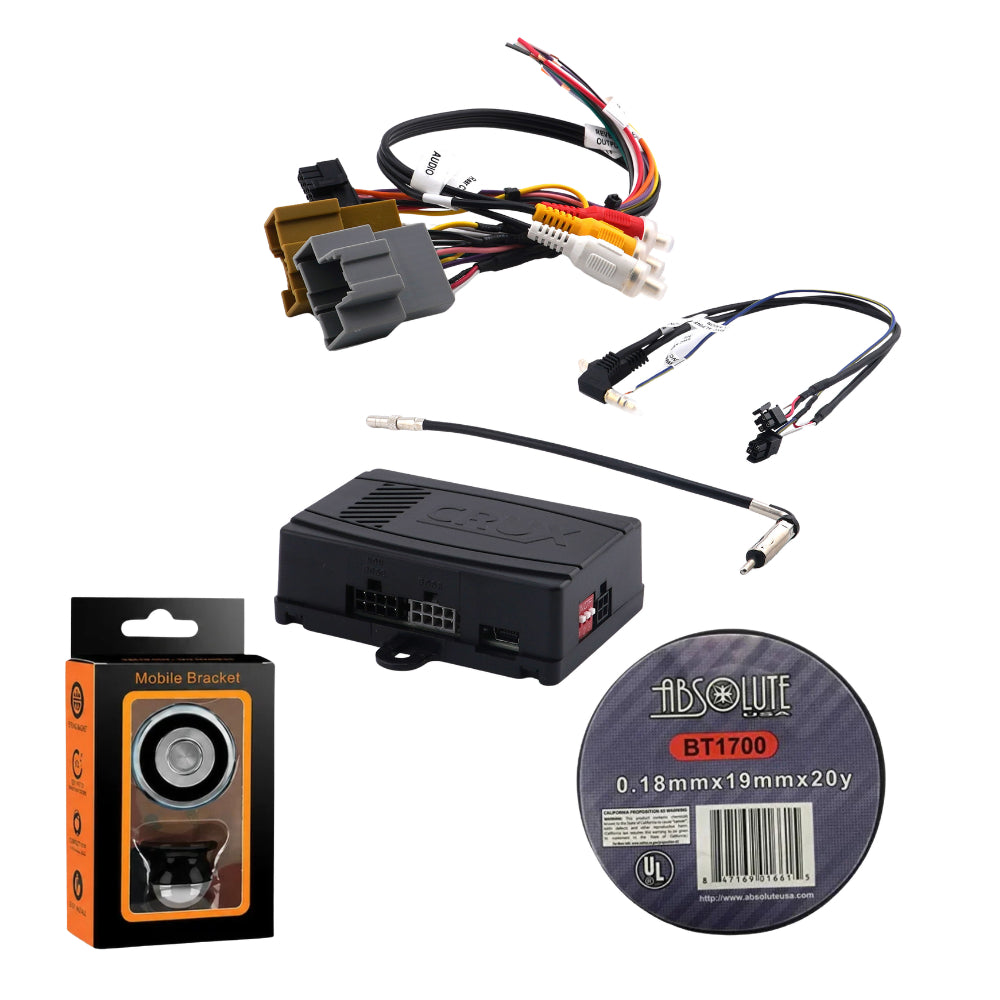

Package Includes
-
(1) Crux SWRGM-47 Radio Replacement Interface
-
(1) Antenna Adapter
-
(1) Absolute BT1700 Electrical Tape
-
(1) Universal Mobile Phone Holder
