CRUX
Crux SWRFD-60L Stereo Install Interface w/SWC Retention Fit 2004-12 Ford/Linoln
Pickup available at 1800 E Washington Blvd
Usually ready in 24 hours
Have Questions?
- Tel: +1 213 744 11 44
- Tel: +1 800 674 27 24
Brand: CRUX
Description

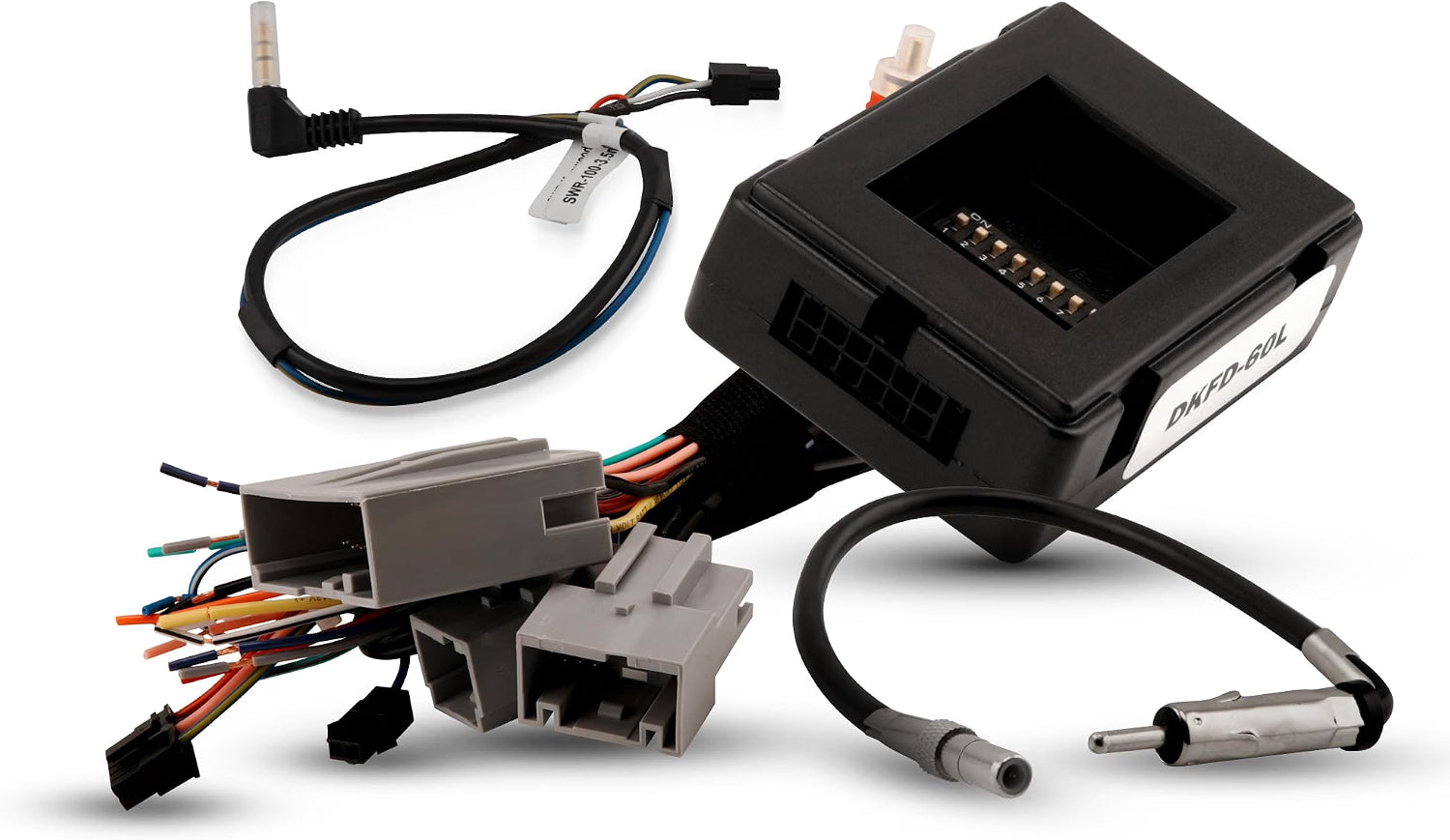

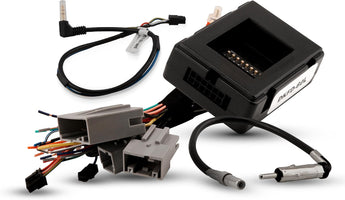

CRUX SWRFD-60L Radio Replacement Interface with Steering Wheel Control Retention Compatible Fit Select Ford, Lincoln & Mercury Vehicles
Replace the factory radio in select Ford, Lincoln, and Mercury vehicles with the CRUX SWRFD-60L radio replacement interface. Designed specifically for compatible vehicles with analog steering wheel controls, the SWRFD-60L helps integrate a new aftermarket stereo while retaining supported factory features, including steering wheel controls, retained accessory power, factory subwoofer, and factory AUX input.
General Features
-
CRUX SWRFD-60L Radio Replacement Interface
-
Designed for Select Ford, Lincoln & Mercury Vehicles
-
Designed for Vehicles with Analog Steering Wheel Controls
-
Installs a Compatible Aftermarket Car Stereo
-
Retains Supported Factory Features
-
Retains Factory Steering Wheel Controls
-
Built-In Pre-Programmed Steering Wheel Control Interface
-
Retains Factory-Installed Subwoofer in Compatible Applications
-
Retains Factory AUX-IN Jack
-
Retains R.A.P. – Retained Accessory Power
-
Provides 12-Volt Accessory Power
-
Accessory Output Rated up to 10 Amps
-
Compatible with Supported Amplified Systems
-
Compatible with Supported Non-Amplified Systems
-
Micro-B USB Updatable
-
Vehicle-Specific Radio Integration
-
1-Year Manufacturer Warranty
Analog Steering Wheel Control Interface
The SWRFD-60L is specifically designed for compatible vehicles equipped with an analog steering wheel control system.
-
Designed for Analog SWC Applications
-
Pre-Programmed Steering Wheel Control Retention
-
Retains Compatible Volume Controls
-
Retains Compatible Track / Seek Controls
-
Retains Other Supported Steering Wheel Audio Functions
-
Exact retained functions depend on vehicle and aftermarket radio compatibility
Important CAN vs. Analog SWC Note
The CRUX SWRFD-60L is intended for vehicles with analog steering wheel controls. If the vehicle uses CAN-based steering wheel controls, the CRUX SWRFD-60 should be used instead according to the supplied product information.
-
SWRFD-60L: Analog SWC Applications
-
SWRFD-60: CAN SWC Applications
-
Refer to the installation manual to determine whether the vehicle uses Analog or CAN steering wheel controls before installation
Retained Accessory Power – RAP
The interface maintains retained accessory power in compatible applications and provides a high-current accessory output for the aftermarket receiver.
-
Retains R.A.P.
-
Provides 12-Volt Accessory Power
-
Maximum Accessory Output: 10 Amps
-
Helps Maintain Normal Radio Operation After Key-Off Until the Vehicle RAP Circuit Times Out
Factory Subwoofer Retention
The SWRFD-60L is designed to retain the compatible factory-installed subwoofer when replacing the original radio.
-
Retains Compatible Factory Subwoofer
-
Helps Maintain Factory Low-Frequency Audio
-
Factory System Compatibility Should Be Verified Before Installation
Factory AUX Input Retention
-
Retains Compatible Factory AUX-IN Jack
-
Allows Continued Use of the Original Auxiliary Input in Supported Applications
-
Aftermarket Receiver Must Support the Required AUX Connection
Amplified & Non-Amplified Compatibility
-
Compatible with Supported Amplified Models
-
Compatible with Supported Non-Amplified Models
-
Factory Audio Configuration Should Be Verified Before Installation
Micro-B USB Updatable
-
Micro-B USB Update Port
-
Supports Compatible Firmware Updates
-
Helps Maintain Interface Compatibility When Updates Are Available
Vehicle Compatibility
Ford Crown Victoria
-
2004-2006 Ford Crown Victoria
Ford Edge
-
2007-2010 Ford Edge
Ford Escape
-
2008-2012 Ford Escape
Ford Expedition
-
2004-2010 Ford Expedition
Ford Explorer
-
2004-2010 Ford Explorer
Ford F-150
-
2004-2012 Ford F-150
Ford F-250
-
2004-2012 Ford F-250
Ford F-350
-
2004-2012 Ford F-350
Ford F-450
-
2004-2012 Ford F-450
Ford F-550
-
2004-2012 Ford F-550
Ford Five Hundred
-
2005-2007 Ford Five Hundred
Ford Flex
-
2009-2012 Ford Flex
Ford Focus
-
2004-2011 Ford Focus
Ford Freestar
-
2004-2007 Ford Freestar
Ford Freestyle
-
2005-2007 Ford Freestyle
Ford Fusion
-
2006-2012 Ford Fusion
Ford Mustang
-
2004-2012 Ford Mustang
Ford Taurus
-
2008-2010 Ford Taurus
Ford Thunderbird
-
2004-2005 Ford Thunderbird
Lincoln Aviator
-
2003-2005 Lincoln Aviator
Lincoln LS
-
2004-2006 Lincoln LS
Lincoln Mark LT
-
2006-2008 Lincoln Mark LT
Lincoln MKS
-
2009-2010 Lincoln MKS
Lincoln MKT
-
2010-2011 Lincoln MKT
Lincoln MKX
-
2006-2011 Lincoln MKX
Lincoln MKZ
-
2006-2011 Lincoln MKZ
Lincoln Navigator
-
2007-2011 Lincoln Navigator
Lincoln Town Car
-
2004-2010 Lincoln Town Car
Lincoln Zephyr
-
2006 Lincoln Zephyr
Mercury Grand Marquis
-
2003-2005 Mercury Grand Marquis
Mercury Mariner
-
2006-2010 Mercury Mariner
Mercury Milan
-
2006-2011 Mercury Milan
Mercury Montego
-
2005-2007 Mercury Montego
Mercury Monterey
-
2004-2007 Mercury Monterey
Mercury Mountaineer
-
2006-2010 Mercury Mountaineer
Mercury Sable
-
2008-2009 Mercury Sable
Important Compatibility Notes
-
Designed specifically for vehicles with analog steering wheel controls
-
Vehicles with CAN-based steering wheel controls should use the CRUX SWRFD-60 according to the supplied product information
-
Retains compatible factory-installed subwoofer
-
Retains compatible factory AUX input
-
Supports compatible amplified and non-amplified systems
-
Factory feature retention varies by vehicle, trim, factory radio, and aftermarket receiver
-
Verify steering wheel control type before installation
What's in this Package
-
(1) CRUX SWRFD-60L Radio Replacement Interface with Steering Wheel Control Retention
Installation Notes
-
Designed for the specific Ford, Lincoln, and Mercury applications listed above.
-
Determine whether the vehicle uses Analog or CAN steering wheel controls before installation.
-
Accessory power output is rated up to 12 volts / 10 amps.
-
Retained accessory power, factory AUX input, and factory subwoofer retention are available in compatible applications.
-
Additional dash kits, antenna adapters, or radio-specific accessories may be required depending on the vehicle and aftermarket receiver.
-
Verify vehicle year, model, trim, factory radio, amplifier configuration, and steering wheel control type before installation.
-
Professional installation is recommended.
-
Your supplied title says 2004-2014, while the detailed compatibility list includes applications beginning in 2003 and ending in 2012. I used the detailed vehicle application list above rather than extending fitment to 2014.
