Crux
Crux SWRFD-60B Radio Replacement w/ SWC Retention Fit Ford Lincoln Mercury Vehicles 2011-Up
Pickup available at 1800 E Washington Blvd
Usually ready in 24 hours
Have Questions?
- Tel: +1 213 744 11 44
- Tel: +1 800 674 27 24
Brand: Crux
Description

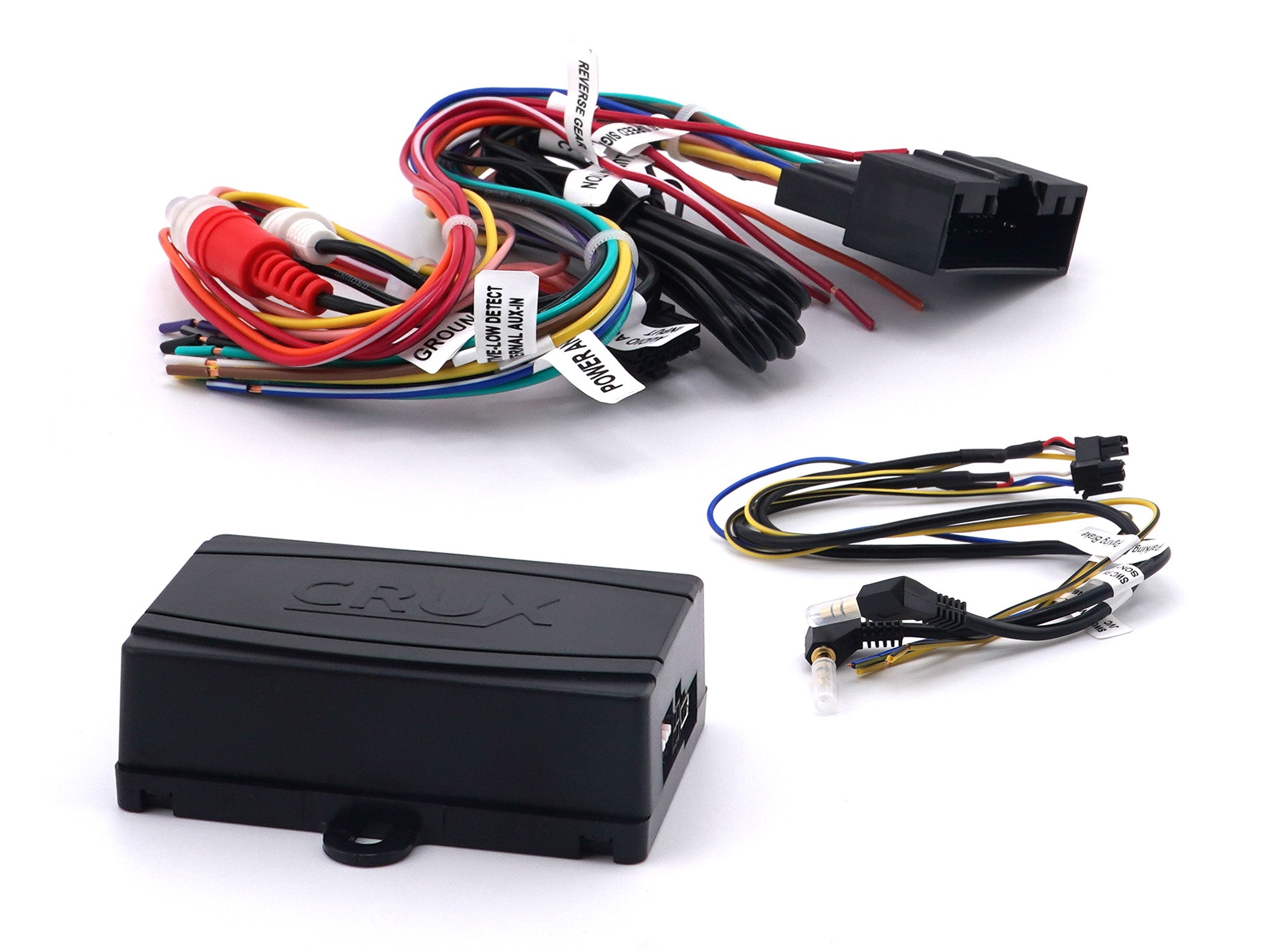

CRUX SWRFD-60B Radio Replacement Interface with Steering Wheel Control Retention Compatible Fit Select Ford & Lincoln Vehicles 2011-Up
Replace the factory radio in select Ford and Lincoln vehicles with the CRUX SWRFD-60B radio replacement interface. Designed to integrate a compatible aftermarket stereo while retaining supported factory features, the SWRFD-60B also includes a built-in, pre-programmed steering wheel control interface and provides useful vehicle signals for compatible navigation and multimedia receivers.
General Features
-
CRUX SWRFD-60B Radio Replacement Interface
-
Designed for Select Ford & Lincoln Vehicles
-
Compatible with Select 2011-Up Applications
-
Integrates Compatible Aftermarket Radios with Factory Wiring
-
Retains Supported Factory Features
-
Retains Factory Steering Wheel Controls
-
Built-In Pre-Programmed Steering Wheel Control Interface
-
Provides Reverse Gear Output
-
Provides Illumination Output
-
Provides Vehicle Speed Signal
-
Provides Accessory Power
-
Accessory Output Rated up to 2 Amps
-
Designed to Simplify Aftermarket Radio Installation
-
Does Not Retain Ford SYNC
Factory Feature Retention
The CRUX SWRFD-60B is designed to retain compatible factory functions when replacing the original radio with an aftermarket receiver.
-
Retains Supported Factory Features
-
Designed for Aftermarket Radio Integration
-
Maintains Compatible Steering Wheel Audio Controls
-
Vehicle-Specific Radio Replacement Interface
Steering Wheel Control Retention
The SWRFD-60B includes a built-in, pre-programmed steering wheel control interface to retain compatible factory steering wheel audio functions with supported aftermarket radios.
-
Built-In Steering Wheel Control Interface
-
Pre-Programmed for Compatible Applications
-
Retains Compatible Volume Controls
-
Retains Compatible Track / Seek Controls
-
Retains Other Supported Steering Wheel Audio Functions
-
Exact retained functions depend on vehicle and aftermarket radio compatibility
Navigation & Vehicle Signal Outputs
The interface provides useful vehicle signals for compatible aftermarket multimedia and navigation receivers.
-
Reverse Gear Output
-
Illumination Output
-
Vehicle Speed Signal
-
Useful for Compatible Navigation Receivers
-
Useful for Compatible Backup Camera Applications
Accessory Power Output
-
Provides Switched Accessory Power
-
Maximum Output: 2 Amps
-
Helps Supply Accessory Power to Compatible Aftermarket Receivers
Ford SYNC Compatibility Notice
The CRUX SWRFD-60B does not retain factory Ford SYNC functionality.
-
Does Not Retain Ford SYNC
-
Factory SYNC Functions May Be Lost After Radio Replacement
-
Bluetooth and Hands-Free Features May Be Available Through the Aftermarket Receiver if Equipped
Vehicle Compatibility
Ford Edge
-
2011-2015 Ford Edge
Ford Explorer
-
2013-2015 Ford Explorer
Ford F-Series
-
2013-2015 Ford F-Series
Ford F-150
-
2013-2015 Ford F-150
Ford F-250
-
2013-2015 Ford F-250
Ford F-350
-
2013-2015 Ford F-350
Ford Focus
-
2012-2015 Ford Focus
Ford Fusion
-
2013-2015 Ford Fusion
Lincoln MKX
-
2011-2012 Lincoln MKX
Important Compatibility Notes
-
Does not retain Ford SYNC
-
Steering wheel control retention depends on vehicle and aftermarket radio compatibility
-
Factory feature retention may vary by vehicle, trim, and factory radio configuration
-
Additional dash kits, antenna adapters, or radio-specific installation components may be required
-
Verify vehicle year, model, trim, factory radio, and SYNC configuration before purchase

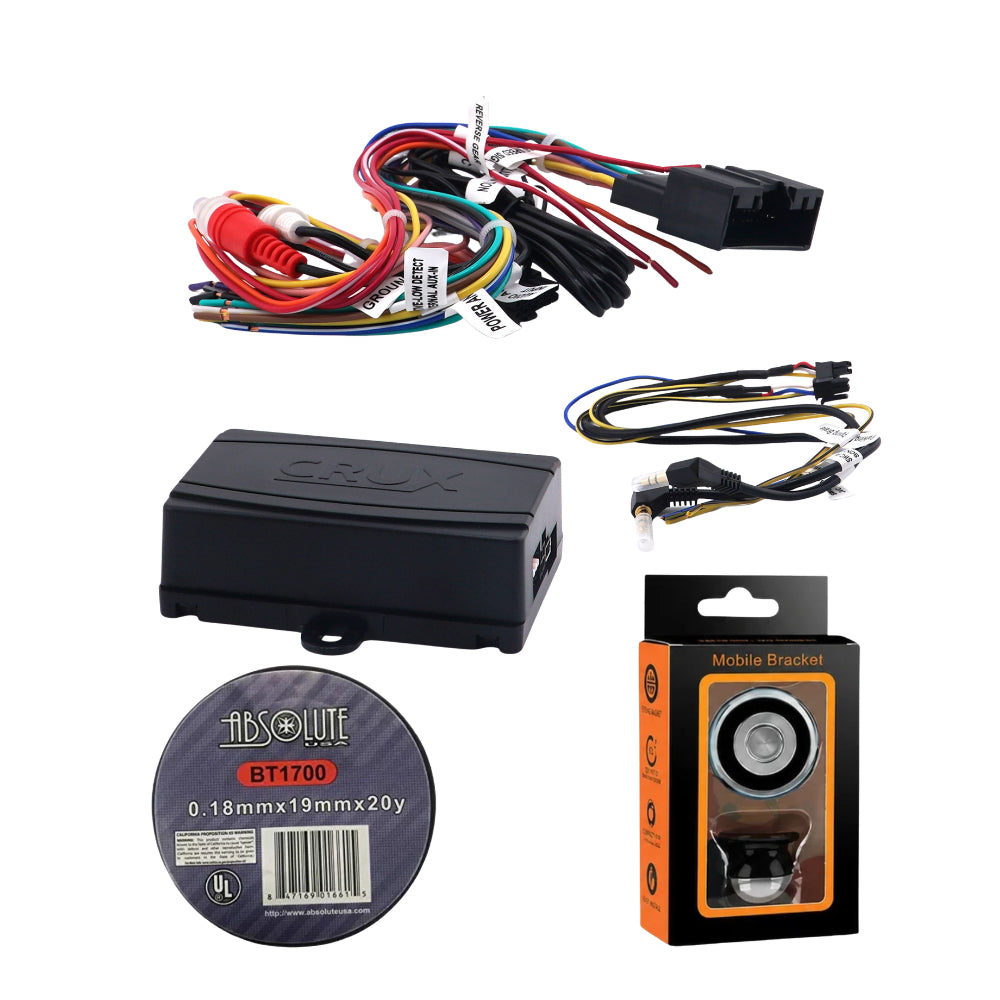

What's in this Package
-
(1) CRUX SWRFD-60B Radio Replacement Interface with Steering Wheel Control Retention
Installation Notes
-
Designed for the compatible Ford and Lincoln applications listed above.
-
Reverse, illumination, and vehicle speed outputs are provided for compatible aftermarket receivers.
-
Accessory power output is rated up to 2 amps.
-
Ford SYNC functionality is not retained.
-
Additional dash kit, antenna adapter, or other vehicle-specific accessories may be required depending on the installation.
-
Verify vehicle year, trim, factory screen, factory radio system, and aftermarket receiver compatibility before installation.
-
Professional installation is recommended.
-
Your supplied title mentions Ford, Lincoln & Mercury, but the provided compatibility list includes only Ford and Lincoln vehicles. I did not add Mercury applications without supporting fitment information.
