CRUX SOOGM-16W OnStar Radio Replacement Interface with Steering Wheel Control Retention & Camera Switcher for Select 2012-2014 GM LAN 29-Bit Trucks & SUVs with Navigation

Replace the factory navigation radio in select 2012-2014 Chevrolet and GMC trucks and SUVs while retaining compatible factory OnStar, steering wheel controls, warning chimes, rear-view camera, retained accessory power, AUX input, and supported Bose or non-Bose audio functions with the CRUX SOOGM-16W. Designed specifically for compatible GM LAN 29-Bit vehicles equipped with factory navigation, this interface also provides front and rear camera switching capability for supported aftermarket multimedia receivers.

General Features

• CRUX SOOGM-16W Radio Replacement Interface

• Designed for Select 2012-2014 Chevrolet & GMC Trucks and SUVs

• Designed for Compatible GM LAN 29-Bit Vehicles

• Intended for Applications Equipped with Factory Navigation Radio

• Designed for Aftermarket Stereo Installation

• Easy Plug-and-Ready Connections

• Retains Compatible Factory OnStar

• Retains Factory Steering Wheel Controls

• Built-In Pre-Programmed Steering Wheel Control Interface

• Retains Compatible Factory Rear-View Camera

• Adds Front & Rear Camera Switching Capability

• Retains Factory Safety & Warning Chimes

• Retains Factory AUX-IN Jack in Compatible Applications

• Retains R.A.P. – Retained Accessory Power

• Provides 12-Volt Accessory Power

• Accessory Output Rated up to 10 Amps

• Provides Parking Brake Output

• Provides Reverse Gear Output

• Provides Vehicle Speed Signal (VSS)

• Supports Non-Bose Audio Systems

• Supports Bose Amplified Systems

• Supports Y-91 Bose Audio Systems

• Compatible with Amplified & Non-Amplified Applications

• Retains Compatible Rear Seat Entertainment with Optional CRUX2333A Cable

• EIA Color-Coded Wiring

• Micro-B USB Updatable

• 1-Year Manufacturer Warranty

Factory Navigation Radio Applications

The SOOGM-16W is intended for compatible GM LAN 29-Bit trucks and SUVs originally equipped with factory navigation radios.

• Designed for Select Factory Navigation Applications

• Vehicle-Specific GM LAN 29-Bit Integration

• Allows Installation of a Compatible Aftermarket Multimedia Receiver

• Helps Retain Supported Factory Functions During Radio Replacement

Factory OnStar Retention

• Retains Compatible Factory OnStar

• Designed to Maintain Supported OnStar Functions

• Works with Compatible Bose & Non-Bose Systems

• OnStar functionality depends on compatible factory equipment and service availability

Steering Wheel Control Retention

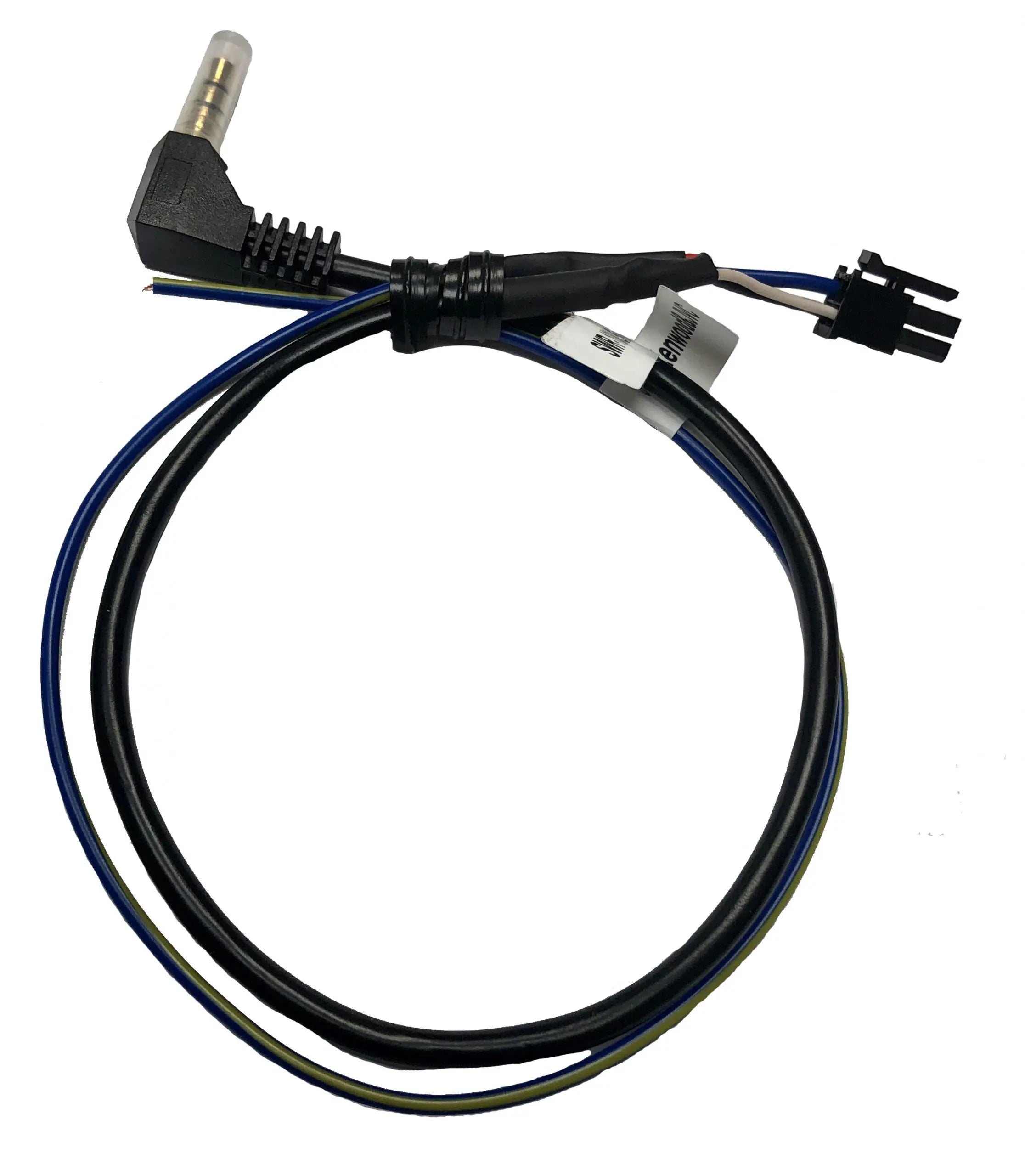

The SOOGM-16W includes a built-in, pre-programmed steering wheel control interface designed to retain compatible factory steering wheel audio controls.

• Retains Compatible Volume Controls

• Retains Compatible Track / Seek Controls

• Retains Other Supported Steering Wheel Audio Functions

• Pre-Programmed Interface

• Exact retained functions depend on vehicle and aftermarket radio compatibility

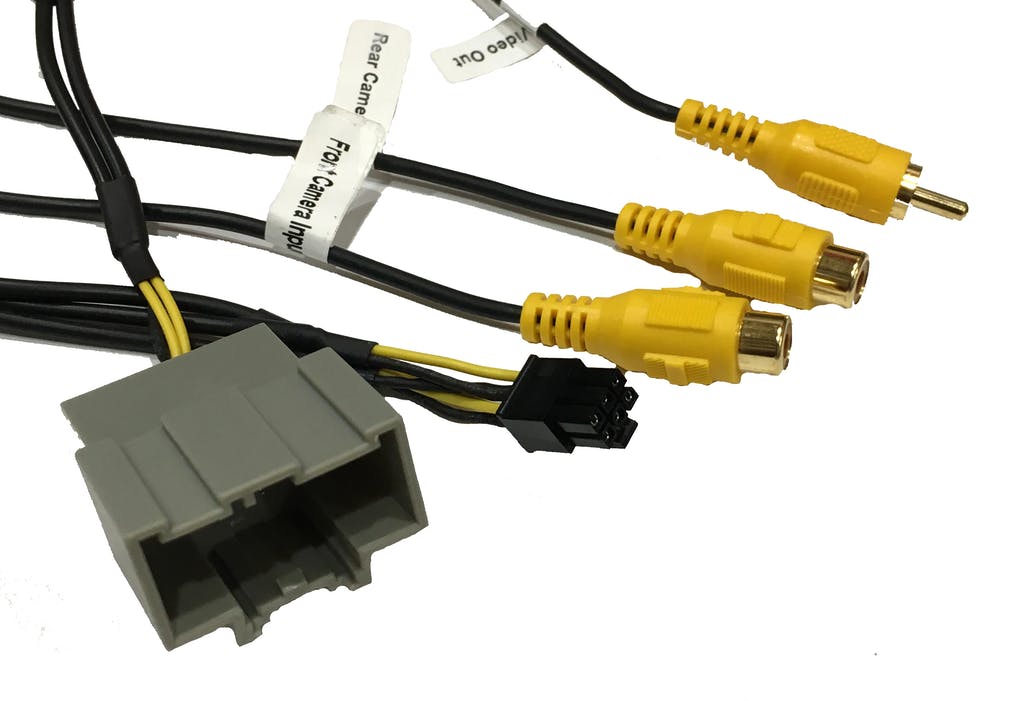

Front & Rear Camera Switching

The SOOGM-16W supports compatible front and rear camera switching in addition to retaining the supported factory rear-view camera.

• Retains Compatible Factory Rear-View Camera

• Supports Additional Front-View Camera Integration

• Supports Forced Front Camera Viewing in Compatible Applications

• Supports Forced Rear Camera Viewing in Compatible Applications

• Uses Supported Factory Controls for Camera Selection

• Aftermarket Receiver Must Support Required Video Inputs

Camera Safety Note

Camera views are intended to assist with vehicle visibility. They should be used only when safe and lawful and must not distract the driver from normal vehicle operation.

Factory Warning Chime Retention

The SOOGM-16W retains compatible factory warning and safety chimes that may otherwise be lost after the original radio is removed.

Retained Chimes Include

• Seat Belt Warning

• Check Engine Alert

• Key-in-Ignition Warning

• Low Fuel Warning

• Low Oil Warning

• Lights-On Warning

Bose, Non-Bose & Y-91 Audio Compatibility

• Supports Compatible Non-Bose Systems

• Supports Compatible Bose Amplified Systems

• Supports Compatible Y-91 Bose Systems

• Compatible with Amplified Applications

• Compatible with Non-Amplified Applications

• Verify Factory Audio Configuration Before Installation

Y-91 Bose System Note

• Y-91 Bose Systems Are Supported

• Front / Rear Fading is Not Retained on Y-91 Bose Systems

• Other retained functions depend on vehicle and factory audio configuration

Rear Seat Entertainment Retention

Compatible factory Rear Seat Entertainment audio and video functions can be retained with the optional CRUX2333A cable.

• Retains Compatible Factory RSE Audio / Video

• Requires CRUX2333A Cable

• CRUX2333A Sold Separately

Retained Accessory Power – RAP

• Retains R.A.P. – Retained Accessory Power

• Provides 12-Volt Accessory Power

• Maximum Accessory Output: 10 Amps

• Helps Maintain Normal Aftermarket Radio Accessory Operation

Navigation & Vehicle Outputs

• Parking Brake Output

• Reverse Gear Output

• Vehicle Speed Signal (VSS)

• Useful for Compatible Navigation Receivers

• Useful for Compatible Backup Camera Integration

Factory AUX Input Retention

• Retains Compatible Factory AUX-IN Jack

• Allows Continued Use of Factory Auxiliary Input in Supported Applications

• Aftermarket Receiver Must Support the Required AUX Connection

EIA Color-Coded Wiring

• Standard EIA Color-Coded Wiring

• Helps Simplify Aftermarket Radio Connections

• Designed for Easier Installation

• Vehicle-Specific Integration

Micro-B USB Updatable

• Micro-B USB Update Port

• Supports Compatible Firmware Updates

• Helps Maintain Interface Compatibility When Updates Are Available

Vehicle Compatibility

Chevrolet Avalanche

• 2012-2013 Chevrolet Avalanche

Chevrolet Silverado 1500

• 2012-2014 Chevrolet Silverado 1500

Chevrolet Silverado 2500

• 2012-2014 Chevrolet Silverado 2500

Chevrolet Silverado 3500

• 2012-2014 Chevrolet Silverado 3500

Chevrolet Suburban

• 2012-2014 Chevrolet Suburban

Chevrolet Tahoe

• 2012-2014 Chevrolet Tahoe

GMC Sierra 1500

• 2012-2014 GMC Sierra 1500

GMC Sierra 2500

• 2012-2014 GMC Sierra 2500

GMC Sierra 3500

• 2012-2014 GMC Sierra 3500

GMC Yukon

• 2012-2014 GMC Yukon

Important Compatibility Notes

• Designed specifically for compatible 2012-2014 GM LAN 29-Bit trucks and SUVs with factory navigation radios

• Supports compatible Bose, non-Bose, and Y-91 audio systems

• Retains compatible factory OnStar

• Retains compatible factory steering wheel controls

• Retains compatible factory rear-view camera

• Retains factory safety and warning chimes

• Retains compatible factory AUX input

• Rear Seat Entertainment retention requires optional CRUX2333A

• Front / rear fading is not retained on Y-91 Bose systems

• Factory feature retention varies by vehicle, factory radio, audio configuration, and aftermarket receiver

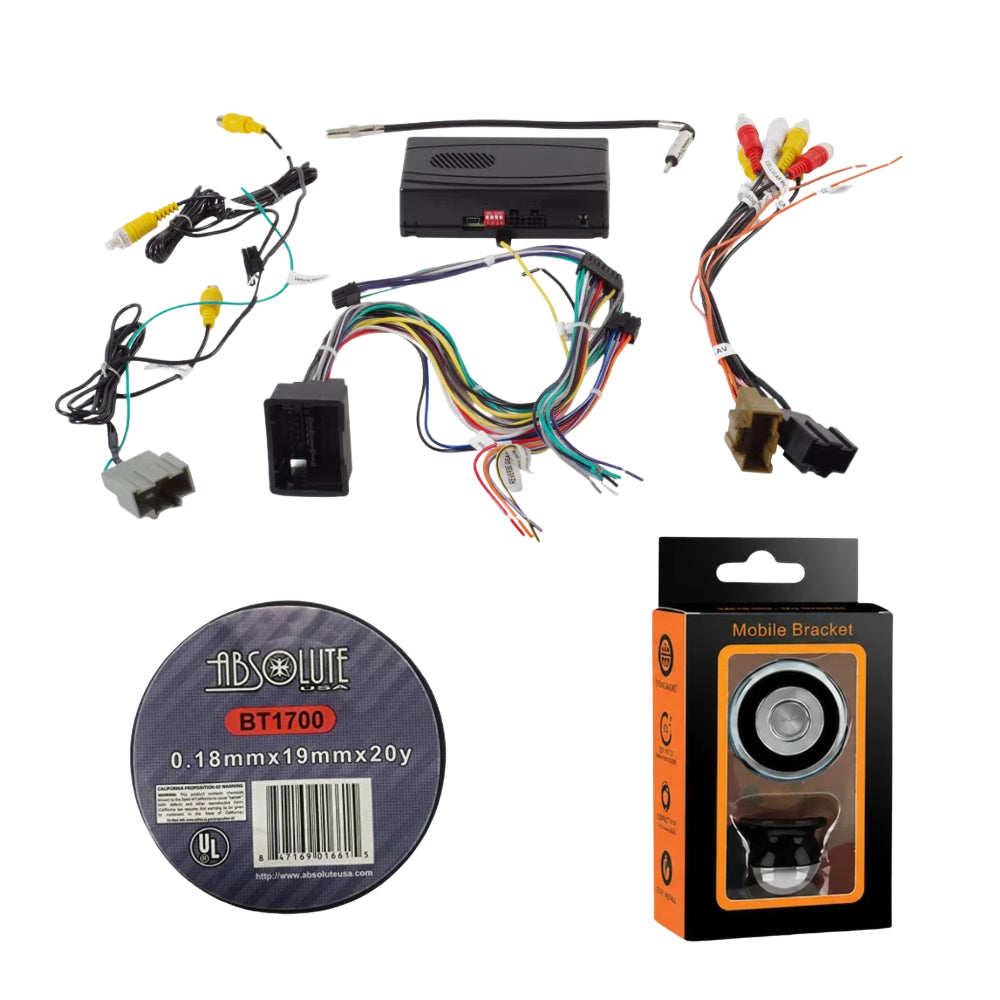

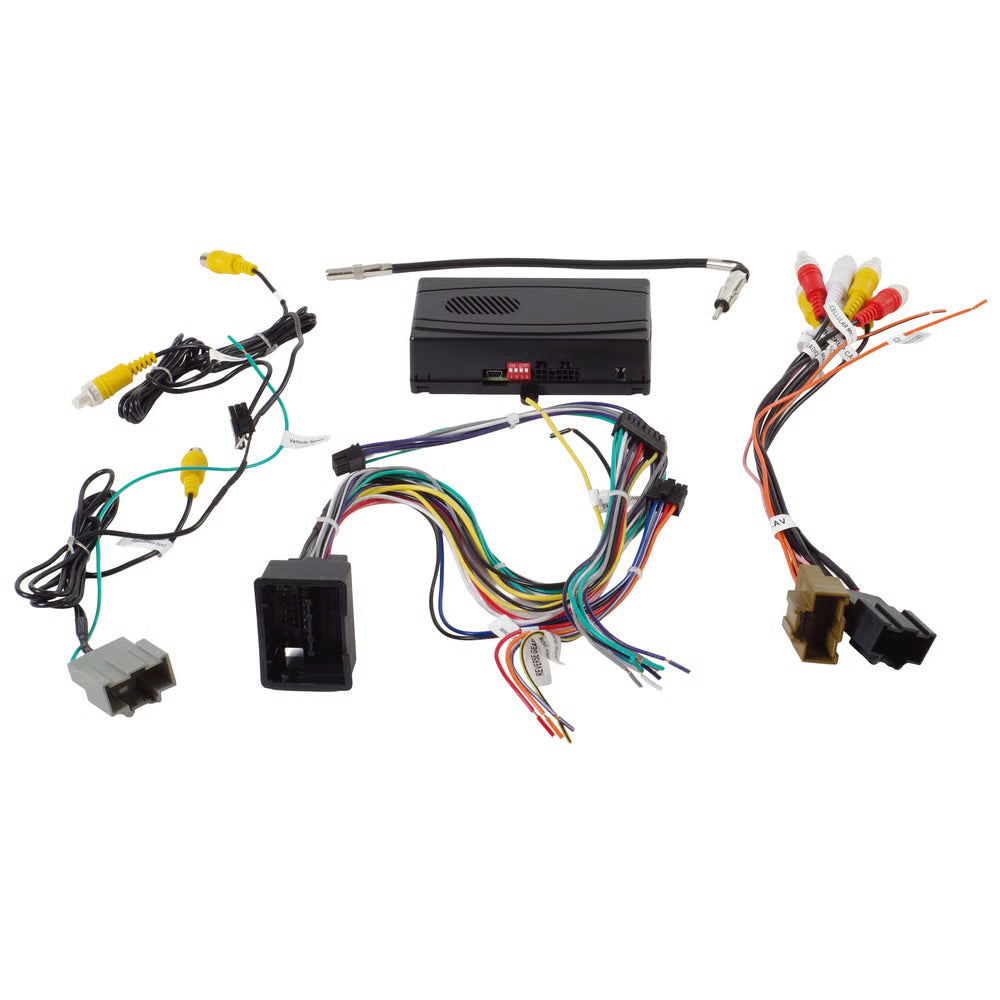

What's in this Package

• (1) CRUX SOOGM-16W OnStar Radio Replacement Interface with Steering Wheel Control Retention & Camera Switching

Installation Notes

• Designed for compatible Chevrolet and GMC applications listed above.

• Intended for supported vehicles equipped with factory navigation radios.

• Provides 12-volt accessory power up to 10 amps.

• Parking brake, reverse, and vehicle speed outputs are provided for compatible aftermarket receivers.

• Additional front-camera hardware is required if adding a front-view camera.

• The aftermarket receiver must support the necessary video input connections for camera integration.

• Additional dash kits, antenna adapters, or radio-specific accessories may be required depending on the vehicle.

• Verify vehicle year, model, trim, factory navigation system, GM LAN 29-Bit configuration, Bose / non-Bose system, and aftermarket receiver compatibility before installation.

• Professional installation is recommended.
