CRUX SOOGM-16V OnStar Radio Replacement Interface with Steering Wheel Control Retention & Front/Rear Camera Switcher for Select GM LAN 29-Bit Vehicles

Replace the factory radio in select General Motors LAN 29-Bit vehicles while retaining compatible OnStar, steering wheel controls, factory warning chimes, rear-view camera, and supported Bose or non-Bose audio functions with the CRUX SOOGM-16V. This advanced interface also adds front and rear camera switching capability for compatible aftermarket multimedia receivers.

General Features

• CRUX SOOGM-16V Radio Replacement Interface

• Designed for Select GM LAN 29-Bit Vehicles

• Designed for Aftermarket Radio Installation

• Retains Compatible Factory Features

• Retains Factory OnStar

• Retains Factory Steering Wheel Controls

• Built-In Pre-Programmed Steering Wheel Control Interface

• Retains Compatible Factory Rear-View Camera

• Adds Front & Rear Camera Switching Capability

• Supports Forced Front-View Camera Display in Compatible Applications

• Supports Forced Rear-View Camera Display in Compatible Applications

• Retains Factory Warning Chimes

• Compatible with Bose Audio Systems

• Compatible with Non-Bose Audio Systems

• Compatible with Y-91 Bose Audio Systems

• Supports Amplified & Non-Amplified Applications

• EIA Color-Coded Wiring

• Vehicle-Specific Radio Integration

• Designed to Simplify Aftermarket Stereo Installation

Factory OnStar Retention

The CRUX SOOGM-16V is designed to retain compatible factory OnStar functionality when replacing the original GM radio with a supported aftermarket receiver.

• Retains Compatible Factory OnStar

• Designed for GM LAN 29-Bit Applications

• Helps Maintain Supported OnStar Functions

• Compatible with Supported Bose & Non-Bose Systems

Steering Wheel Control Retention

The SOOGM-16V includes a built-in, pre-programmed steering wheel control interface designed to retain compatible factory steering wheel audio functions.

• Built-In Steering Wheel Control Interface

• Pre-Programmed for Compatible GM Vehicles

• Retains Compatible Volume Controls

• Retains Compatible Track / Seek Controls

• Retains Other Supported Steering Wheel Audio Functions

• Exact retained functions depend on vehicle and aftermarket receiver compatibility

Front & Rear Camera Switching

The SOOGM-16V adds camera-switching capability for compatible front-view and rear-view cameras. In supported applications, select factory controls can be used to activate compatible camera views independently of normal reverse operation.

• Supports Compatible Front-View Camera

• Supports Compatible Rear-View Camera

• Retains Compatible Factory Rear-View Camera

• Adds Forced Front Camera Viewing

• Adds Forced Rear Camera Viewing

• Uses Compatible Factory Controls for Camera Selection in Supported Vehicles

• Designed for Aftermarket Multimedia Receivers with Camera Input

• Camera availability and switching functions depend on vehicle and receiver configuration

Camera Safety Note

Camera views are intended to assist with vehicle visibility and should only be used when safe and lawful. Camera displays are supplemental and do not replace direct observation of the vehicle's surroundings.

Factory Warning Chime Retention

The SOOGM-16V retains supported factory safety and warning chimes that may otherwise be lost when replacing the original radio.

Retained Chimes Include

• Seat Belt Warning

• Check Engine Alert

• Key-in-Ignition Warning

• Low Fuel Warning

• Low Oil Warning

• Lights-On Warning

Bose, Non-Bose & Y-91 Audio Compatibility

• Supports Compatible Non-Bose Systems

• Supports Compatible Bose Amplified Systems

• Supports Compatible Y-91 Bose Systems

• Supports Amplified Applications

• Supports Non-Amplified Applications

• Verify Factory Audio Configuration Before Installation

Y-91 Bose System Note

Front-to-rear fading is not retained when the SOOGM-16V is used with a Y-91 Bose audio system.

• Y-91 Bose Systems Supported

• Front / Rear Fade Not Retained on Y-91 Bose Systems

• Other retained functions depend on vehicle and factory audio configuration

EIA Color-Coded Wiring

• Standard EIA Color-Coded Wiring

• Helps Simplify Aftermarket Radio Connections

• Easier Identification of Wiring Functions

• Designed for Vehicle-Specific Integration

Vehicle Compatibility

Buick Enclave

• 2008-2017 Buick Enclave

Buick Lucerne

• 2006-2011 Buick Lucerne

Cadillac DTS

• 2006-2010 Cadillac DTS

Cadillac Escalade

• 2007-2014 Cadillac Escalade

Cadillac SRX

• 2007-2009 Cadillac SRX

Chevrolet Avalanche

• 2007-2013 Chevrolet Avalanche

Chevrolet Equinox

• 2007-2009 Chevrolet Equinox

Chevrolet Express

• 2008-2016 Chevrolet Express Van

Chevrolet Impala

• 2006-2013 Chevrolet Impala

Chevrolet Impala Classic

• 2014-2016 Chevrolet Impala Classic

Chevrolet Monte Carlo

• 2006-2007 Chevrolet Monte Carlo

Chevrolet Silverado

• 2007-2014 Chevrolet Silverado 1500

• 2007-2014 Chevrolet Silverado 2500

• 2007-2014 Chevrolet Silverado 3500

Chevrolet Suburban

• 2007-2014 Chevrolet Suburban

Chevrolet Tahoe

• 2007-2014 Chevrolet Tahoe

Chevrolet Traverse

• 2009-2017 Chevrolet Traverse

GMC Acadia

• 2007-2016 GMC Acadia

• 2017 GMC Acadia Classic

GMC Savana

• 2008-2017 GMC Savana

GMC Sierra

• 2007-2014 GMC Sierra 1500

• 2007-2014 GMC Sierra 2500

• 2007-2014 GMC Sierra 3500

GMC Yukon

• 2007-2014 GMC Yukon

Hummer H2

• 2008-2009 Hummer H2

Pontiac Torrent

• 2007-2009 Pontiac Torrent

Saturn Outlook

• 2007-2010 Saturn Outlook

Saturn Vue

• 2008-2010 Saturn Vue

Suzuki XL7

• 2007-2008 Suzuki XL7

Important Compatibility Notes

• Designed for compatible GM LAN 29-Bit vehicles

• Supports compatible Bose, non-Bose, and Y-91 audio systems

• Retains compatible factory OnStar

• Retains compatible factory steering wheel controls

• Retains supported factory warning chimes

• Retains compatible factory rear-view camera

• Supports additional front / rear camera switching in compatible applications

• Front / rear fading is not retained with Y-91 Bose systems

• Factory feature retention depends on vehicle, factory radio, factory audio system, and aftermarket receiver compatibility

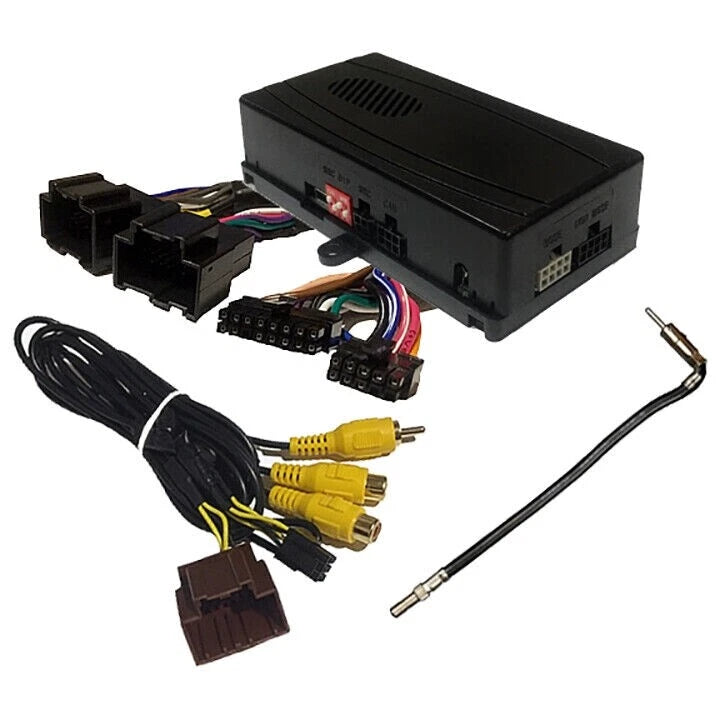

What's in this Package

• (1) CRUX SOOGM-16V OnStar Radio Replacement Interface with Steering Wheel Control Retention & Camera Switching

Installation Notes

• Designed for the compatible Buick, Cadillac, Chevrolet, GMC, Hummer, Pontiac, Saturn, and Suzuki applications listed above.

• Additional front-view camera hardware is required if adding a front camera.

• The aftermarket receiver must support the necessary video inputs for camera integration.

• Additional dash kits, antenna adapters, or radio-specific installation accessories may be required depending on the vehicle.

• Verify vehicle year, model, trim, GM LAN 29-Bit system, Bose / non-Bose audio configuration, factory camera system, and aftermarket radio compatibility before installation.

• Professional installation is recommended.

• The supplied title states 2006-2014, while the detailed fitment information includes several applications through 2017. The individual vehicle compatibility list above should be used for fitment.

• The supplied GMC Savana range was written as 2008-20117; I corrected the apparent typographical error to 2008-2017.
