CRUX SOOGM-16K OnStar & Steering Wheel Control Radio Replacement Interface for Select Chevrolet & GMC 7" IOA/IOB Vehicles 2016-2018

Upgrade the factory radio in select Chevrolet and GMC vehicles equipped with a compatible 7-inch IOA or IOB radio system using the CRUX SOOGM-16K radio replacement interface. Designed for non-amplified factory audio systems, the SOOGM-16K helps integrate a compatible aftermarket receiver while retaining important factory features including OnStar, steering wheel controls, warning chimes, factory backup camera functions, and supported parking-assist features.

General Features

• CRUX SOOGM-16K Radio Replacement Interface

• Designed for Select Chevrolet & GMC Vehicles

• Compatible with Supported 7" IOA & IOB Factory Radio Systems

• Designed for Aftermarket Stereo Installation

• Retains Compatible Factory Steering Wheel Controls

• Built-In Pre-Programmed Steering Wheel Control Interface

• Retains Factory OnStar

• Retains Factory Warning Chimes

• Retains Compatible Factory Rear-View Camera

• Retains Compatible Factory Parking Assist / Backup Sensors

• Provides Reverse Gear Output

• Provides Vehicle Speed Signal (VSS)

• Provides Illumination Output

• Provides Accessory Power

• Provides Parking Brake Output

• Adjustable Chime Volume

• EIA Color-Coded Wiring

• DIP-Switch Radio Configuration

• Supports Many Popular Aftermarket Receiver Brands

• Designed for Non-Amplified Factory Audio Systems

• Does Not Retain Factory Bose Amplified Systems

Steering Wheel Control Retention

The SOOGM-16K includes a built-in, pre-programmed steering wheel control interface designed to retain compatible factory steering wheel audio functions with supported aftermarket receivers.

• Retains Compatible Volume Controls

• Retains Compatible Track / Seek Controls

• Supports Select Phone Answer / End Functions

• Supports Compatible Voice-Control Functions with Select Radios

• Pre-Programmed SWC Interface

• DIP-Switch Configuration for Compatible Aftermarket Radio Brands

• Exact retained functions depend on vehicle and aftermarket receiver compatibility

Factory OnStar Retention

The CRUX SOOGM-16K is designed to retain compatible factory OnStar functionality after replacing the original radio.

• Retains Compatible Factory OnStar

• Maintains Supported OnStar Audio Integration

• Designed for Compatible GM IOA / IOB Applications

Factory Warning Chime Retention

• Retains Compatible Factory Warning Chimes

• Adjustable Chime Volume

• Helps Maintain Important Vehicle Audible Alerts

Factory Backup Camera Retention

The SOOGM-16K supports retention of the factory rear-view camera in compatible applications when connected to a supported aftermarket receiver.

• Retains Compatible Factory Backup Camera

• Provides Reverse Trigger Output

• Designed for Aftermarket Receivers with Camera Input

• Additional Connections May Be Required Depending on Vehicle Configuration

Important Camera Note

• Does not retain a factory backup camera when the original camera image is displayed in the rear-view mirror

• Verify where the factory camera image is displayed before installation

Factory Parking Assist Retention

• Retains Compatible Factory Backup Sensors

• Retains Supported Parking Assist Functions

• Exact functionality may vary by vehicle configuration

Navigation & Vehicle Outputs

The SOOGM-16K provides vehicle signals commonly required by compatible aftermarket multimedia and navigation receivers.

• Parking Brake Output

• Reverse Gear Output

• Vehicle Speed Signal (VSS)

• Illumination Output

• Accessory Power Output

EIA Color-Coded Wiring

• Standardized EIA Wire Colors

• Helps Simplify Aftermarket Radio Connections

• Designed for Easier Installation

• Vehicle-Specific Integration

Aftermarket Radio Compatibility

Built-in DIP switches allow the interface to be configured for many popular aftermarket radio brands.

• Supports Compatible Pioneer Receivers

• Supports Compatible Alpine Receivers

• Supports Compatible Kenwood / JVC Receivers

• Supports Compatible Sony Receivers

• Supports Other Supported Aftermarket Radio Brands

• Verify radio-specific steering wheel control connection before installation

Audio System Compatibility

• Designed for Non-Amplified Factory Audio Systems

• Does not retain factory Bose amplified systems

• Verify factory audio system before ordering

Vehicle Compatibility

Chevrolet Camaro

• 2016-2018 Chevrolet Camaro with 7" IOB Screen

Chevrolet Cruze

• 2016-2017 Chevrolet Cruze with 7" IOA Screen

• 2018 Chevrolet Cruze with 7" IOB Screen

Chevrolet Malibu

• 2016-2017 Chevrolet Malibu with 7" IOA Screen

• 2018 Chevrolet Malibu with 7" IOB Screen

Chevrolet Silverado

• 2016-2018 Chevrolet Silverado with 7" IOB Screen

• 2019 Chevrolet Silverado Classic with 7" IOB Screen

Chevrolet Silverado HD

• 2016-2017 Chevrolet Silverado HD with 7" IOB Screen

Chevrolet Sonic

• 2017 Chevrolet Sonic with 7" Screen

Chevrolet Spark

• 2017-2018 Chevrolet Spark with 7" Screen

Chevrolet Trax

• 2017 Chevrolet Trax with 7" IOA Screen

GMC Acadia

• 2017 GMC Acadia with 7" IOB Screen

GMC Sierra

• 2016-2017 GMC Sierra with 7" IOB Screen

GMC Sierra HD

• 2016-2017 GMC Sierra HD with 7" IOB Screen

What's in this Package

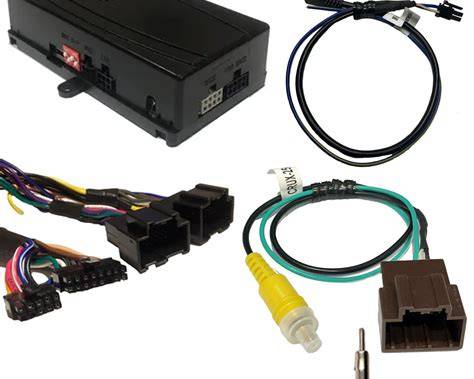

• (1) CRUX SOOGM-16K OnStar & Steering Wheel Control Radio Replacement Interface Kit

Installation Notes

• Designed for compatible GM vehicles equipped with a supported 7-inch IOA or IOB factory radio.

• Intended for non-amplified factory audio systems.

• Factory Bose amplified systems are not retained.

• Factory steering wheel control retention depends on the aftermarket receiver and proper radio-specific connection.

• Factory rear-view camera retention may require additional wiring depending on the vehicle.

• Cameras displayed through the factory rear-view mirror are not retained through this interface.

• Additional dash kits, antenna adapters, or radio-specific installation accessories may be required depending on the vehicle.

• Verify vehicle year, model, trim, factory screen size, IOA/IOB radio code, Bose/non-Bose audio system, camera configuration, and aftermarket receiver compatibility before installation.

• Professional installation is recommended.

• The title refers to 2016-2018 applications, but the supplied fitment list also includes the 2019 Chevrolet Silverado Classic. The detailed vehicle compatibility list above should be used for fitment.
