Crux SOOGM-16K GM OnStar SWC Radio Interface
Pickup available at 1800 E Washington Blvd
Usually ready in 24 hours
Have Questions?
- Tel: +1 213 744 11 44
- Tel: +1 800 674 27 24
Brand: Crux
Description
Crux SOOGM-16K OnStar & Steering Wheel Control Radio Replacement Interface for Select Chevrolet & GMC 7" IOA/IOB Systems
Upgrade your factory radio with the Crux SOOGM-16K, a radio replacement interface designed for select Chevrolet and GMC vehicles equipped with compatible 7-inch IOA or IOB factory radio systems. Designed for non-amplified audio systems, this interface supports aftermarket receiver integration while retaining compatible OnStar, steering wheel controls, warning chimes, backup camera functionality, and parking-assist features.
A built-in, pre-programmed steering wheel control interface and DIP-switch radio configuration support compatible aftermarket receivers. Adjustable chime volume and dedicated vehicle signal outputs provide added flexibility.

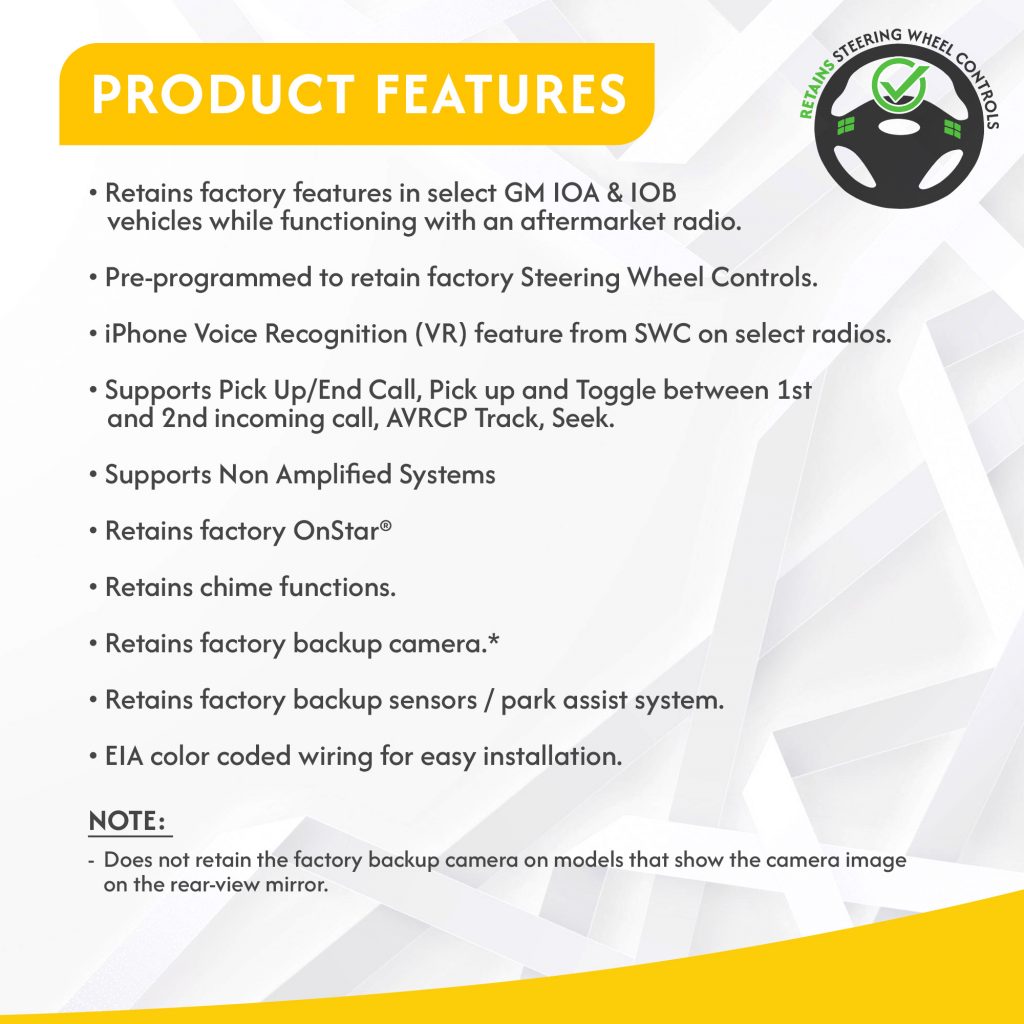

General Features
-
Aftermarket Radio Integration: Connects a compatible replacement stereo to supported Chevrolet and GMC factory systems.
-
7-Inch IOA/IOB Compatibility: Designed for the specified factory screen and radio configurations.
-
OnStar Retention: Preserves compatible factory OnStar functionality and audio integration.
-
Steering Wheel Control Retention: Built-in, pre-programmed interface retains supported factory audio controls.
-
Phone & Voice Control Support: Supports selected call and voice-control functions with compatible receivers.
-
Factory Chime Retention: Maintains supported warning chimes with adjustable volume.
-
Backup Camera Retention: Supports compatible factory cameras that display through the original radio screen.
-
Parking Assist Retention: Maintains supported factory backup sensors and parking-assist functions.
-
Dedicated Signal Outputs: Provides accessory power, illumination, parking brake, reverse, and vehicle speed signals.
-
DIP-Switch Configuration: Supports setup for compatible aftermarket radio brands.
-
EIA Color-Coded Wiring: Uses standardized wire colors for connection identification.
-
Non-Amplified System Support: Designed for compatible vehicles without a factory amplified audio system.
Specifications
-
Brand: Crux
-
Model: SOOGM-16K
-
Product Type: OnStar & Steering Wheel Control Radio Replacement Interface Bundle
-
Application: Aftermarket Stereo Integration
-
Vehicle Makes: Select Chevrolet and GMC
-
Required Factory Screen Size: 7 Inches
-
Compatible Factory Radio Codes: IOA and IOB, According to Application
-
Audio System Compatibility: Non-Amplified
-
Factory Bose Amplifier Retention: Not Supported
-
Steering Wheel Control Interface: Built-In and Pre-Programmed
-
Radio Configuration: DIP Switches
-
OnStar: Retained in Compatible Applications
-
Factory Warning Chimes: Retained
-
Chime Volume: Adjustable
-
Factory Backup Camera: Retained in Compatible Radio-Screen Applications
-
Backup Sensors & Parking Assist: Retained Where Supported
-
Signal Outputs: Accessory Power, Illumination, Parking Brake, Reverse, and Vehicle Speed Signal (VSS)
-
Wiring Identification: EIA Color-Coded
-
Aftermarket Radio Support: Select Pioneer, Alpine, Kenwood, JVC, Sony, and Other Supported Receivers
-
Included Electrical Tape: Absolute BT1700
-
Included Phone Holder: Universal Mobile Phone Holder

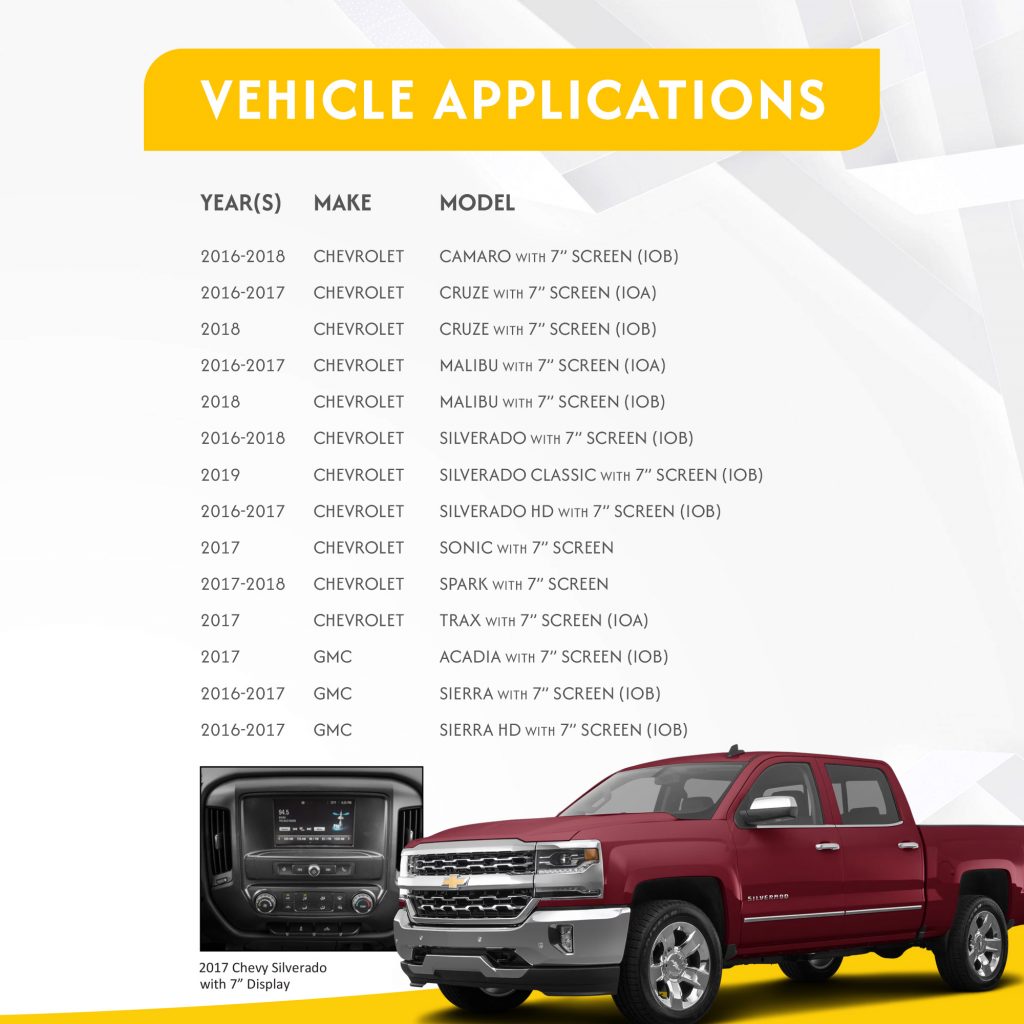

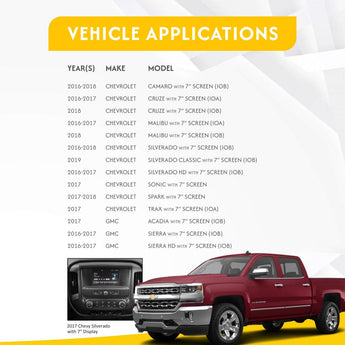

Vehicle Compatibility
Chevrolet
-
Camaro: 2016–2018 with 7" IOB Screen
-
Cruze: 2016–2017 with 7" IOA Screen; 2018 with 7" IOB Screen
-
Malibu: 2016–2017 with 7" IOA Screen; 2018 with 7" IOB Screen
-
Silverado: 2016–2018 with 7" IOB Screen
-
Silverado Classic: Select 2019 Applications with 7" IOB Screen
-
Silverado HD: 2016–2017 with 7" IOB Screen
-
Sonic: 2017 with Compatible 7" Screen
-
Spark: 2017–2018 with Compatible 7" Screen
-
Trax: 2017 with 7" IOA Screen
GMC
-
Acadia: 2017 with 7" IOB Screen
-
Sierra: 2016–2017 with 7" IOB Screen
-
Sierra HD: 2016–2017 with 7" IOB Screen
Fitment Note: Confirm your exact vehicle year, model, factory screen size, radio code, and audio configuration before purchasing. Designed for non-amplified systems; factory Bose amplified systems are not retained. Factory cameras displaying in the rear-view mirror are not retained. Supported steering wheel, phone, camera, and parking-assist functions depend on the vehicle’s equipment and aftermarket receiver compatibility.

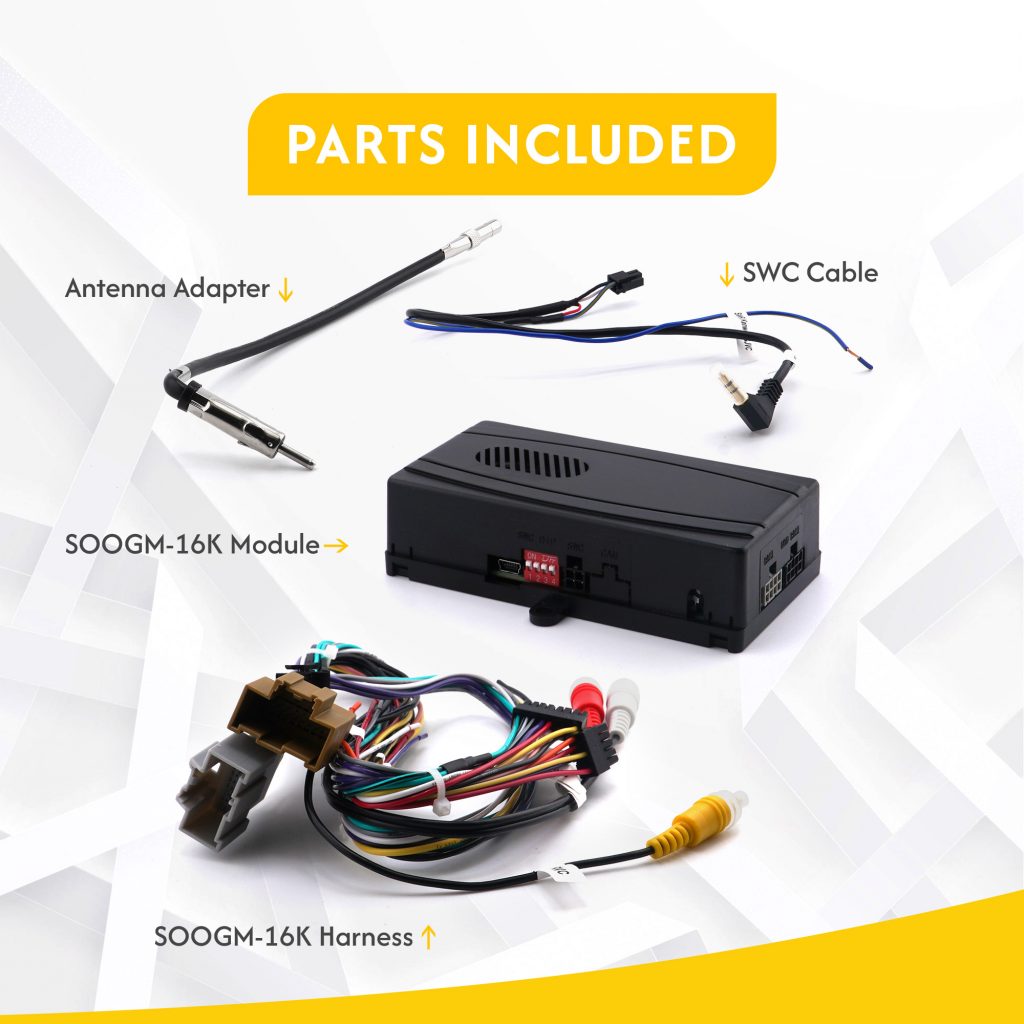

Package Includes
-

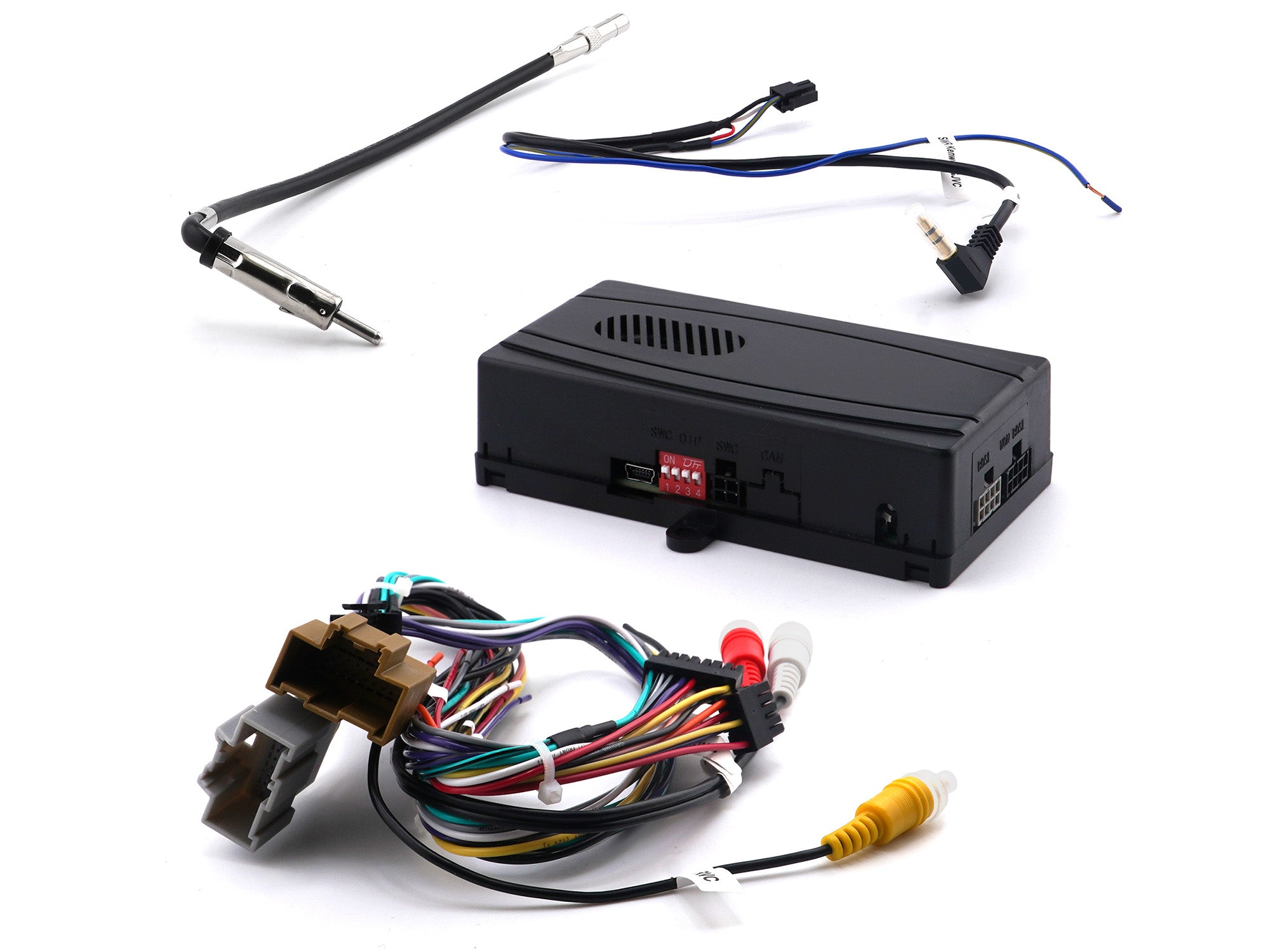

(1) Crux SOOGM-16K OnStar & Steering Wheel Control Radio Replacement Interface Kit
