Cerwin Vega EQ770 7-Band Graphic Equalizer with Auxiliary Input
Pickup available at 1800 E Washington Blvd
Usually ready in 24 hours
Have Questions?
- Tel: +1 213 744 11 44
- Tel: +1 800 674 27 24
Brand: Cerwin Vega Mobile
Description

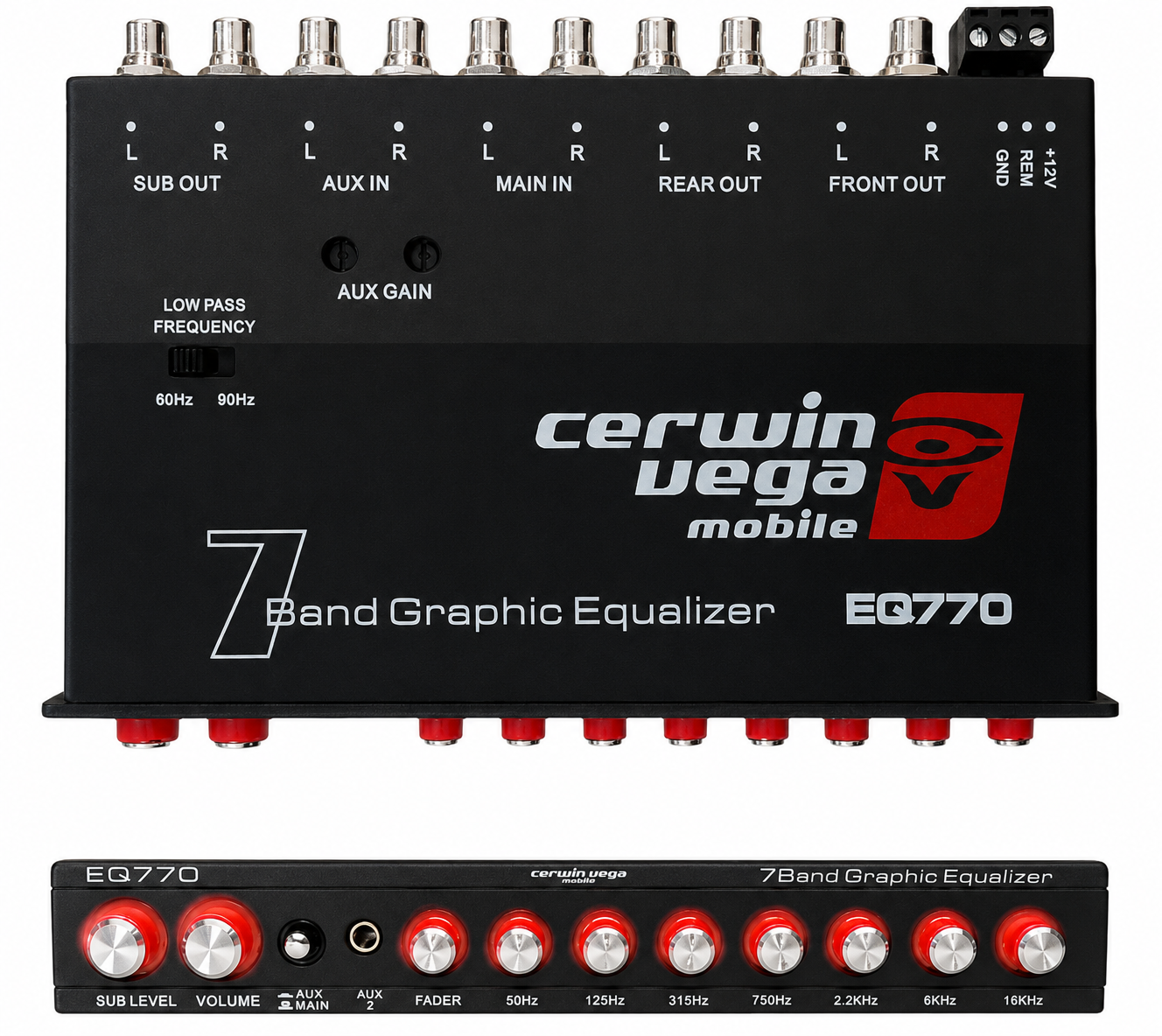

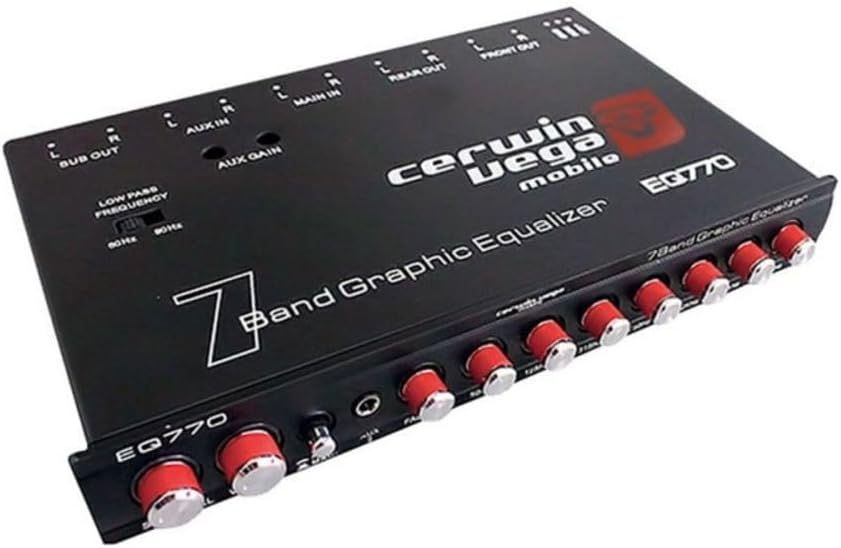

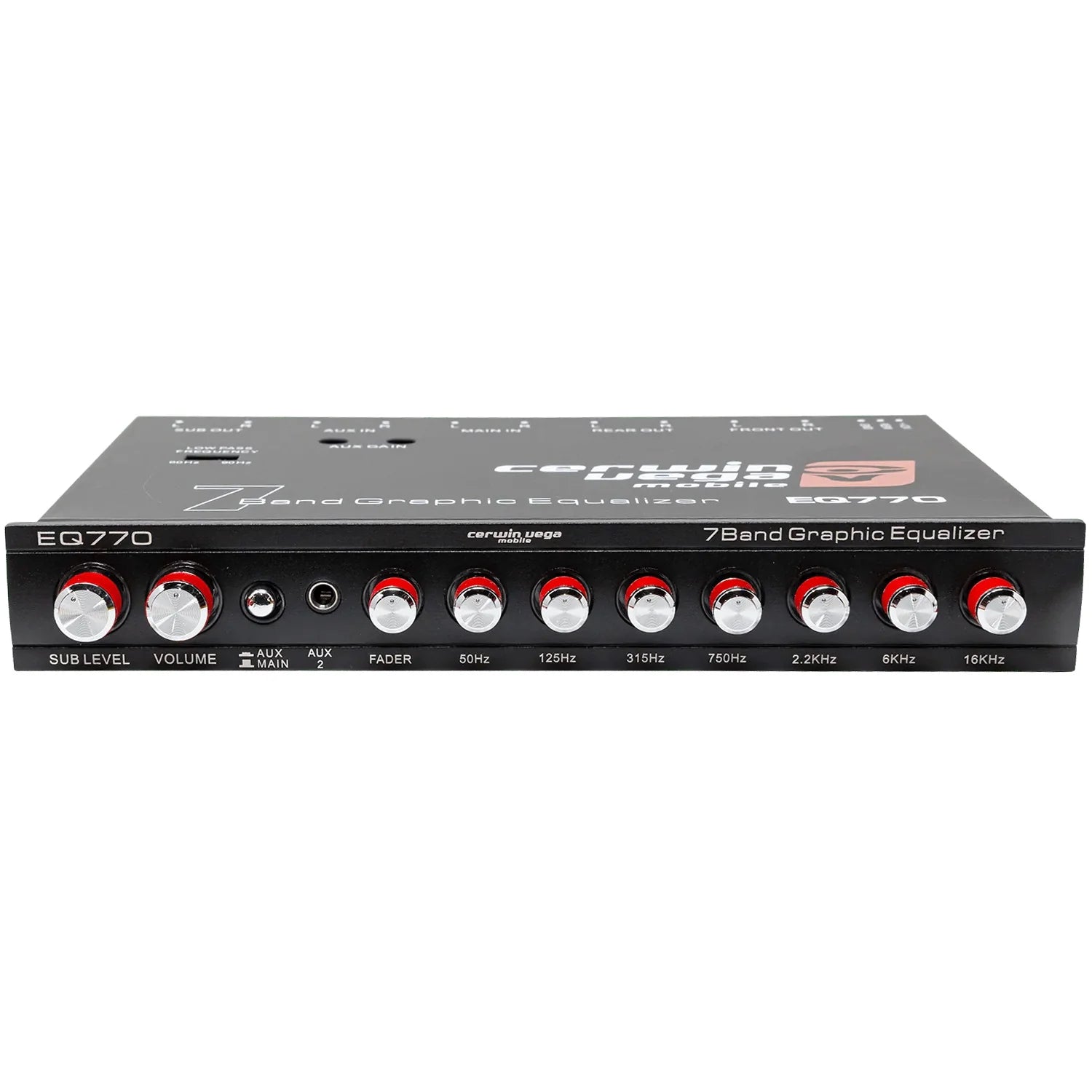

Cerwin Vega EQ770 7-Band Graphic Equalizer with AUX Input
Upgrade and fine-tune your car audio system with the Cerwin Vega EQ770 7-Band Graphic Equalizer Package. Whether you're improving an older stereo system or adding more control to a new aftermarket setup, the EQ770 provides precise adjustment of your music with 7 bands of equalization, master volume, subwoofer level, and built-in fader controls.
With RCA and high-level speaker inputs, the EQ770 can integrate with a wide range of car audio systems. Dual auxiliary input options—including rear RCA AUX inputs and a convenient front 1/8" (3.5mm) AUX input—make it easy to connect additional audio sources.
Key Features
🎚️ 7-BAND GRAPHIC EQUALIZER – Fine-tune your car audio system across seven frequency bands to better match your music, speakers, and listening preferences.
🔊 DEDICATED SUBWOOFER CONTROL – Independent subwoofer level and frequency controls provide convenient adjustment of your system's low-frequency output.
🎵 MASTER VOLUME CONTROL – Easily control overall system output directly from the EQ770.
↔️ BUILT-IN FADER CONTROL – Adjust the balance between front and rear audio channels for better control over your vehicle's soundstage.
🔌 DUAL AUXILIARY INPUT OPTIONS – Features rear RCA auxiliary inputs plus a convenient front-panel 1/8" (3.5mm) AUX input for connecting compatible external audio sources.
🚘 RCA & HIGH-LEVEL INPUT COMPATIBILITY – RCA and speaker-level input options provide flexible integration with compatible factory and aftermarket audio systems.
⚡ 3 SETS OF PREAMP OUTPUTS – Dedicated front, rear, and subwoofer RCA outputs provide convenient connectivity to compatible external amplifiers.
🎛️ SELECTABLE SUBWOOFER FREQUENCY CONTROL – Selectable low-pass filtering provides additional control over the frequencies sent to your subwoofer system.
🔴 RED ILLUMINATION – Illuminated controls provide a clean appearance and improved visibility during nighttime operation.
🔗 NICKEL-PLATED CONNECTIONS – Features nickel-plated RCA inputs and screw terminals for durable system connections.
Cerwin Vega EQ770 General Features
-
7-Band Graphic Equalizer
-
Auxiliary Audio Input
-
Front 1/8" (3.5mm) AUX Input
-
Rear RCA AUX Inputs
-
Variable AUX Input Gain
-
Master Volume Control
-
Independent Subwoofer Level Control
-
Subwoofer Frequency Control
-
Built-In Front / Rear Fader Control
-
RCA-Level Inputs
-
High-Level Speaker Inputs
-
3 Sets of Preamp Outputs
-
Front RCA Preamp Output
-
Rear RCA Preamp Output
-
Subwoofer RCA Preamp Output
-
Selectable 60 Hz / 90 Hz Low-Pass Filter
-
Nickel-Plated RCA Connections
-
Nickel-Plated Screw Terminals
-
Red Illumination
-
Designed for Automotive Audio Systems
-
Authorized Internet Dealer
-
1-Year Manufacturer Warranty
Cerwin Vega EQ770 Specifications
-
Brand: Cerwin Vega
-
Model: EQ770
-
Product Type: Car Audio Graphic Equalizer
-
Number of EQ Bands: 7
-
Frequency Response: 10 Hz–50,000 Hz
-
Signal-to-Noise Ratio: 90 dB
-
Channel Separation: 70 dB
-
Preamp Outputs: Front / Rear / Subwoofer
-
Maximum Preamp Output: Up to 7V
-
Auxiliary Inputs: Front 3.5mm + Rear RCA
-
Low-Pass Filter: Selectable 60 Hz / 90 Hz
-
Illumination: Red
-
Application: Automotive / Car Audio
-
Warranty: 1-Year Manufacturer Warranty
Package Includes
-
(1) Cerwin Vega EQ770 7-Band Graphic Equalizer
Important Installation Note
The EQ770 is a signal-processing component and does not replace a power amplifier. System compatibility and performance depend on the source unit, amplifier configuration, speakers, subwoofers, wiring, and proper system tuning.
