Boyo
Boyo VTB301CA AHD CVBS Heavy-Duty Universal Mount Backup Camera with Night Vision
Pickup available at 1800 E Washington Blvd
Usually ready in 24 hours
Have Questions?
- Tel: +1 213 744 11 44
- Tel: +1 800 674 27 24
Brand: Boyo
Description
Boyo VTB301CA AHD/CVBS Heavy-Duty Universal Mount Backup Camera with Night Vision
Boyo VTB301CA Heavy-Duty Backup Camera delivers high-definition rear visibility with selectable AHD or CVBS video output, making it compatible with a wide range of vehicle monitoring systems. Featuring 1080P AHD resolution, IP69K waterproof protection, infrared night vision, and a rugged universal mounting design, this camera is built for trucks, buses, RVs, trailers, commercial vehicles, and other demanding applications.
Key Features
-
Dual Video Output – Select between AHD and CVBS modes for broad monitor compatibility.
-
1080P HD Imaging – AHD mode delivers crisp Full HD video for enhanced rear visibility.
-
Infrared Night Vision – Captures clear images up to 26 feet (8 meters) in complete darkness.
-
Heavy-Duty IP69K Housing – Maximum protection against water, dust, and harsh operating environments.
-
Selectable Viewing Functions – Configure video format, image orientation, and parking guidelines to suit your installation.
General Features
-
Heavy-duty universal mount backup camera
-
AHD/CVBS selectable output
-
1080P/720P selectable resolution (AHD)
-
Full HD AHD image sensor
-
Infrared night vision
-
Night vision distance up to 8 meters (26 ft.)
-
IP69K waterproof rating
-
Reverse/normal image selectable
-
Parking lines on/off selectable
-
Four configuration trigger loops
-
65 ft. extension cable included
-
Wide operating voltage
-
NTSC compatible
Specifications
-
Brand: Boyo
-
Model: VTB301CA
-
Product Type: Heavy-Duty Backup Camera
-
Image Sensor: AHD
-
Video Output: AHD / CVBS (Selectable)
-
AHD Resolution: 1920 × 1080 Pixels
-
CVBS Resolution: 640 × 480 Pixels (600 TV Lines)
-
AHD Viewing Angle: 125° (H) / 60° (V) / 170° (D)
-
CVBS Viewing Angle: 80° (H) / 40° (V) / 100° (D)
-
Minimum Illumination: 0.01 Lux (Infrared Lamps On)
-
Night Vision Distance: 8 m (26 ft.)
-
Waterproof Rating: IP69K
-
Power Supply: 8–35V DC
-
Video Standard: NTSC
-
Extension Cable: 65 ft. (20 m)
-
Application: Universal
-
Item Condition: New

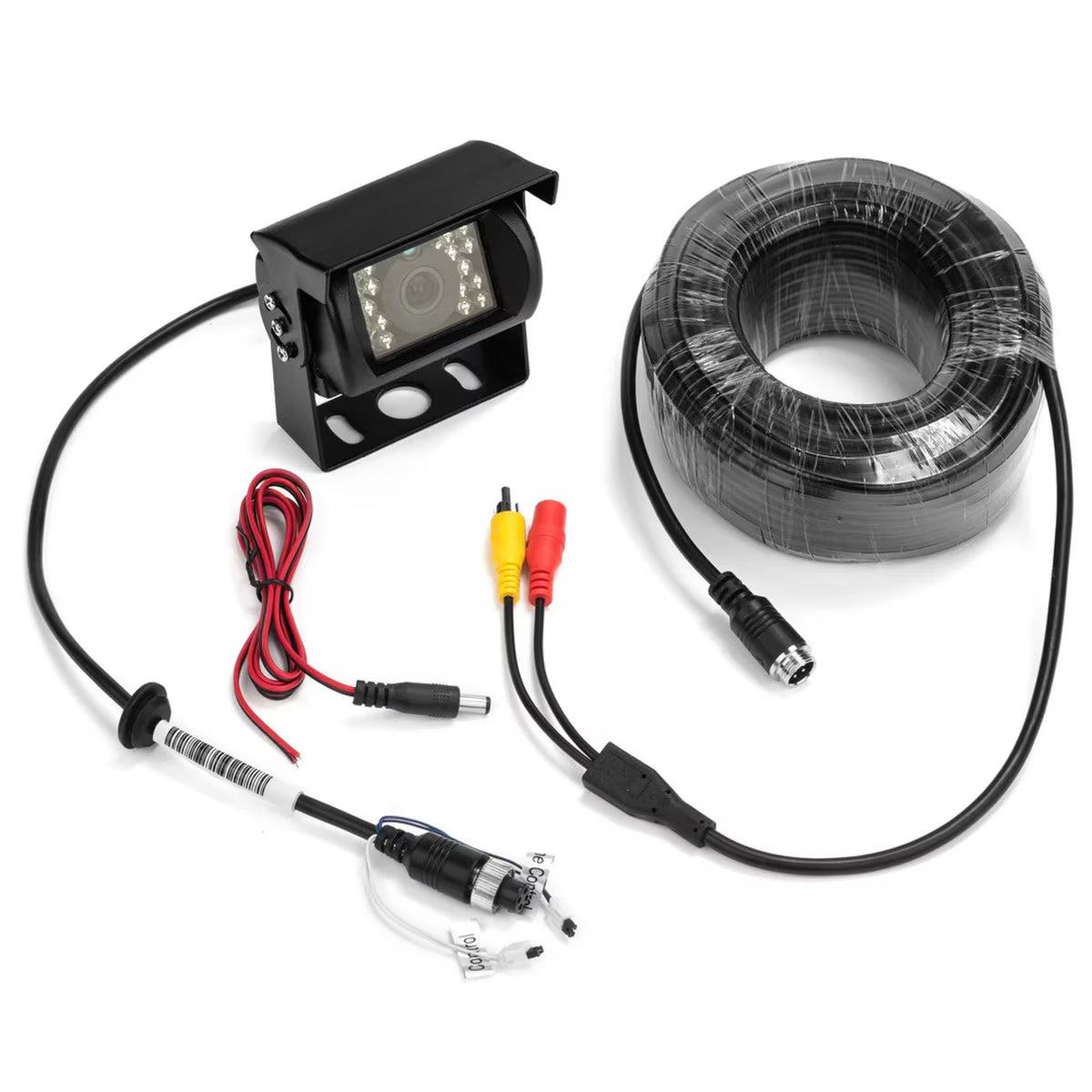

Box Contents
-
Boyo VTB301CA heavy-duty backup camera
-
65 ft. (20 m) extension cable
-
Mounting hardware
-
Installation accessories
-
User documentation
Warning: This product can expose you to chemicals known to the State of California to cause cancer. For more information, visit www.P65Warnings.ca.gov.
