ART MX821S 8-Channel Personal Mixer Stereo
Guaranteed Fitment
Always the correct partIn-House Experts
We know our products
ART MX821S 8-Channel Personal Mixer Stereo

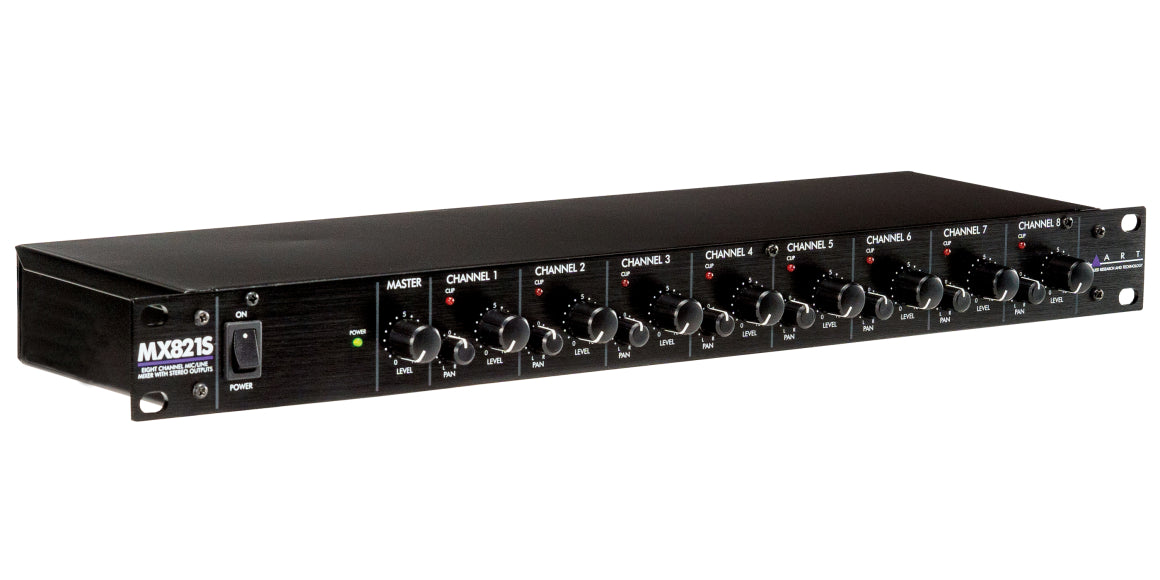

The MX821S is an eight-channel stereo rackmount mixer.
Each channel has an XLR mic input with switchable phantom power, an unbalanced 1/4” line input, and independent level and pan controls. The line input can also be converted to a direct output by adjusting the internal jumpers.

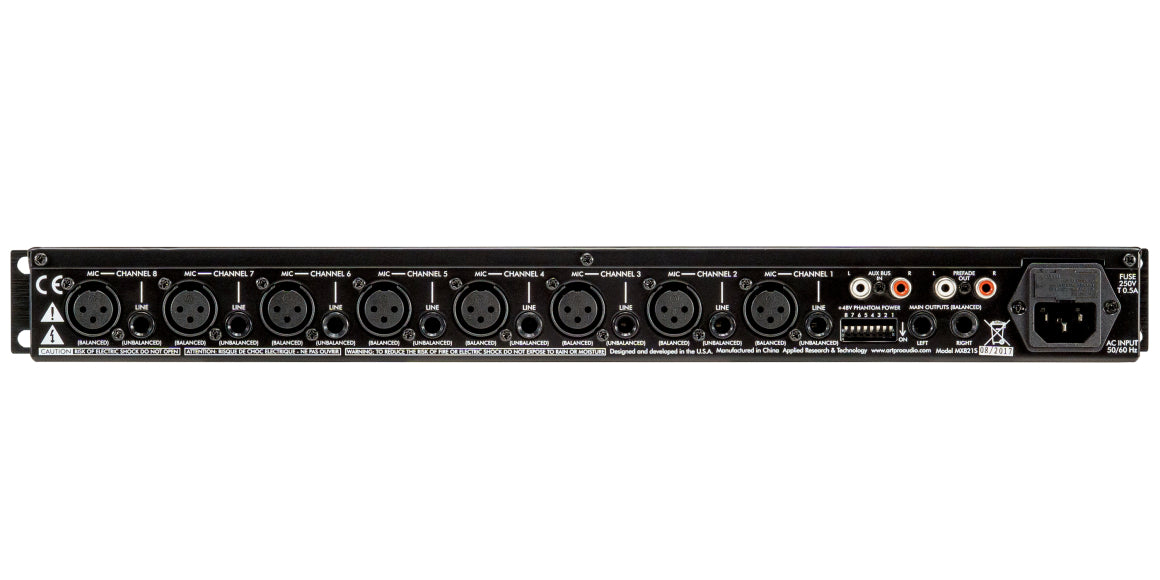

The master level knob controls the balanced 1/4” outputs. There’s also a pre-fader output and aux input with stereo RCA connections for chaining multiple units together, adding an additional stereo source, or sending a mix to a recording device that is unaffected by master level changes in the room.
Simple, streamlined, and featuring the most mic preamps of any ART rack mixer, the MX821S can serve as a standalone solution or add connectivity to an existing system.
General Features:

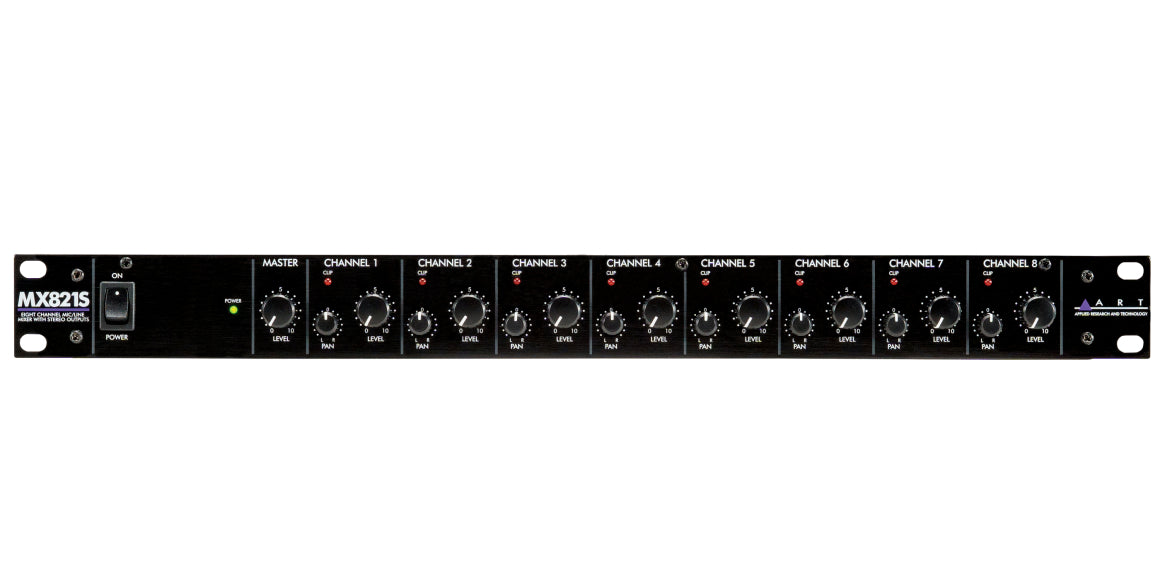

- Eight input channels with individual level and pan controls
- Pan controls place each input mono signal anywhere in the output stereo image
- Balanced microphone XLR or unbalanced 1/4-inch TS inputs on each channel Full
- +48V low noise phantom power switchable for each microphone input
- Balanced left and right 1/4-inch TRS main output jacks with master level control
- Prefade Output jacks and Aux Bus Input jacks allow units to be chained to provide extra inputs
- Each line input jack may be individually converted to a direct line output by means of
- internal jumpers Rugged 1U rack-mount steel chassis with built-in power supply
- Perfect for stage, studio and permanent installations
Specifications:
| Inputs |
XLR female balanced (Mic, channels 1-8) 1/4" TS unbalanced (Line, channels 1-8) RCA unbalanced (Aux Bus In, Left and Right) |
| Outputs |
1/4" TRS balanced (Main Outputs, Left and Right) RCA unbalanced (Prefade Out, Left and Right) |
| Input Impedance | 2k Ω (Mic), 20k Ω (Line), 51k Ω (Aux Bus In) |
| Output Impedance |
200 Ω (Main Outputs, balanced), 100 Ω (Prefade Out) |
| Maximum Input Level | -4 dBu (Mic), +22 dBu (Line) |
| Maximum Output Level | +24 dBu (balanced), +18 dBu (unbalanced) |
| Maximum Gain | 54 dB (Mic), 29 dB (Line) |
| Frequency Response | 20 Hz – 20 kHz (+0, -1 dB) (CH 1-8 in, M |
| Total Harmonic Distortion | <0.01% @ 1 kHz, typical |
| Signal to Noise Ratio | >99dB typical (Ref 0dBu) |
| CMRR | >43 dB typical |
| Phantom Power | Switch Selectable, +48V DC (regulated and filtered), 7 mA current limiting per leg |
| Power Requirements | USA: 95-125 VAC, 50-60 Hz, <15W |
| Dimensions (HWD) | 1.75″ x 19″ x 6″ (4.5cm x 48.3cm x 15.2cm) |
| Weight | 6.3 lbs / 2.9 kg |
**Specifications subject to change without notice
