Alpine S2-A60M Class-D Amp & S2-W10D2 10" Dual 2-Ohm Sub & Grill bundle
Pickup available at 1800 E Washington Blvd
Usually ready in 24 hours
Have Questions?
- Tel: +1 213 744 11 44
- Tel: +1 800 674 27 24
Brand: Alpine
Description
Alpine S2-A60M S-Series Class-D Mono Amplifier + S2-W10D2 10" Dual 2-Ohm Subwoofer + KTE-10G.3 Protective Grille Bundle
Upgrade your vehicle's bass performance with this premium Alpine S-Series Bass Bundle, featuring the Alpine S2-A60M Class-D Mono Subwoofer Amplifier, Alpine S2-W10D2 10" Dual 2-Ohm S-Series Subwoofer, and the Alpine KTE-10G.3 Protective Grille. Designed to work together, this package delivers powerful, accurate bass while protecting your investment with a durable metal mesh grille. Ideal for custom enclosures and daily-driven audio systems, this bundle offers exceptional performance, reliability, and Alpine sound quality.
Key Features
🔊 Complete Alpine Bass Package – Includes a 600W RMS Class-D monoblock amplifier, 10" S-Series dual 2-ohm subwoofer, and matching protective grille.
⚡ 600 Watts RMS Output – The S2-A60M amplifier delivers up to 600 watts RMS at 2 ohms, perfectly matched to the S2-W10D2 subwoofer.
🎵 High-Performance 10" Subwoofer – Carbon fiber/polypropylene cone, HAMR surround, 15 mm Xmax, and dual 2-ohm voice coils produce deep, clean, and accurate bass.
🛡 Heavy-Duty Protective Grille Included – The Alpine KTE-10G.3 metal mesh grille helps protect the subwoofer from accidental impact without restricting airflow or sound quality.
🎚 Advanced Bass Controls – Variable low-pass crossover, adjustable bass boost, and compatibility with the optional Alpine RUX-KNOB.2 remote bass controller.

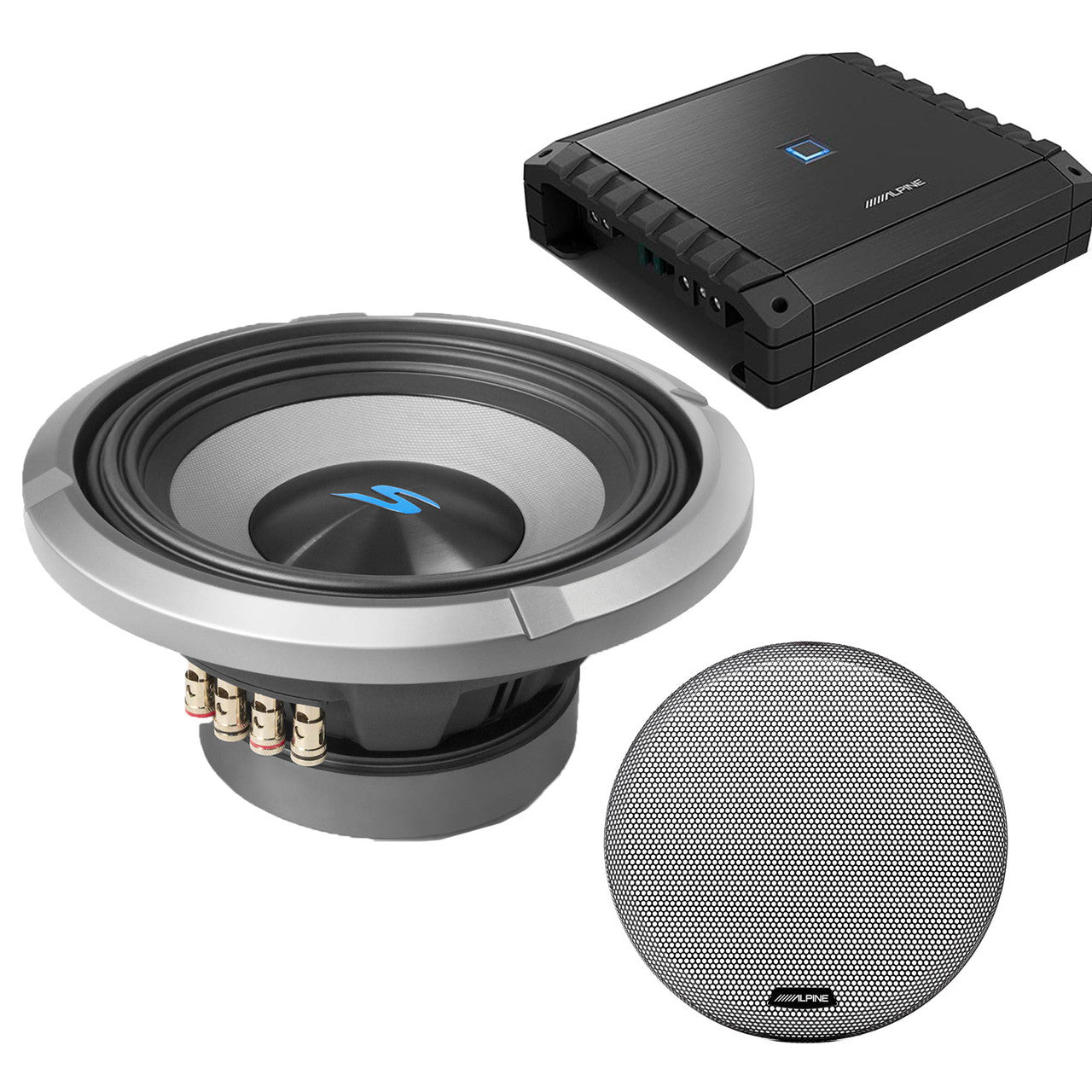

Package Includes
-
Alpine S2-A60M S-Series Class-D Mono Subwoofer Amplifier
-
Alpine S2-W10D2 10" Dual 2-Ohm S-Series Subwoofer
-
Alpine KTE-10G.3 10" Protective Subwoofer Grille
Alpine S2-A60M S-Series Class-D Mono Amplifier
The Alpine S2-A60M is engineered to deliver powerful, efficient bass with excellent reliability and compact installation.
General Features
-
Class-D Monoblock Amplifier
-
2-Ohm Stable Design
-
Pulse Width Modulated MOSFET Power Supply
-
LED Power & Protection Indicators
-
Soft-Start Turn-On
-
Speaker-Level Inputs
-
Variable Low-Pass Filter
-
Variable Bass Boost
-
Thermal, Overload & Speaker Short Protection
-
Compatible with Alpine RUX-KNOB.2 Remote Bass Controller (Sold Separately)
-
Authorized Internet Dealer
-
1-Year Manufacturer's Warranty
RMS Power Output
-
330 Watts x 1 @ 4 Ohms
-
600 Watts x 1 @ 2 Ohms
Specifications
-
Amplifier Type: Class-D Monoblock
-
Frequency Response: 10Hz-400Hz
-
Total Harmonic Distortion (THD): <1%
-
Signal-to-Noise Ratio: 85 dB
-
Variable Low-Pass Filter: 50Hz-400Hz
-
Variable Bass Boost: 0-12 dB
-
Fuse Rating: 30A × 2
-
Dimensions: 8-1/16" W × 9-3/16" L × 2-5/16" H
Alpine S2-W10D2 10" S-Series Dual 2-Ohm Subwoofer
Designed for high-output bass with exceptional control and durability, the S2-W10D2 features Alpine's advanced S-Series technology.
General Features
-
10" S-Series Subwoofer
-
Dual 2-Ohm Voice Coils
-
Carbon Fiber / Polypropylene Cone
-
High-Amplitude Multi-Roll (HAMR) Rubber Surround
-
Polypropylene / Ceramic Dust Cap
-
2.6" High-Temperature Copper Voice Coil
-
Twist-Lock Grille Mount System
-
64 oz. Single-Stacked Ferrite Magnet
-
Authorized Internet Dealer
-
1-Year Manufacturer's Warranty
Specifications
-
Speaker Size: 10"
-
Voice Coil Configuration: Dual 2 Ohms
-
RMS Power Handling: 600 Watts
-
Peak Power Handling: 1,800 Watts
-
Frequency Response: 23Hz-215Hz
-
Sensitivity: 86.2 dB
-
Xmax: 15 mm
-
Mounting Depth: 4.54"
-
Cutout Diameter: 8.94"
Recommended Enclosures
Sealed Enclosure
-
0.40-0.85 Cubic Feet
Ported Enclosure
-
0.75-1.30 Cubic Feet

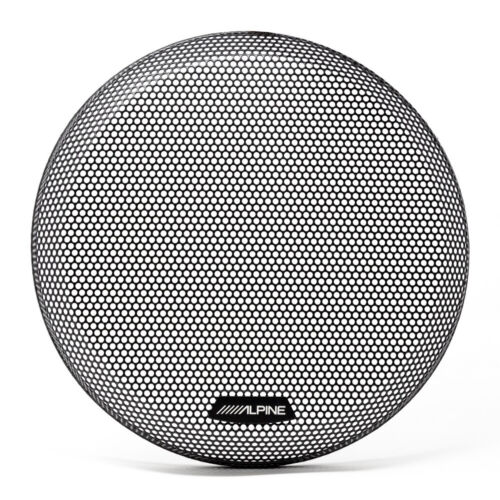

Alpine KTE-10G.3 Protective Grille
Protect your Alpine subwoofer while maintaining excellent acoustic performance.
General Features
-
10" Protective Metal Mesh Subwoofer Grille
-
Compatible with Alpine Type-R and Type-S 10" Subwoofers
-
Durable Metal Mesh Construction
-
Twist-Lock Mounting Design
-
Helps Protect Against Accidental Impact
-
Factory Alpine Appearance
-
Authorized Dealer
-
1-Year Manufacturer's Warranty
Compatibility
-
Alpine S2-W10D2
-
Alpine S2-W10D4
-
Alpine R2-W10D2
-
Alpine R2-W10D4
Applications
-
Custom Car Audio Systems
-
Sealed or Ported Subwoofer Enclosures
-
Daily Driver Audio Upgrades
-
High-Performance Bass Systems
-
Competition-Inspired Installations
Package Contents
-
Alpine S2-A60M Mono Amplifier
-
Alpine S2-W10D2 10" Dual 2-Ohm Subwoofer
-
Alpine KTE-10G.3 10" Protective Grille
-
Owner's Manuals
-
Warranty Information
