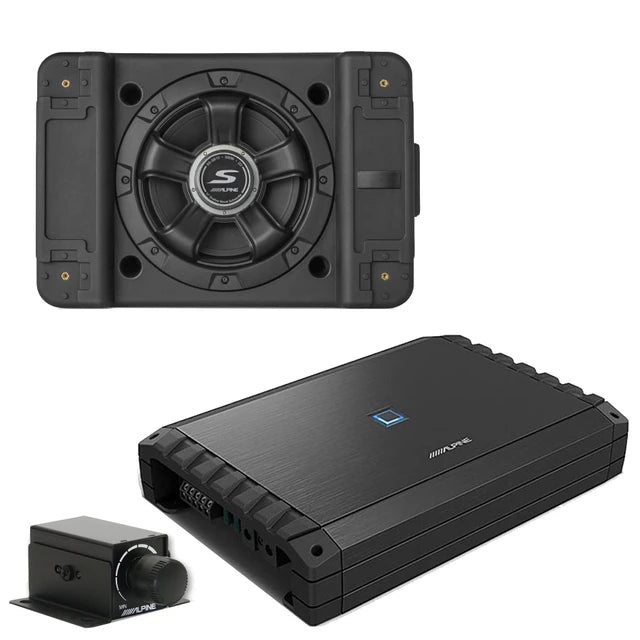

Alpine S2-A55V 5-Channel Hi-Res Amplifier + SS-SB10 10" Shallow Loaded Subwoofer + RUX-KNOB.2 Bass Knob + Absolute Accessory Bundle

Build a powerful space-saving Alpine S-Series audio system with the S2-A55V 5-channel Class-D amplifier, SS-SB10 single 10-inch shallow preloaded subwoofer enclosure, and RUX-KNOB.2 remote bass controller. The S2-A55V can power four full-range speakers plus the included 2-ohm SS-SB10 subwoofer from a single amplifier, while the shallow sealed enclosure delivers strong bass in vehicles with limited installation space.

General Features

• Includes Alpine S2-A55V 5-Channel Class-D Amplifier

• Includes Alpine SS-SB10 10" Shallow Preloaded Subwoofer Enclosure

• Includes Alpine RUX-KNOB.2 Remote Bass Controls

• Hi-Res Audio Certified Amplifier

• Frequency Response up to 40 kHz

• 40W RMS x 4 + 200W RMS x 1 at 4 Ohms

• 60W RMS x 4 + 300W RMS x 1 at 2 Ohms

• 120W RMS x 2 bridged at 4 Ohms

• SS-SB10 Rated at 300 Watts RMS

• 2-Ohm Preloaded Subwoofer Configuration

• Ultra-Shallow 4.5" Enclosure Height

• Sealed Subwoofer Enclosure

• Gen2 DD-Linear Magnetic Circuit

• Front-Mounted Neodymium Magnet

• Adjustable Foam-Padded Steel Mounting Brackets

• Convenient In-Cabin Bass Adjustment

• Includes Absolute TW500 Super Tweeters

• Includes Absolute BT1700 Electrical Tape

• Includes Absolute Universal Mobile Phone Holder

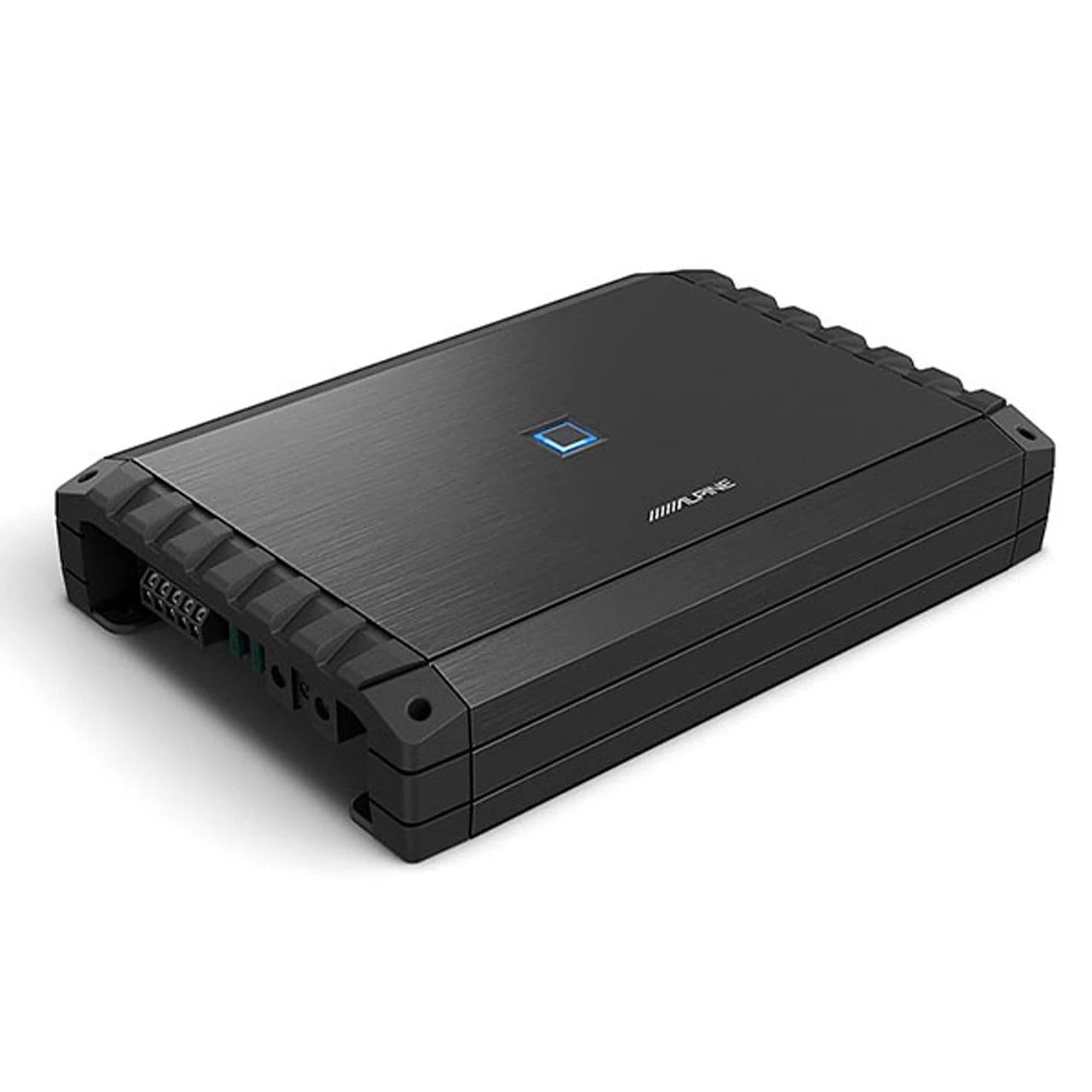

Alpine S2-A55V S-Series 5-Channel Class-D Amplifier

The Alpine S2-A55V provides five channels of efficient Class-D amplification from a single compact chassis, making it ideal for powering four full-range speakers and a dedicated subwoofer. Hi-Res Audio certification, adjustable crossover controls, and flexible system integration make it a strong foundation for a complete aftermarket audio system.

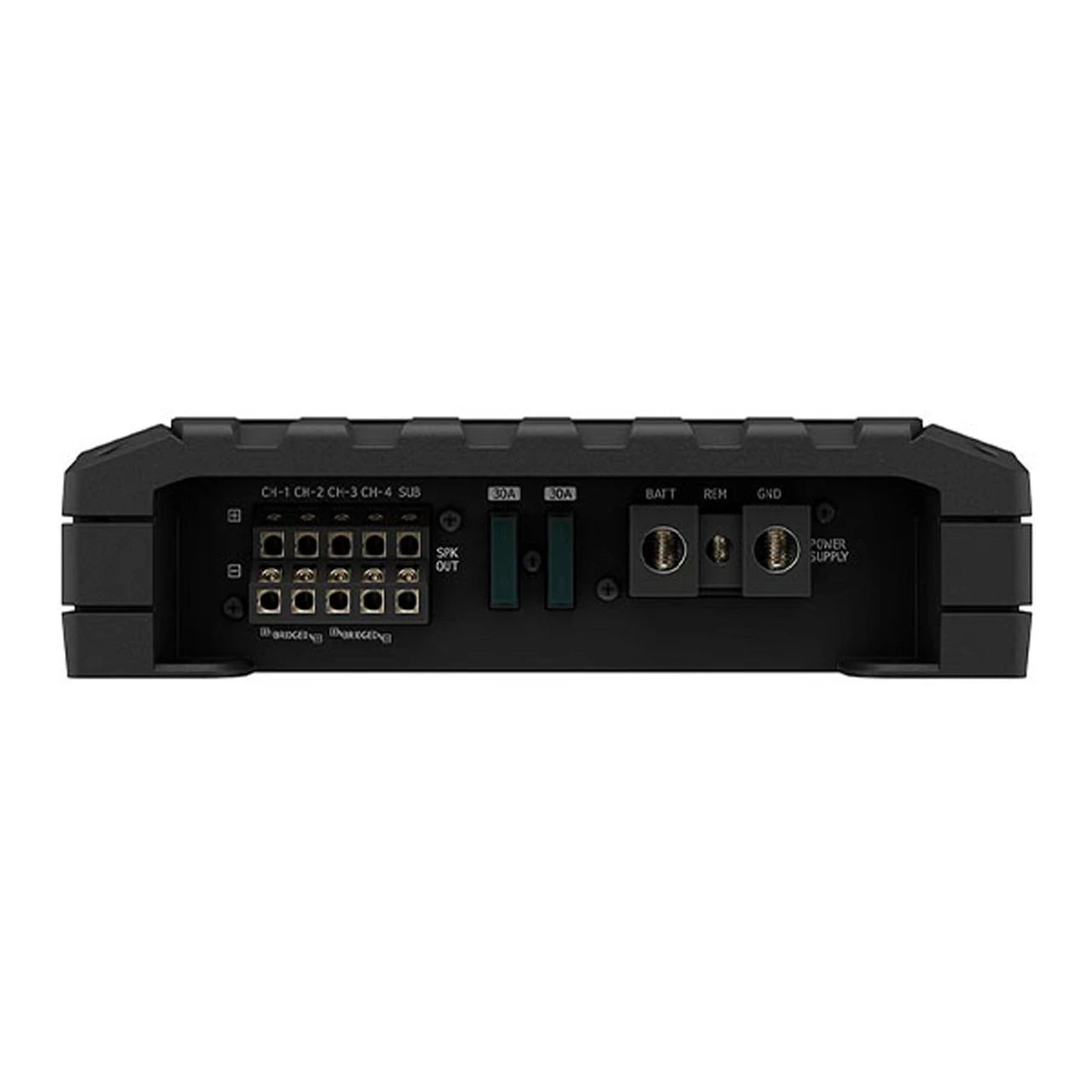

S2-A55V Power Specifications

• Amplifier Type: 5-Channel Class-D

• 40 Watts RMS x 4 + 200 Watts RMS x 1 at 4 Ohms

• 60 Watts RMS x 4 + 300 Watts RMS x 1 at 2 Ohms

• 120 Watts RMS x 2 bridged at 4 Ohms

• Hi-Res Audio Certified

• Frequency Response: 20 Hz-40 kHz

• THD+N: Less Than 0.1% at 14.4V

• Signal-to-Noise Ratio: Greater Than 83 dB

• Damping Factor: Greater Than 100

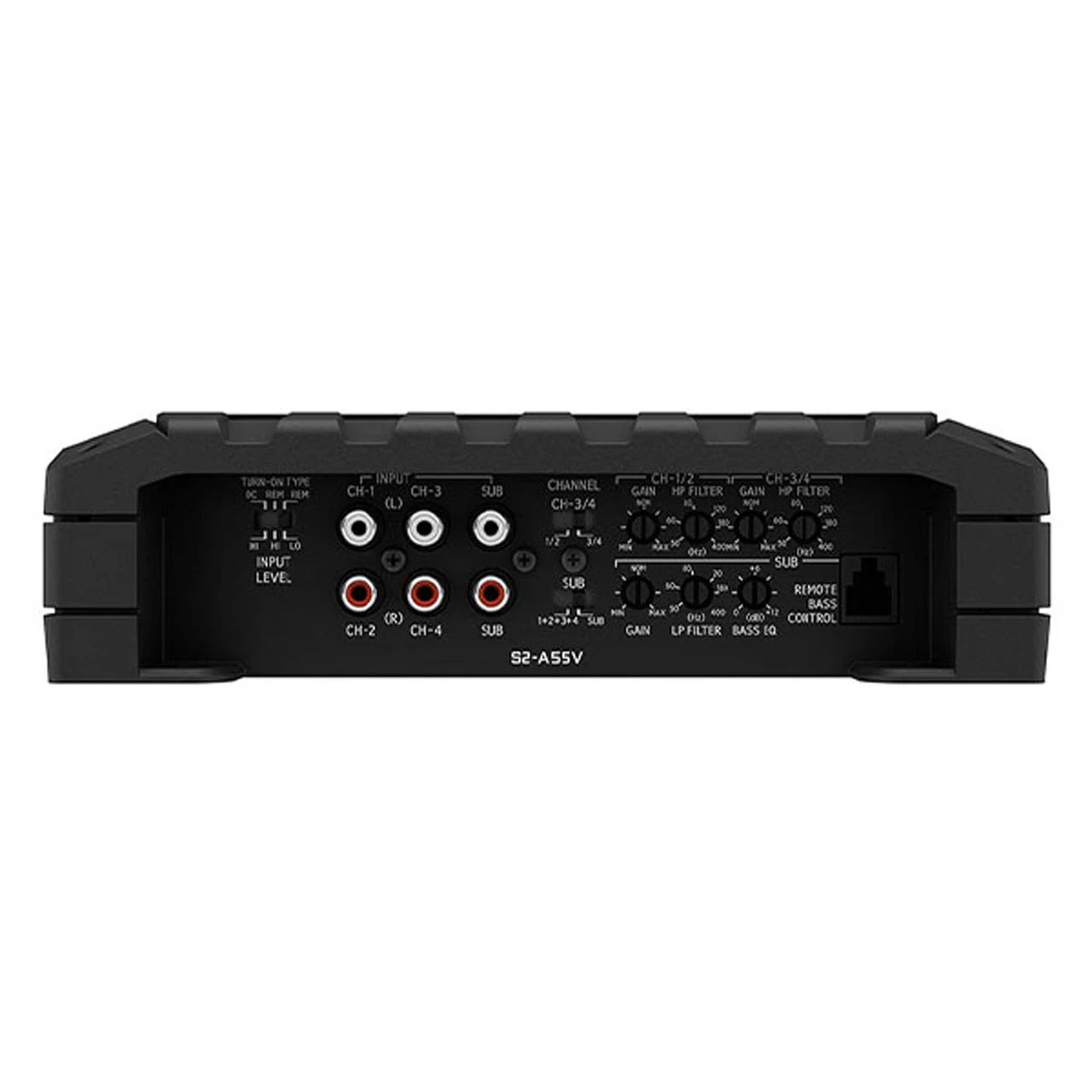

S2-A55V Features

• Alpine S-Series Class-D Amplification

• Five-Channel Full-System Design

• Dedicated Subwoofer Channel

• Built-In Selectable Crossovers

• Adjustable Crossover Controls

• Selectable Remote Turn-On Circuit

• Factory & Aftermarket System Integration

• Two-Sided Terminal Layout

• Remote Bass Control Compatible

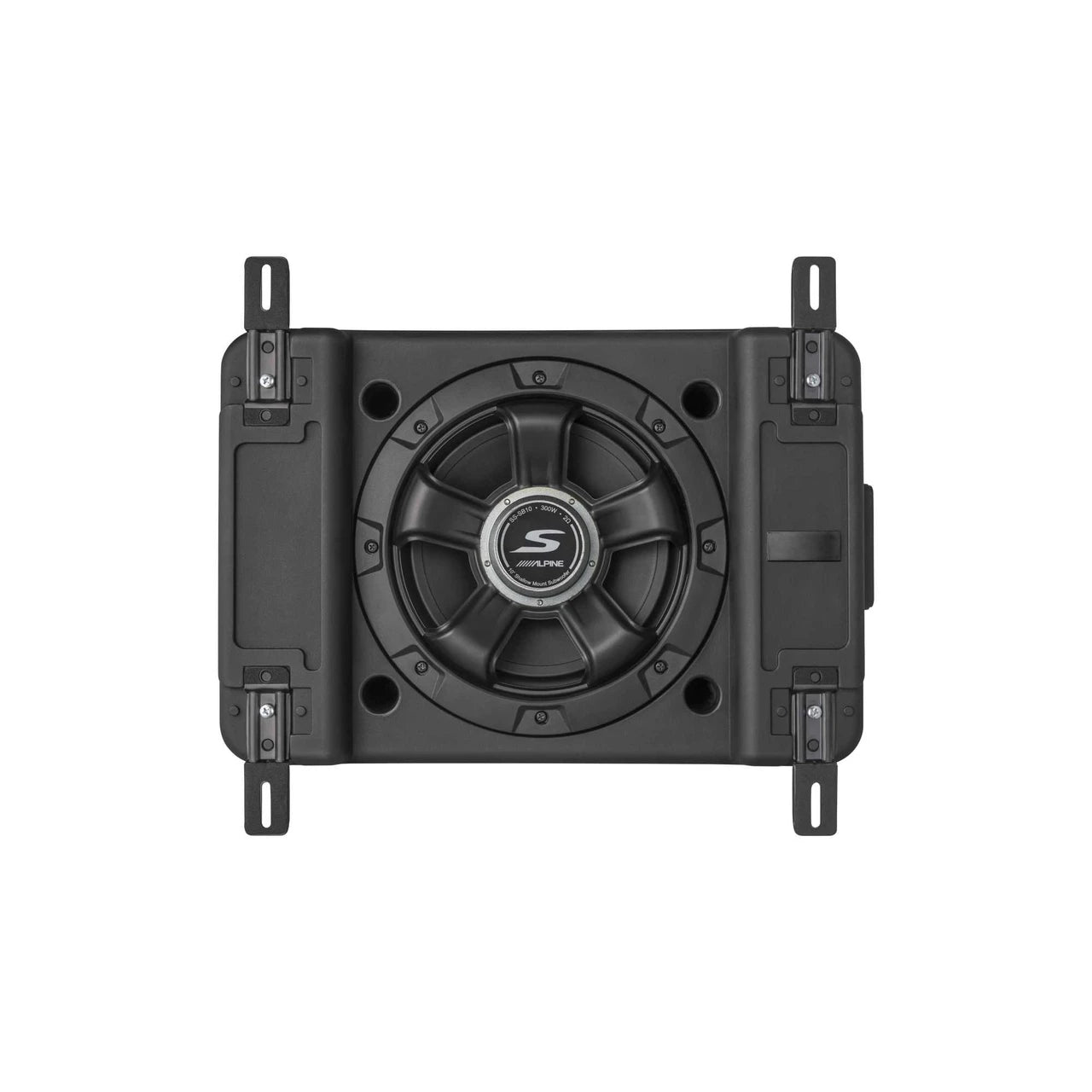

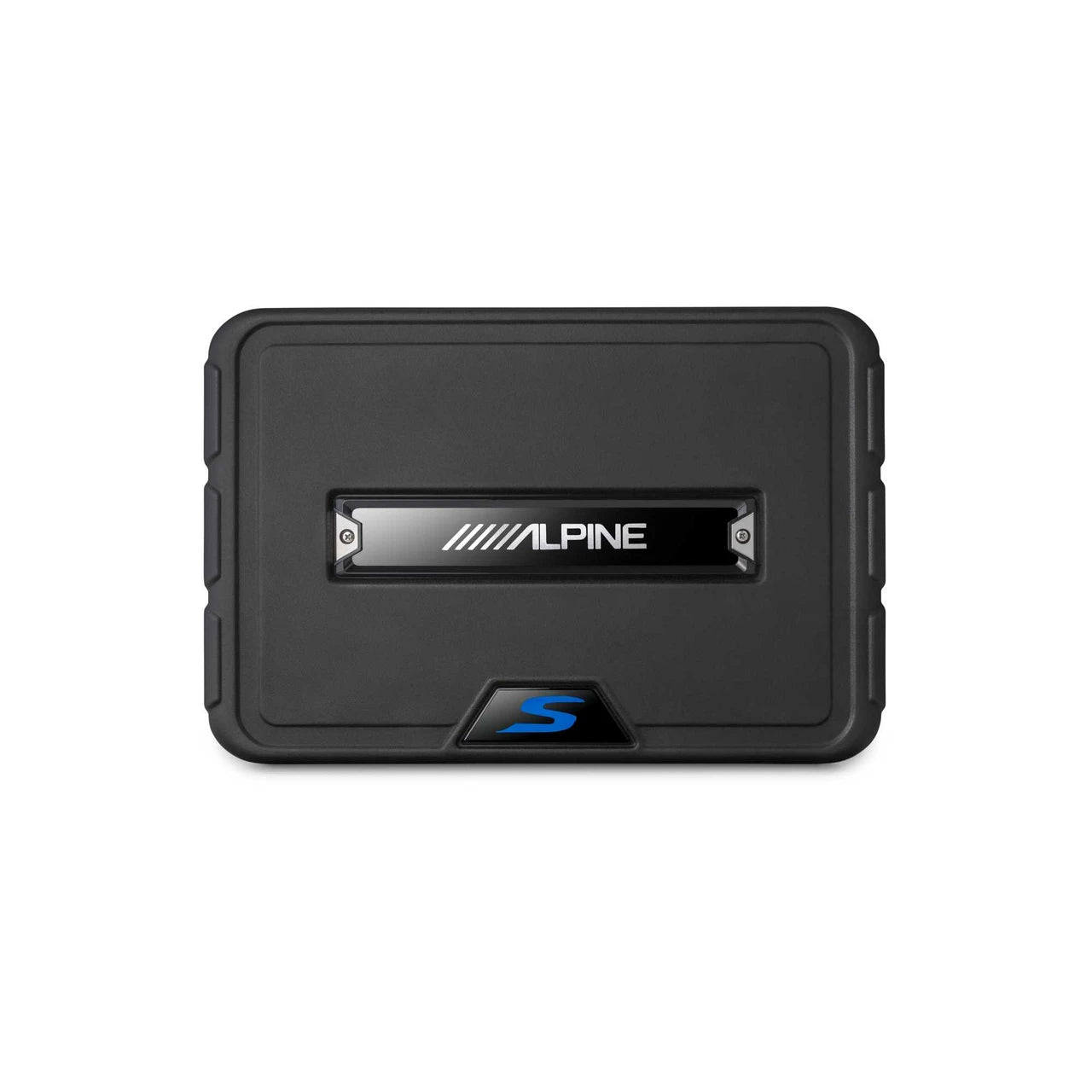

Alpine SS-SB10 10" Shallow Preloaded Subwoofer Enclosure

The Alpine SS-SB10 is a compact, single 10-inch shallow preloaded subwoofer enclosure designed for installations with limited space. Its sealed cabinet measures only 4.5 inches in height while providing 300 watts RMS power handling and a 2-ohm nominal impedance.

SS-SB10 Features

• Single 10" Shallow Preloaded Subwoofer

• Sealed Enclosure Design

• 300 Watts RMS Power Handling

• 2-Ohm Nominal Impedance

• Frequency Response: 35 Hz-200 Hz

• 2" Copper Voice Coil

• Single 2-Ohm Voice Coil Configuration

• 11mm One-Way Linear X-Max

• Front-Mounted Neodymium Magnet

• Alpine Gen2 DD-Linear Magnetic Circuit

• Rugged Polymer Enclosure

• Four Adjustable Foam-Padded Steel Mounting Brackets

• Designed for Space-Conscious Vehicle Installations

SS-SB10 Dimensions

• Width: 18.5"

• Height: 4.5"

• Depth: 12.5"

Shallow Space-Saving Design

With its low-profile sealed enclosure, the SS-SB10 delivers strong bass response without the space of a traditional full-depth subwoofer enclosure. Its rugged polymer construction and flexible mounting system make it suitable for a variety of compact vehicle installations.

Gen2 DD-Linear Magnetic Circuit

Alpine's Gen2 DD-Linear Magnetic Circuit technology provides precise motor control for strong, controlled low-frequency output. The front-mounted neodymium magnet helps reduce overall enclosure depth while maintaining subwoofer performance.

Adjustable Mounting System

Four adjustable foam-padded steel brackets provide flexible mounting options while helping reduce unwanted vibration during playback.

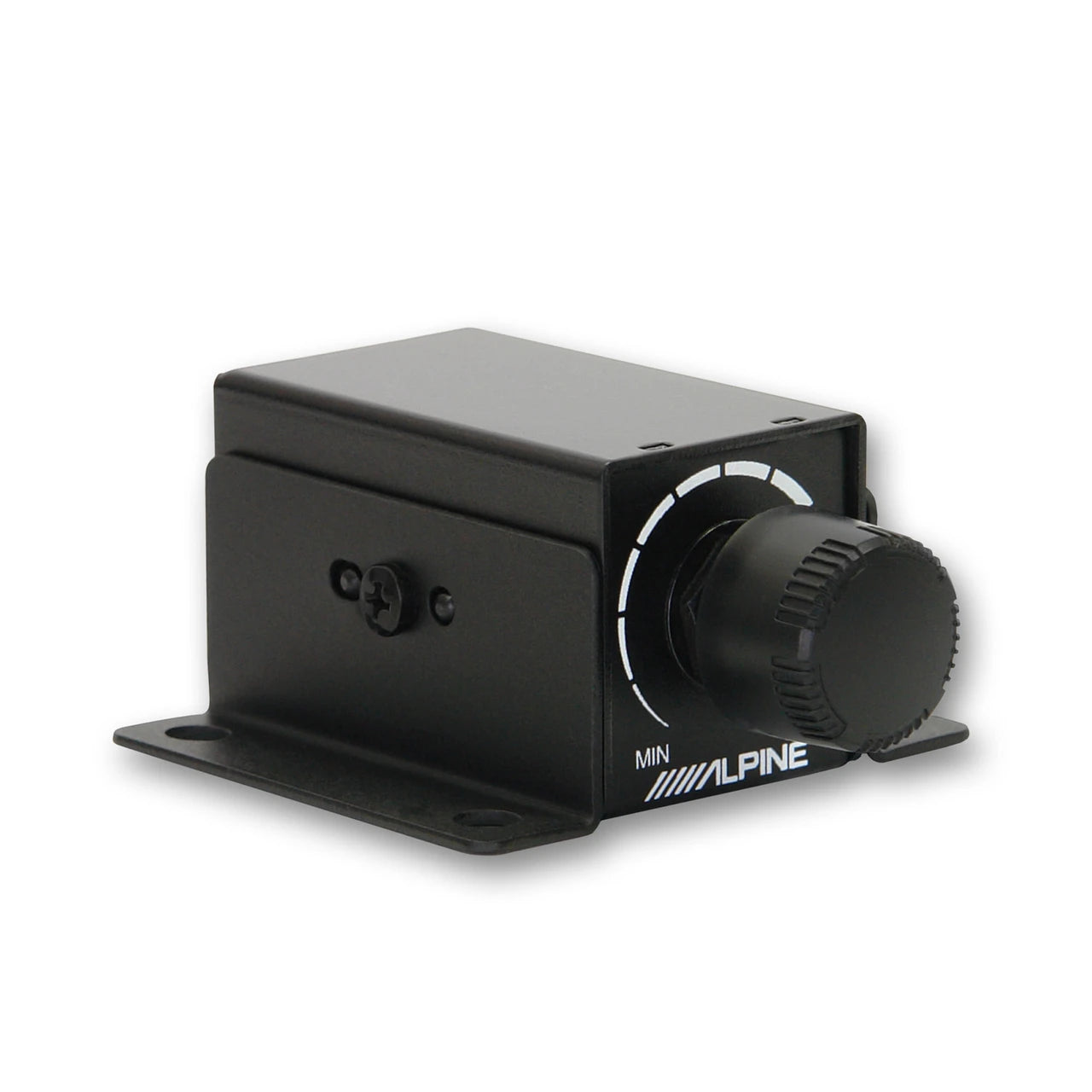

Alpine RUX-KNOB.2 Remote Bass Controller

The included Alpine RUX-KNOB.2 provides convenient in-cabin bass-level adjustment for the compatible S2-A55V amplifier, allowing you to adjust subwoofer output without accessing the amplifier itself.

RUX-KNOB.2 Features

• Remote Bass Level Controller

• Convenient In-Cabin Bass Adjustment

• Compatible with the Included S2-A55V

• Compact Control Design

• Allows Quick Subwoofer Level Adjustment

• Designed for Compatible Alpine Amplifier Systems

Amplifier & Subwoofer Power Matching

The SS-SB10 has a 2-ohm nominal impedance and is rated for 300 watts RMS. The S2-A55V's dedicated subwoofer channel delivers 300 watts RMS x 1 at 2 ohms, making the included amplifier and loaded enclosure a well-matched combination when properly installed and configured.

Absolute TW500 Super Tweeters

Enhance the system's high-frequency output with the included Absolute TW500 Super Tweeters, designed to add brighter highs and increased sound presence to compatible automotive audio systems.

TW500 Features

• Pair of Super Tweeters

• High-Efficiency High-Frequency Design

• Compact Construction

• Factory & Aftermarket Audio Compatible

• Designed for Custom Car Audio Installations

Absolute BT1700 Electrical Tape

The included Absolute BT1700 electrical tape helps insulate, secure, and organize compatible automotive wiring connections during installation.

BT1700 Features

• Automotive Electrical Tape

• High-Adhesion Design

• Heat Resistant

• Flexible PVC Construction

• Ideal for Car Audio Installation Wiring

Absolute Universal Mobile Phone Holder

The included universal mobile phone holder provides a convenient mounting solution for keeping a compatible smartphone accessible for navigation, music, and everyday use.

Phone Holder Features

• Universal Smartphone Compatibility

• Adjustable Viewing Angle

• Secure Grip Design

• Convenient In-Vehicle Installation

• Suitable for Navigation & Everyday Smartphone Access

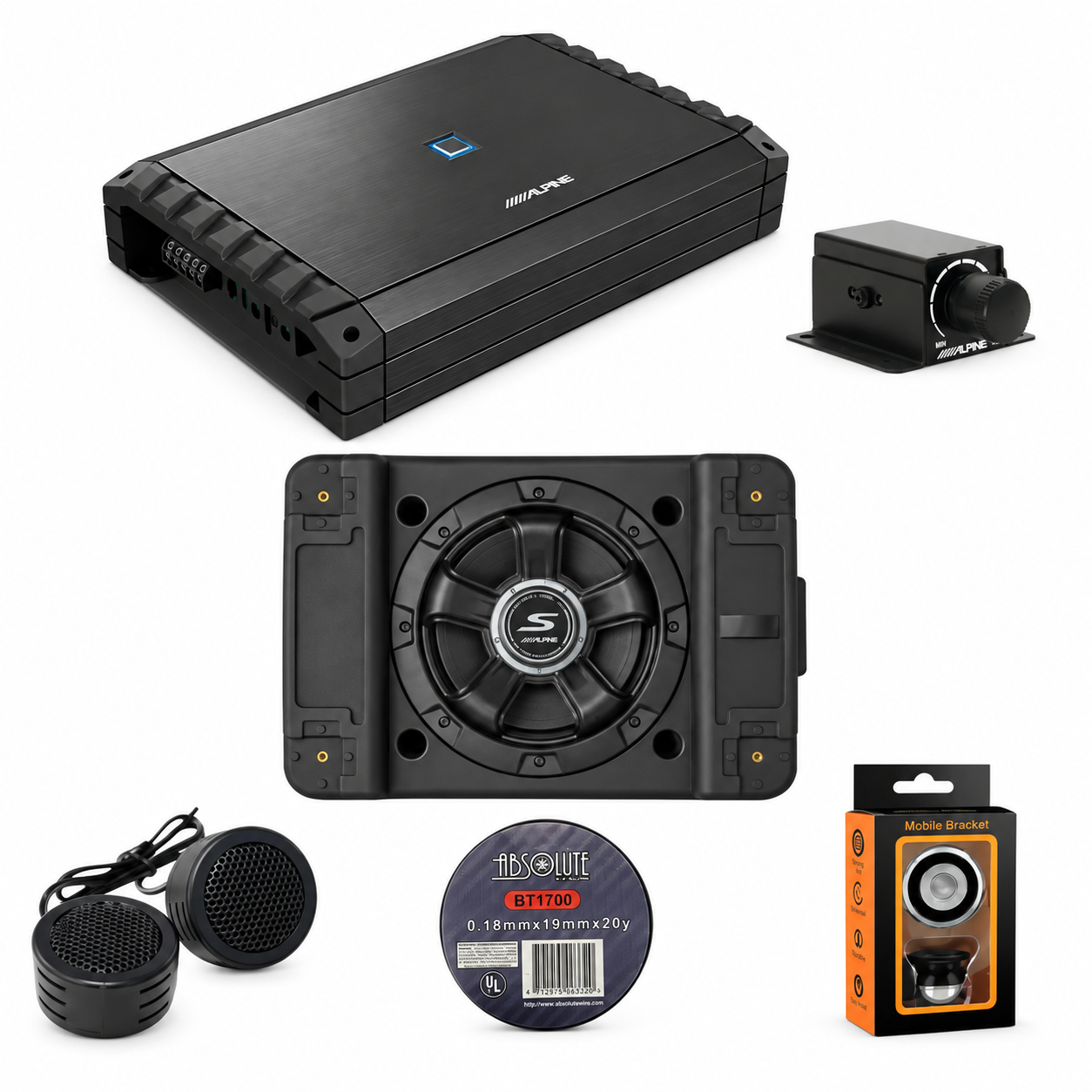

What's in this Package

• (1) Alpine S2-A55V 5-Channel Class-D Amplifier

• (1) Alpine SS-SB10 Single 10" Shallow Preloaded Subwoofer Enclosure

• (1) Alpine RUX-KNOB.2 Remote Bass Controllers

• (1 Pair) Absolute TW500 Super Tweeters

• (1) Absolute BT1700 Electrical Tape

• (1) Absolute Universal Mobile Phone Holder

Installation Notes

• The SS-SB10 is a 2-ohm loaded enclosure rated for 300 watts RMS.

• The S2-A55V subwoofer channel delivers 300 watts RMS x 1 at 2 ohms, matching the SS-SB10's stated RMS power handling.

• The S2-A55V can also provide four channels of amplification for compatible full-range speakers.

• Proper amplifier power wiring, ground wiring, fuse protection, speaker wire, RCA or speaker-level signal connections, and other installation accessories may be required.

• Verify mounting space for the SS-SB10 enclosure before installation.

• Secure the enclosure properly using the supplied mounting system.

• Professional installation and system tuning are recommended.
