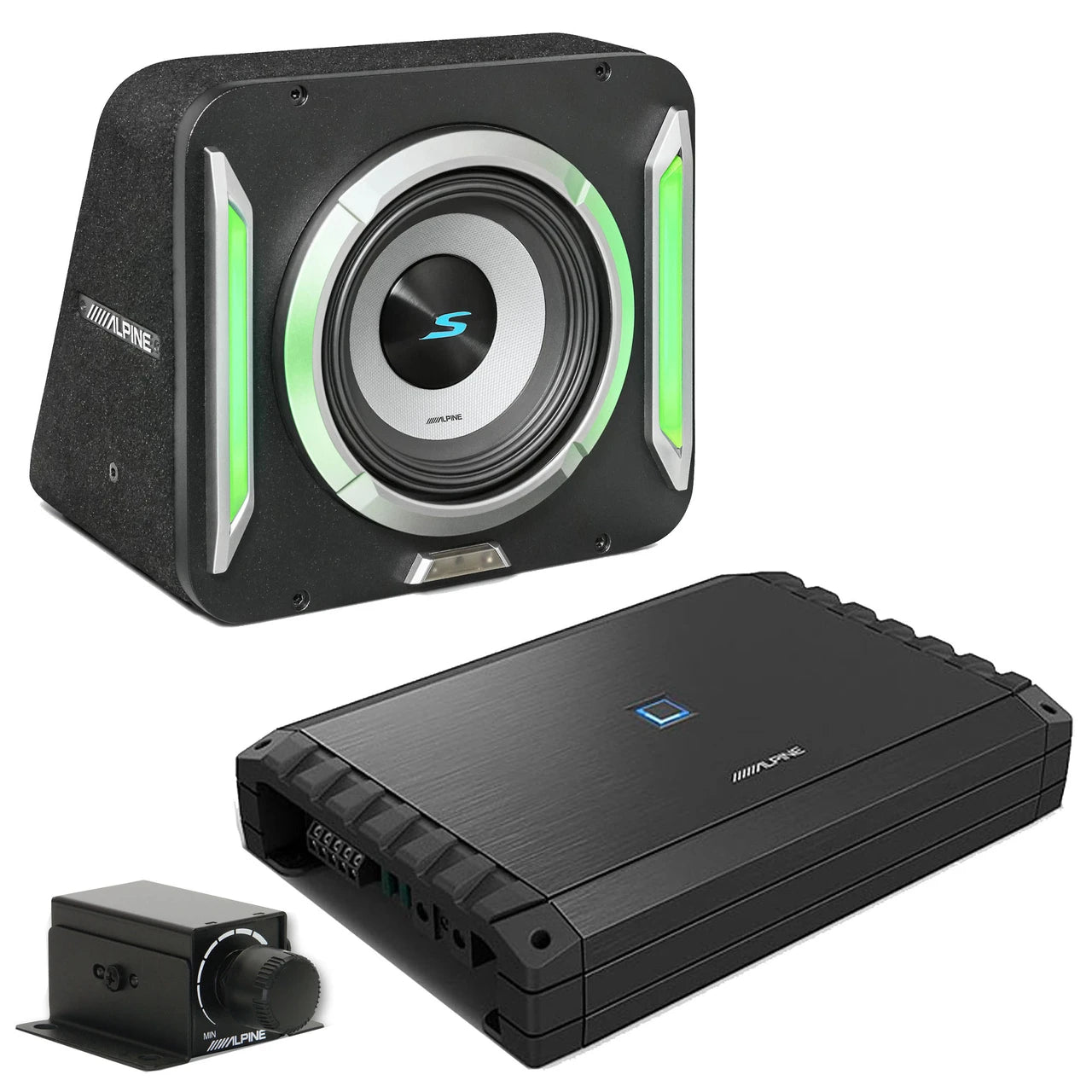

Alpine S2-A55V 5-Channel Hi-Res Amplifier + S2-SB12 12" Halo PrismaLink Loaded Subwoofer + RUX-KNOB.2 + Absolute Accessory Bundle

Build a complete Alpine S-Series audio system with the S2-A55V 5-channel Class-D amplifier, S2-SB12 12-inch Halo PrismaLink preloaded subwoofer enclosure, and RUX-KNOB.2 remote bass controller. This package combines full-range speaker amplification, dedicated subwoofer power, Hi-Res Audio performance, deep bass, and customizable RGBW enclosure lighting in one coordinated vehicle audio upgrade.

General Features

• Includes Alpine S2-A55V 5-Channel Class-D Amplifier

• Includes Alpine S2-SB12 12" Halo PrismaLink Preloaded Subwoofer Enclosure

• Includes Alpine RUX-KNOB.2 Remote Bass Controllers

• Hi-Res Audio Certified Amplifier up to 40 kHz

• 40W RMS x 4 + 200W RMS x 1 at 4 Ohms

• 60W RMS x 4 + 300W RMS x 1 at 2 Ohms

• 120W RMS x 2 bridged at 4 Ohms

• Preloaded Alpine S2-W12D4 12" Subwoofer

• 600 Watts RMS / 1800 Watts Peak Subwoofer Power Handling

• 2-Ohm Final Loaded Enclosure Impedance

• Sealed Wedge Enclosure

• RGBW PrismaLink Trim-Bar Lighting

• 12 Static Lighting Colors

• 4 Dynamic Lighting Modes

• IR Remote Lighting Control

• Multi-Link Capable with Optional KTX-LK12

• Includes Absolute TW500 Super Tweeters

• Includes Absolute BT1700 Electrical Tape

• Includes Absolute Universal Mobile Phone Holder

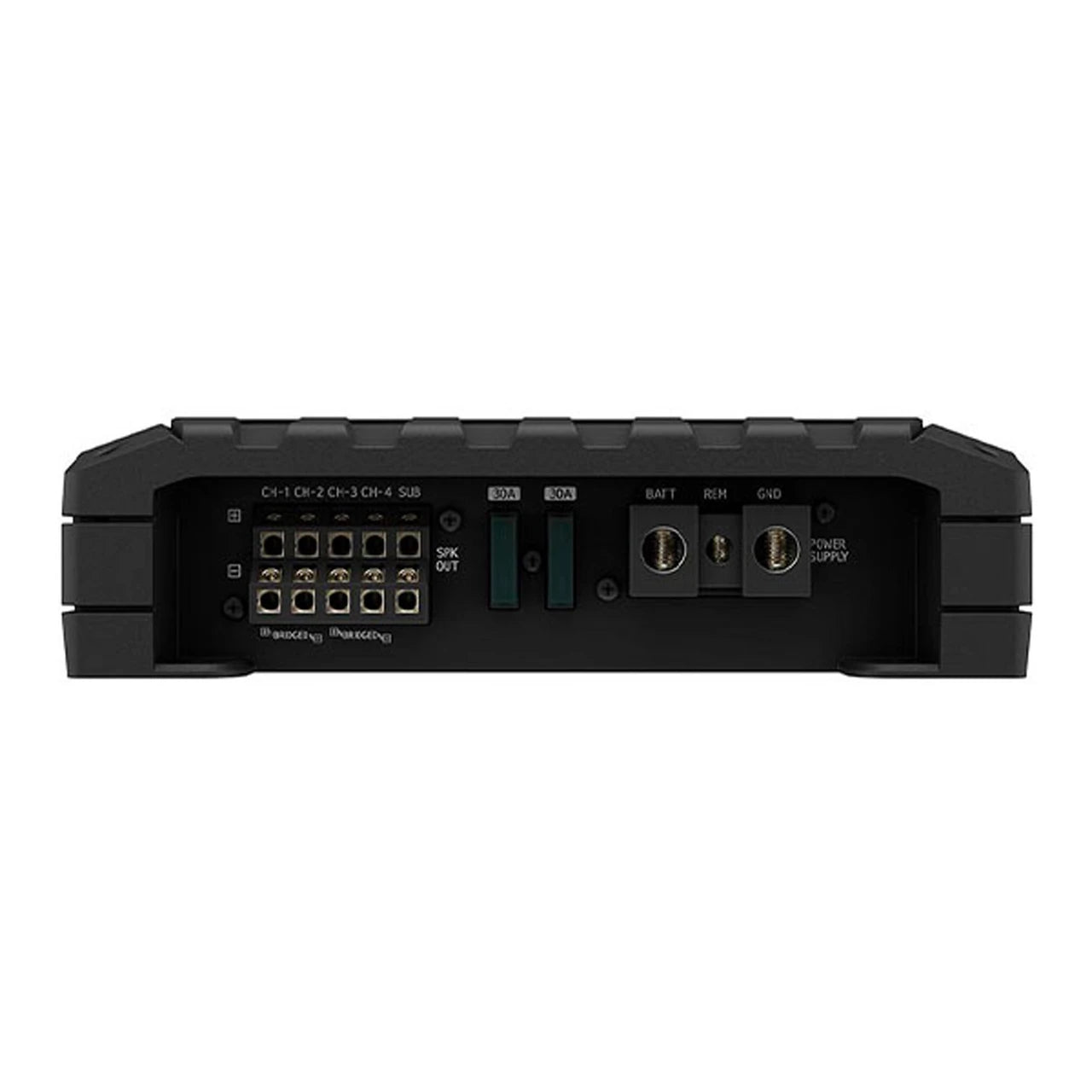

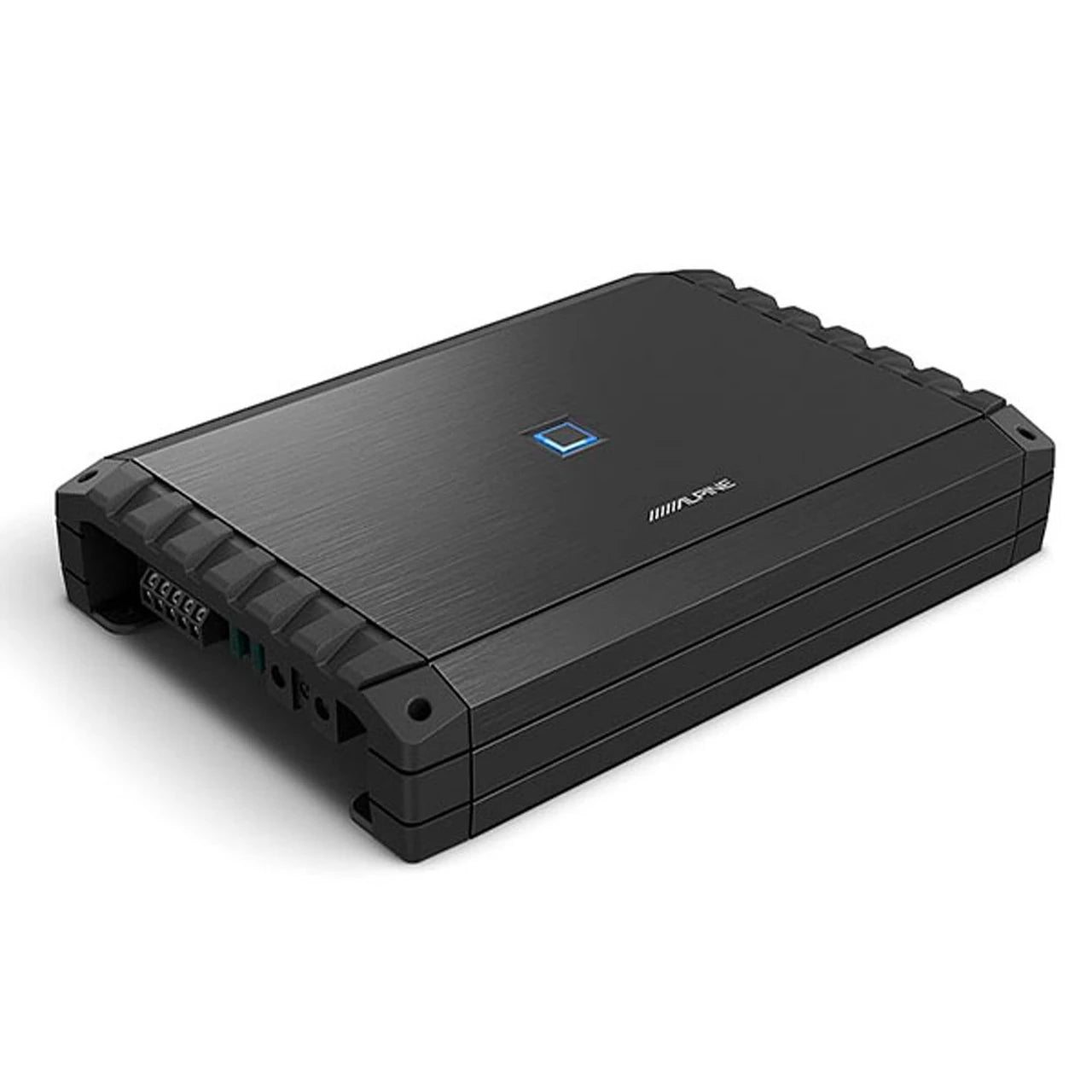

Alpine S2-A55V S-Series 5-Channel Class-D Amplifier

The Alpine S2-A55V delivers five channels of efficient Class-D amplification from a single chassis, powering up to four full-range speakers plus a dedicated subwoofer. Hi-Res Audio certification and a frequency response extending to 40 kHz help deliver detailed, accurate system performance.

S2-A55V Power Specifications

• Amplifier Type: 5-Channel Class-D

• 40 Watts RMS x 4 + 200 Watts RMS x 1 at 4 Ohms

• 60 Watts RMS x 4 + 300 Watts RMS x 1 at 2 Ohms

• 120 Watts RMS x 2 bridged at 4 Ohms

• Hi-Res Audio Certified

• Frequency Response: 20 Hz-40 kHz

• THD+N: Less Than 0.1%

• Signal-to-Noise Ratio: Greater Than 83 dB

• Damping Factor: Greater Than 100

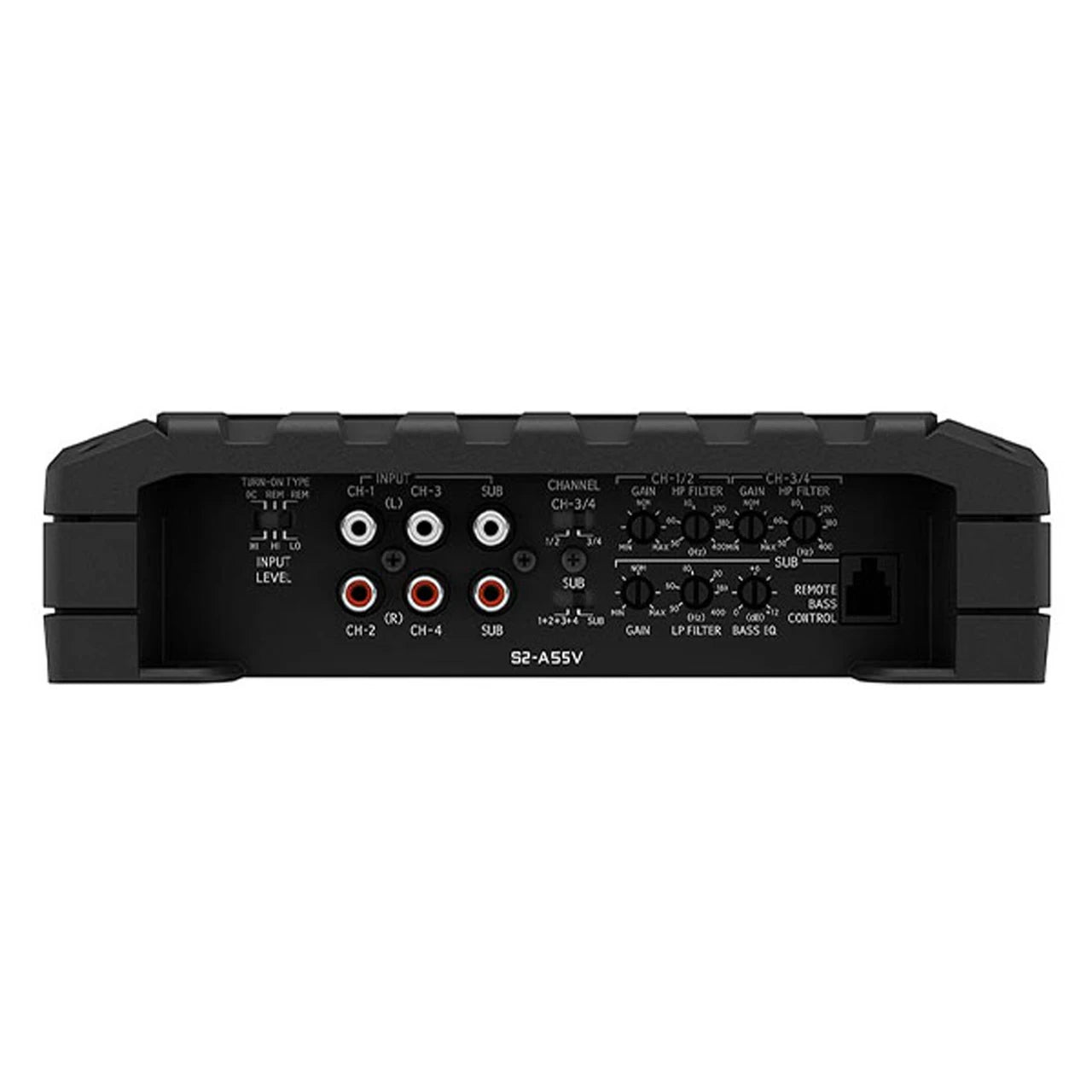

Amplifier Features

• Alpine S-Series Class-D Amplifier Circuit

• Five-Channel Full-System Design

• Dedicated Subwoofer Channel

• Built-In Selectable Crossovers

• Adjustable Crossover Controls

• Selectable Remote Turn-On

• Two-Sided Terminal Layout

• Designed for Factory & Aftermarket Audio Systems

• Remote Bass Control Capability

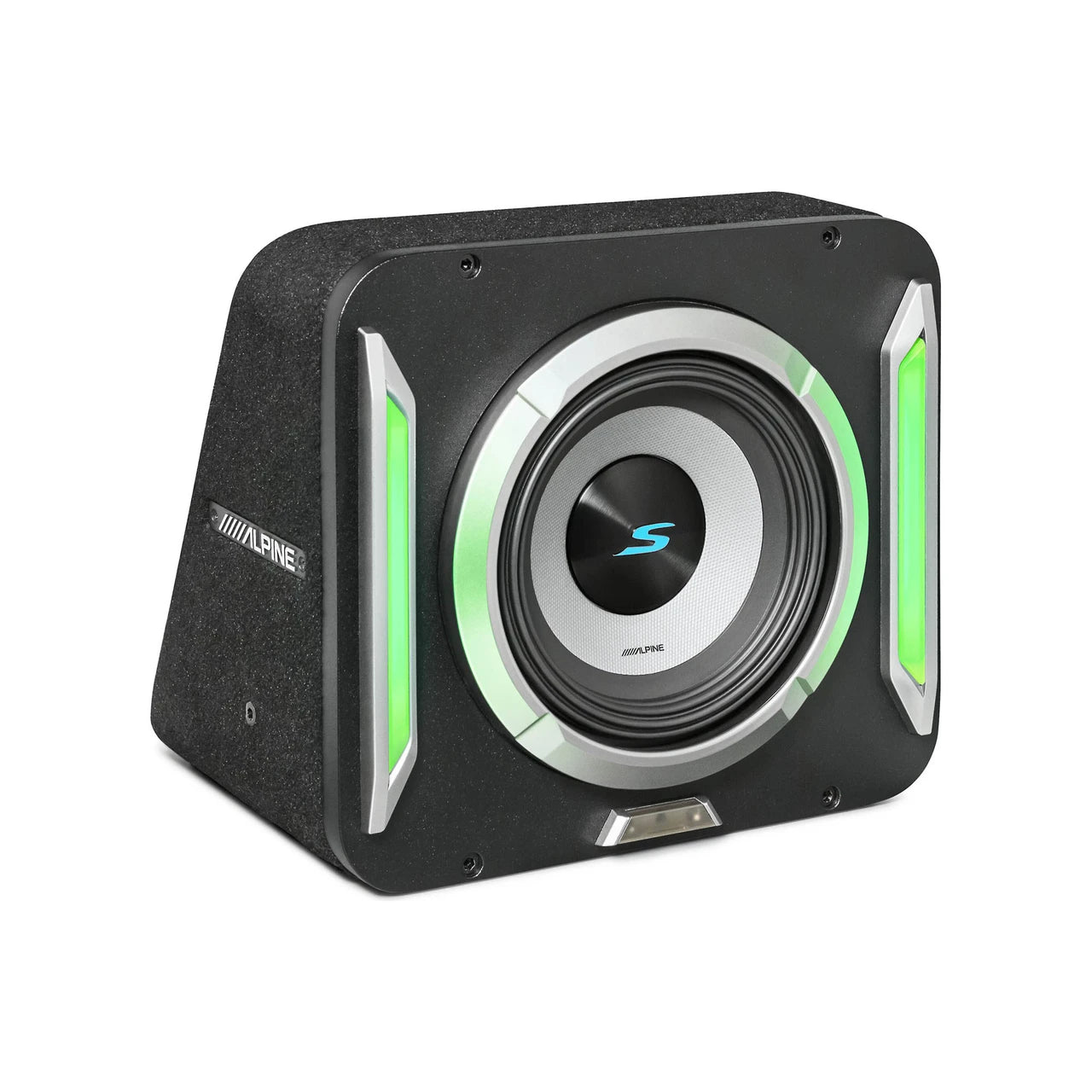

Alpine S2-SB12 12" Halo PrismaLink Preloaded Subwoofer Enclosure

The Alpine S2-SB12 combines a preloaded 12-inch S2-W12D4 S-Series subwoofer with a sealed wedge-style enclosure and integrated PrismaLink RGBW lighting. The result is strong low-frequency performance with a customizable illuminated design that adds both sound and visual impact to the vehicle.

S2-SB12 Features

• Preloaded Alpine S2-W12D4 12" Subwoofer

• Sealed Wedge Enclosure

• 600 Watts RMS Power Handling

• 1800 Watts Peak Power Handling

• 2-Ohm Final Impedance

• Dual 4-Ohm Voice Coils Wired for 2-Ohm Load

• Frequency Response: 23 Hz-215 Hz

• Sensitivity: 86 dB

• 15mm One-Way X-Max

• 2.6" Voice Coil

• 64 oz Magnet

• Carbon Fiber / Polypropylene Subwoofer Cone

• Alpine H.A.M.R. Surround Technology

• RGBW PrismaLink Lighting

• Multi-Link Capable

S2-SB12 Enclosure Dimensions

• Width: 16.5"

• Height: 15"

• Depth: 13.25"

PrismaLink RGBW Lighting

Integrated RGBW trim-bar lighting gives the S2-SB12 a customizable look that complements the vehicle's interior or audio installation.

Lighting Features

• RGBW Trim-Bar Illumination

• 12 Static Colors

• 4 Dynamic Lighting Modes

• Included IR Remote Lighting Control

• Compatible Lighting-Link Functionality with Supported Alpine Systems

• Multi-Link Design for Compatible Multiple-Enclosure Installations

Multi-Link Capability

Multiple compatible PrismaLink enclosures can be connected using the optional Alpine KTX-LK12 linking bracket, sold separately, for larger custom installations.

Alpine S2-W12D4 Subwoofer Performance

The preloaded S2-W12D4 uses a carbon fiber and polypropylene cone with Alpine's High-Amplitude Multi-Roll surround technology to provide strong cone excursion and controlled bass performance.

• 12" S-Series Subwoofer

• 600 Watts RMS

• 1800 Watts Peak

• Dual 4-Ohm Voice Coils

• 2-Ohm Final Load in S2-SB12 Enclosure

• Frequency Response: 23 Hz-215 Hz

• 15mm One-Way Linear Excursion

• H.A.M.R. Surround

Amplifier & Subwoofer Power Matching

The S2-SB12 presents a 2-ohm load to the amplifier. At 2 ohms, the S2-A55V's dedicated subwoofer channel delivers 300 watts RMS x 1. The S2-SB12 is rated to handle up to 600 watts RMS, meaning the included amplifier operates below the enclosure's maximum RMS power-handling capability.

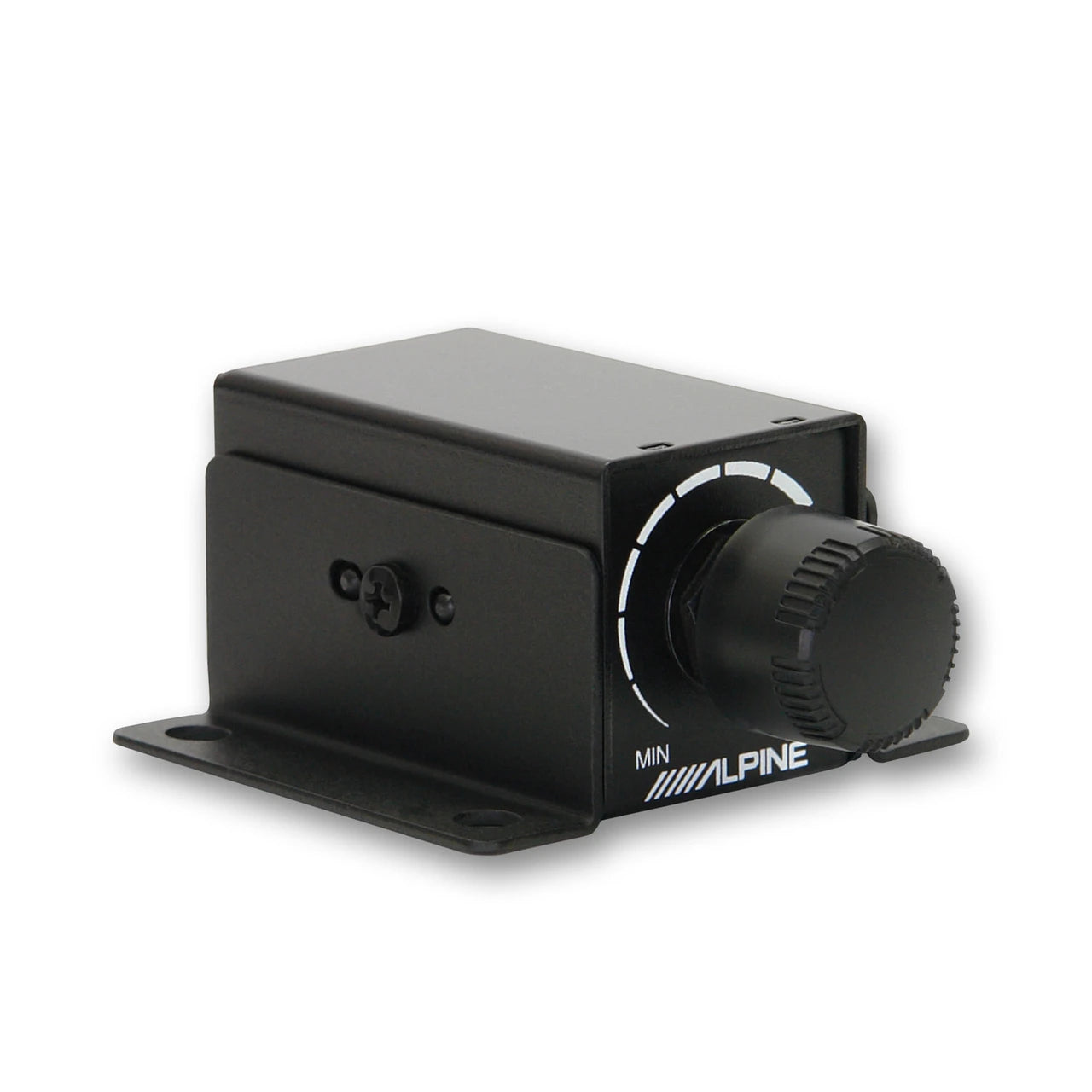

Alpine RUX-KNOB.2 Remote Bass Controller

The included Alpine RUX-KNOB.2 provides convenient in-cabin bass adjustment for compatible Alpine amplifier applications, letting you adjust subwoofer level without accessing the amplifier.

RUX-KNOB.2 Features

• Remote Bass Level Controller

• Convenient In-Cabin Adjustment

• Compact Installation Design

• Designed for Compatible Alpine Amplifier Systems

• Allows Quick Bass-Level Changes

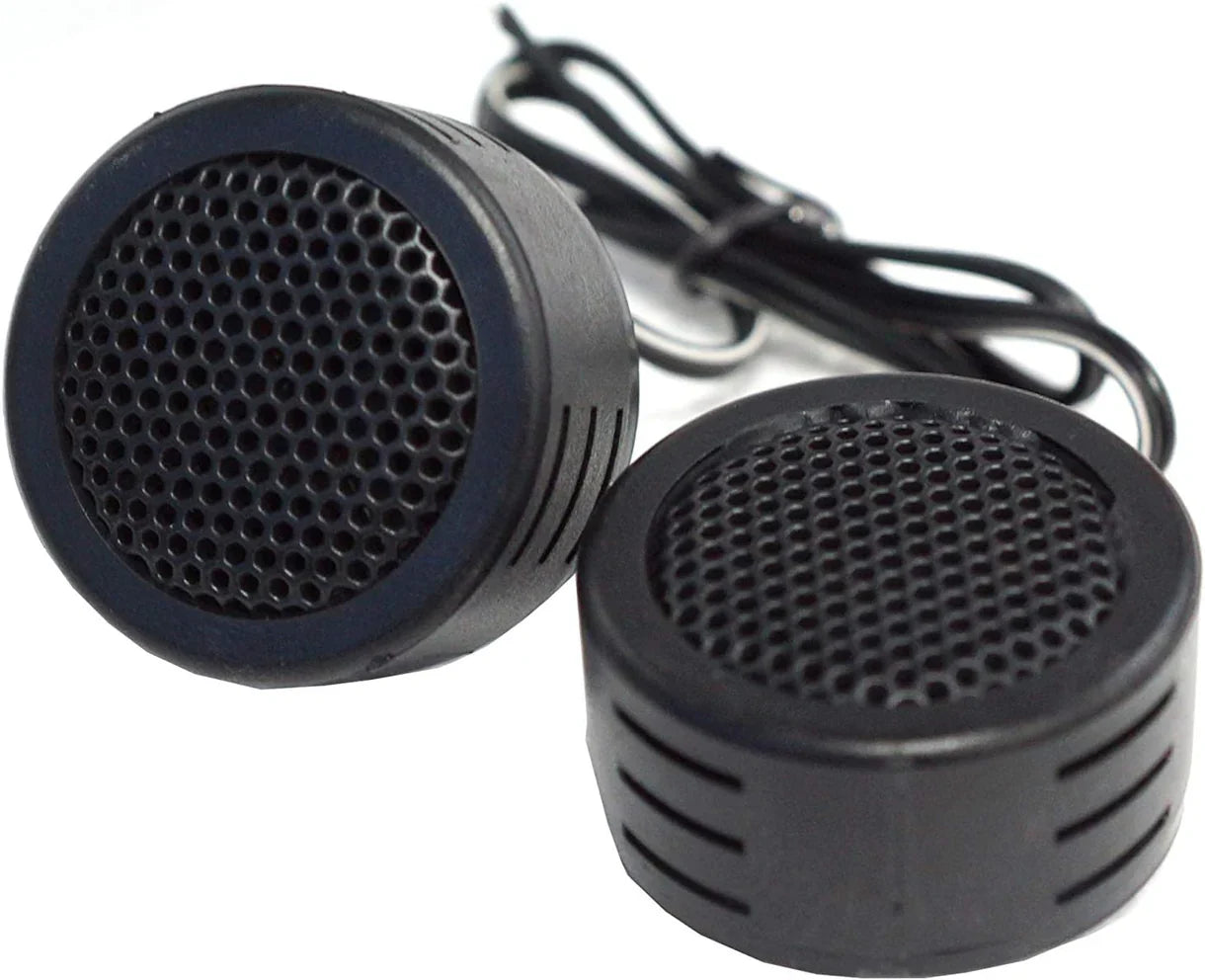

Absolute TW500 Super Tweeters

Enhance the system's high-frequency output with the included Absolute TW500 Super Tweeters, designed to add brighter highs and increased sound presence to compatible automotive audio systems.

TW500 Features

• Pair of Super Tweeters

• High-Efficiency High-Frequency Design

• Compact Construction

• Factory & Aftermarket Audio Compatible

• Designed for Custom Car Audio Installations

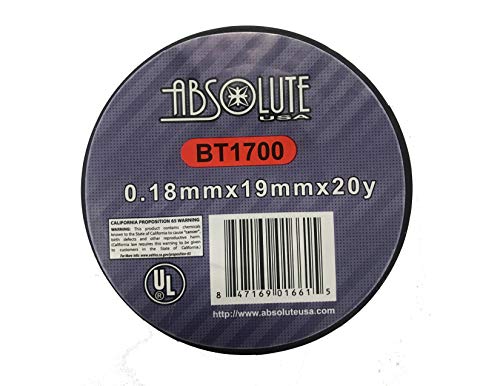

Absolute BT1700 Electrical Tape

The included Absolute BT1700 electrical tape helps insulate, secure, and organize compatible automotive wiring connections during installation.

BT1700 Features

• Automotive Electrical Tape

• High-Adhesion Design

• Heat Resistant

• Flexible PVC Construction

• Ideal for Car Audio Installation Wiring

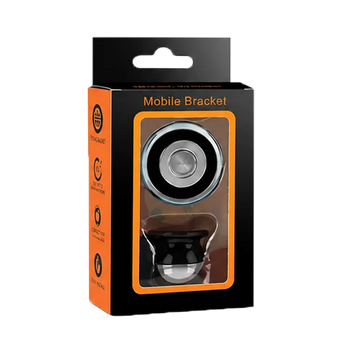

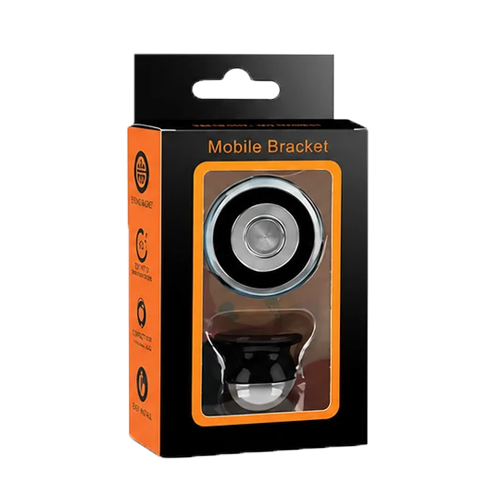

Absolute Universal Mobile Phone Holder

The included universal mobile phone holder provides a convenient mounting solution for keeping a compatible smartphone accessible for navigation, music, and everyday use.

Phone Holder Features

• Universal Smartphone Compatibility

• Adjustable Viewing Angle

• Secure Grip Design

• Convenient In-Vehicle Installation

• Suitable for Navigation & Everyday Smartphone Access

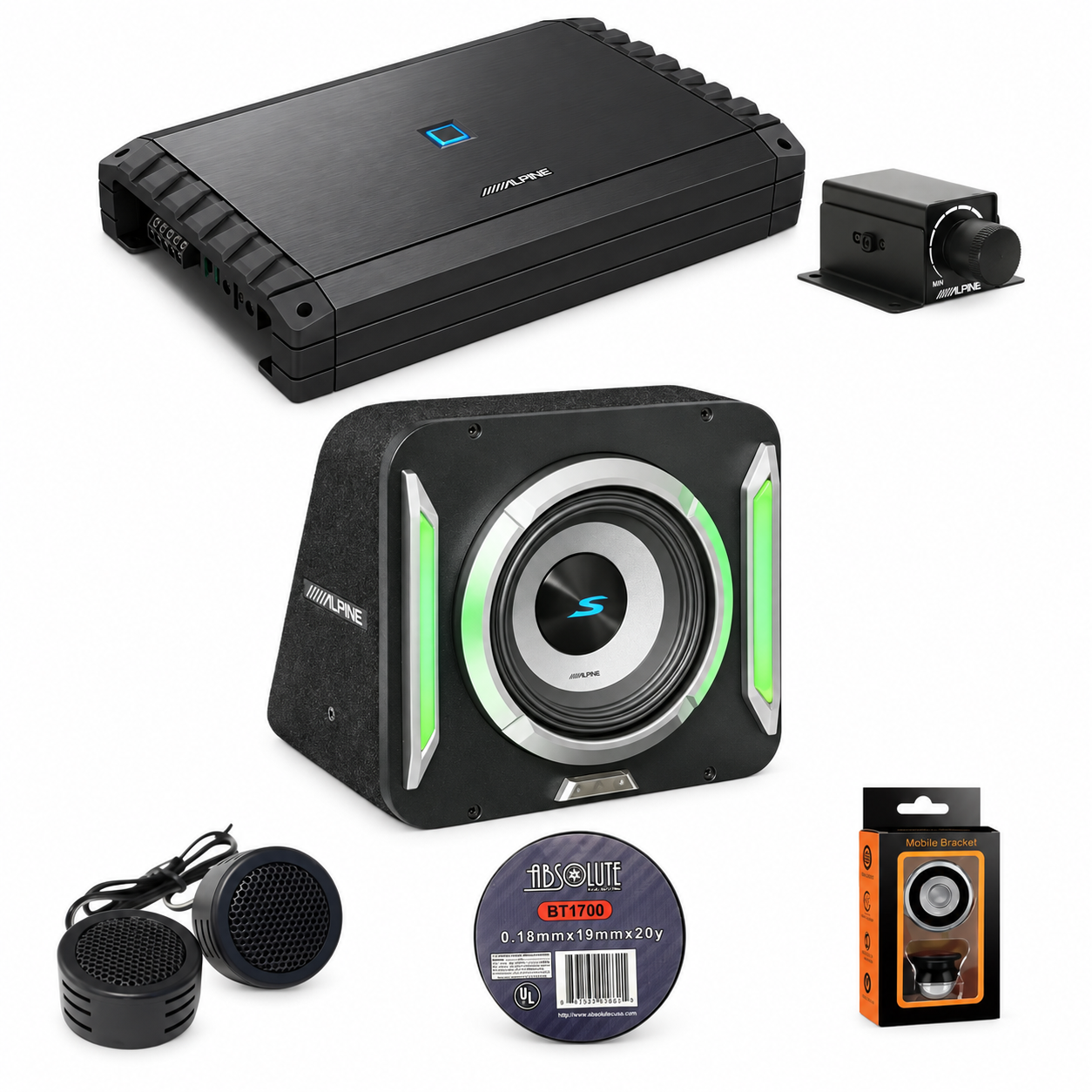

What's in this Package

• (1) Alpine S2-A55V 5-Channel Class-D Amplifier

• (1) Alpine S2-SB12 12" Halo PrismaLink Preloaded Subwoofer Enclosure

• (1) Alpine RUX-KNOB.2 Remote Bass Controllers

• (1 Pair) Absolute TW500 Super Tweeters

• (1) Absolute BT1700 Electrical Tape

• (1) Absolute Universal Mobile Phone Holder

Optional Accessories

• Alpine KTX-LK12 PrismaLink Enclosure Linking Bracket – Sold Separately

Installation Notes

• The S2-SB12 has a 2-ohm final impedance and is rated for 600 watts RMS.

• The S2-A55V provides 300 watts RMS x 1 at 2 ohms from its dedicated subwoofer channel.

• The S2-SB12's 600-watt RMS rating reflects its power-handling capability; the included S2-A55V does not deliver 600 watts to the enclosure.

• The remaining four S2-A55V channels can power properly matched full-range speakers.

• Verify RUX-KNOB.2 compatibility with the intended amplifier control configuration before installation.

• PrismaLink lighting requires proper electrical connection and configuration.

• A properly sized amplifier wiring kit, fuse protection, ground wiring, speaker wire, signal cables, and other installation accessories may be required.

• Verify enclosure dimensions and available vehicle space before installation.

• Professional installation and system tuning are recommended.
