2 Pack Alpine RS-SB12 Dual 12" Halo R-Series R2 Preloaded Subwoofer Enclosures with RUX-KNOB.2 Remote Bass Control & Absolute Accessory Bundle

Add powerful low-frequency performance to your vehicle audio system with this Alpine Halo R-Series bundle featuring two Alpine RS-SB12 12-inch R-Series R2 preloaded subwoofer enclosures, an Alpine RUX-KNOB.2 remote bass control, Absolute TW500 Super Tweeters, BT1700 electrical tape, and a universal mobile phone holder. The dual-enclosure configuration combines high-power R-Series subwoofers, Alpine ProLink capability, and distinctive Halo-inspired styling for a clean, performance-focused installation.

General Features

• Two Alpine RS-SB12 12" Halo R-Series R2 Preloaded Subwoofer Enclosures

• Alpine RUX-KNOB.2 Remote Bass Control

• 750 Watts RMS Power Handling Per Enclosure

• 2250 Watts Peak Power Handling Per Enclosure

• 300-750 Watt RMS Recommended Power Range

• Alpine ProLink Enclosure Design

• Optional KTX-H10 Linking Capability

• Double-Stacked Magnet Structure

• 2.6" Voice Coil

• 20mm Linear Excursion

• 26Hz-200Hz Frequency Response

• Halo-Inspired Curved Enclosure Styling

• Silver Accent Trim

• Metallic Front Baffle

• Absolute TW500 Super Tweeters

• Absolute BT1700 Electrical Tape

• Universal Mobile Phone Holder

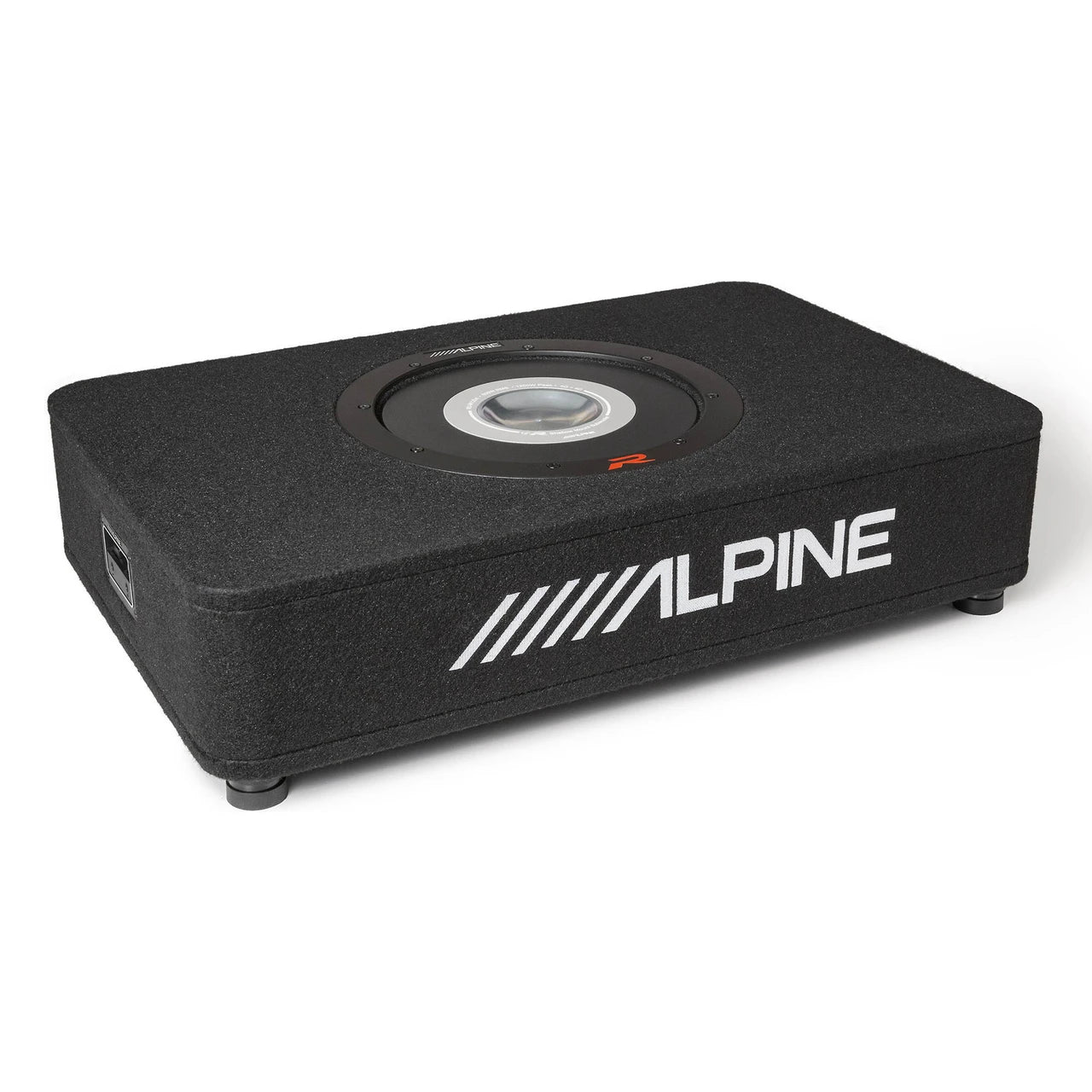

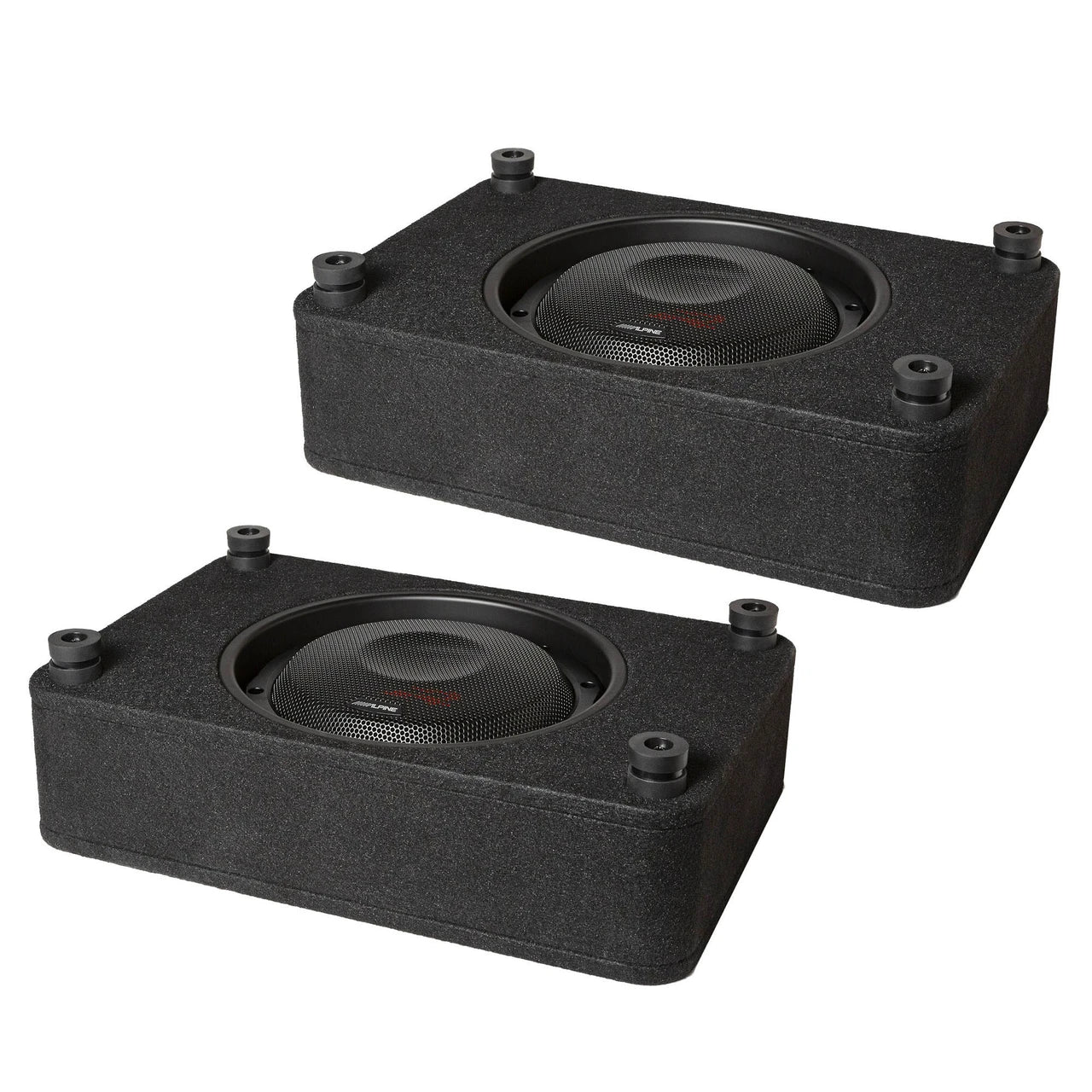

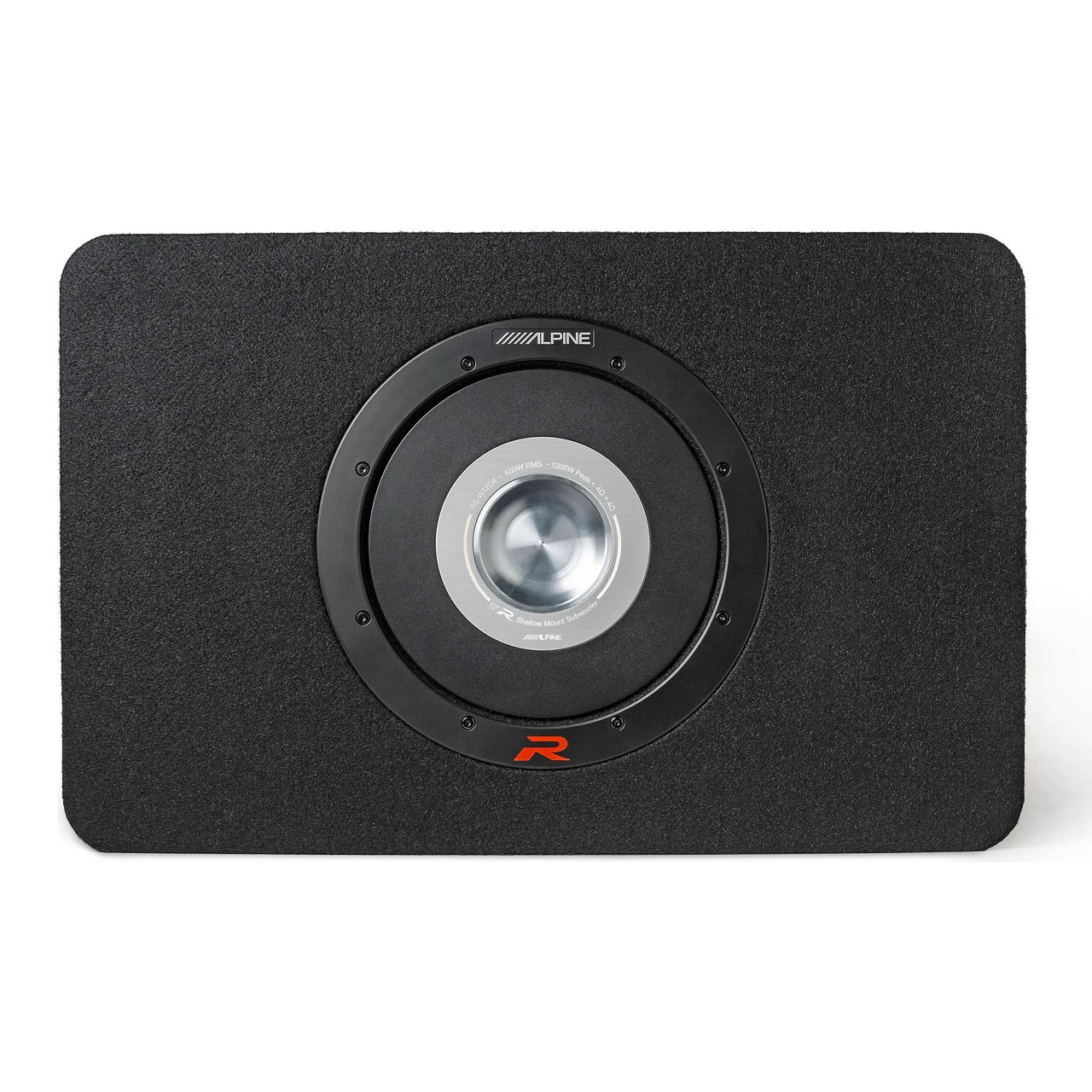

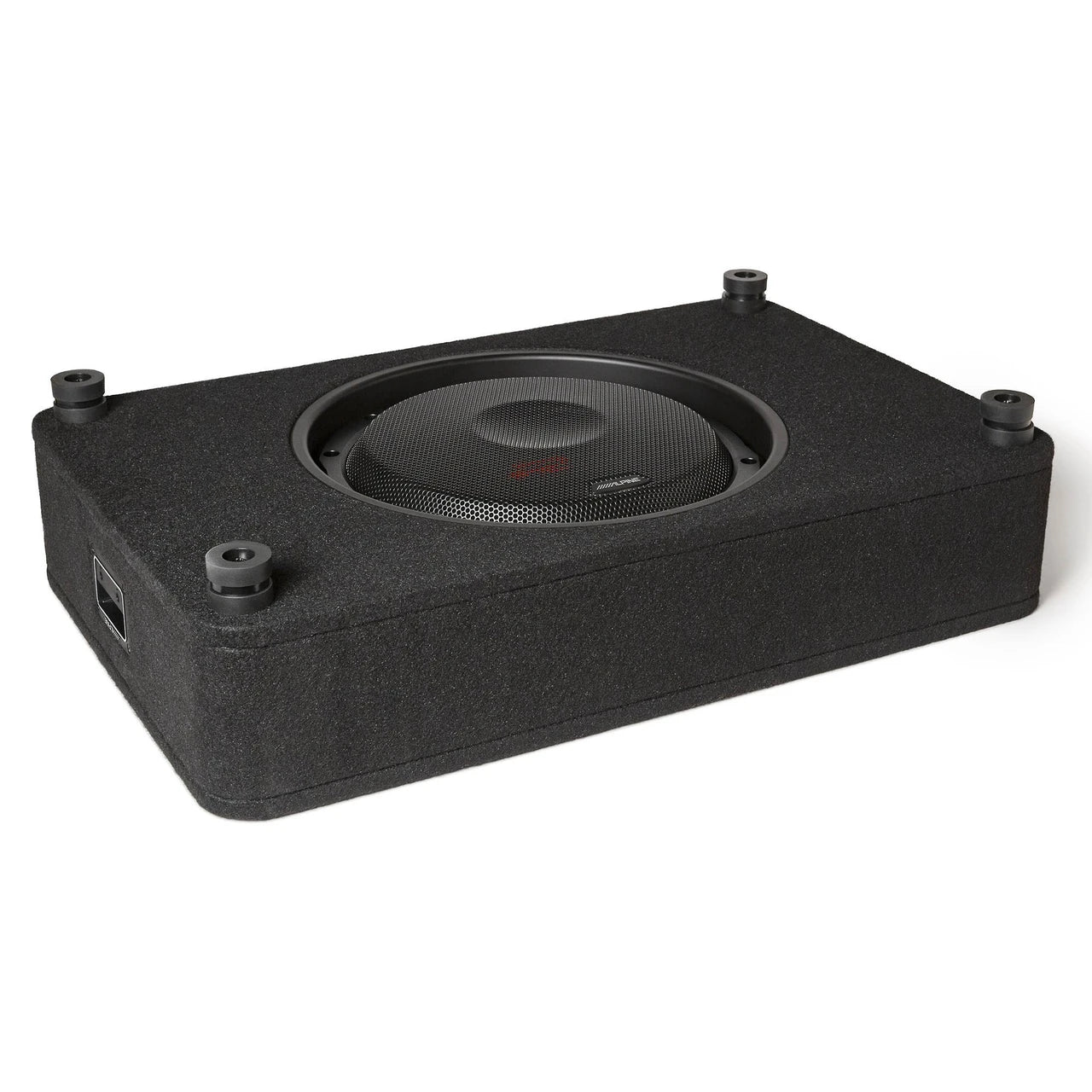

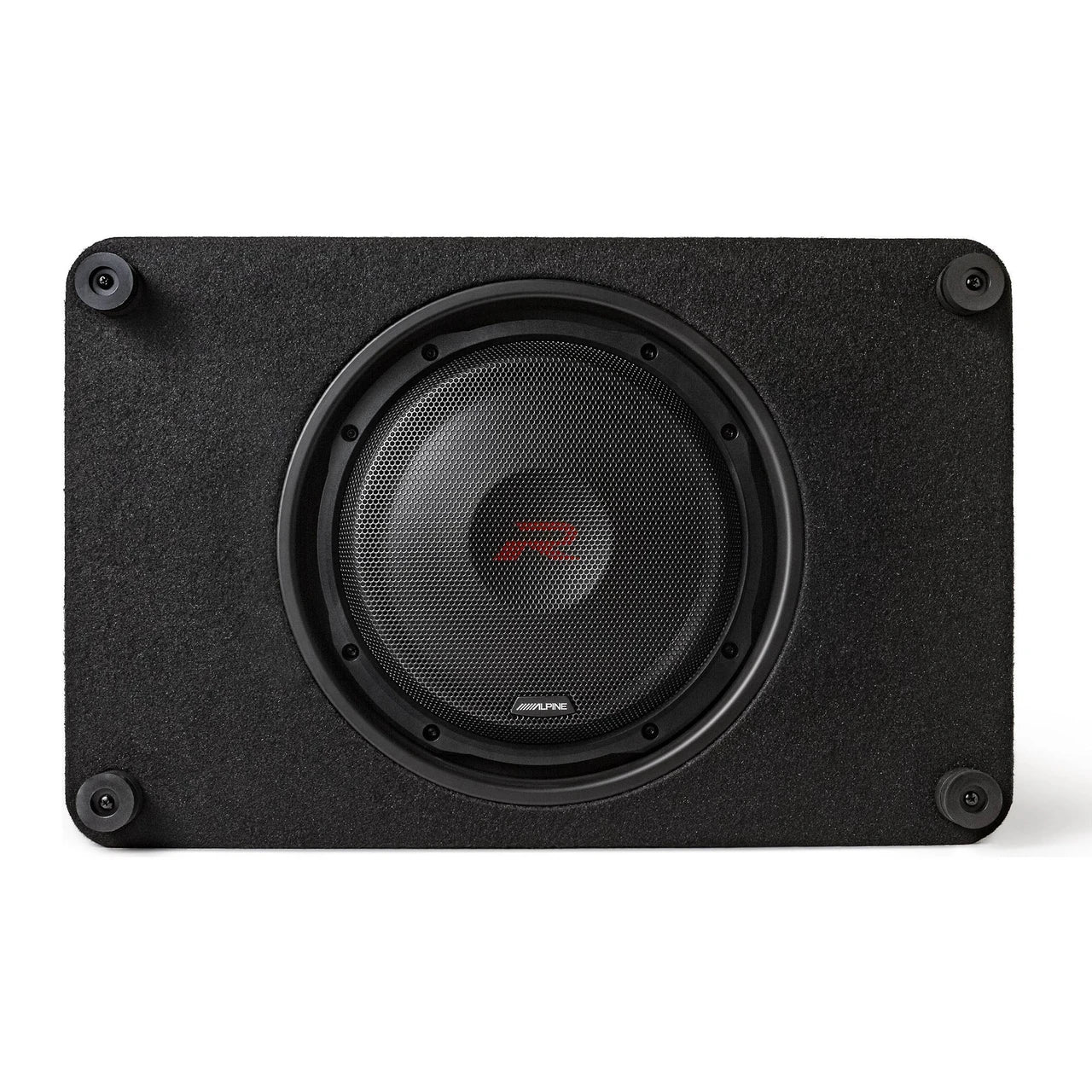

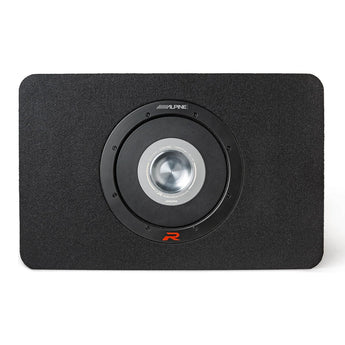

Alpine RS-SB12 12" Halo R-Series R2 Preloaded Subwoofer Enclosures

This bundle includes two Alpine RS-SB12 12-inch preloaded subwoofer enclosures featuring R-Series R2 subwoofers. Each enclosure is designed to deliver deep, controlled bass while providing a finished installation appearance that complements Alpine Halo components.

R-Series R2 Subwoofer Performance

• 12" R-Series R2 Subwoofer

• 750 Watts RMS Power Handling Per Enclosure

• 2250 Watts Peak Power Handling Per Enclosure

• Recommended Power Range: 300-750 Watts RMS

• Frequency Response: 26Hz-200Hz

• 85dB Sensitivity

• 2.6" / 65.5mm Voice Coil

• 20mm Linear Excursion

• 72mm Mechanical Travel

• Double-Stacked Magnet Structure

• 144 oz Magnet Weight

Enhanced Motor Structure

The R-Series R2 subwoofer uses a larger double-stacked magnet structure designed to provide increased motor force for deeper bass and improved control compared with the previous generation.

• Larger Double-Stacked Magnets

• Increased Motor Force

• Designed for Deeper Bass Output

• Designed for Improved Bass Control

• High-Excursion Subwoofer Construction

Halo-Inspired Enclosure Styling

• Curved Enclosure Edges

• Tapered Exterior Lines

• Silver Accent Trim

• Metallic Front Baffle

• Designed to Complement Alpine Halo Components

• Finished Preloaded Enclosure Design

RS-SB12 Specifications

• Quantity: 2 Enclosures

• Subwoofer Size: 12"

• Frequency Response: 26Hz-200Hz

• Recommended Power Range: 300-750 Watts RMS

• RMS Power Handling: 750 Watts

• Peak Power Handling: 2250 Watts

• Sensitivity: 85dB at 1W/1m

• Voice Coil Diameter: 65.5mm / 2.6"

• Magnet Weight: 144 oz

• Linear Excursion Xmax: 20mm

• Mechanical Travel Xmech: 72mm

• DC Resistance Re: 1.9 Ohms + 1.9 Ohms

• Free-Air Resonance Fs: 29Hz

• Equivalent Compliance Volume: 36.9 L

• Mechanical Q Qms: 6.32

• Electrical Q Qes: 0.44

• Total Q Qts: 0.41

• Cone Area Sd: 479 cm²

• Dimensions: 17" x 26" x 15"

• Weight: Approximately 48.4 lb each

• ProLink: Yes

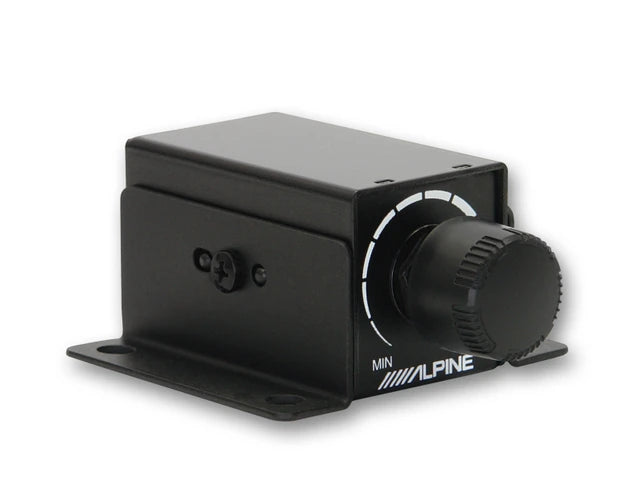

Alpine RUX-KNOB.2 Remote Bass Control

The Alpine RUX-KNOB.2 provides convenient in-cabin bass gain adjustment when connected to a compatible Alpine amplifier. Once installed in an accessible location, the control allows bass level changes without requiring direct access to the amplifier.

RUX-KNOB.2 Features

• Remote Bass Gain Control

• In-Cabin Bass Adjustment

• Driver-Accessible Control

• Designed for Compatible Alpine Amplifiers

• Supports Multiple Compatible Amplifiers with Appropriate Telephone Cord Adapters

Listed Compatible Amplifiers

• Alpine MRX-M50

• Alpine MRX-M100

• Alpine MRX-V60

• Alpine PDX-M12

• Alpine PDX-M6

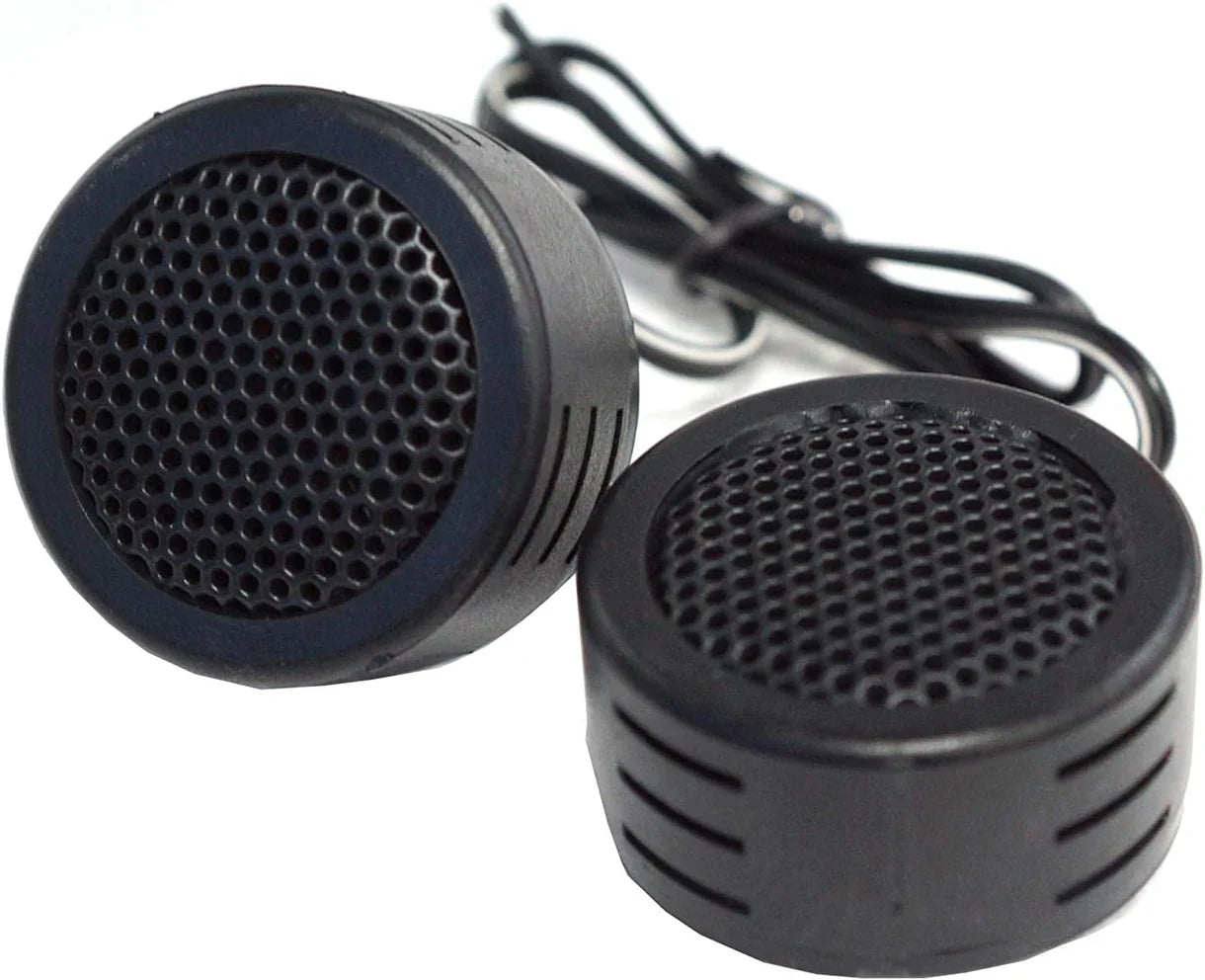

Absolute TW500 Super Tweeters

The included Absolute TW500 Super Tweeters are designed to add additional high-frequency output and sound presence to compatible automotive audio systems.

• One Pair of Super Tweeters

• High-Efficiency High-Frequency Design

• Compact Construction

• Factory & Aftermarket Audio Compatible

• Designed for Custom Car Audio Installations

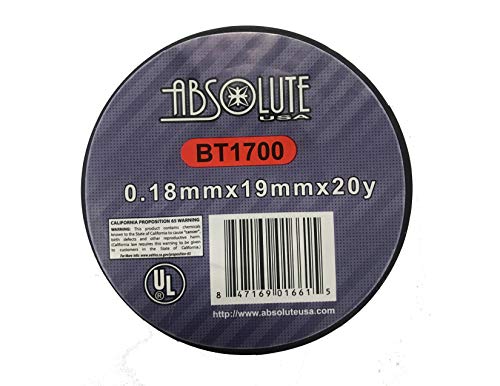

Absolute BT1700 Electrical Tape

The included Absolute BT1700 electrical tape is useful for insulating, securing, and organizing compatible automotive wiring connections during installation.

• Automotive Electrical Tape

• High-Adhesion Design

• Heat-Resistant Construction

• Flexible PVC Material

• Ideal for Car Audio Installation Wiring

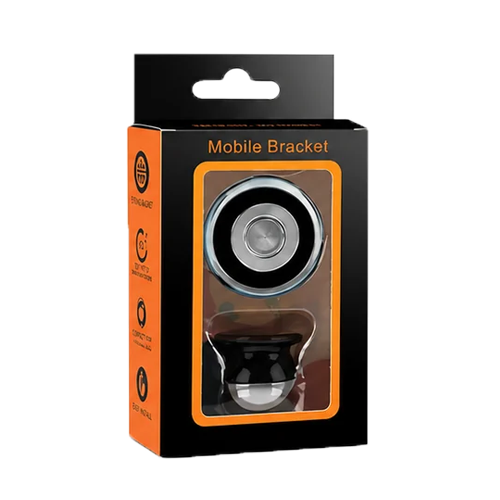

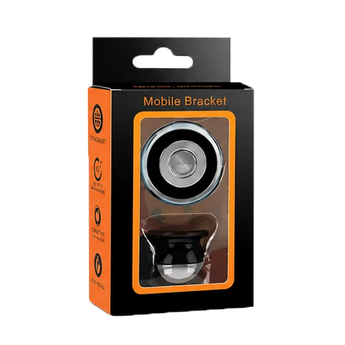

Universal Mobile Phone Holder

The included universal mobile phone holder provides a convenient mounting solution for keeping a compatible smartphone accessible inside the vehicle.

• Universal Smartphone Compatibility

• Adjustable Viewing Angle

• Secure Grip Design

• Convenient In-Vehicle Installation

• Suitable for Navigation & Everyday Phone Access

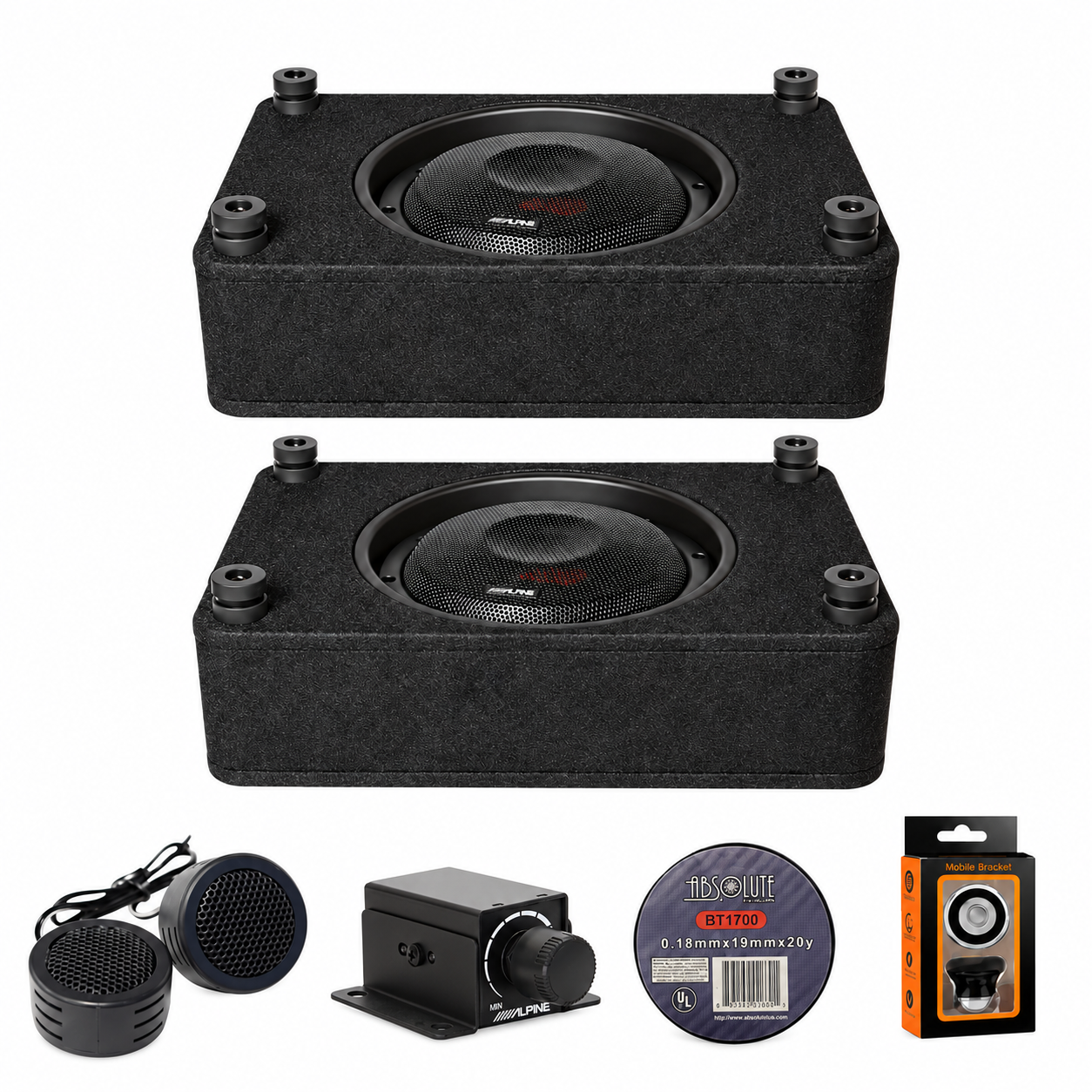

What's in this Package

• (2) Alpine RS-SB12 12" Halo R-Series R2 Preloaded Subwoofer Enclosures

• (1) Alpine RUX-KNOB.2 Remote Bass Controls

• (1 Pair) Absolute TW500 Super Tweeters

• (1) Absolute BT1700 Electrical Tape

• (1) Universal Mobile Phone Holder

Installation Notes

• An external subwoofer amplifier is not included and is required to power the two RS-SB12 enclosures.

• Each enclosure is rated for up to 750 watts RMS and should be matched with an appropriately configured amplifier and wiring setup.

• The RUX-KNOB.2 operates only with compatible Alpine amplifiers and does not control the subwoofers directly.

• The supplied information specifically lists the MRX-M50, MRX-M100, MRX-V60, PDX-M12, and PDX-M6 as compatible with the RUX-KNOB.2. Verify compatibility before using it with another amplifier.

• The optional Alpine KTX-H10 ProLink linking kit is sold separately.

• The supplied description references both RS-SB12 and R2-SB12V when discussing ProLink compatibility. This listing follows RS-SB12 as the bundle model number; verify enclosure labeling before fulfillment.

• Verify available cargo space for two 17" x 14.625" x 15" enclosures before installation.

• Additional amplifier wiring, fuse protection, speaker wire, signal cables, and installation hardware may be required and are sold separately unless otherwise included.

• Professional installation is recommended for proper amplifier matching, impedance configuration, gain adjustment, and subwoofer setup.
