Alpine KTA-450 + S2-S69C 4-Channel Power Pack Amplifier, 6x9" Component Speaker & Accessory Bundle

Upgrade your vehicle audio system with this Alpine and Absolute USA performance bundle featuring the compact Alpine KTA-450 4-channel Class-D Power Pack amplifier, Alpine S2-S69C Next-Generation S-Series 6x9-inch component speakers, Absolute TW500 Super Tweeters, BT1700 electrical tape, and a universal mobile phone holder. This package combines compact amplification, Hi-Res Audio Certified speaker performance, enhanced high-frequency output, and useful installation accessories in one convenient bundle.

General Features

• Alpine KTA-450 4-Channel Class-D Power Pack Amplifier

• Alpine S2-S69C Next-Generation S-Series 6x9" Component Speaker Set

• Hi-Res Audio Certified Speaker System

• Absolute TW500 Super Tweeters

• Absolute BT1700 Electrical Tape

• Universal Mobile Phone Holder

• Compact Space-Saving Amplifier Design

• Alpine Dynamic Peak Power Technology

• 50 Watts RMS x 4 at 4 Ohms

• 45 Watts RMS x 4 at 2 Ohms

• Up to 100 Watts Dynamic Peak Power x 4

• 6x9" Component Woofers

• 3" Mid-Range Speakers with Integrated 3/4" Tweeters

• In-Line Crossovers

• Frequency Response up to 40kHz

• H.A.M.R. Surround Technology

• Polypropylene, Glass Fiber & Mica Cone Construction

• Designed for Custom Automotive Audio Systems

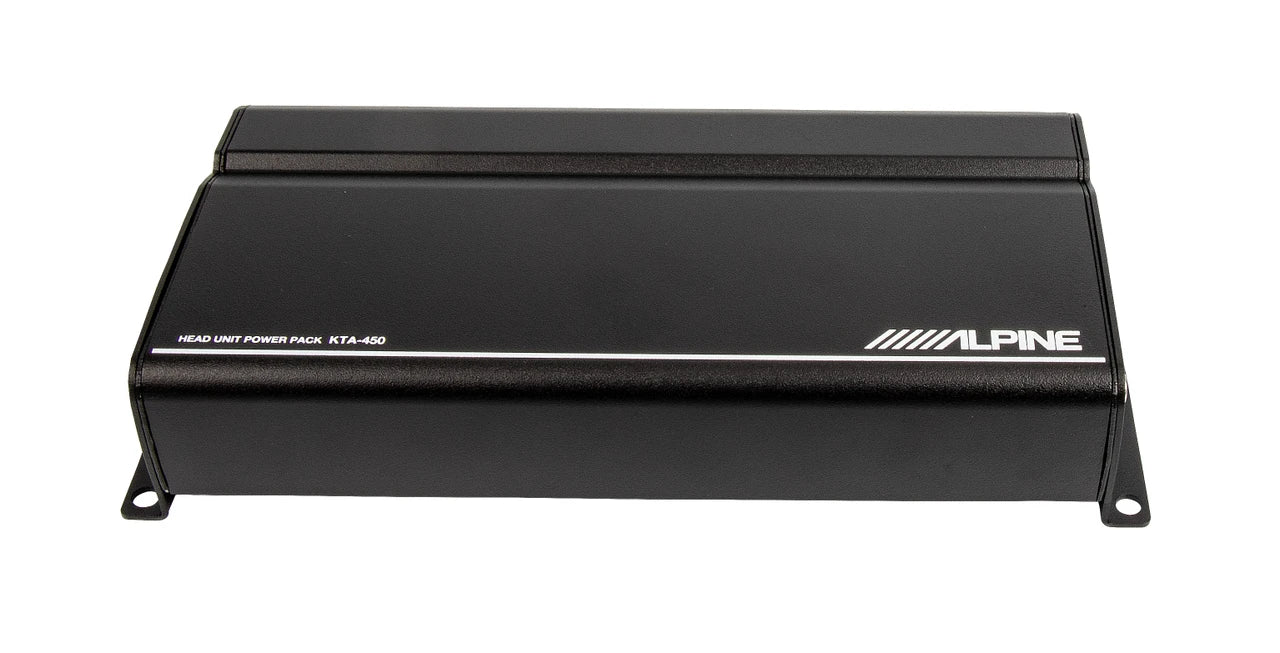

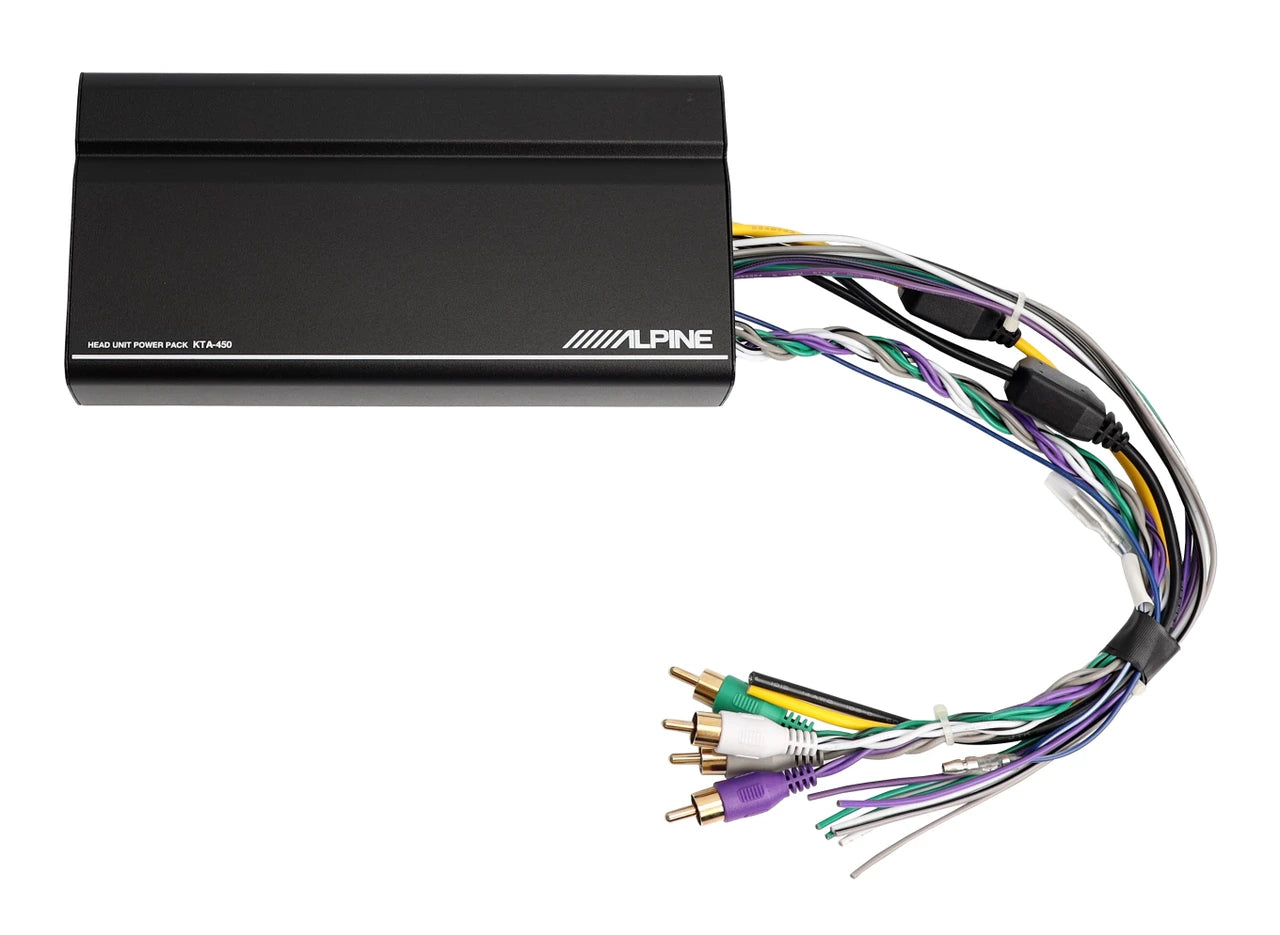

Alpine KTA-450 4-Channel Power Pack Amplifier

The Alpine KTA-450 is a compact 4-channel Class-D amplifier designed to add substantial power to a vehicle audio system without requiring the space of a conventional full-size amplifier. Measuring approximately 7" wide x 3.5" high x 1.25" deep, its compact chassis allows flexible installation in space-limited locations.

Alpine Dynamic Peak Power

• Alpine DPP – Dynamic Peak Power Technology

• Provides Additional Output During Dynamic Musical Passages

• Up to 100 Watts x 4 Dynamic Peak Power

• Designed to Deliver Strong Musical Impact from a Compact Amplifier

KTA-450 Power Output

• 50 Watts RMS x 4 at 4 Ohms @ 14.4V

• 45 Watts RMS x 4 at 2 Ohms @ 14.4V

• 100 Watts Dynamic Peak Power x 4 at 4 Ohms

• 100 Watts Dynamic Peak Power x 4 at 2 Ohms

KTA-450 Specifications

• Amplifier Type: 4-Channel Class-D

• THD at 10W / 4 Ohms: Less Than 0.2%

• THD at 10W / 2 Ohms: Less Than 0.1%

• THD at Rated Power / 4 Ohms: Less Than 0.1%

• THD at Rated Power / 2 Ohms: Less Than 0.1%

• Signal-to-Noise Ratio: Greater Than 85dB at 1W / 4 Ohms

• Frequency Response: 15Hz-50kHz, +0/-3dB

• RCA Input Sensitivity: 0.152-2.80V

• Speaker-Level Input Sensitivity: 0.33-6.05V

• Crossover: Variable HPF / LPF

• Crossover Settings: Off / 60Hz / 80Hz / 120Hz

• Dimensions: 7"W x 3.5"H x 1.25"D

• Weight: Approximately 1.3 lb

• PowerStack Compatible

Compact Installation Design

• Compact Power Pack Chassis

• Designed for Space-Limited Installations

• Recessed 22-Pin Harness Connection

• Helps Keep Wiring Organized

• PowerStack Mounting Bracket Included

• Compatible with Supported Alpine PowerStack Installations

• Alpine iLX-W650 Receiver Sold Separately

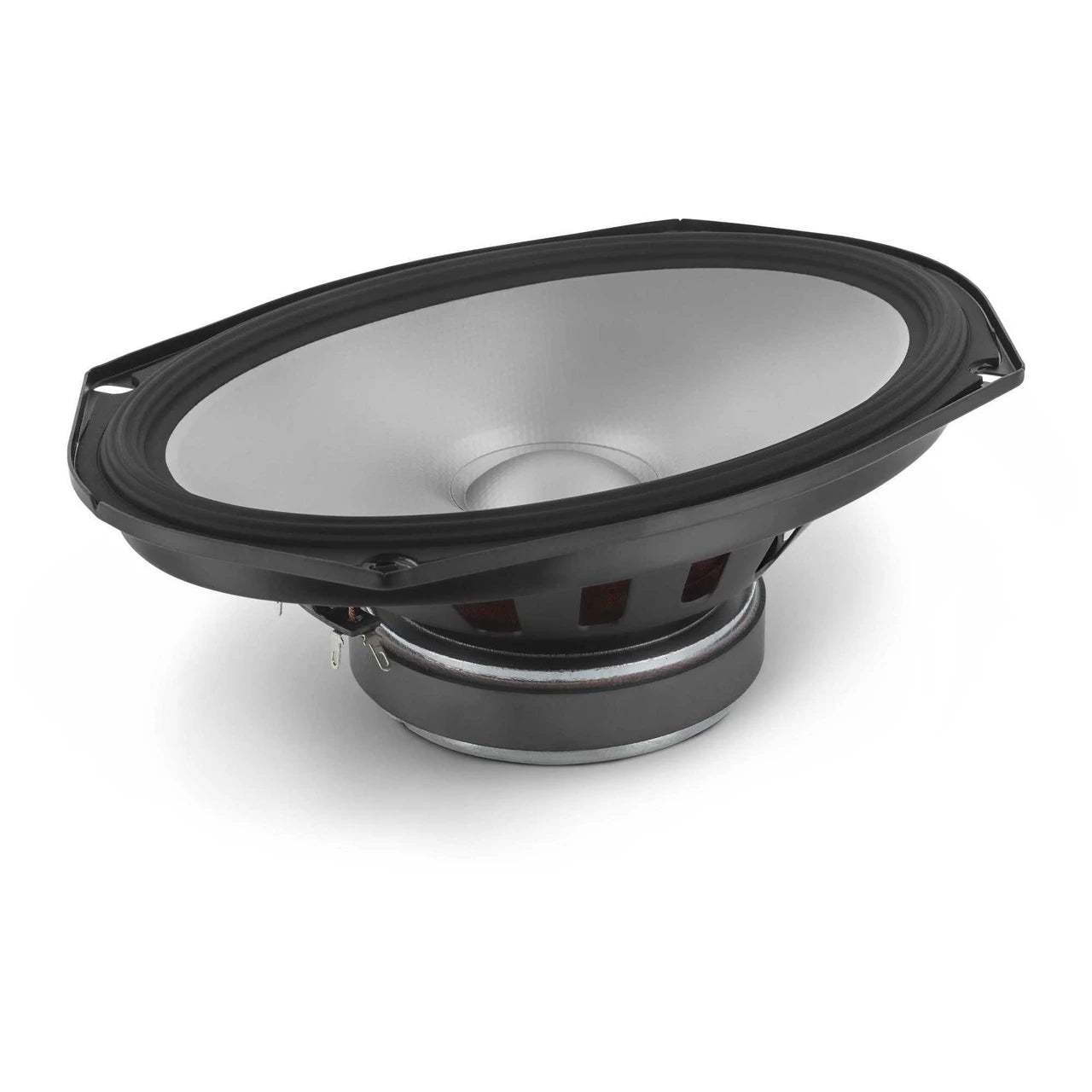

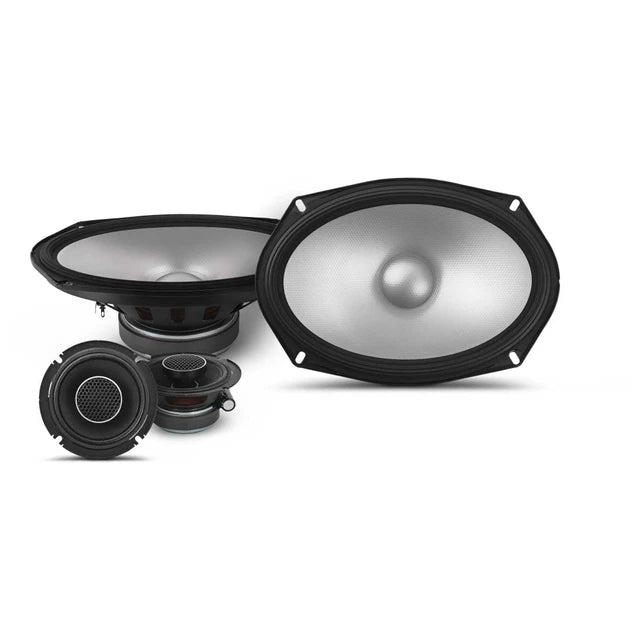

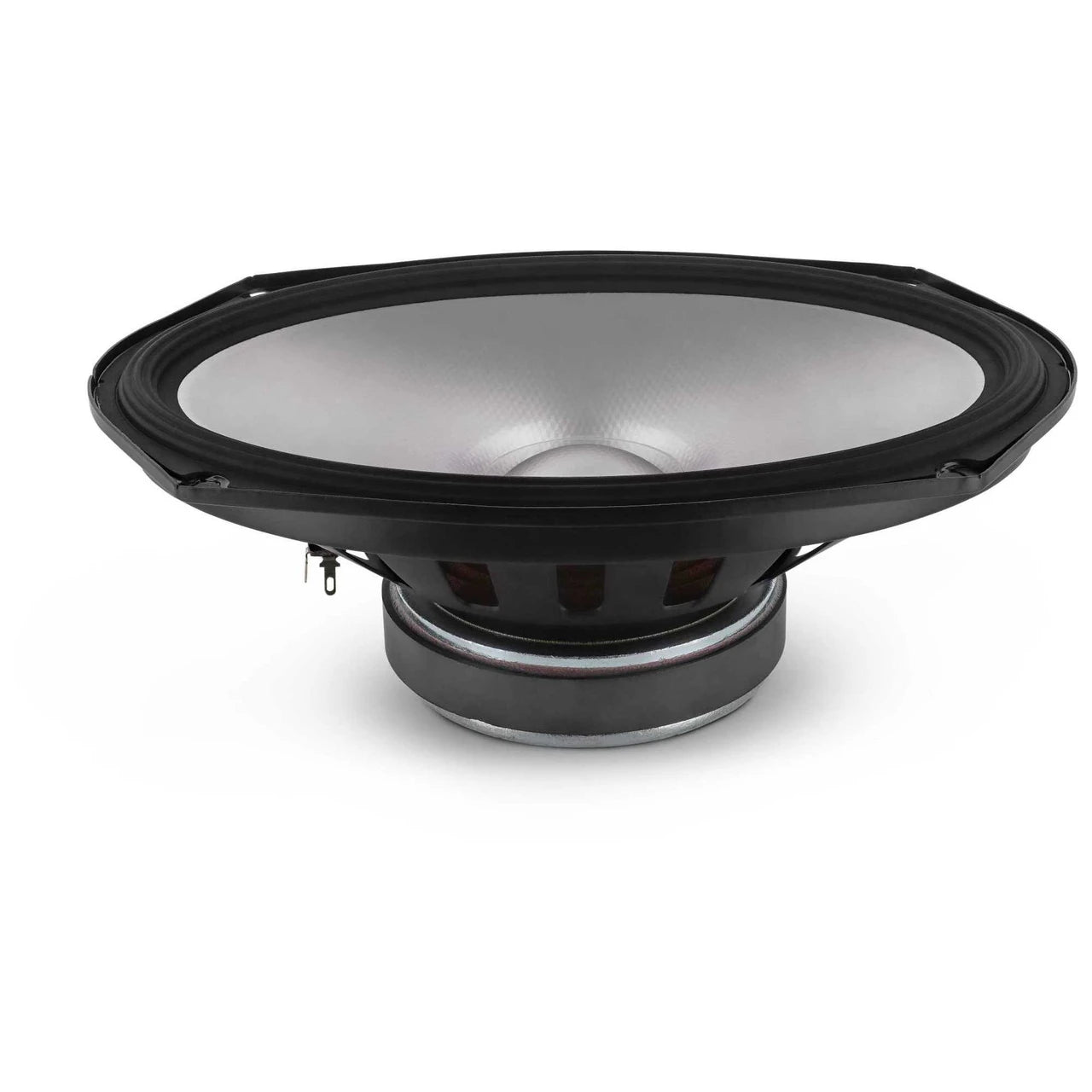

Alpine S2-S69C Next-Generation S-Series 6x9" Component Speakers

The Alpine S2-S69C is a Hi-Res Audio Certified component speaker system designed to deliver detailed highs, clear midrange, and strong bass response. The 6x9-inch woofers use a composite cone made from polypropylene, glass fiber, and mica for lightweight performance, high output, and reduced distortion.

S2-S69C Speaker Features

• Next-Generation Alpine S-Series

• 6x9" Component Woofer System

• 3" Mid-Range Speakers

• Integrated 3/4" Tweeters

• Hi-Res Audio Certified

• Frequency Response up to 40kHz

• Up to 85 Watts RMS Power Handling

• Up to 260 Watts Peak Power

• Polypropylene, Glass Fiber & Mica Cone

• H.A.M.R. High-Amplitude Multi-Roll Surround

• In-Line Crossovers

• Designed for OEM-Style Fitment

• Compatible with Alpine KTE-S69G Speaker Grilles

• KTE-S69G Grilles Sold Separately

H.A.M.R. Surround Technology

Alpine's High-Amplitude Multi-Roll surround technology allows increased cone movement while helping maintain accurate control at higher output levels.

• Increased Woofer Excursion

• Designed for Stronger Bass Response

• Helps Maintain Accurate Cone Movement

• Designed for High Output with Reduced Distortion

S2-S69C Specifications

• Woofer Size: 6x9"

• Mid-Range Size: 3"

• Tweeter Size: 3/4"

• Speaker Type: Component System

• RMS Power Handling: Up to 85 Watts

• Peak Power Handling: Up to 260 Watts

• Frequency Response: 65Hz-40kHz

• Certification: Hi-Res Audio Certified

• Cone Material: Polypropylene, Glass Fiber & Mica

• Surround Type: H.A.M.R.

• Mid-Range / Tweeter: 3" Mid-Range with Integrated 3/4" Tweeter

• Crossovers: In-Line

• Fitment: OEM-Style

• Compatible Grille: Alpine KTE-S69G, Sold Separately

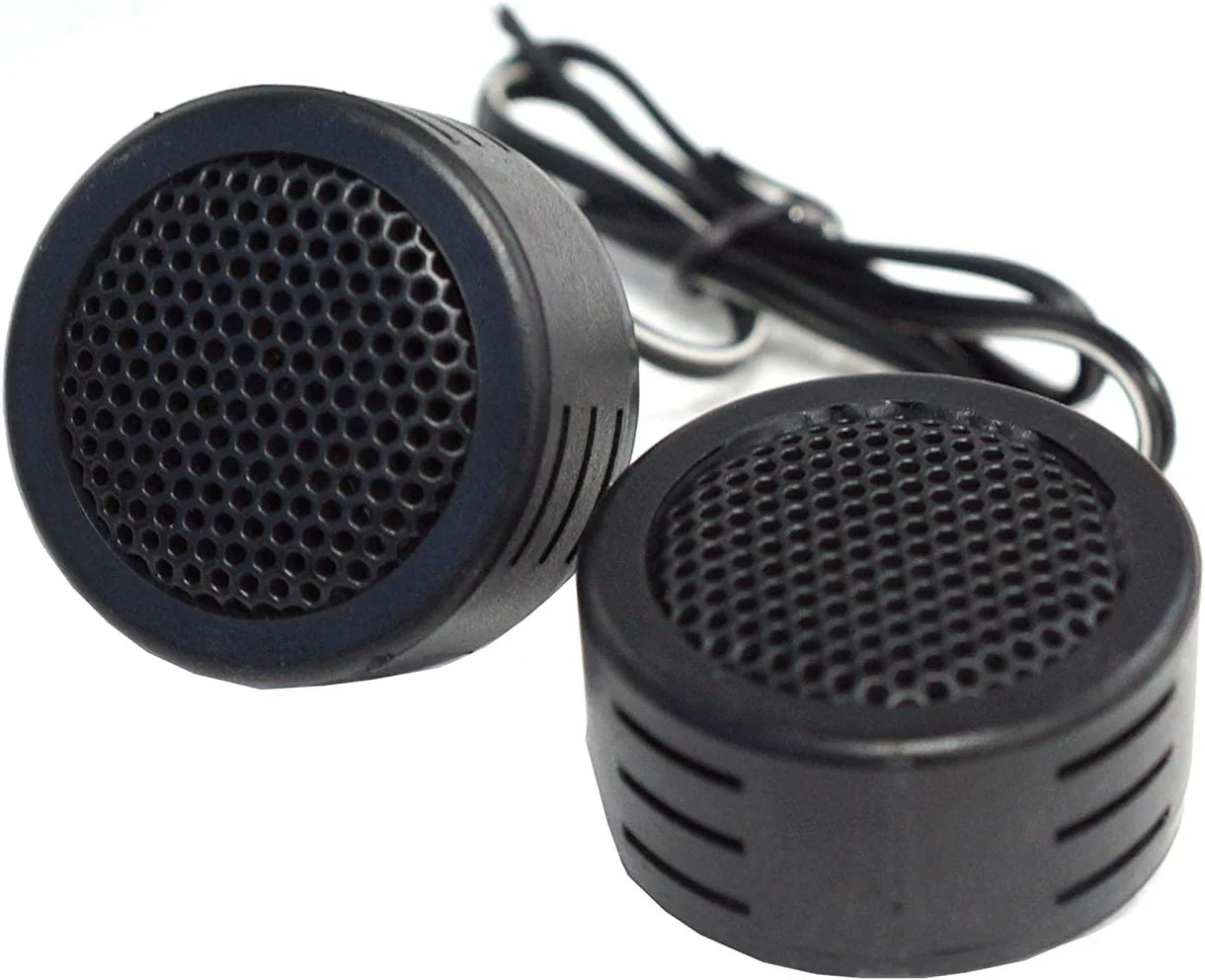

Absolute TW500 Super Tweeters

Add extra high-frequency presence to the system with the included Absolute TW500 Super Tweeters.

• One Pair of Super Tweeters

• High-Efficiency High-Frequency Design

• Compact Construction

• Suitable for Factory & Aftermarket Audio Systems

• Designed for Custom Car Audio Installations

• Helps Add Brighter, More Pronounced High Frequencies

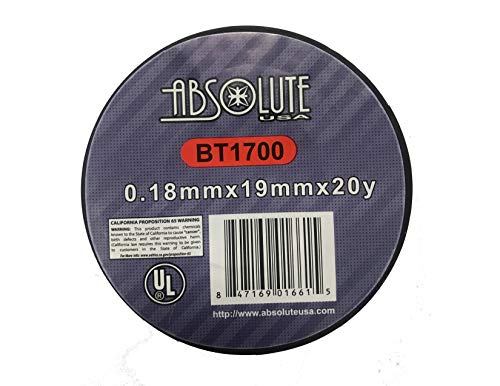

Absolute BT1700 Electrical Tape

The included Absolute BT1700 electrical tape is ideal for insulating, securing, and organizing compatible automotive wiring connections during installation.

• Automotive Electrical Tape

• High-Adhesion Design

• Heat-Resistant Construction

• Flexible PVC Material

• Suitable for Car Audio Wiring & Installation

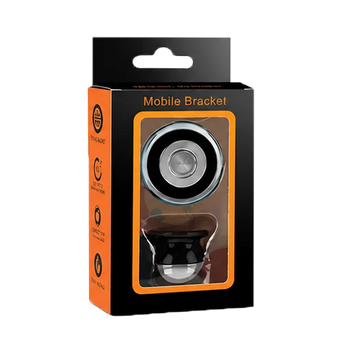

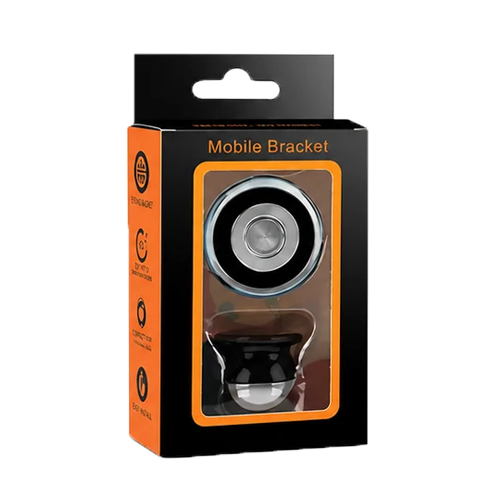

Universal Mobile Phone Holder

The included universal phone holder provides a convenient mounting solution for keeping a compatible smartphone accessible while driving.

• Universal Smartphone Compatibility

• Adjustable Viewing Angle

• Secure Grip Design

• Suitable for Navigation & Music Control

• Convenient In-Vehicle Installation

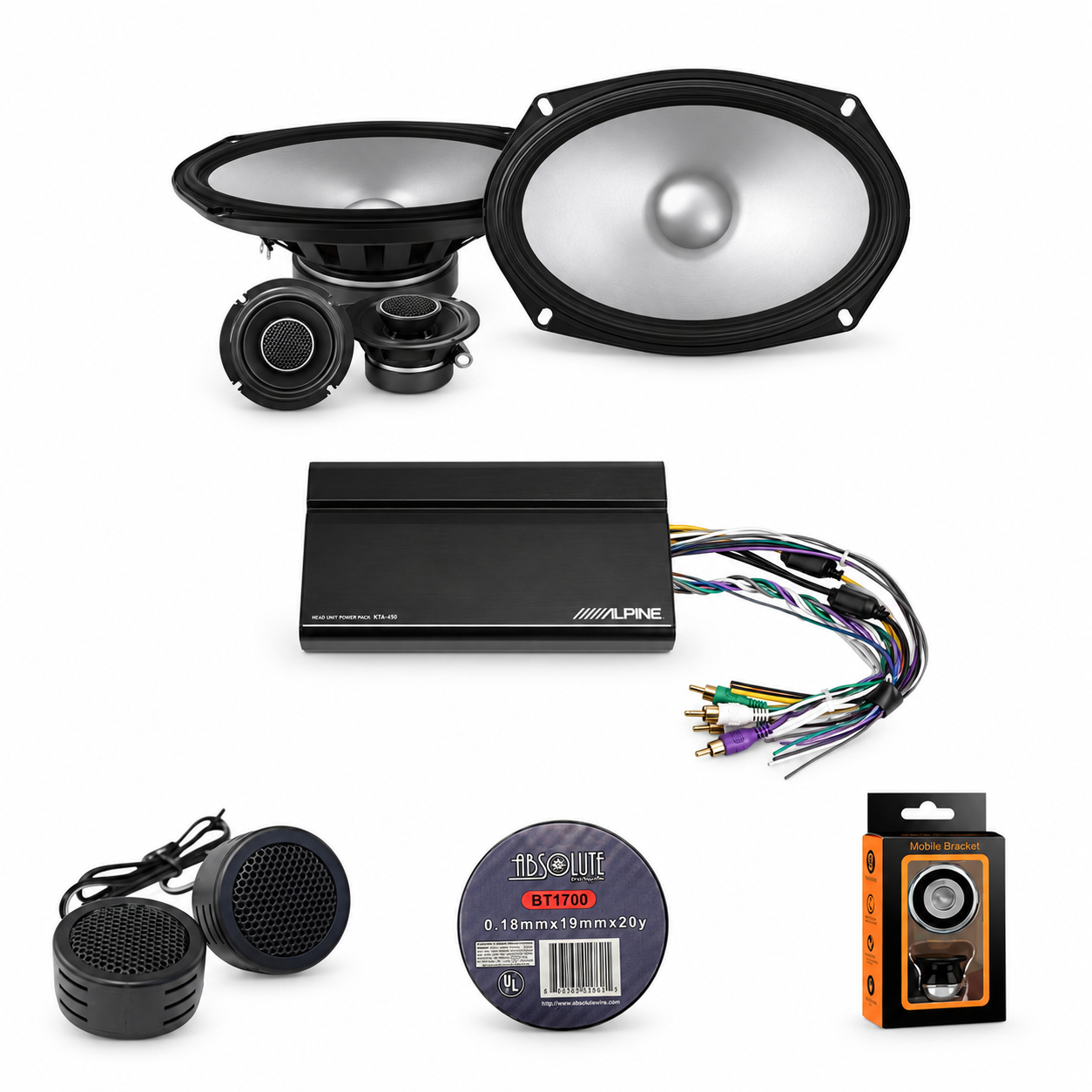

What's in this Package

• (1) Alpine KTA-450 4-Channel Power Pack Amplifier

• (1) Alpine S2-S69C Next-Generation S-Series 6x9" Component Speaker Set

• (1 Pair) Absolute TW500 Super Tweeters

• (1) Absolute BT1700 Electrical Tape

• (1) Universal Mobile Phone Holder

Installation Notes

• Verify speaker size, mounting depth, impedance, and vehicle compatibility before installation.

• The Alpine KTA-450 includes its manufacturer-supplied input/output/power harness and mounting hardware.

• The Alpine S2-S69C includes the matching 3" mid-range / 3/4" tweeter assemblies and in-line crossovers as part of the component system.

• Alpine KTE-S69G speaker grilles are sold separately.

• Additional wiring, speaker adapters, mounting brackets, amplifier integration equipment, or vehicle-specific accessories may be required.

• PowerStack compatibility applies only to supported Alpine receiver installations.

• Professional installation is recommended for proper system integration and performance.
