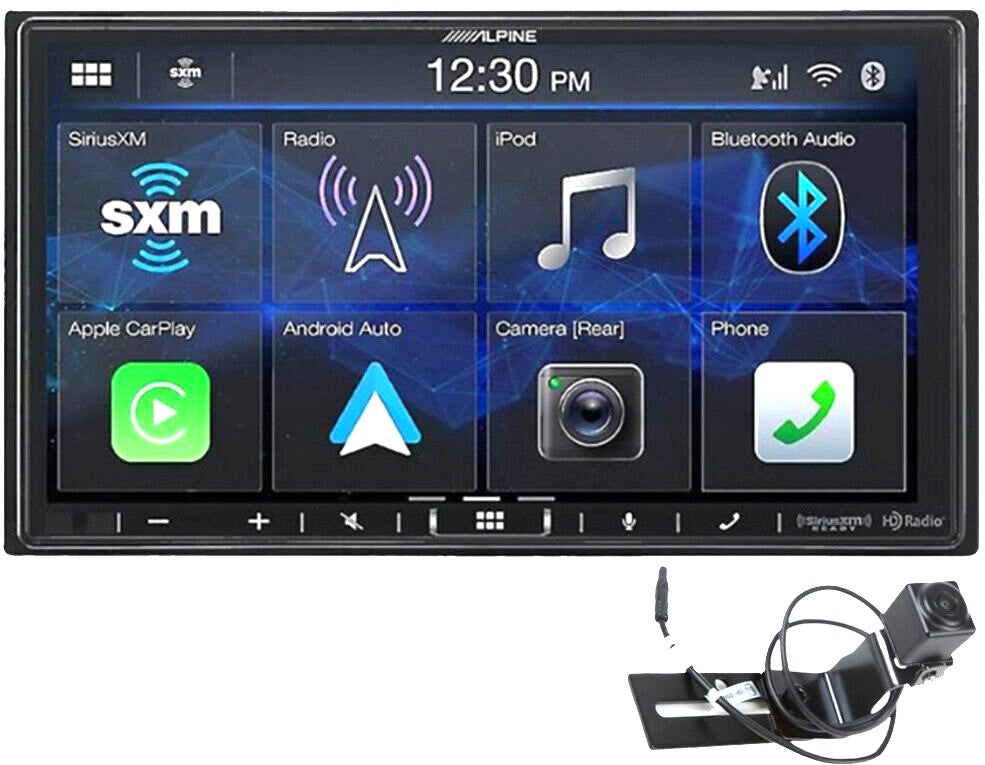

Alpine ILX-407 7" Multimedia Receiver & HCE-RCAM-WRA Spare Tire Backup Camera
Guaranteed Fitment
Always the correct partIn-House Experts
We know our products

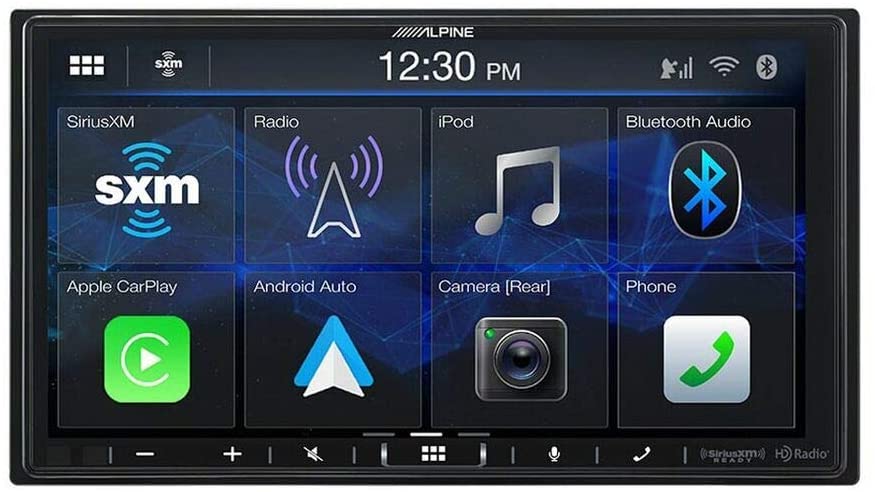

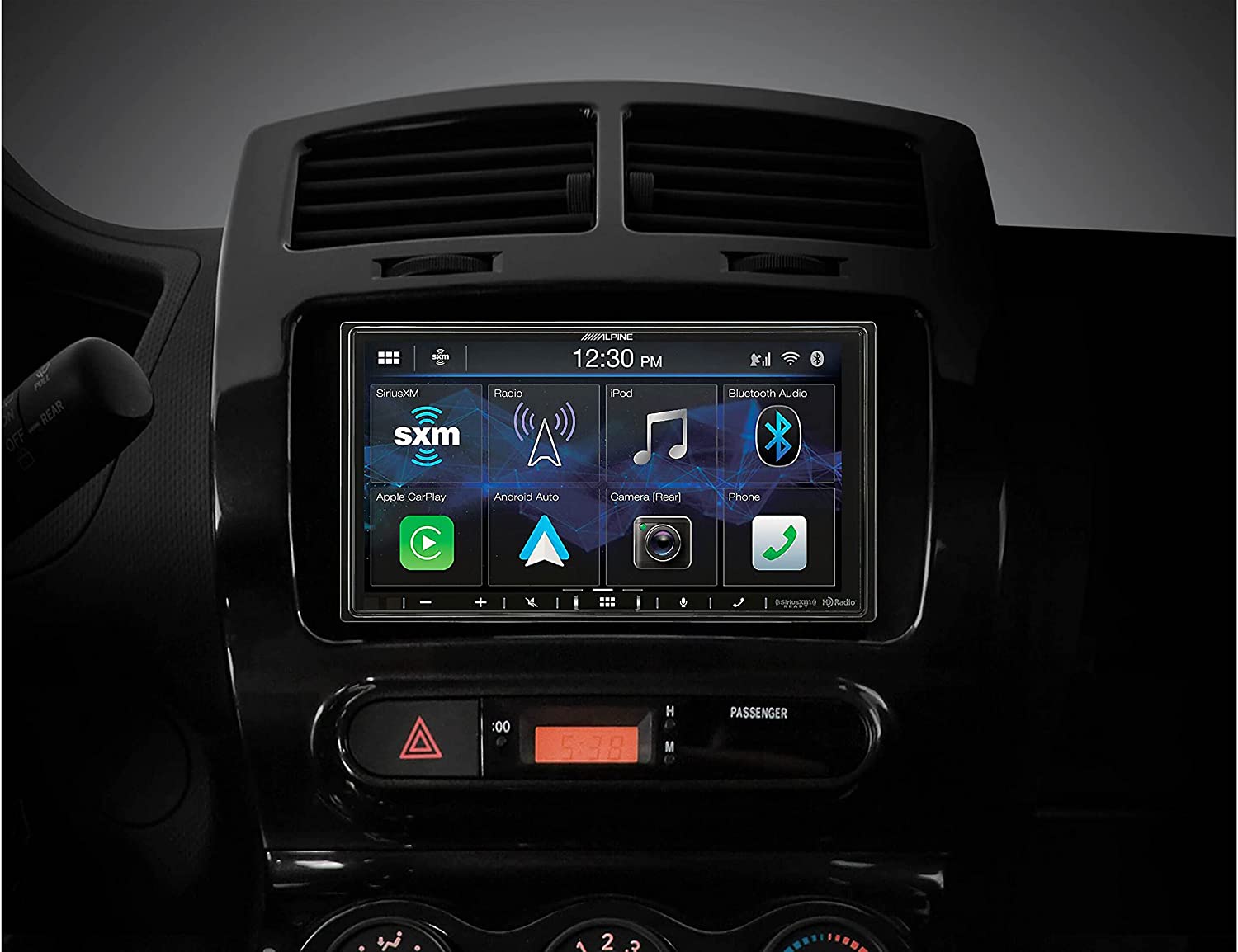

Alpine iLX-407 Shallow Chassis 7 Inch Multimedia Receiver with Apple Carplay
Alpine's iLX-407 digital multimedia receiver fits a wide array of dashes thanks to its shallow chassis design, but the feature set this command center packs is anything but thin. It works with both Apple CarPlay® and Android Auto™ for convenient control of your favorite smartphone functions, and it offers a bevy of entertainment options for the discerning road warrior. Best of all, it works with Alpine's bodacious PowerStack amplifiers to boost your system's performance without the hassle of a full-blown amp installation.
Perfect for PowerStack amps
General Features:
- digital media receiver with AM/FM tuner (does not play discs)

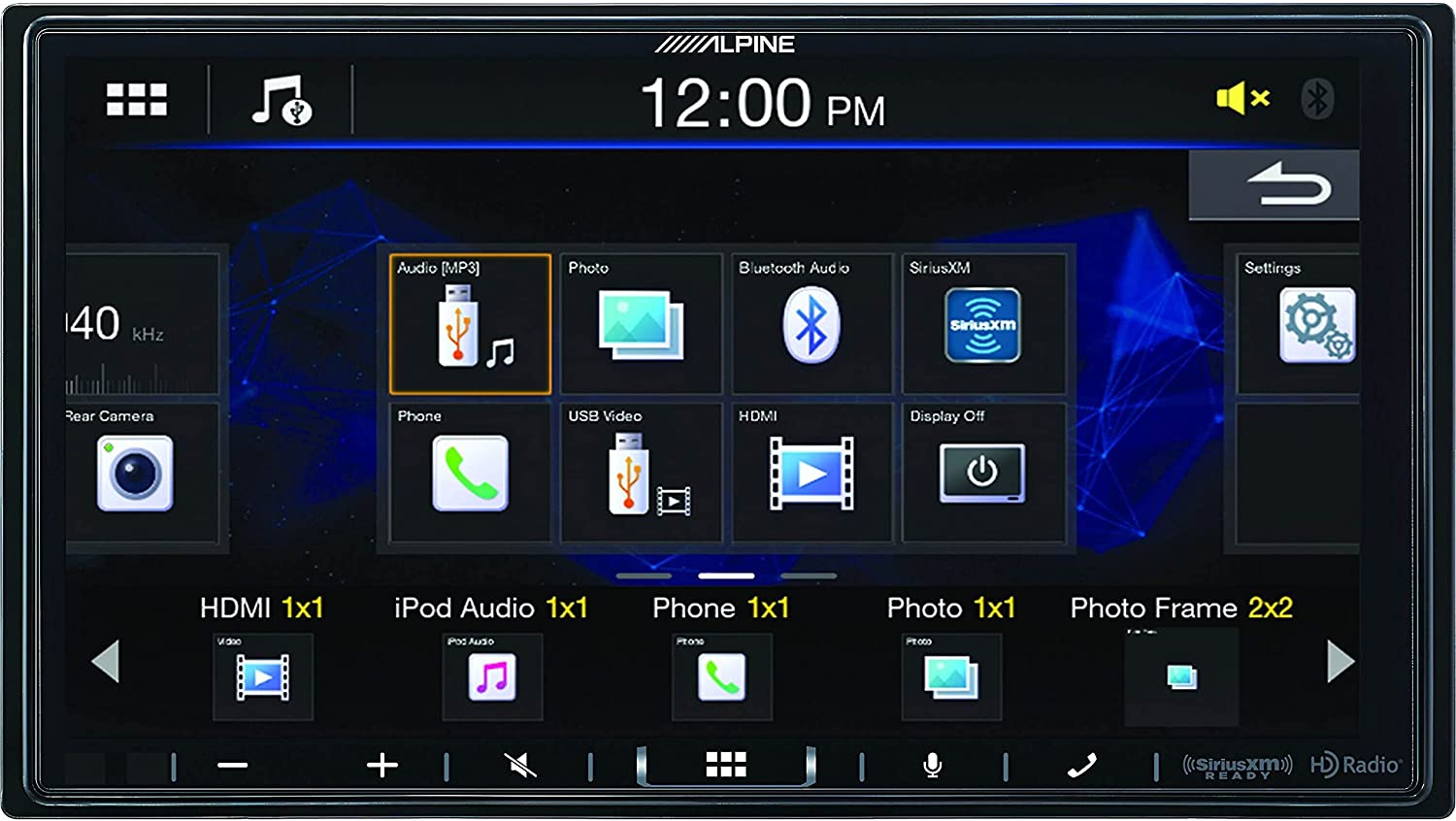

- 7" capacitive touchscreen
- fits double-DIN dash openings
- Bluetooth hands-free calling and audio streaming

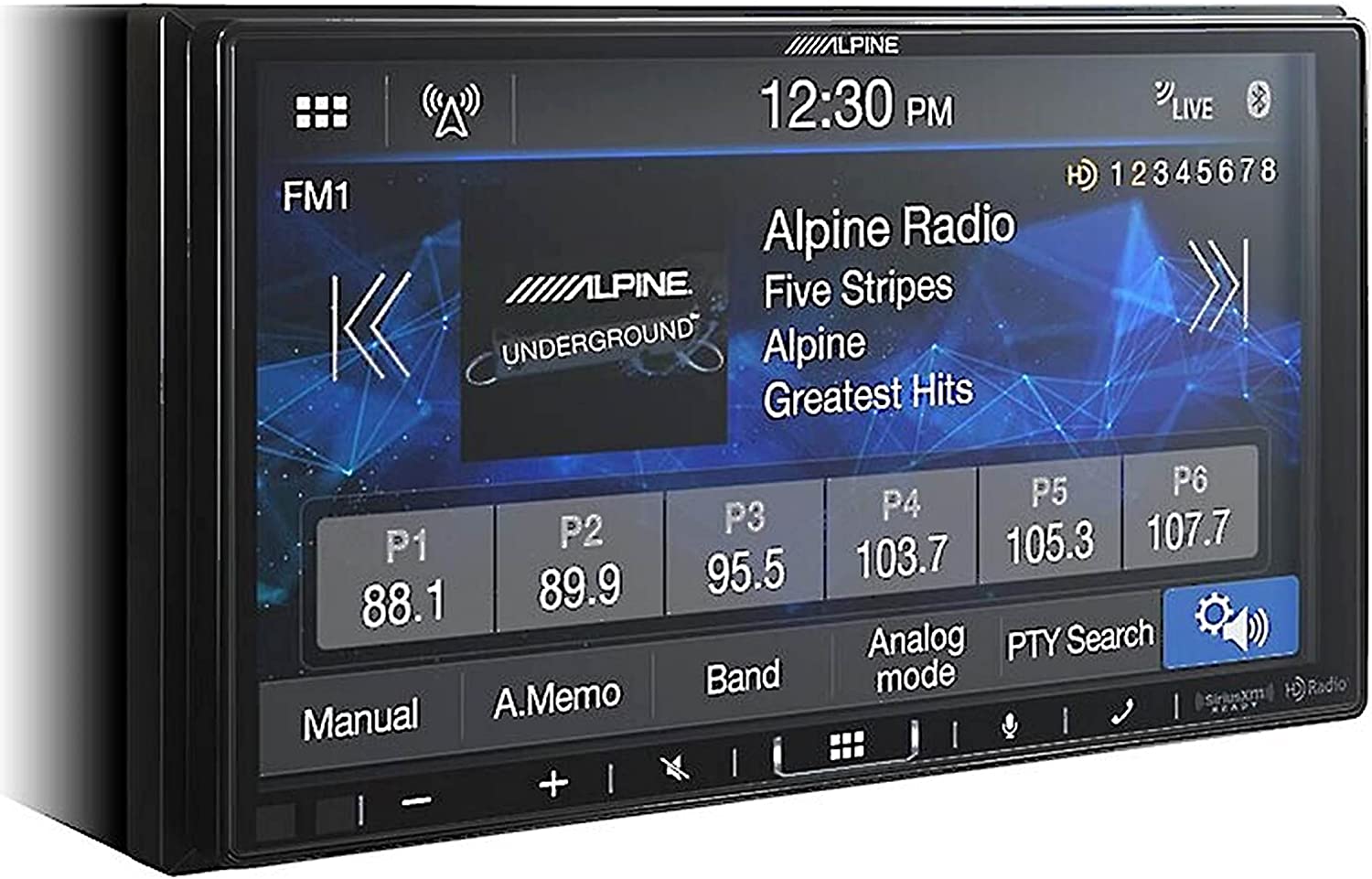

- HD Radio tuner built-in
- Smartphone Features (see Details for info on compatibility with specific smartphones and apps):
- Apple CarPlay and Android Auto are compatible
- built-in iPod, iPhone, and iPad control
- playback and control of music files on compatible Android devices
Audio/video Features:
- plays MP3, WMA, AAC, WAV, and FLAC music files (see Details for full capabilities)
- plays AVI and MPEG4 video files
- 5-band graphic equalizer with time correction
- 10 EQ curve presets
- high- and low-pass filters
- Bass Engine SQ
- MediaXpander HD
Expandability:
- works with SiriusXM SXV300 tuner—supports Tune Mix, Traffic & Weather Now, and Sports Flash features
- compatible with the optional Alpine DVE-5300 DVD player
- works with Alpine PowerStack amplifiers in most dash openings

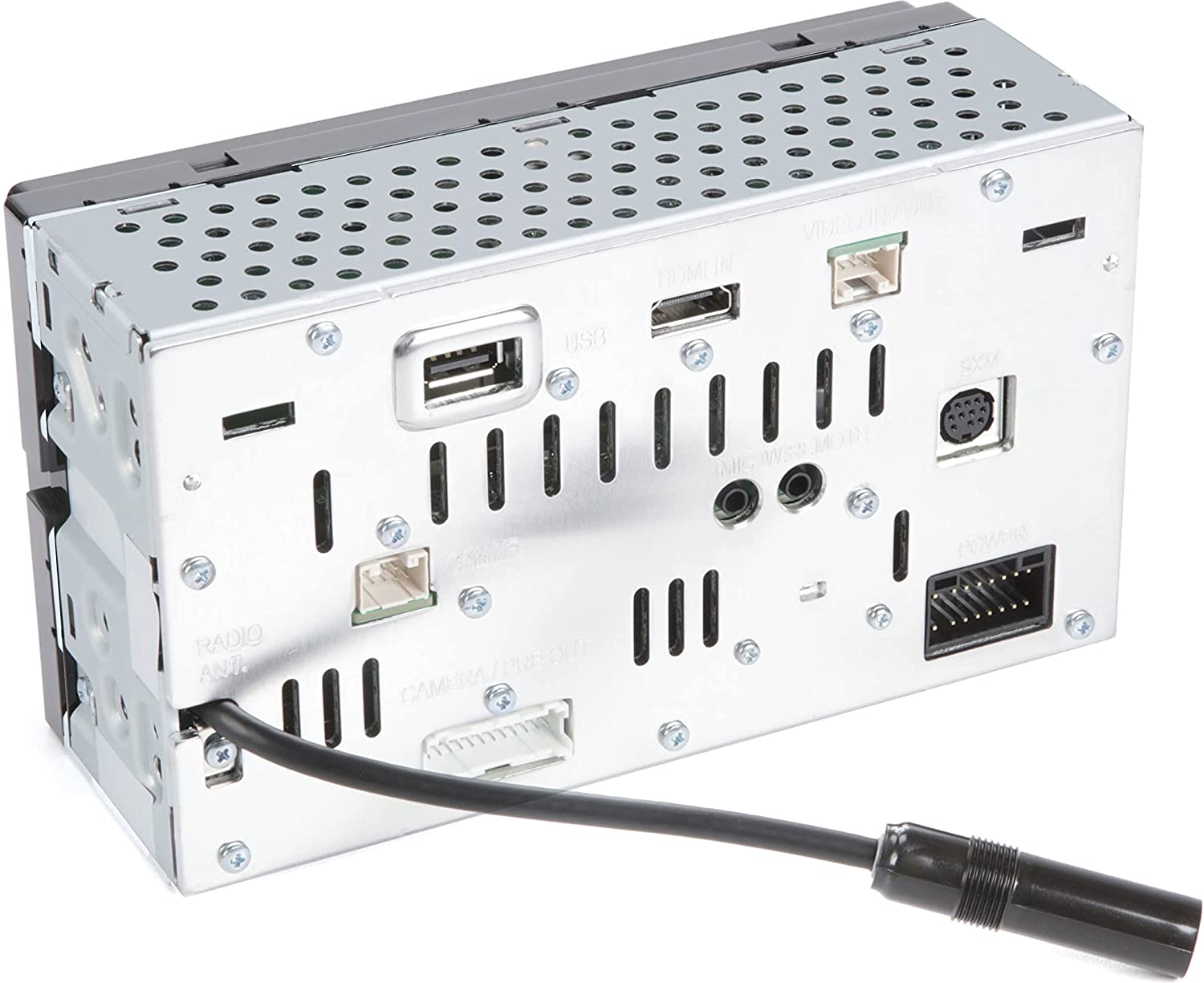

- inputs: rear USB port, rear HDMI input, rear 3.5mm mini A/V input, front- and rear-view camera inputs
- outputs: rear composite video output; 6-channel preamp outputs 4-volt front, rear, subwoofer
Other Information:
- wired connection to the parking brake is required to access settings, video display, and other features on this receiver
- built-in internal amp (16 watts RMS CTA-2006 x 4 channels/50 watts peak)
- compatible with most factory steering wheel audio controls (adapter required)
- compatible with iDatalink Maestro
- retains factory features in a wide selection of vehicles
- displays engine performance data on a touchscreen
- warranty: 1 year
- MFR # ILX-407

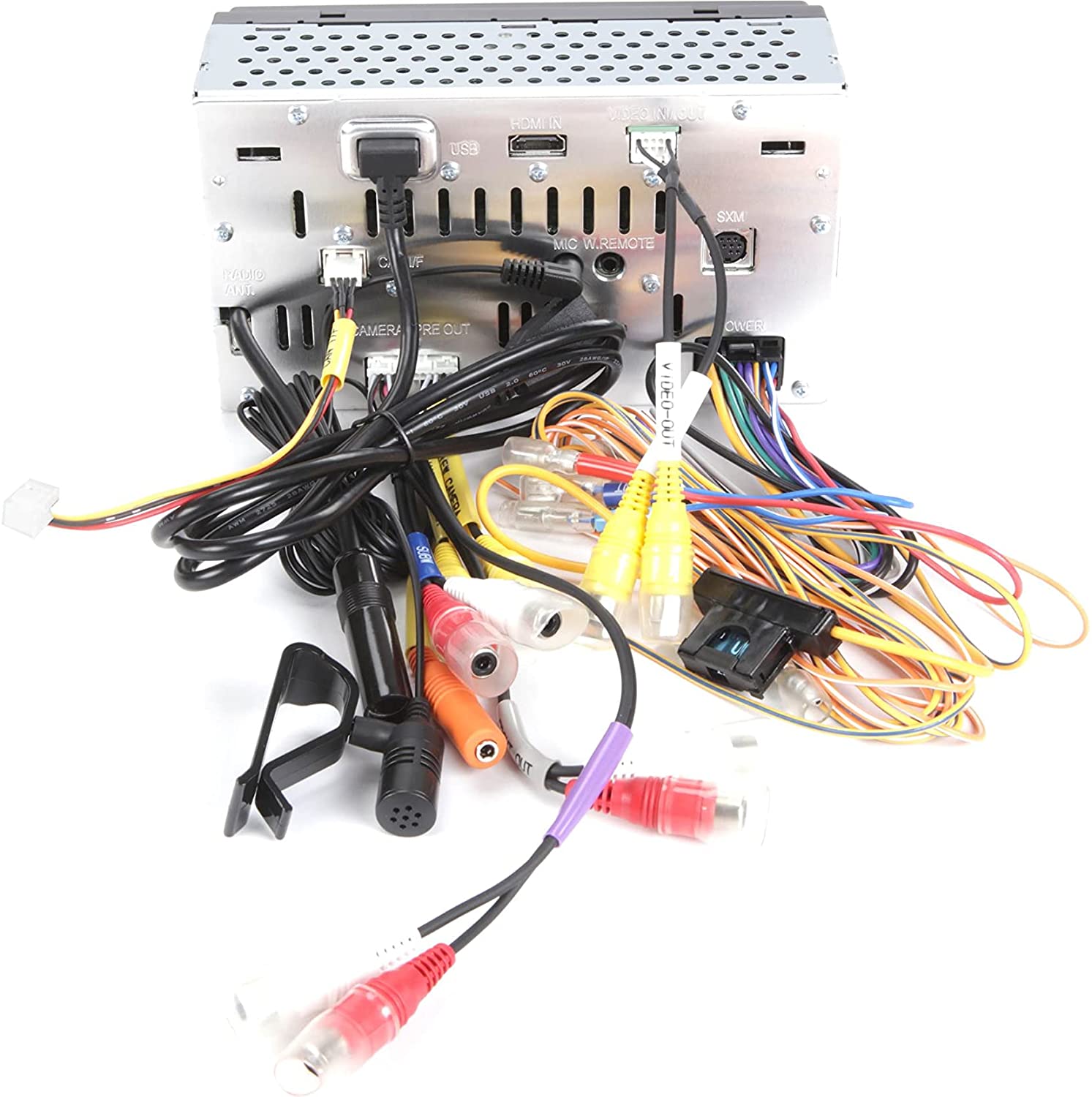

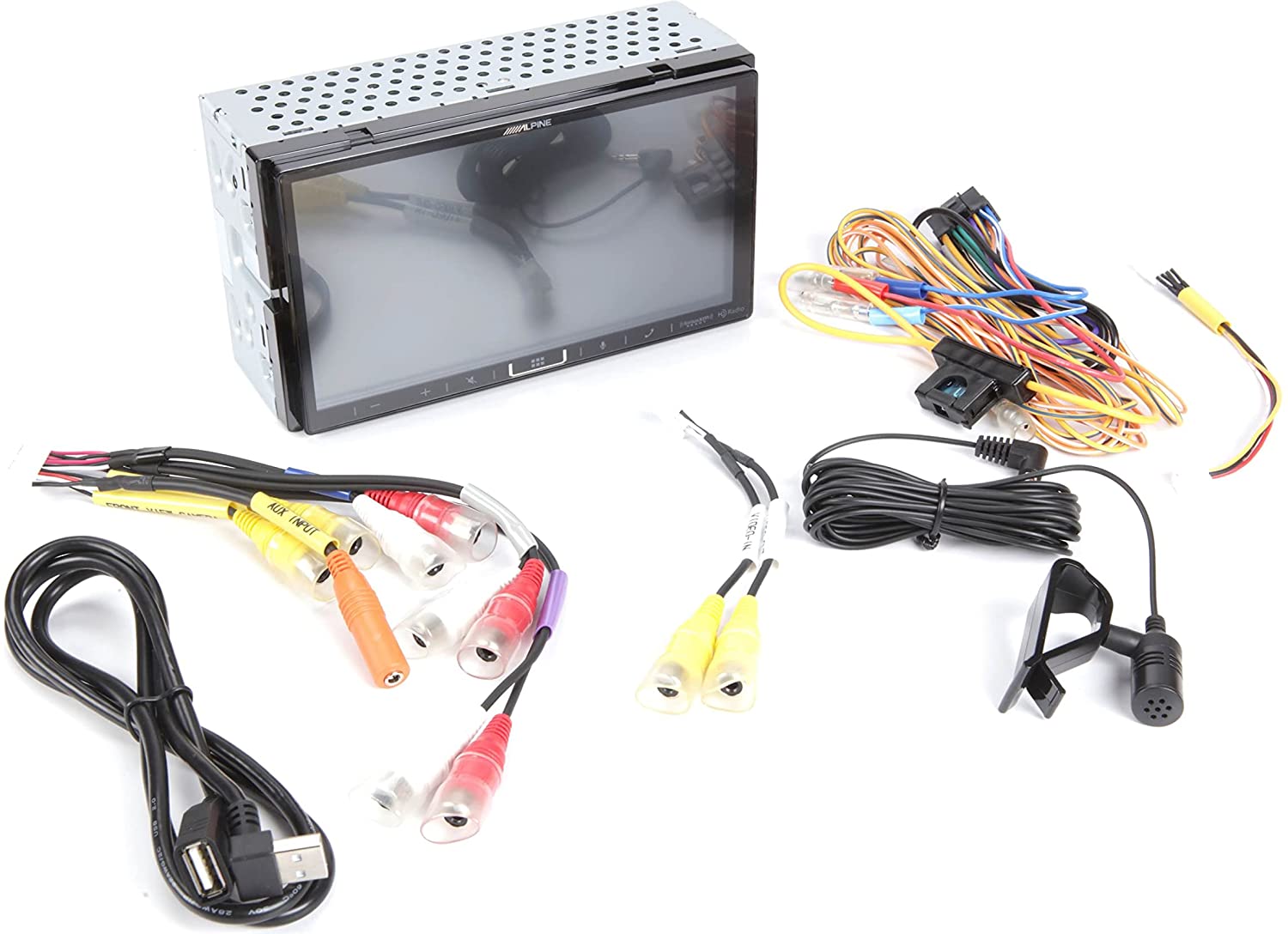

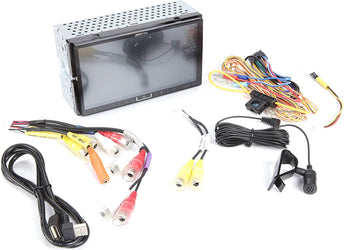

What's in the iLX-407 package:
- iLX-407 owner's manual
- Digital multimedia receiver
- Wiring harness (15A fuse)
- Preout/Camera harness
- Video in/out of the harness
- iDatalink harness
- 41" USB extension cable
- Microphone
- Bracket for microphone
- 4 ISO-screws
- Quick Reference Guide
