Alpine HDZ-W10 10" Subwoofer 2400W Dual 4-Ohm + Grille Bundle
Guaranteed Fitment
Always the correct partIn-House Experts
We know our products

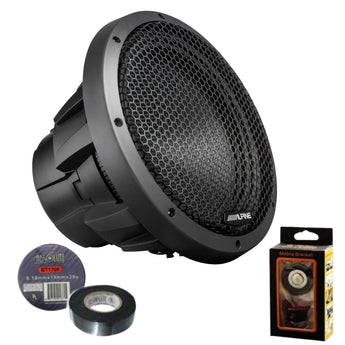

Alpine HDZ-W10 2400W Peak (800W RMS) 10" Status Series Dual 4-ohm Car Subwoofer, Grille incl. & Absolute BT1700 Electrical Tape & Swivel Mobile Bracket Holder Bundle
SUPERIOR BASS PERFORMANCE
Featuring the revolutionary Alpine HAMR (High Amplitude Multi-Roll) Surround technology, this subwoofer ensures maximum excursion (20mm Linear Excursion) and performance without compromising on sound quality. The carbon fiber dust cap and pulp-mica cone body are meticulously crafted to deliver durability and crystal-clear bass, even at high volumes.
POWER & PRECISION
Power through your tracks with the robust 800W RMS (2400W peak) power handling. Coupled with triple-stacked high-power strontium ferrite magnets, this subwoofer ensures impeccable control and responsiveness, delivering deep, resonating bass for a truly immersive listening experience.
SLEEK DESIGN, LASTING DURABILITY
Engineered with a cast aluminum frame and premium aluminum trim ring, every detail is crafted to merge style with endurance. The addition of an open-mesh protective grille not only enhances its durability but also ensures your subwoofer remains safeguarded without compromising its appearance.
THE ALPINE STATUS DIFFERENCE
Join the elite group of audio enthusiasts who settle for nothing but the best. Whether it's the advanced engineering ensuring consistent, reliable performance, or the sleek design that enhances your car's interior, the Alpine Status subwoofer allows your passion for pure sound to be fulfilled.

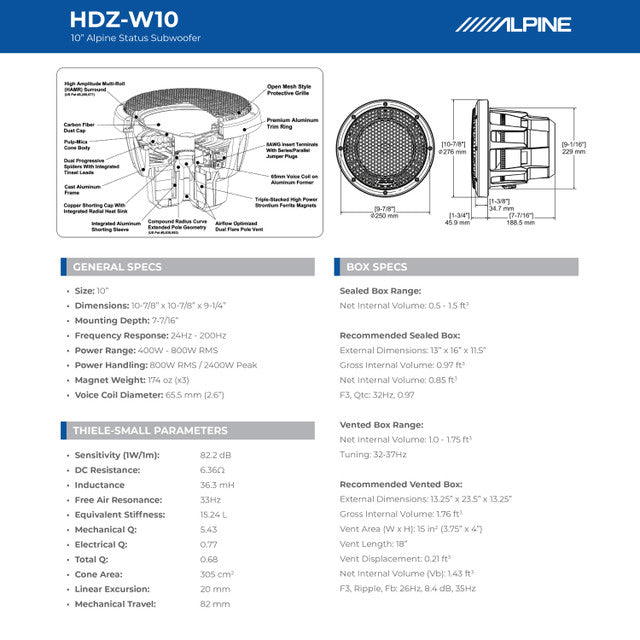

- High Amplitude Multi-Roll: (HAMR) Surround: (US Pat #8,208,677)
- Carbon Fiber: Dust Cap
- Pulp-Mica: Cone Body
- Dual Progressive: Spiders With Integrated: Tinsel Leads
- Cast Aluminum: Frame
- Copper Shorting Cap With': Integrated Radial Heat Sink
- Integrated Aluminum: Shorting Sleeve
- Compound Radius Curve: Extended Pole Geometry: (US Pat #6,639,993)

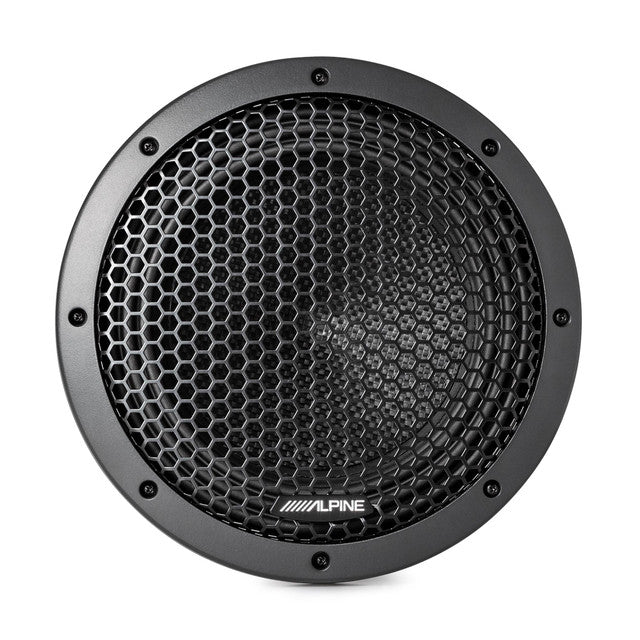

- Open Mesh Style: Protective Grille
- Premium Aluminum: Trim Ring
- 8AWG Insert Terminals: With Series/Parallel: Jumper Plugs
- 65mm Voice Coil on: Aluminum Former
- Triple-Stacked High Power: Strontium Ferrite Magnets
- Airflow Optimized: Dual Flare Pole Vent
- • Size: 10"
- • Dimensions: 10-7/8" x 10-7/8" x 9-1/4"
- • Mounting Depth: 7-7/16"
- • Frequency Response: 24Hz - 200Hz
- • Power Range: 400W - 800W RMS
- • Power Handling: 800W RMS/2400W Peak
- • Magnet Weight: 174 oz (x3)
- • Voice Coil Diameter: 65.5 mm (2.6")
Sealed Box Range: • Net Internal Volume: 0.5 - 1.5 ft³ Recommended Sealed Box:
- • External Dimensions: 13" x 16" x 11.5"
- • Gross Internal Volume: 0.97 ft³
- • Net Internal Volume: 0.85 ft³
- • F3, Qtc: 32Hz, 0.97
- • Net Internal Volume: 1.0 - 1.75 ft³
- • Tuning: 32-37HZ
- • External Dimensions: 13.25" x 23.5" x 13.25"
- • Gross Internal Volume: 1.76 ft³
- • Vent Area (W x H): 15 in² (3.75” x 4”)
- • Vent Length: 18"
- • Vent Displacement: 0.21 ft³
- • Net Internal Volume (Vb): 1.43 ft³
- • F3, Ripple, Fb: 26Hz, 8.4 dB, 35Hz
- • Sensitivity (1W/1m): 82.2 dB
- • DC Resistance: 6.36Ω
- • Inductance: 36.3 mH
- • Free Air Resonance: 33Hz
- • Equivalent Stiffness: 15.24 L
- • Mechanical Q: 5.43
- • Electrical Q: 0.77
- • Total Q: 0.68
- • Cone Area: 305 cm²
- • Linear Excursion: 20 mm
- • Mechanical Travel: 82 mm
