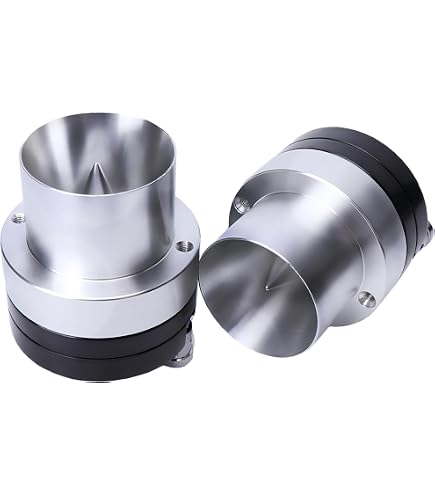

Absolute USA PBT1 1" Titanium High-Compression Bullet Super Tweeter – 200W Max, 50W RMS, 8 Ohm

The Absolute USA PBT1 is a professional titanium bullet super tweeter designed for high-output car audio systems, SPL builds, custom speaker enclosures, and other compatible high-frequency applications.

The PBT1 combines a titanium diaphragm with a 1.75-inch high-temperature Kapton voice coil, 11 oz ferrite magnet, die-cast aluminum housing, and ferro-fluid cooling. With a manufacturer-stated sensitivity of 108 dB and frequency response extending up to 20 kHz, it is designed to provide strong and efficient high-frequency output. A pre-installed in-line capacitor crossover is included for basic high-pass protection.

Key Features

🔊 200 WATTS MAX POWER – Manufacturer-rated at 200 watts maximum and 50 watts RMS per tweeter for high-frequency audio applications.

🎵 1" TITANIUM HIGH-COMPRESSION DRIVER – Titanium diaphragm and bullet-style high-compression design provide detailed and efficient high-frequency reproduction.

💪 108 DB HIGH SENSITIVITY – Manufacturer-stated 108 dB sensitivity provides high acoustic output with relatively modest amplifier power.

⚡ 8-OHM IMPEDANCE – 8-ohm configuration is designed for compatible automotive, custom speaker, and professional audio systems when properly matched to the amplifier and crossover network.

⚙️ 1.75" HIGH-TEMPERATURE KAPTON VOICE COIL – Designed to handle demanding high-frequency operation while maintaining efficient performance.

🧲 11 OZ FERRITE MAGNET – Ferrite motor structure provides the magnetic force required for efficient high-frequency reproduction.

❄️ FERRO-FLUID COOLING – Ferro-fluid around the voice-coil assembly helps manage heat during operation.

🏗️ DIE-CAST ALUMINUM HOUSING – Rigid aluminum construction provides a durable mounting structure for custom audio installations.

✨ DIAMOND-CUT CHROME FINISH – Chrome-style finish gives the tweeter a distinctive appearance for exposed custom installations.

🔌 IN-LINE CAPACITOR CROSSOVER INCLUDED – Pre-installed capacitor provides basic high-pass protection for the tweeter.

General Features

• 1" titanium bullet super tweeter

• High-compression driver design

• 200 watts maximum stated power

• 50 watts RMS power

• 8-ohm impedance

• Titanium diaphragm

• 1.75" high-temperature Kapton voice coil

• 11 oz ferrite magnet

• Die-cast aluminum housing

• Ferro-fluid voice-coil cooling

• Rubber suspension diaphragm

• Diamond-cut chrome finish

• Front-mount design

• High-efficiency SPL configuration

• Pre-installed in-line capacitor crossover

• Suitable for custom high-frequency audio installations

Specifications

Tweeter Specifications

• Brand: Absolute USA

• Model: PBT1

• Product Type: Titanium Bullet Super Tweeter

• Quantity: 1

• Tweeter Size: 1" / 25mm

• Tweeter Type: Titanium Bullet High Compression

• Impedance: 8 Ohms

Power Handling

• Maximum Stated Power: 200 Watts

• RMS Power: 50 Watts

Audio Performance

• Frequency Response: 2.5 kHz–20 kHz

• Sensitivity: 108 dB (1W/1M) Manufacturer-Stated

Construction

• Diaphragm Material: Titanium

• Voice Coil: 1.75" High-Temperature Kapton

• Magnet Type: Ferrite

• Magnet Weight: 11 oz

• Frame Material: Die-Cast Aluminum

• Cooling: Ferro-Fluid

• Suspension: Rubber

• Finish: Diamond-Cut Chrome

• Mounting Style: Front Mount

Installation Dimensions

• Overall Depth: 2.71" / 69mm

• Mounting Depth: 1.74" / 44mm

• Overall Width: 2.28" / 58mm

Ideal Applications

• Car audio systems

• SPL systems

• Competition audio builds

• Custom speaker enclosures

• Trucks

• SUVs

• Vans

• Motorcycles

• ATVs

• UTVs

• Compatible marine applications

• Boats

• Custom professional sound systems

Package Includes

• (1) Absolute USA PBT1 Titanium Bullet Super Tweeter

• (1) Pre-Installed In-Line Capacitor Crossover

• Mounting Hardware as supplied

Important Installation Note

• The PBT1 should be used with appropriate high-frequency filtering. The included capacitor provides basic protection, but crossover requirements should be matched to the amplifier, system design, and intended operating level.

• Do not send full-range or low-frequency amplifier output directly to the tweeter without proper filtering.

• Confirm that the connected amplifier or crossover configuration is compatible with the PBT1's stated 8-ohm impedance.

• The supplied specifications list an overall width of 2.28" / 58mm but also list a cutout diameter of 3.60" / 92mm. Since the stated cutout is larger than the entire outside width, the 3.60" measurement appears incorrect and has been removed until the actual cutout diameter is verified.

• The 1" designation may refer to the nominal tweeter or driver size rather than the complete outside diameter.

• The PBT1 may be suitable for compatible marine installations, but it should not be described as marine-rated or waterproof unless a specific environmental rating is confirmed.
