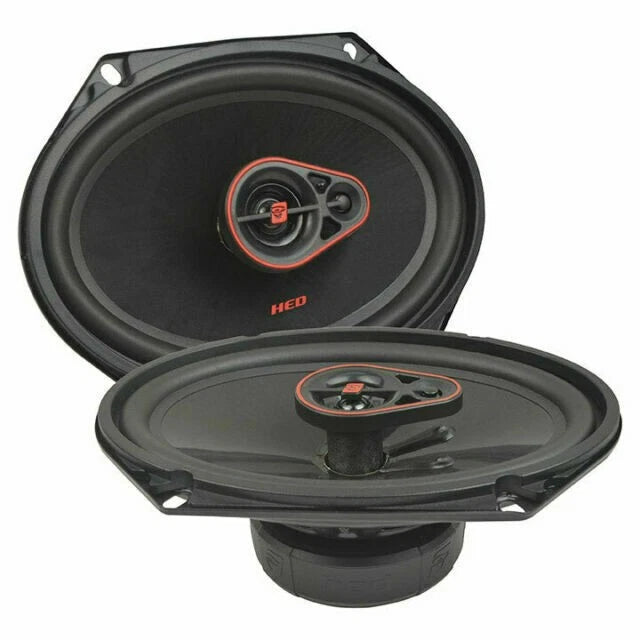

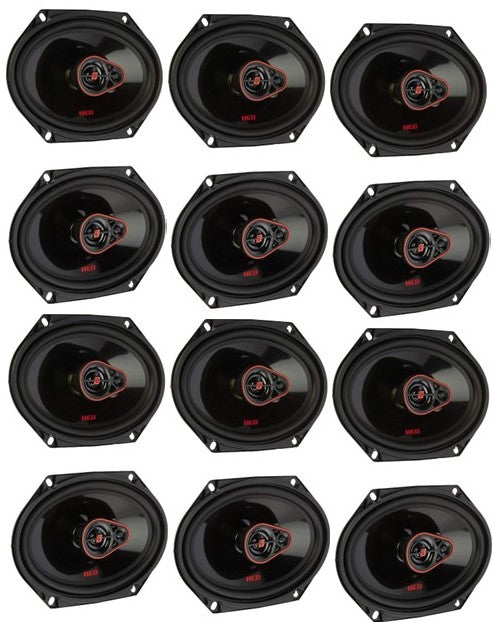

6 Pairs Cerwin-Vega H7683 HED Series 6" x 8" (5" x 7") 3-Way Coaxial Car Speakers

6 Pairs Cerwin-Vega H7683 HED Series 6" x 8" (5" x 7") 3-Way Coaxial Car Speakers

Upgrade your factory audio system with the Cerwin-Vega H7683 HED Series 6" x 8" (5" x 7") 3-way coaxial speakers, delivering powerful bass, crystal-clear highs, and exceptional performance with 720 watts max power handling.

Key Features:

🔊 720 WATTS MAX POWER HANDLING – Delivers dynamic, high-output sound with 120 watts RMS and 720 watts peak power for powerful everyday performance.

🎵 3-WAY COAXIAL SPEAKER DESIGN – Features a graphite-injected reinforced spun cone and balanced PEI polypropylene dome tweeter for rich bass, detailed mids, and crisp highs.

💪 PREMIUM HED SERIES CONSTRUCTION – Built with a stamped steel vented frame, rubber surround, and linear woven treated red spider for outstanding durability and long-lasting performance.

🎚 HIGH-EFFICIENCY AUDIO PERFORMANCE – 4-ohm impedance and 87dB sensitivity provide clean, detailed sound while maximizing amplifier efficiency.

🚗 DIRECT FACTORY SPEAKER UPGRADE – Perfect replacement for factory 6" x 8" or 5" x 7" speakers in cars, trucks, SUVs, and custom car audio systems.

The Cerwin-Vega H7683 HED Series 6" x 8" 3-Way Coaxial Speakers are engineered to deliver the legendary Cerwin-Vega sound with exceptional clarity, deep bass, and powerful output. Designed as a premium replacement for factory-installed speakers, the H7683 provides a significant upgrade in sound quality while maintaining simple, direct-fit installation.

Built with a graphite-injected, reinforced spun cone, durable rubber surround, stamped-steel, vented basket, and linear-woven, treated red spider, these speakers are designed to withstand years of daily use while delivering consistent performance. The balanced PEI polypropylene dome tweeter produces crisp, detailed highs while the woofer delivers tight bass and smooth midrange response for a full-range listening experience.

Whether you're upgrading your factory sound system or building a custom audio installation, the Cerwin-Vega H7683 HED Series speakers deliver the power, durability, and signature Cerwin-Vega performance every music lover expects.

General Features:

• 6" x 8" (5" x 7") HED Series Coaxial Car Speakers

• 3-Way Coaxial Design

• Graphite-Injected Reinforced Spun Cone

• Stamped Steel Vented Frame

• Rubber Speaker Surround

• Linear Woven Treated Red Spider

• 1" PEI Polypropylene Balanced Dome Tweeter

• 1" Voice Coil

• High-Efficiency Design

• Direct Factory Speaker Replacement

• Authorized Internet Dealer

• 1-Year Manufacturer Warranty

Specifications:

Speaker Specifications

• Speaker Size: 6" x 8" (5" x 7")

• Speaker Type: 3-Way Coaxial

• Impedance: 4 Ohms

Power Handling

• Peak Power: 720 Watts Per Pair (360 Watts Each)

• RMS Power: 120 Watts Per Pair (60 Watts Each)

Audio Performance

• Frequency Response: 50Hz – 20,000Hz

• Sensitivity: 87dB

Construction

• Cone Material: Graphite-Injected Reinforced Spun Cone

• Basket: Stamped Steel Vented Frame

• Surround Material: Rubber

• Spider: Linear Woven Treated Red Spider

• Tweeter: 1" PEI Polypropylene Balanced Dome

• Voice Coil: 1"

Installation Specifications

• Mounting Depth: 2.441"

• Cutout Dimensions: 7.362" x 5.079"

Product Information

• Manufacturer Part Number: H7683

Perfect For:

• Factory Speaker Upgrades

• Cars

• Trucks

• SUVs

• Daily Drivers

• Custom Car Audio Systems

• High-Power Car Stereo Systems

• Audiophiles

• DIY Speaker Installations

• Full-Range Audio Upgrades

Package Includes:

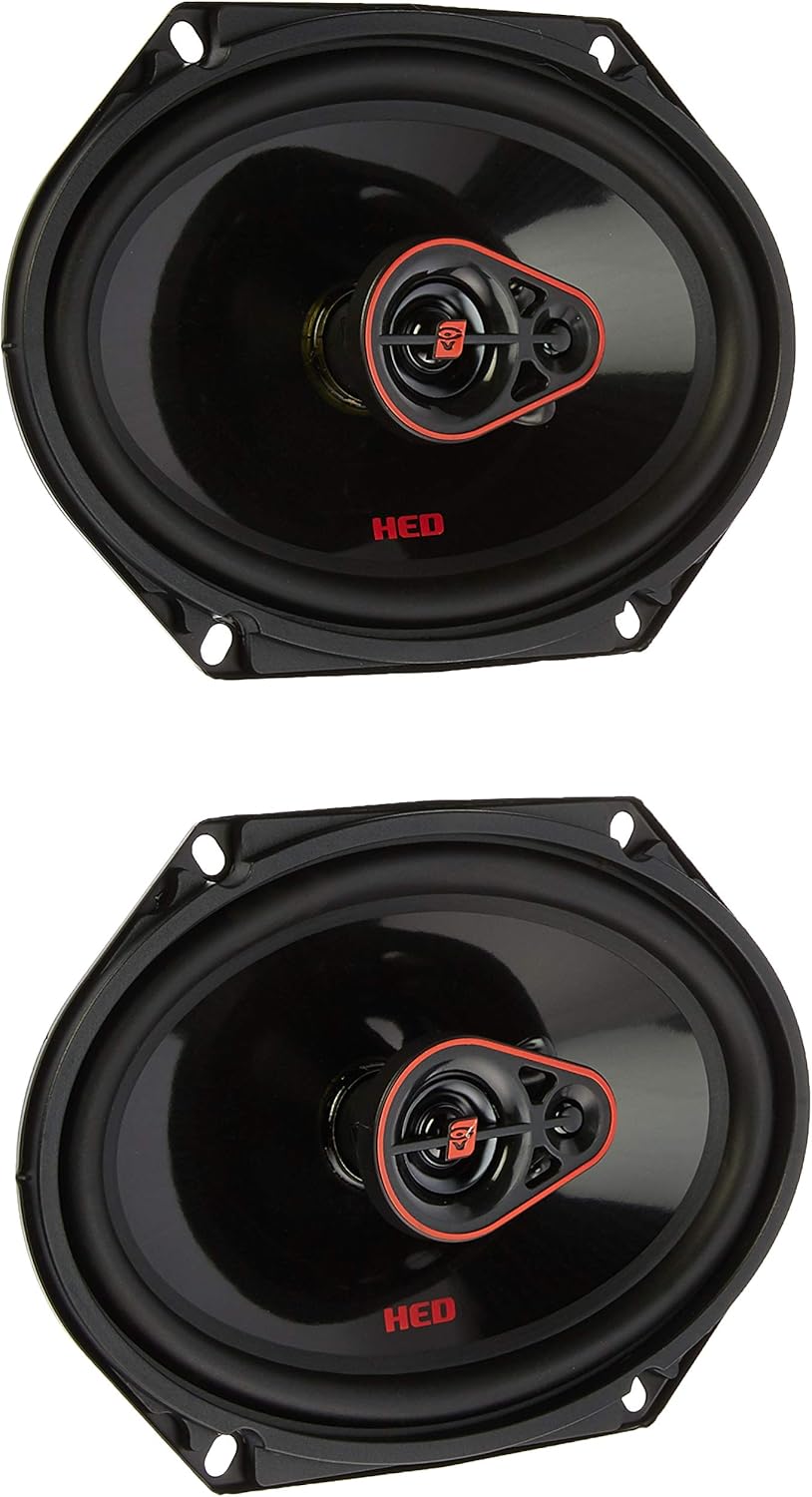

• Pair of Cerwin-Vega H7683 HED Series 6" x 8" (5" x 7") 3-Way Coaxial Speakers

• Mounting Hardware

• Owner's Manual
