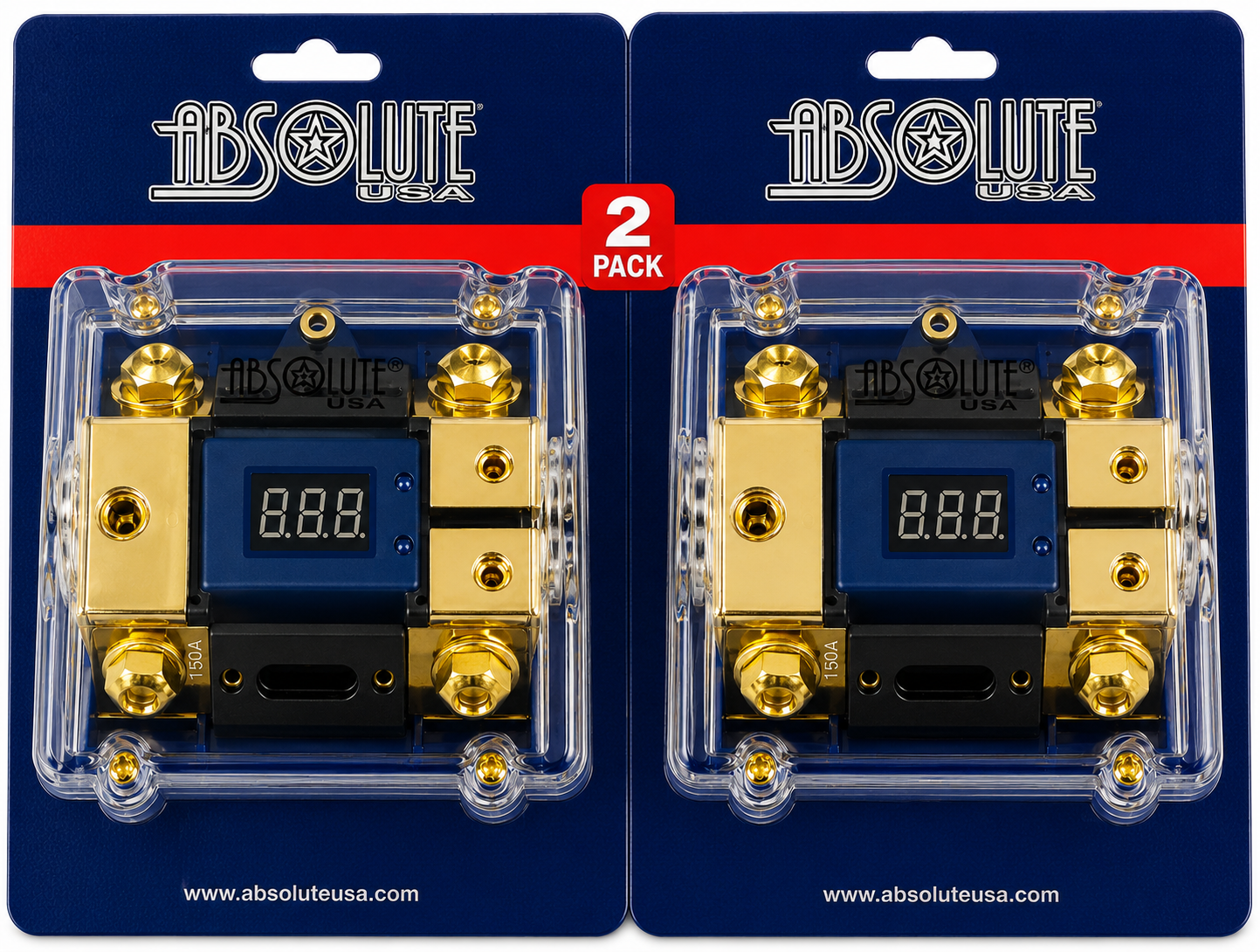

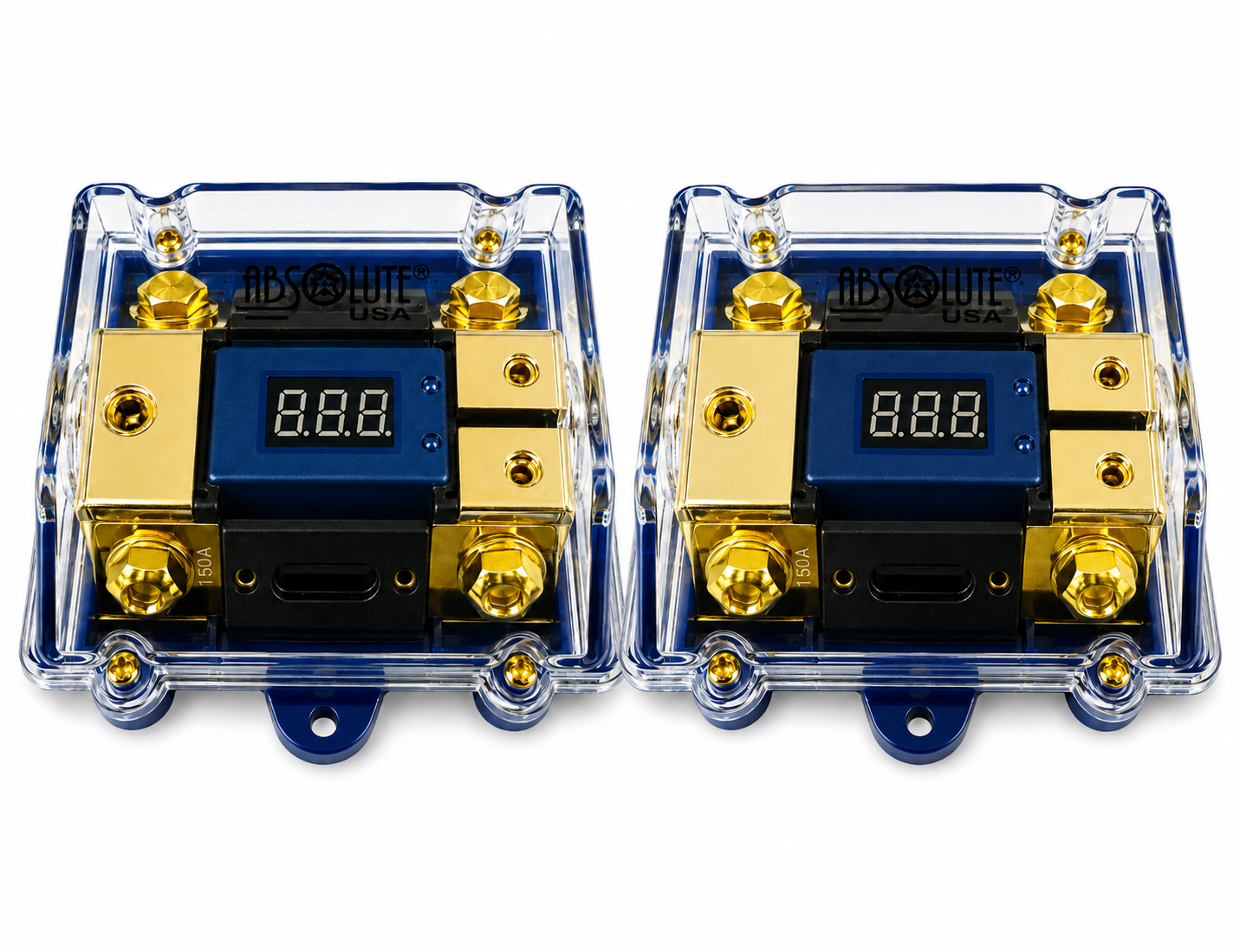

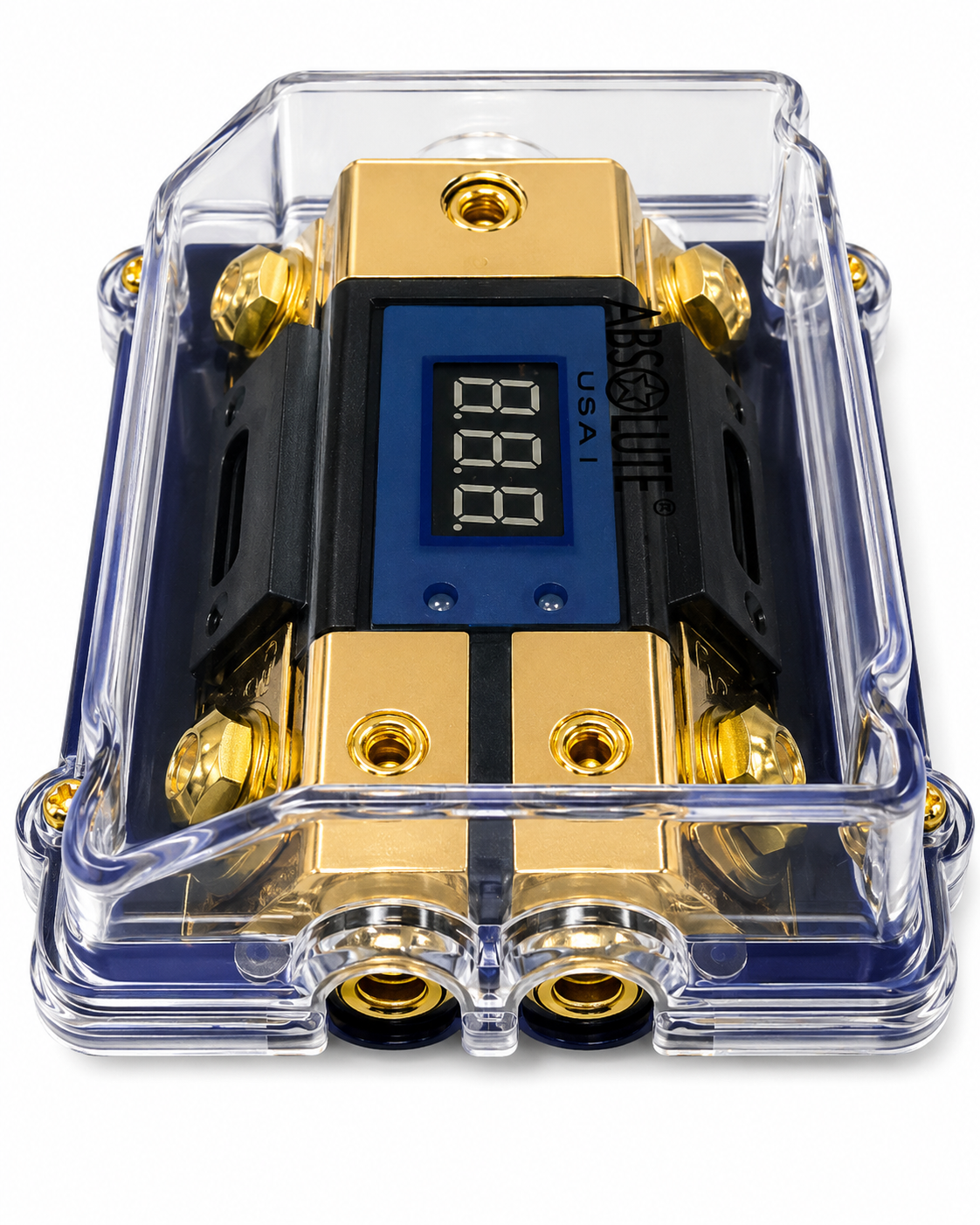

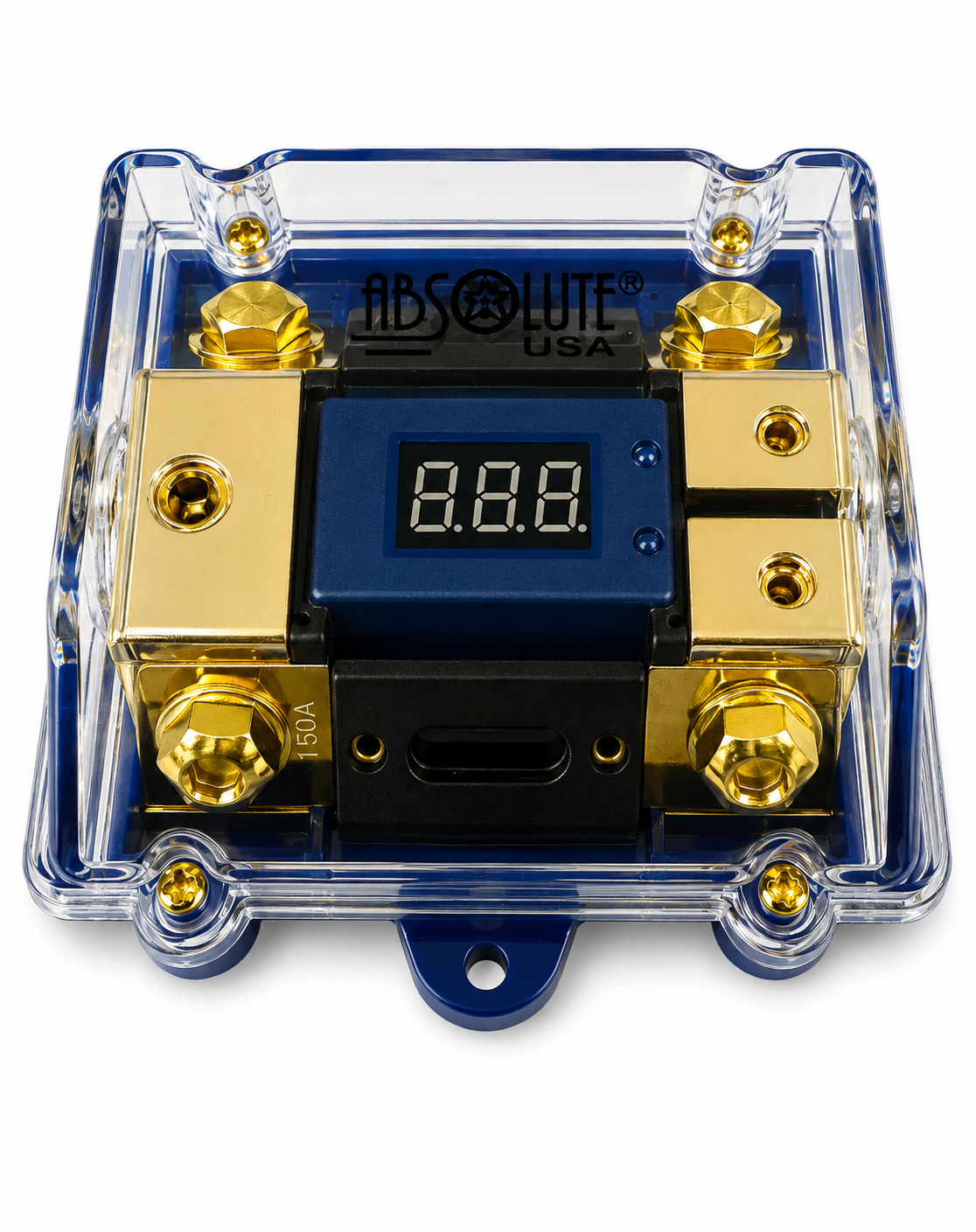

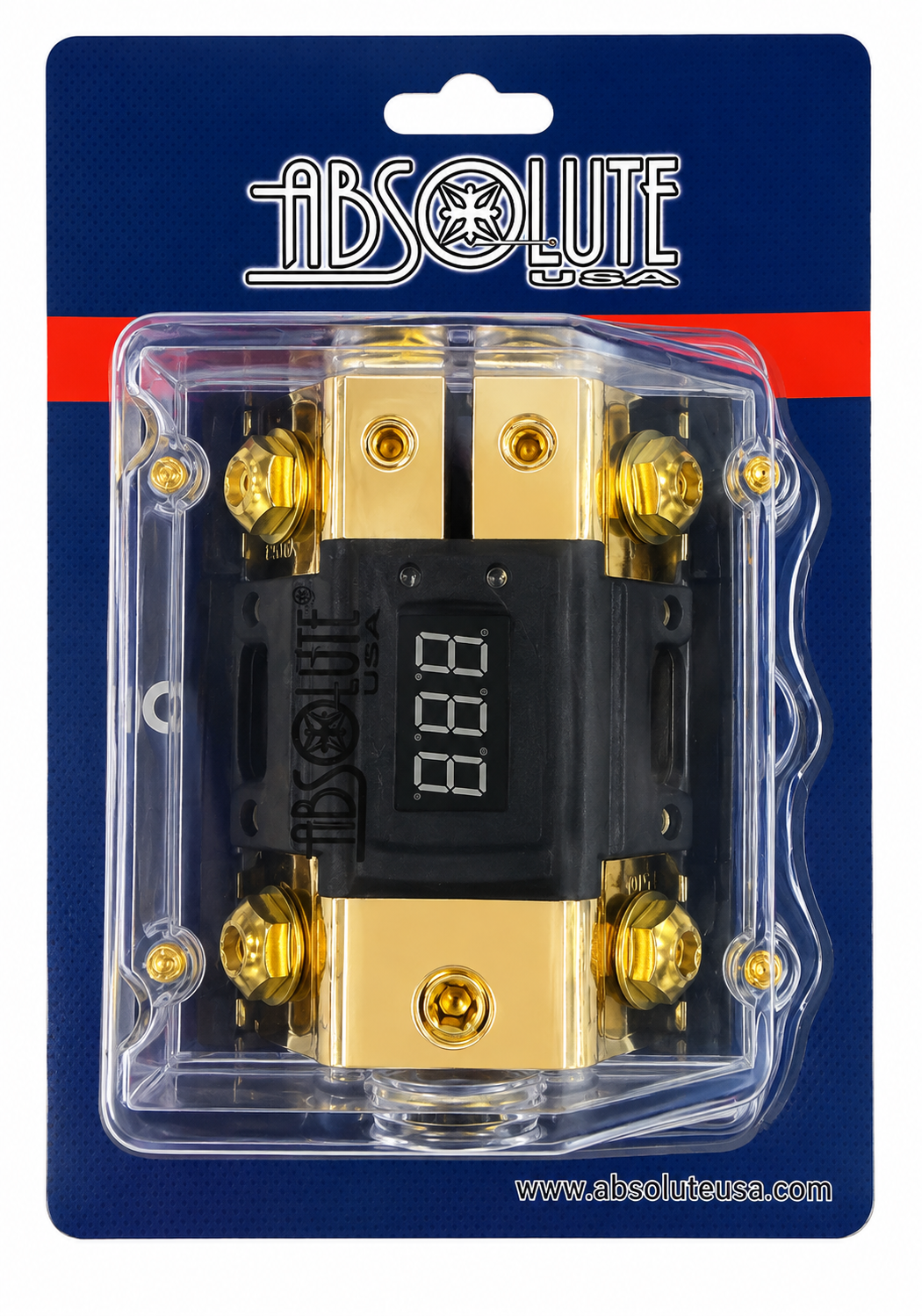

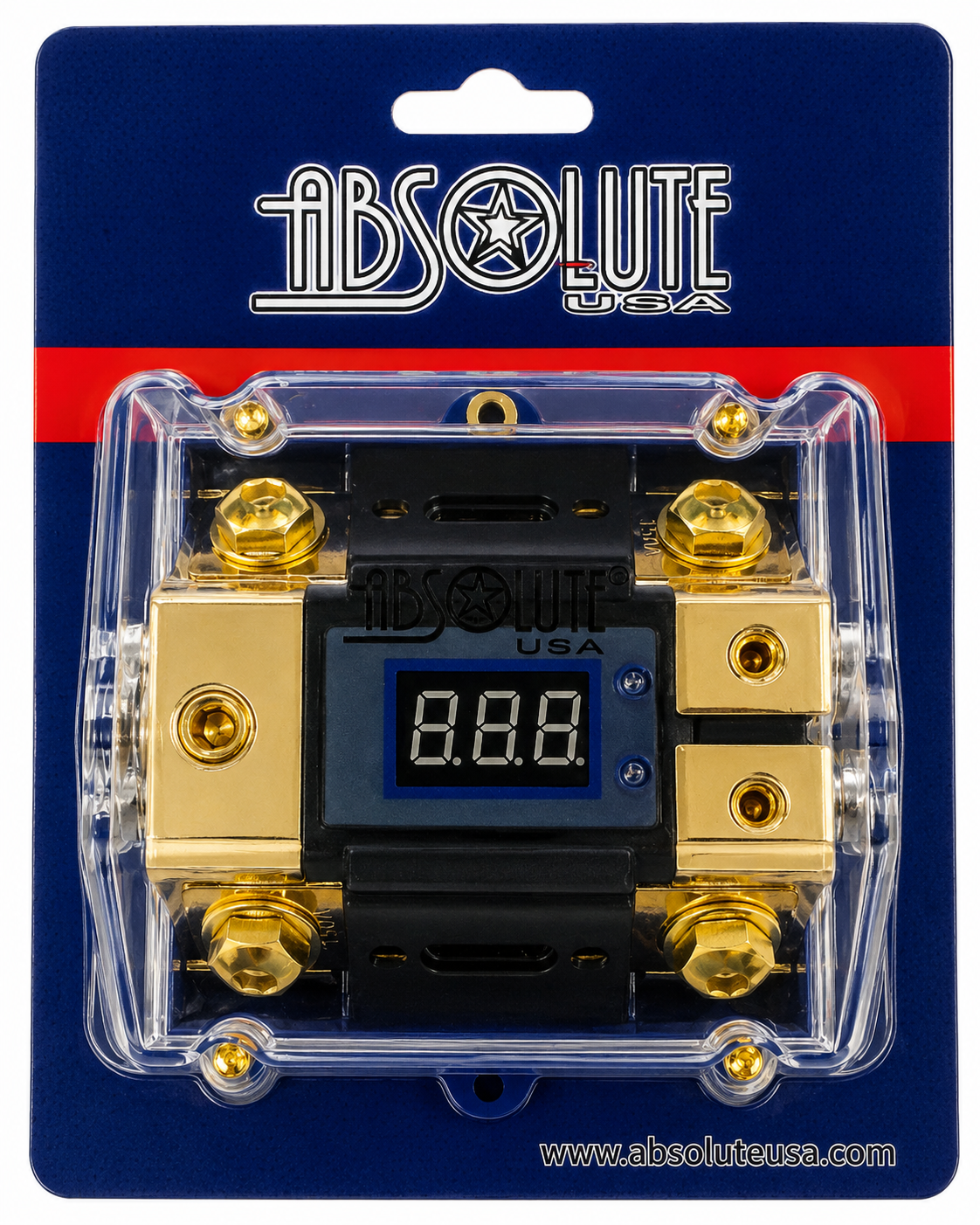

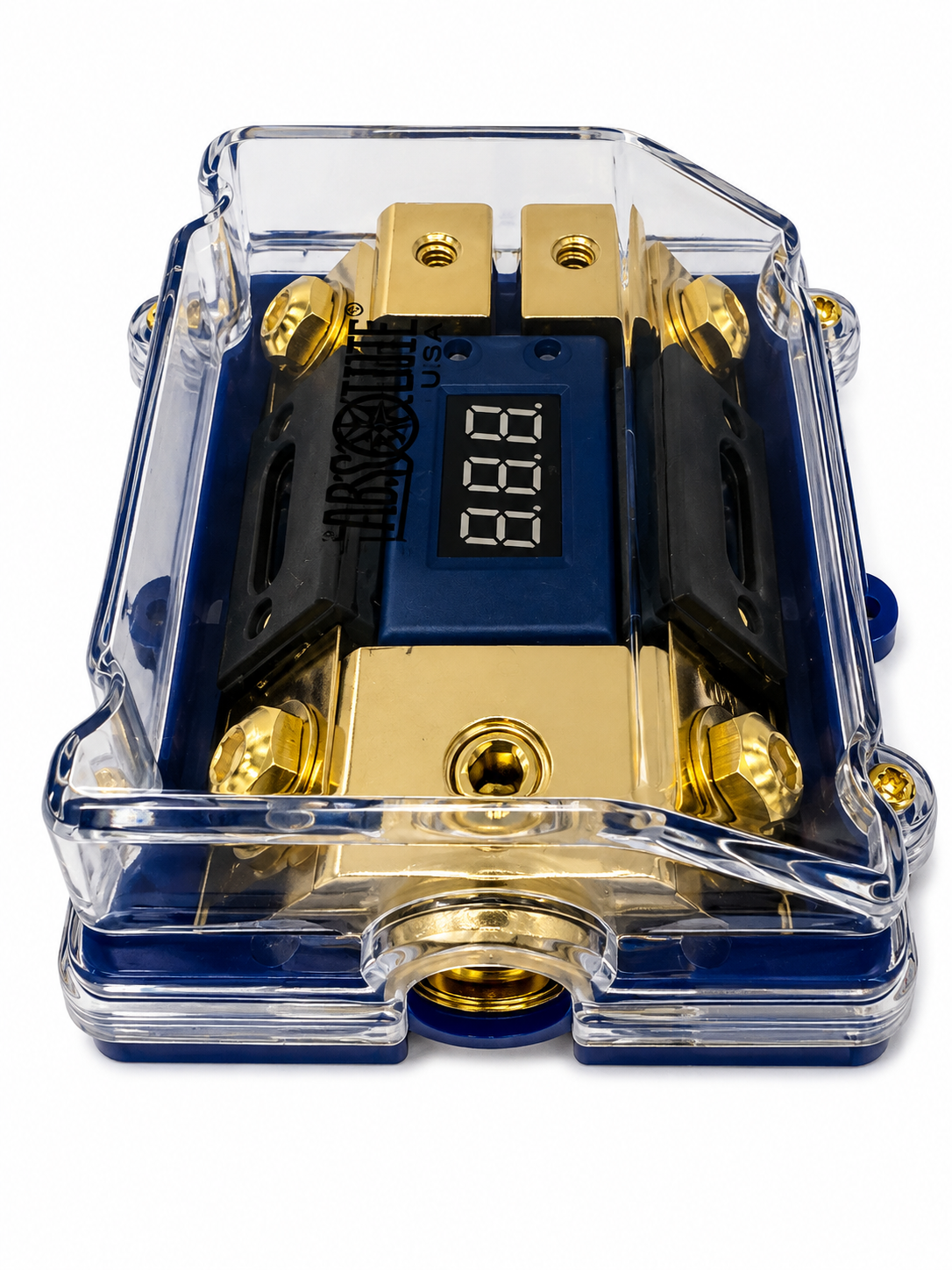

2 Absolute AND-600 Digital ANL Fuse Holder LED Voltmeter Display 0/4 Gauge Power Distribution Block Includes (2) 150A ANL Fuse

2 Pack Absolute USA AND-600 Digital ANL Fuse Holder with LED Voltmeter Display – 0/4 Gauge Power Distribution Block Includes (2) 150A ANL Fuses

Protect and power your high-performance car audio system with the Absolute USA AND-600 Digital ANL Fuse Holder. Featuring a built-in digital LED voltmeter, heavy-duty 24K gold-plated terminals, and a durable clear protective cover, the AND-600 provides reliable circuit protection while allowing you to monitor your vehicle's voltage in real time.

Designed for high-current amplifier installations, this premium ANL fuse holder accepts one 0, 2 or 4 AWG input and distributes power through two 0, 2, or 4 AWG outputs, making it ideal for multiple amplifiers, power distribution, and custom car audio systems. The included two 150A ANL fuses provide dependable over-current protection, while the corrosion-resistant construction ensures maximum conductivity and long-lasting performance.

Key Features

🔋 BUILT-IN DIGITAL LED VOLTMETER – Bright red LED display provides real-time system voltage monitoring for quick diagnostics and improved electrical system visibility.

⚡ HIGH-CURRENT ANL FUSE HOLDER – Accepts standard ANL fuses from 60A to 500A, making it ideal for high-power amplifiers, battery protection, and power distribution.

🛡 INCLUDES TWO 150A ANL FUSES – Comes complete with (2) heavy-duty 150-amp ANL fuses for reliable circuit protection right out of the box.

✨ 24K GOLD-PLATED TERMINALS & HARDWARE – Precision-machined gold-plated contacts, terminals, and screws provide superior conductivity while resisting corrosion for maximum power transfer.

🔧 HEAVY-DUTY DISTRIBUTION DESIGN – Accepts one 0, 2, or 4 AWG input and provides two 0, 2, or 4 AWG outputs, making it perfect for multiple amplifier installations.

🪟 CLEAR PROTECTIVE COVER – Durable transparent housing protects the fuse while allowing quick visual inspection without disassembly.

Product Description

The Absolute USA AND-600 Digital ANL Fuse Holder is engineered for professional car audio installations requiring reliable power distribution and premium circuit protection. Its heavy-duty design features precision-machined 24K gold-plated terminals, a built-in digital LED voltmeter, and a clear protective cover for easy fuse inspection.

Designed for high-current applications, the AND-600 accepts standard ANL fuses ranging from 60A to 500A and includes two 150A ANL fuses for immediate installation. The digital voltage display provides continuous monitoring of your vehicle's electrical system, helping identify charging system issues before they become problems.

Ideal for amplifiers, battery connections, custom wiring projects, and high-performance car audio systems, the AND-600 combines outstanding durability, maximum conductivity, and professional appearance.

General Features

• Digital ANL Fuse Holder

• Built-In LED Digital Voltmeter

• Includes (2) 150A ANL Fuses

• Heavy-Duty Power Distribution Block

• Accepts Standard ANL Fuses (60A–500A)

• One 0/2/4 AWG Power Input

• Two 0/2/4 AWG Power Outputs

• 24K Gold-Plated Terminals

• Gold-Plated Mounting Hardware

• Clear Protective Cover

• Corrosion-Resistant Construction

• High-Conductivity Design

• Universal Car Audio Application

Specifications

Product Information

• Brand: Absolute USA

• Model: AND-600

• Product Type: Digital ANL Fuse Holder & Power Distribution Block

• Fuse Type: ANL

• Operating Voltage: 12V–24V DC

• Display: Digital LED Voltmeter

Power Connections

• Input: 1 × 0/2/4 AWG

• Output: 2 × 0/2/4 AWG

• Compatible Fuse Ratings: 60A–500A ANL

Construction

• Terminal Material: 24K Gold-Plated Metal

• Cover: Clear Protective Polycarbonate

• Hardware: Gold-Plated Fasteners

Dimensions

• Overall Size: 4.13" × 4.06" × 1.61" (105 × 103 × 41 mm)

• Fuse Size: 3.15" × 0.91" × 0.31" (80 × 23 × 8 mm)

• Mounting Hole Diameter: 0.16" (4 mm)

• Internal Thread Diameter: 9 mm / 5 mm

• Thread Size: M3 × 0.5

Perfect For

• Car Audio Systems

• High-Power Amplifiers

• Multi-Amplifier Installations

• Battery Protection

• Power Distribution

• Custom Car Audio Builds

• Trucks

• SUVs

• Off-Road Vehicles

• Marine Audio Systems

• 12V & 24V Electrical Systems

Package Includes

• (1) Absolute USA AND-600 Digital ANL Fuse Holder

• (2) 150A ANL Fuses

Warranty

1-Year Manufacturer's Warranty
