Absolute 10A-1785 (70-1785) car radio harness Audi Volkswagen amp integration 88-97
Pickup available at 1800 E Washington Blvd
Usually ready in 24 hours
Have Questions?
- Tel: +1 213 744 11 44
- Tel: +1 800 674 27 24
Brand: Absolute USA
Description

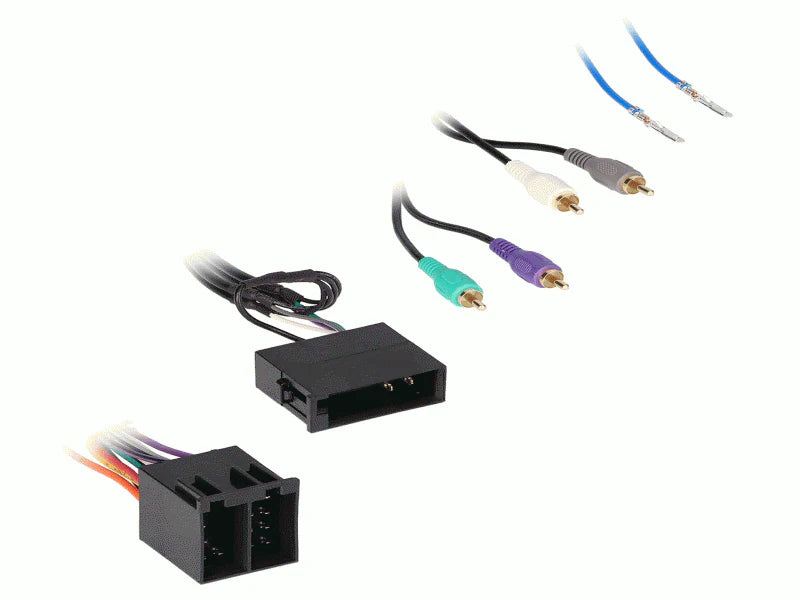

Absolute USA Premium Factory Amplifier Integration Radio Wiring Harness for Audi & Volkswagen (1988–1997) – 16-Pin Power, 10-Pin Speaker, 4 RCA Outputs, Blue Remote Wire
Upgrade your factory stereo without cutting your vehicle's wiring using the Absolute USA Premium Factory Amplifier Integration Wiring Harness. Designed for select Audi and Volkswagen vehicles equipped with a factory premium amplified sound system, this plug-and-play harness allows you to install an aftermarket radio while retaining the factory amplifier.
Featuring a 16-pin power connector, 10-pin speaker connector, four RCA preamp connectors, and an integrated blue amplifier remote turn-on wire, this harness provides a reliable, professional installation while eliminating the need to splice factory wiring.
Key Features
🔊 FACTORY AMPLIFIER INTEGRATION HARNESS – Designed for select Audi and Volkswagen vehicles equipped with a factory premium amplified audio system, allowing seamless installation of an aftermarket stereo.
🔌 PLUG-AND-PLAY INSTALLATION – Connects directly to the factory wiring harness without cutting, splicing, or modifying the original vehicle wiring.
🎵 FOUR RCA PREAMP CONNECTIONS – Includes four RCA connectors that plug directly into the aftermarket radio's preamp outputs for proper factory amplifier integration.
⚡ BLUE REMOTE TURN-ON WIRE INCLUDED – Built-in amplifier remote wire automatically activates the factory amplifier when the aftermarket radio powers on.
🛠 HIGH-QUALITY OEM-STYLE CONNECTORS – Precision-molded ABS connectors provide a secure factory fit while offering excellent heat resistance and long-term durability.
Product Description
The Absolute USA Premium Factory Amplifier Integration Harness is the ideal solution for installing an aftermarket stereo into select Audi and Volkswagen vehicles with factory premium sound systems.
Designed as a direct plug-in replacement, this harness eliminates the need to cut factory wiring while maintaining compatibility with the vehicle's original amplifier. Four RCA connectors provide low-level audio signal input from your aftermarket radio, while the included blue remote turn-on wire activates the factory amplifier automatically.
Manufactured using durable, heat-resistant ABS connectors and wired to standard EIA color codes, this harness makes installation faster, cleaner, and fully reversible. If you ever reinstall the factory radio, simply unplug the aftermarket harness and reconnect the original radio.
General Features
-
Premium Factory Amplifier Integration Harness
-
Plug-and-Play Installation
-
No Cutting or Splicing Required
-
Four RCA Preamp Connectors
-
Blue Amplifier Remote Turn-On Wire Included
-

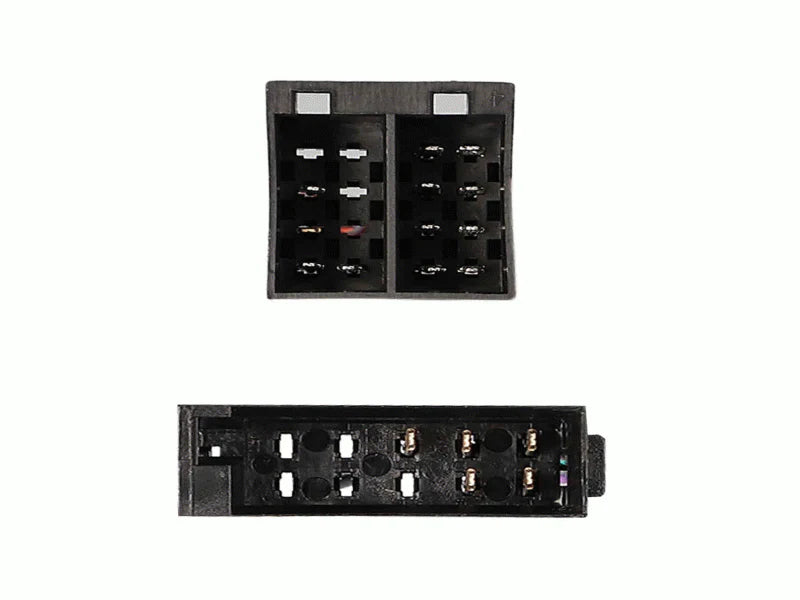

One 16-Pin Power Connector
-
One 10-Pin Speaker Connector
-
OEM-Style ABS Molded Connectors
-
Heat-Resistant Construction
-
EIA Standard Color-Coded Wiring
-
Retains Factory Amplifier
-
Professional Installation Grade
Specifications
Product Information
-
Brand: Absolute USA
-
Product Type: Factory Amplifier Integration Radio Harness
-
Application: Aftermarket Radio Installation
-
Connector Type:
-
16-Pin Power Connector
-
10-Pin Speaker Connector
-
-
RCA Outputs: 4
-
Remote Turn-On Wire: Blue
-
Installation: Plug-and-Play
Interchange Part Numbers
-
Metra 70-1785
-
Best Kits VWH-10A
-
Scosche VWK1B
-
XScorpion VW-41000
Vehicle Compatibility
Audi
-
80 Series (1988–1992)
-
90 Series (1988–1995)
-
100 Series (1989–1994)
-
200 Series (1989–1991)
-
A6 (1995–1997)
-
S6 (1995)
-
Cabriolet (1994–1998)
-
Coupe Quattro (1990–1991)
-
S4 (1992–1994)
-
V8 Quattro (1990–1994)
Volkswagen
-
Corrado (1990–1993)
Note: Compatible only with vehicles equipped with a factory premium amplified audio system.
Perfect For
-
Aftermarket Radio Installations
-
Factory Amplifier Integration
-
Audi Stereo Upgrades
-
Volkswagen Stereo Upgrades
-
OEM Radio Replacement
-
Professional Installers
-
DIY Installations
-
Car Audio Upgrades
Package Includes
-
(1) Absolute USA Factory Amplifier Integration Wiring Harness
-
Integrated 16-Pin Power Connector
-
Integrated 10-Pin Speaker Connector
-
(4) RCA Preamp Connectors
-
Blue Remote Turn-On Wire
Warranty
1-Year Manufacturer's Warranty
