Crux
Crux SWRFD-60 Radio Replacement w/ SWC Retention Fit Ford Lincoln Mercury Vehicles 2005-2014
Pickup available at 1800 E Washington Blvd
Usually ready in 24 hours
Have Questions?
- Tel: +1 213 744 11 44
- Tel: +1 800 674 27 24
Brand: Crux
Description
CRUX SWRFD-60 Radio Replacement Interface with Steering Wheel Control Retention Compatible Fit Select Ford, Lincoln, Mercury & Mazda Vehicles 2005-2014
Replace the factory radio in select Ford, Lincoln, Mercury, and Mazda vehicles with the CRUX SWRFD-60 radio replacement interface. Designed to integrate a compatible aftermarket stereo while retaining supported factory features, the SWRFD-60 also includes built-in steering wheel control retention, factory subwoofer retention, accessory power, and useful navigation-related outputs.
General Features
-
CRUX SWRFD-60 Radio Replacement Interface
-
Designed for Select 2005-2014 Ford, Lincoln, Mercury & Mazda Vehicles
-
Integrates Compatible Aftermarket Radios with Factory Wiring
-
Retains Supported Factory Features
-
Retains Compatible Factory-Installed Subwoofer
-
Retains Factory Steering Wheel Controls
-
Built-In Pre-Programmed Steering Wheel Control Interface
-
Provides Reverse Gear Output
-
Provides Illumination Output
-
Provides Vehicle Speed Signal
-
Provides Accessory Power
-
Accessory Output Rated up to 2 Amps
-
Includes CAN & Analog Steering Wheel Control Modules
-
Designed to Simplify Aftermarket Radio Installation
Factory Feature Retention
The CRUX SWRFD-60 is designed to retain compatible factory functions when replacing the original radio with an aftermarket receiver.
-
Retains Compatible Factory Features
-
Retains Factory Subwoofer in Supported Applications
-
Maintains Compatible Steering Wheel Audio Controls
-
Designed for Aftermarket Radio Integration
Steering Wheel Control Retention
The SWRFD-60 includes built-in steering wheel control support for compatible factory systems.
-
Pre-Programmed Steering Wheel Control Interface
-
Retains Compatible Volume Controls
-
Retains Compatible Track / Seek Controls
-
Supports Analog & CAN-Based Steering Wheel Control Systems
-
Exact retained functions depend on vehicle and aftermarket radio compatibility
CAN & Analog SWC Modules
This kit includes both CAN and analog steering wheel control modules. The correct module must be selected based on the vehicle's factory steering wheel control system.
-
Includes CAN Module
-
Includes Analog SWC Module
-
Vehicle Configuration Determines Which Module is Used
-
Refer to Installation Instructions to Determine Analog or CAN Configuration
-
If the Vehicle Does Not Use Analog SWC, Connect the CAN Module
Navigation & Vehicle Signal Outputs
The interface provides vehicle signals commonly required by compatible aftermarket multimedia and navigation receivers.
-
Reverse Gear Output
-
Illumination Output
-
Vehicle Speed Signal
-
Useful for Compatible Navigation Receivers
-
Useful for Compatible Backup Camera Applications
Accessory Power Output
-
Provides Switched Accessory Power
-
Maximum Output: 2 Amps
-
Helps Power Compatible Aftermarket Receivers
Factory Subwoofer Retention
The SWRFD-60 is designed to retain the compatible factory-installed subwoofer system in supported applications.
-
Retains Compatible Factory Subwoofer
-
Helps Maintain Original Low-Frequency Audio System
-
Factory Audio Configuration Must Be Verified Before Installation
SYNC Compatibility Notice
The CRUX SWRFD-60 is not compatible with vehicles equipped with the Ford SYNC system.
-
Not Compatible with Ford SYNC
-
Verify Factory Radio & SYNC Configuration Before Purchase
Vehicle Compatibility
Ford Edge
-
2007-2010 Ford Edge
Ford Escape
-
2008-2012 Ford Escape
Ford Expedition
-
2007-2014 Ford Expedition
Ford Explorer
-
2006-2010 Ford Explorer
Ford Explorer Sport Trac
-
2007-2010 Ford Explorer Sport Trac
Ford F-150
-
2009-2014 Ford F-150
Ford F-250
-
2008-2012 Ford F-250
Ford F-350
-
2008-2012 Ford F-350
Ford F-450
-
2008-2012 Ford F-450
Ford Five Hundred
-
2005-2007 Ford Five Hundred
Ford Flex
-
2009-2012 Ford Flex
Ford Focus
-
2008-2011 Ford Focus
Ford Freestyle
-
2005-2007 Ford Freestyle
Ford Fusion
-
2006-2012 Ford Fusion
Ford Mustang
-
2005-2013 Ford Mustang
Ford Taurus
-
2008-2012 Ford Taurus
Lincoln MKS
-
2009-2012 Lincoln MKS
Lincoln MKX
-
2007-2010 Lincoln MKX
Lincoln MKZ
-
2007-2012 Lincoln MKZ
Lincoln Navigator
-
2007-2014 Lincoln Navigator
Lincoln Zephyr
-
2006 Lincoln Zephyr
Mercury Mariner
-
2007-2011 Mercury Mariner
Mercury Milan
-
2006-2011 Mercury Milan
Mercury Montego
-
2005-2007 Mercury Montego
Mercury Mountaineer
-
2006-2010 Mercury Mountaineer
Mazda Tribute
-
2009-2011 Mazda Tribute
Important Compatibility Notes
-
Not compatible with vehicles equipped with Ford SYNC
-
Not compatible with factory-installed Sony audio systems
-
Not compatible with THX amplified systems
-
Includes both CAN and analog steering wheel control modules
-
Correct module depends on the vehicle's steering wheel control configuration
-
Factory feature retention varies by vehicle, trim, and factory radio configuration

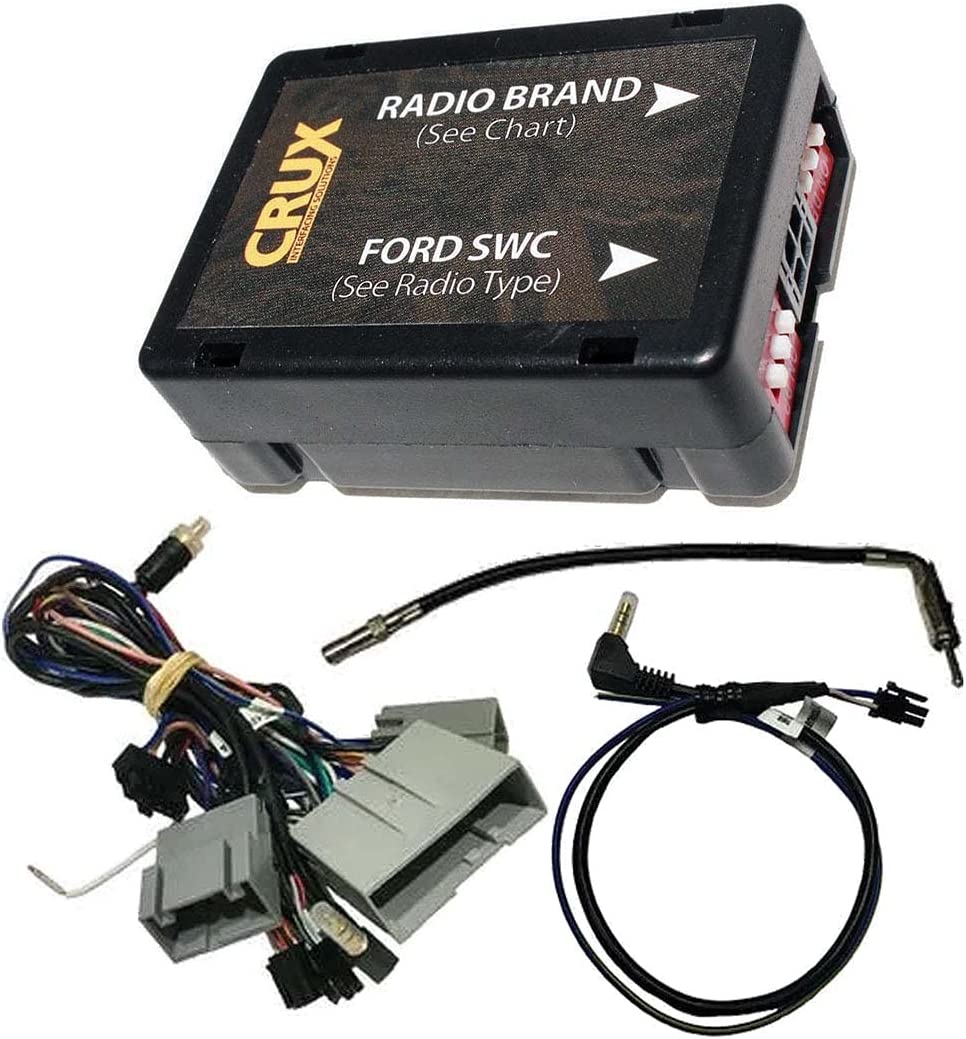

What's in this Package
-

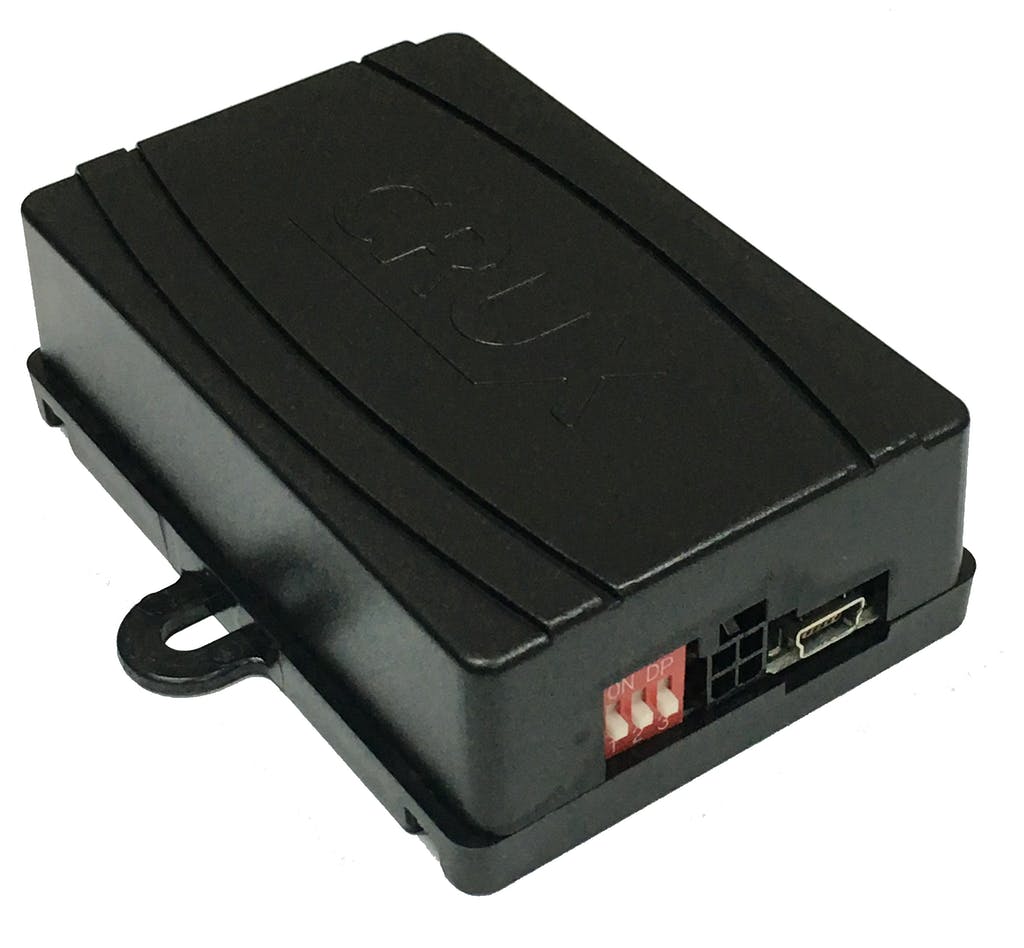

(1) CRUX SWRFD-60 Radio Replacement Interface
-
(1) CAN Steering Wheel Control Module
-
(1) Analog Steering Wheel Control Module
-

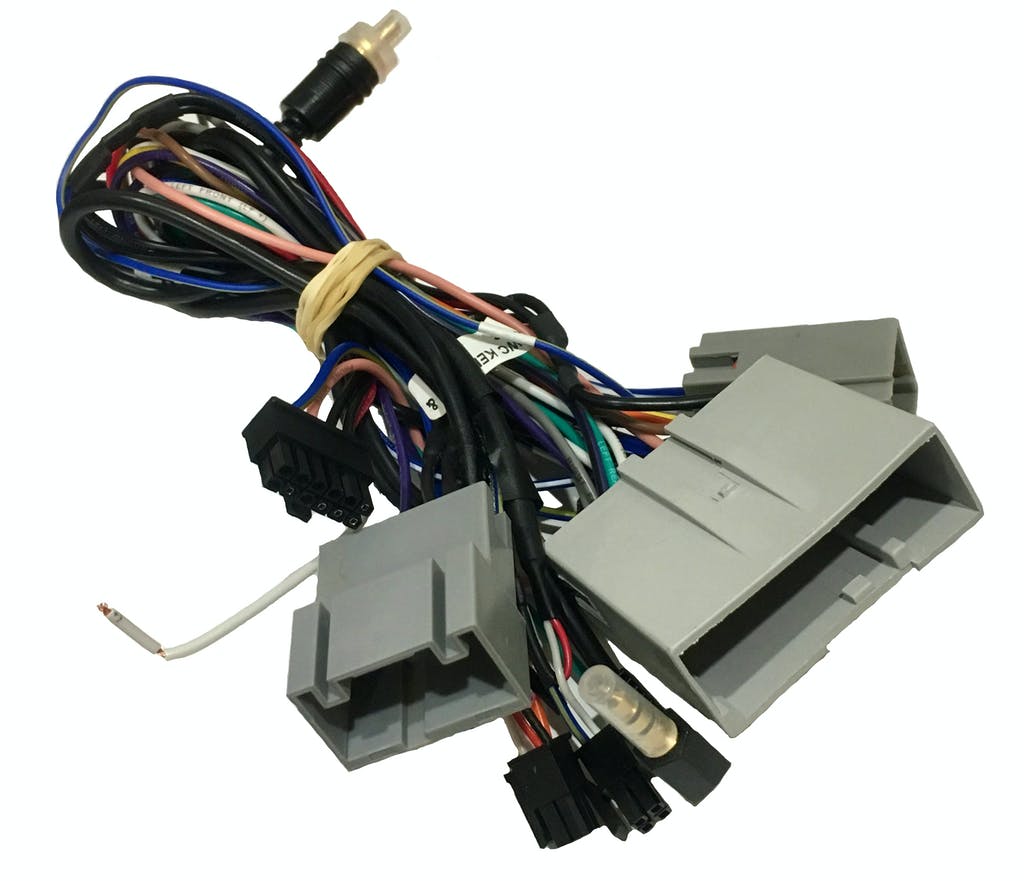

Vehicle-Specific Wiring Harnesses
Installation Notes
-
Designed for the compatible Ford, Lincoln, Mercury, and Mazda applications listed above.
-
The vehicle must not be equipped with Ford SYNC.
-
Factory Sony and THX amplified systems are not supported according to the supplied information.
-
Refer to the installation manual to determine whether the vehicle uses an analog or CAN-based steering wheel control system.
-
Reverse, illumination, and vehicle speed outputs are provided for compatible aftermarket receivers.
-
Accessory power output is rated up to 2 amps.
-
Additional dash kits, antenna adapters, or radio-specific installation accessories may be required depending on the vehicle.
-
Verify vehicle year, trim, factory radio, factory amplifier, steering wheel control system, and SYNC configuration before installation.
-
Professional installation is recommended.
