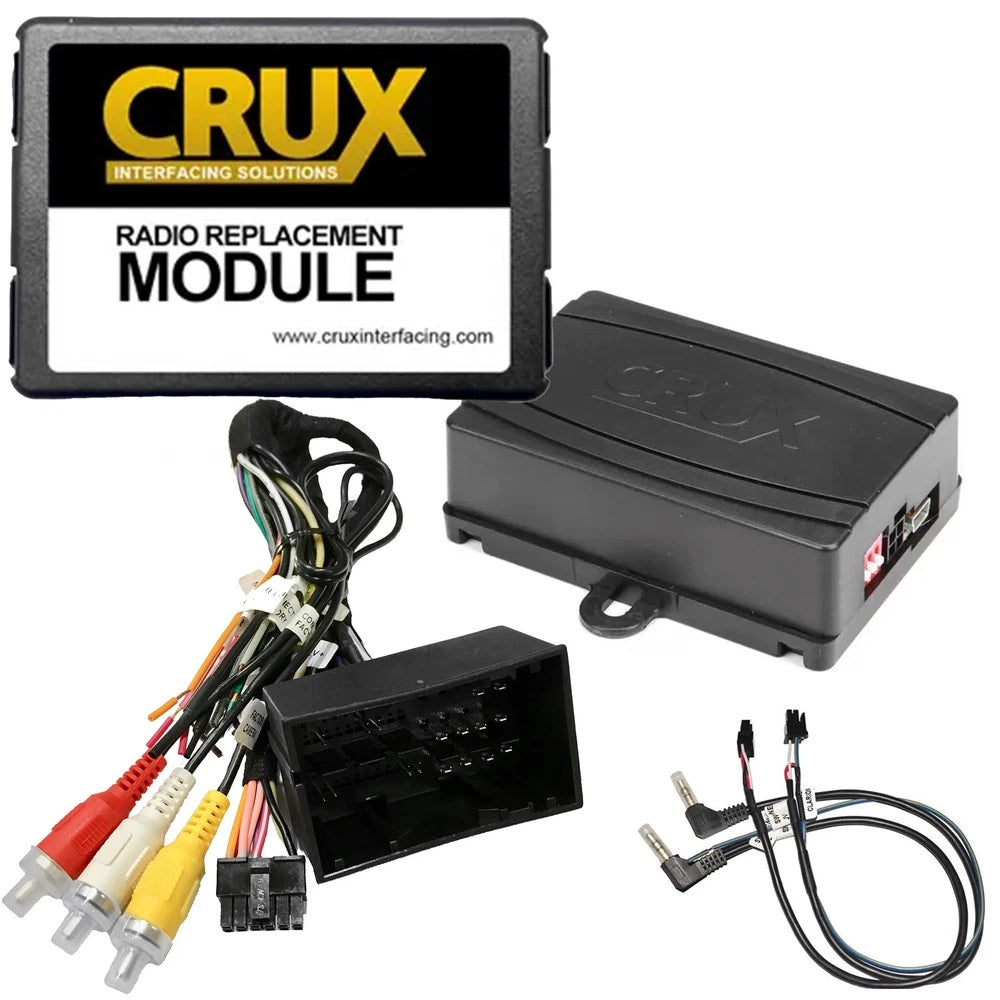

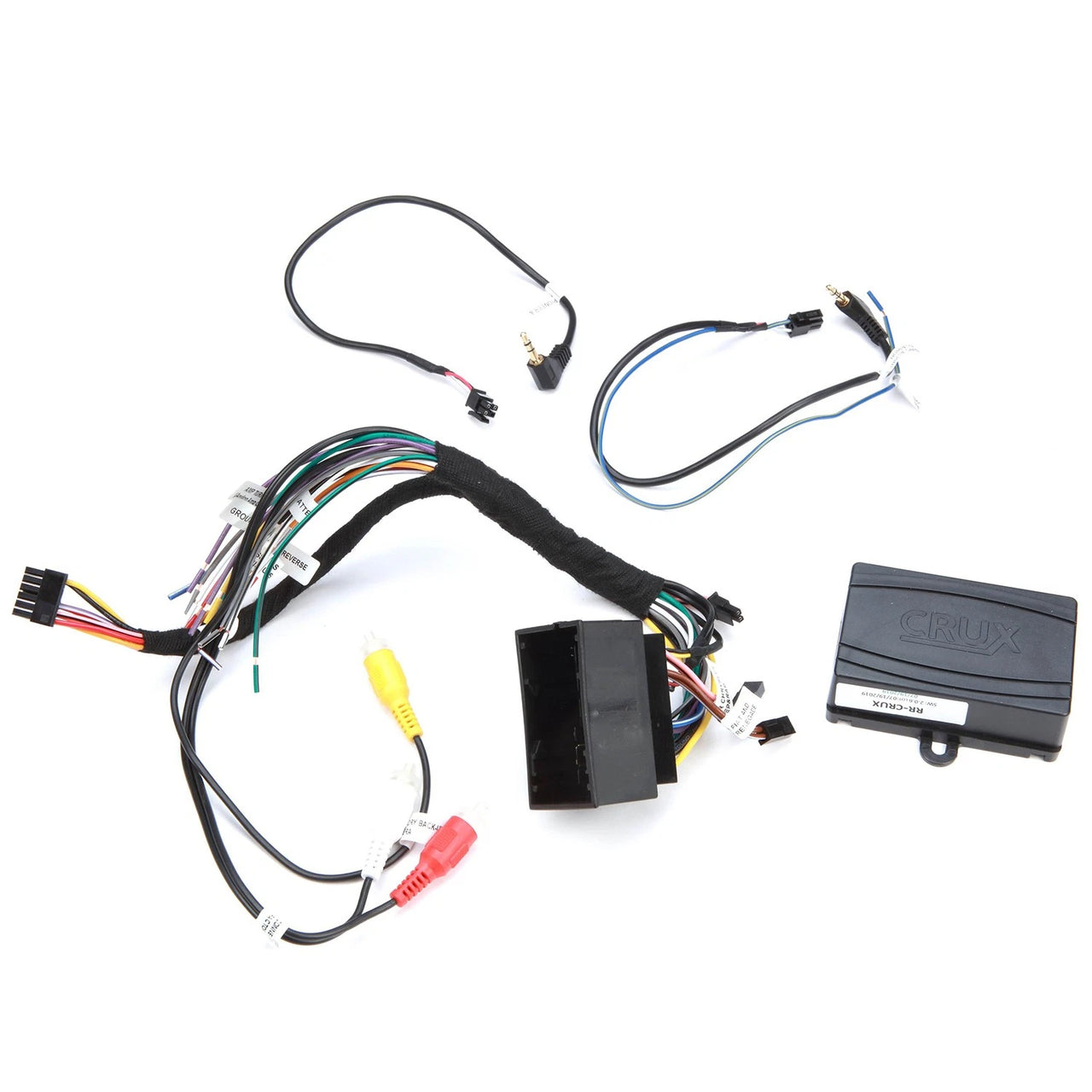

CRUX SWRCR-59LV Radio Replacement Interface with Steering Wheel Control Retention for Select Dodge, Fiat, Jeep & Ram Vehicles

Upgrade the factory radio in select Dodge, Fiat, Jeep, and Ram vehicles with the CRUX SWRCR-59LV radio replacement interface. Designed to integrate a compatible aftermarket stereo with supported factory systems, the SWRCR-59LV retains steering wheel controls, accessory power, factory AUX input, and backup camera functionality in compatible applications while providing important navigation outputs including parking brake, reverse, and vehicle speed signals.

General Features

• CRUX SWRCR-59LV Radio Replacement Interface

• Designed for Select Dodge, Fiat, Jeep & Ram Vehicles

• Designed for Aftermarket Radio Installation

• Compatible with Supported Non-Amplified Audio Systems

• Can Be Used When Bypassing a Compatible Factory Amplifier

• Retains Factory Steering Wheel Controls

• Built-In Pre-Programmed Steering Wheel Control Interface

• Retains Factory Steering Wheel Control Phone Button Functionality in Supported Applications

• Retains Accessory Power / RAP

• Provides 12-Volt Accessory Output

• Accessory Output Rated up to 2 Amps

• Provides Parking Brake Output

• Provides Reverse Gear Output

• Provides Vehicle Speed Signal (VSS)

• Retains Factory AUX Input in Compatible Applications

• Retains Factory Backup Camera in Compatible Applications

• Retains Select Factory Analog Amplifiers

• EIA Color-Coded Wiring

• Micro-B USB Updatable

• Designed for Vehicle-Specific Installation

• No Cutting or Splicing of Factory Radio Wiring Required in Compatible Applications

• 1-Year Manufacturer Warranty

Steering Wheel Control Retention

The SWRCR-59LV includes a built-in, pre-programmed steering wheel control interface designed to retain compatible factory steering wheel audio controls when installing a supported aftermarket receiver.

• Built-In Steering Wheel Control Interface

• Pre-Programmed for Compatible Applications

• Retains Compatible Volume Controls

• Retains Compatible Track / Seek Controls

• Retains Supported Factory Phone Button Functions

• Exact retained functions depend on vehicle and aftermarket radio compatibility

Retained Accessory Power

The SWRCR-59LV provides retained accessory power for compatible aftermarket radio installations.

• Retains Accessory Power / RAP

• Provides 12-Volt Accessory Output

• Maximum Accessory Output: 2 Amps

• Helps Maintain Normal Aftermarket Radio Power Operation

Navigation & Vehicle Outputs

The interface provides vehicle signals commonly required by compatible aftermarket multimedia and navigation receivers.

• Parking Brake Output

• Reverse Gear Output

• Vehicle Speed Signal (VSS)

• Useful for Compatible Navigation Receivers

• Useful for Compatible Backup Camera Integration

Factory AUX Input Retention

In supported applications, the SWRCR-59LV retains the vehicle's factory AUX input when installing a compatible aftermarket receiver.

• Retains Factory AUX Input Where Supported

• Vehicle and Radio Compatibility May Affect AUX Functionality

Factory Backup Camera Retention

The SWRCR-59LV can retain the factory backup camera in compatible vehicles. Some applications may use an OEM GMSL digital camera and require an additional conversion module.

• Retains Compatible Factory Backup Camera

• Additional Camera Interface May Be Required

• OEM GMSL Digital Camera Applications Require Conversion to Composite Video

• Verify Factory Camera Type Before Installation

Factory Amplifier Compatibility

• Primarily Designed for Compatible Non-Amplified Applications

• Can Be Used When Bypassing Certain Factory Amplifiers

• Retains Select Factory Analog Amplifiers Where Supported

• Does Not Retain Factory Alpine Audio Systems

Important Factory Alpine System Note

The CRUX SWRCR-59LV does not retain factory Alpine audio systems.

• Not Designed to Retain Factory Alpine Amplified Systems

• Additional Integration Equipment or Amplifier Bypass May Be Required

• Verify Factory Audio System Before Purchase

EIA Color-Coded Wiring

• Standardized EIA Wire Colors

• Helps Simplify Aftermarket Radio Connections

• Designed to Reduce Installation Time

• Vehicle-Specific Harness Integration

• No Cutting or Splicing of Compatible Factory Radio Harness Required

Micro-B USB Updatable

The interface includes a Micro-B USB connection for supported firmware updates.

• Micro-B USB Update Port

• Firmware Updatable

• Allows Compatible Interface Updates When Available

Vehicle Compatibility

Dodge Dart

• 2014-2016 Dodge Dart

Dodge Challenger

• 2015-2022 Dodge Challenger

Dodge Charger

• 2015-2022 Dodge Charger

Dodge Durango

• 2014-2021 Dodge Durango

Fiat 500L

• 2014-2020 Fiat 500L

Fiat 500X

• 2016-2020 Fiat 500X

Jeep Cherokee

• 2015 Jeep Cherokee

Jeep Compass

• 2017-2020 Jeep Compass

• 2021-Up Jeep Compass*

Jeep Grand Cherokee

• 2014-2015 Jeep Grand Cherokee

Jeep Renegade

• 2015-2021 Jeep Renegade*

• 2022-Up Jeep Renegade

Jeep Wrangler JL

• 2018-2022 Jeep Wrangler JL

Jeep Gladiator

• 2020-Up Jeep Gladiator

Ram 1500

• 2013-2017 Ram 1500

• 2018-2021 Ram 1500*

Ram 2500

• 2013-2017 Ram 2500

• 2018-2021 Ram 2500*

Ram 3500

• 2013-2017 Ram 3500

• 2018-2021 Ram 3500*

Ram ProMaster

• 2014-2020 Ram ProMaster

• 2021 Ram ProMaster*

OEM GMSL Digital Camera Note

Applications marked with an asterisk (*) may be equipped with an OEM GMSL digital backup camera.

• A separate compatible module is required to convert the OEM GMSL digital video signal to composite video when necessary

• Required if retaining a compatible factory digital camera with an aftermarket receiver

• Verify factory camera type before installation

Ram ProMaster Steering Wheel Control Note

• Factory phone and voice buttons are not retained on select Ram ProMaster applications

• Other compatible steering wheel audio controls may still be retained

• Exact functionality depends on vehicle configuration

Important Compatibility Notes

• Compatible with supported non-amplified factory audio systems

• Can support select factory analog amplifier applications

• Does not retain factory Alpine systems

• Factory AUX input retention is available on supported vehicles

• Factory backup camera retention is available on supported vehicles

• Some vehicles require a separate GMSL-to-composite camera interface

• Exact retained factory features vary by vehicle, trim, factory radio, and aftermarket receiver

What's in this Package

• (1) CRUX SWRCR-59LV Radio Replacement Interface with Steering Wheel Control Retention

Installation Notes

• Designed for select Dodge, Fiat, Jeep, and Ram applications listed above.

• Verify vehicle year, model, trim, factory radio, amplifier configuration, and backup camera type before installation.

• The interface provides 12-volt accessory power up to 2 amps.

• Parking brake, reverse, and vehicle speed outputs are provided for compatible aftermarket receivers.

• Factory Alpine systems are not retained.

• A separate camera conversion module may be required for applications equipped with an OEM GMSL digital camera.

• Additional dash kits, antenna adapters, or radio-specific accessories may be required depending on the installation.

• Professional installation is recommended.

• The supplied title describes this interface as compatible with 2018-2025 vehicles, but the detailed fitment information includes applications beginning as early as 2013 and several models listed as 2021-Up or 2022-Up. The detailed vehicle compatibility list above should be used for fitment.
