Crux
Crux SOOGM-16B OnStar SWC Radio Replacement Interface Fit 2004-2012 General Motors LAN 11-Bit Vehicles w/ Bose Amplified & Non-Amplified Systems
Pickup available at 1800 E Washington Blvd
Usually ready in 24 hours
Have Questions?
- Tel: +1 213 744 11 44
- Tel: +1 800 674 27 24
Brand: Crux
Description
CRUX SOOGM-16B OnStar Radio Replacement Interface with Steering Wheel Control Retention Compatible Fit Select 2004-2012 GM LAN 11-Bit Vehicles
Replace the factory radio in select General Motors LAN 11-Bit vehicles while retaining compatible OnStar, steering wheel controls, warning chimes, factory Bluetooth, and supported Bose or non-Bose audio functions with the CRUX SOOGM-16B. Designed for compatible amplified and non-amplified GM systems, this interface includes wiring for both major 11-Bit factory radio connector configurations.
General Features
-
CRUX SOOGM-16B Radio Replacement Interface
-
Designed for Select GM LAN 11-Bit Vehicles
-
Designed for Aftermarket Car Stereo Installation
-
Retains Factory Steering Wheel Controls
-
Built-In Pre-Programmed Steering Wheel Control Interface
-
Retains Compatible Factory OnStar
-
Retains Factory Warning Chimes
-
Retains Factory Bluetooth on Compatible 2008-Up Vehicles Equipped with the Supported OnStar Device
-
Compatible with Non-Bose Audio Systems
-
Compatible with Bose Amplified Systems
-
Supports Amplified & Non-Amplified Applications
-
Designed to Support Both Types of GM 11-Bit Factory Radios
-
Includes 24-Pin Harness
-
Includes 14-Pin / 16-Pin Harness Configuration
-
Vehicle-Specific Radio Integration
-
Helps Simplify Aftermarket Stereo Installation
Factory OnStar Retention
The CRUX SOOGM-16B is designed to retain compatible factory OnStar functionality when replacing the original radio with a supported aftermarket receiver.
-
Retains Compatible Factory OnStar
-
Designed for GM LAN 11-Bit Systems
-
Helps Maintain Supported OnStar Functions
-
Works with Compatible Bose & Non-Bose Audio Systems
Steering Wheel Control Retention
The SOOGM-16B includes a built-in, pre-programmed steering wheel control interface designed to retain compatible factory steering wheel audio functions.
-
Built-In Steering Wheel Control Interface
-
Pre-Programmed for Compatible Applications
-
Retains Compatible Volume Controls
-
Retains Compatible Track / Seek Controls
-
Retains Other Supported Steering Wheel Audio Functions
-
Exact retained functions depend on vehicle and aftermarket receiver compatibility
Factory Bluetooth Retention
Compatible 2008-up vehicles equipped with the supported newer OnStar device can retain factory Bluetooth functionality.
-
Retains Compatible Factory Bluetooth
-
Applies to Supported 2008-Up Vehicles
-
Requires Compatible Factory OnStar Device
-
Functionality May Vary by Vehicle Configuration
Factory Warning Chime Retention
-
Retains Compatible Factory Warning Chimes
-
Helps Maintain Important Vehicle Audible Alerts
-
Designed for Supported GM LAN 11-Bit Applications
Bose & Non-Bose Compatibility
-
Compatible with Non-Bose Systems
-
Compatible with Bose Amplified Systems
-
Supports Amplified Applications
-
Supports Non-Amplified Applications
-
Verify Factory Audio Configuration Before Installation
Dual Harness Design
The SOOGM-16B includes two harness configurations to support compatible GM vehicles using different factory 11-Bit radio connectors.
-
Includes 24-Pin Connector Harness
-
Includes 14-Pin & 16-Pin Connector Harness
-
Supports Both Major GM LAN 11-Bit Radio Configurations
-
Select the Correct Harness Based on the Vehicle Application
Vehicle Compatibility
Chevrolet Cobalt – 14-Pin & 16-Pin Connector
-
2007 Chevrolet Cobalt
-
2008 Chevrolet Cobalt
-
2009 Chevrolet Cobalt
-
2010 Chevrolet Cobalt
Chevrolet HHR – 14-Pin & 16-Pin Connector
-
2006-2011 Chevrolet HHR
Chevrolet Malibu – 14-Pin & 16-Pin Connector
-
2008-2012 Chevrolet Malibu
Chevrolet Cobalt – 24-Pin Connector
-
2005 Chevrolet Cobalt
-
2006 Chevrolet Cobalt
Chevrolet Malibu – 24-Pin Connector
-
2004-2007 Chevrolet Malibu
Pontiac G5 – 14-Pin & 16-Pin Connector
-
2007-2010 Pontiac G5
Pontiac G6 – 14-Pin & 16-Pin Connector
-
2010 Pontiac G6
Pontiac Solstice – 14-Pin & 16-Pin Connector
-
2006-2010 Pontiac Solstice
Pontiac G6 – 24-Pin Connector
-
2005-2009 Pontiac G6
Saturn Aura – 14-Pin & 16-Pin Connector
-
2007-2010 Saturn Aura
Saturn Ion – 14-Pin & 16-Pin Connector
-
2007 Saturn Ion
Saturn Sky – 14-Pin & 16-Pin Connector
-
2007-2009 Saturn Sky
Important Compatibility Notes
-
Designed for compatible GM LAN 11-Bit vehicles
-
Supports both 24-pin and 14-pin / 16-pin factory radio connector applications
-
Retains compatible factory OnStar
-
Retains compatible factory steering wheel controls
-
Retains compatible warning chimes
-
Retains factory Bluetooth only on supported 2008-up vehicles equipped with the compatible newer OnStar device
-
Supports compatible Bose amplified and non-Bose audio systems
-
Factory feature retention varies by vehicle, factory radio, and audio configuration
What's in this Package
-

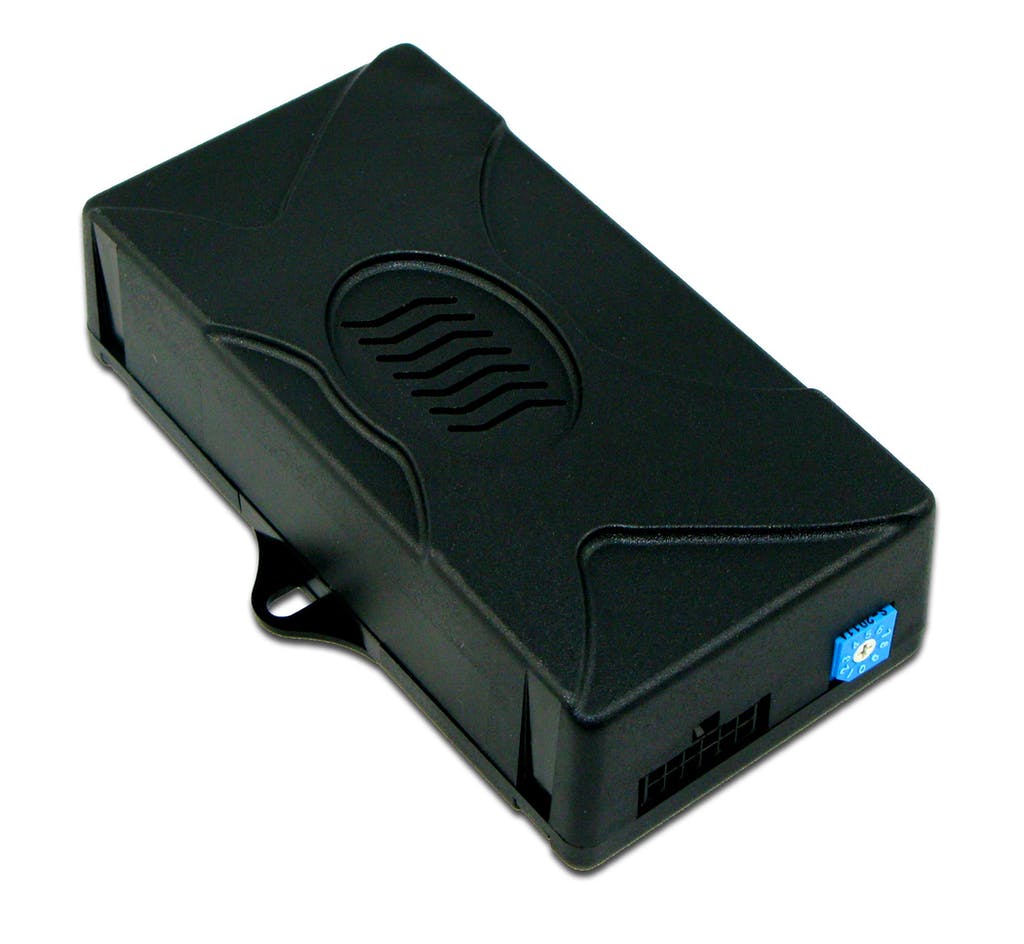

(1) CRUX SOOGM-16B Radio Replacement Interface
-

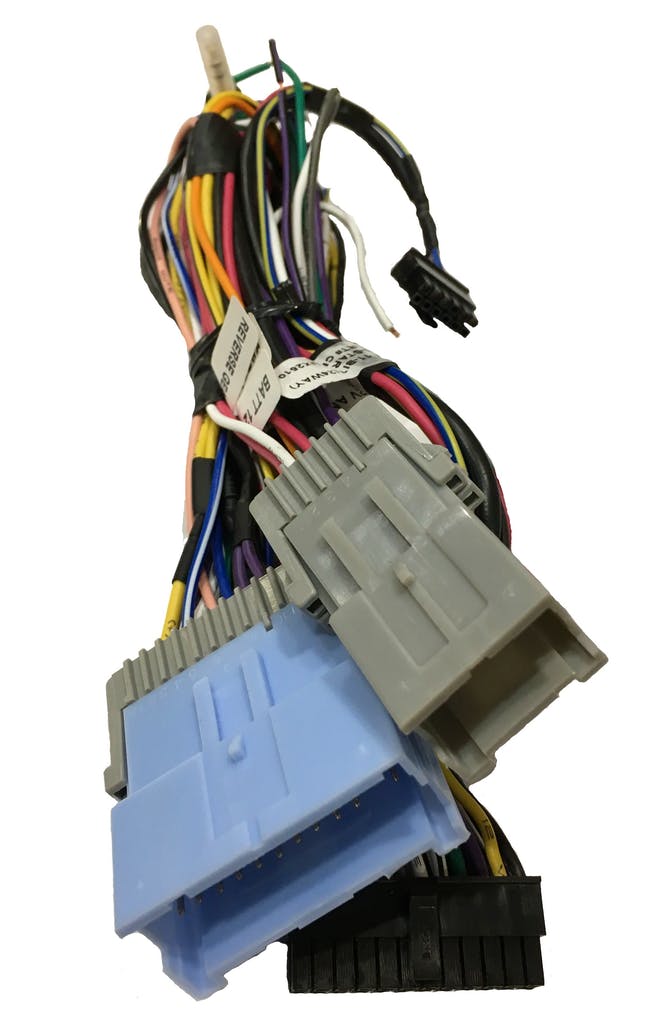

(1) 24-Pin Vehicle Wiring Harness
-

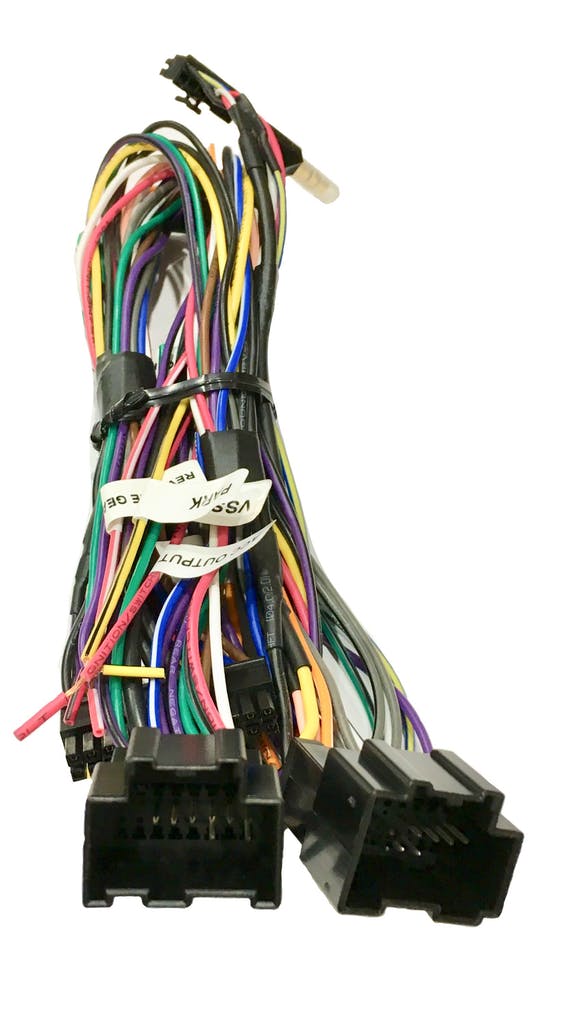

(1) 14-Pin / 16-Pin Vehicle Wiring Harness
Installation Notes
-
Designed for the compatible Chevrolet, Pontiac, and Saturn applications listed above.
-
Match the included harness to the vehicle's factory radio connector configuration before installation.
-
Factory Bluetooth retention applies only to supported 2008-up vehicles equipped with the compatible OnStar hardware.
-

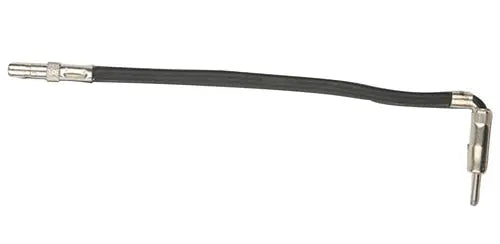

Additional dash kits, antenna adapters, or radio-specific installation accessories may be required depending on the vehicle.
-
Verify vehicle year, model, trim, GM LAN 11-Bit configuration, factory audio system, OnStar equipment, and aftermarket receiver compatibility before installation.
-
Professional installation is recommended.
