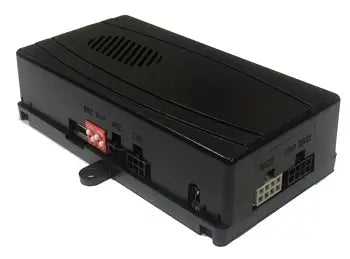

CRUX SOOGM-16 OnStar Radio Replacement Interface with Steering Wheel Control Retention Compatible Fit Select 2006-2017 GM LAN 29-Bit Vehicles

Replace the factory radio in select General Motors LAN 29-Bit vehicles while retaining compatible OnStar, steering wheel controls, factory warning chimes, backup camera, retained accessory power, and supported Bose or non-Bose audio functions with the CRUX SOOGM-16. Designed for compatible amplified and non-amplified GM systems, this interface provides an integrated solution for installing a new aftermarket car stereo while maintaining important factory features.

General Features

• CRUX SOOGM-16 Radio Replacement Interface

• Designed for Select GM LAN 29-Bit Vehicles

• Compatible with Supported Bose Amplified Systems

• Compatible with Supported Non-Bose / Non-Amplified Systems

• Designed for Aftermarket Radio Installation

• Easy Plug-and-Ready Connections

• Retains Factory Steering Wheel Controls

• Built-In Pre-Programmed Steering Wheel Control Interface

• Retains Factory OnStar

• Retains Factory Warning & Safety Chimes

• Retains Factory Backup Camera in Compatible Applications

• Retains Factory Bluetooth on Compatible 2008-Up Vehicles Equipped with Supported OnStar Hardware

• Retains R.A.P. – Retained Accessory Power

• Provides 12-Volt Accessory Power

• Accessory Output Rated up to 10 Amps

• Retains Compatible Rear Seat Entertainment with Optional CRUX-2333A Cable

• Supports Audio / Video Rear Seat Entertainment Retention

• Retains Supported Independently Controlled Dual-Zone Functions

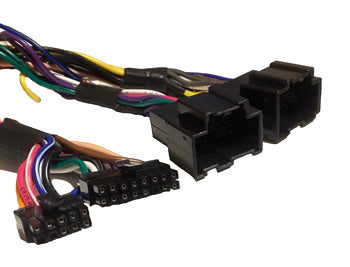

• Color-Coded Wiring for Easier Installation

• Micro-B USB Updatable

• Does Not Retain Factory XM

• 1-Year Manufacturer Warranty

Factory OnStar Retention

The CRUX SOOGM-16 is designed to retain compatible factory OnStar functionality after the original GM radio is replaced with a supported aftermarket receiver.

• Retains Compatible Factory OnStar

• Designed for GM LAN 29-Bit Applications

• Helps Maintain Supported Factory OnStar Functions

• Works with Compatible Bose & Non-Bose Factory Systems

Steering Wheel Control Retention

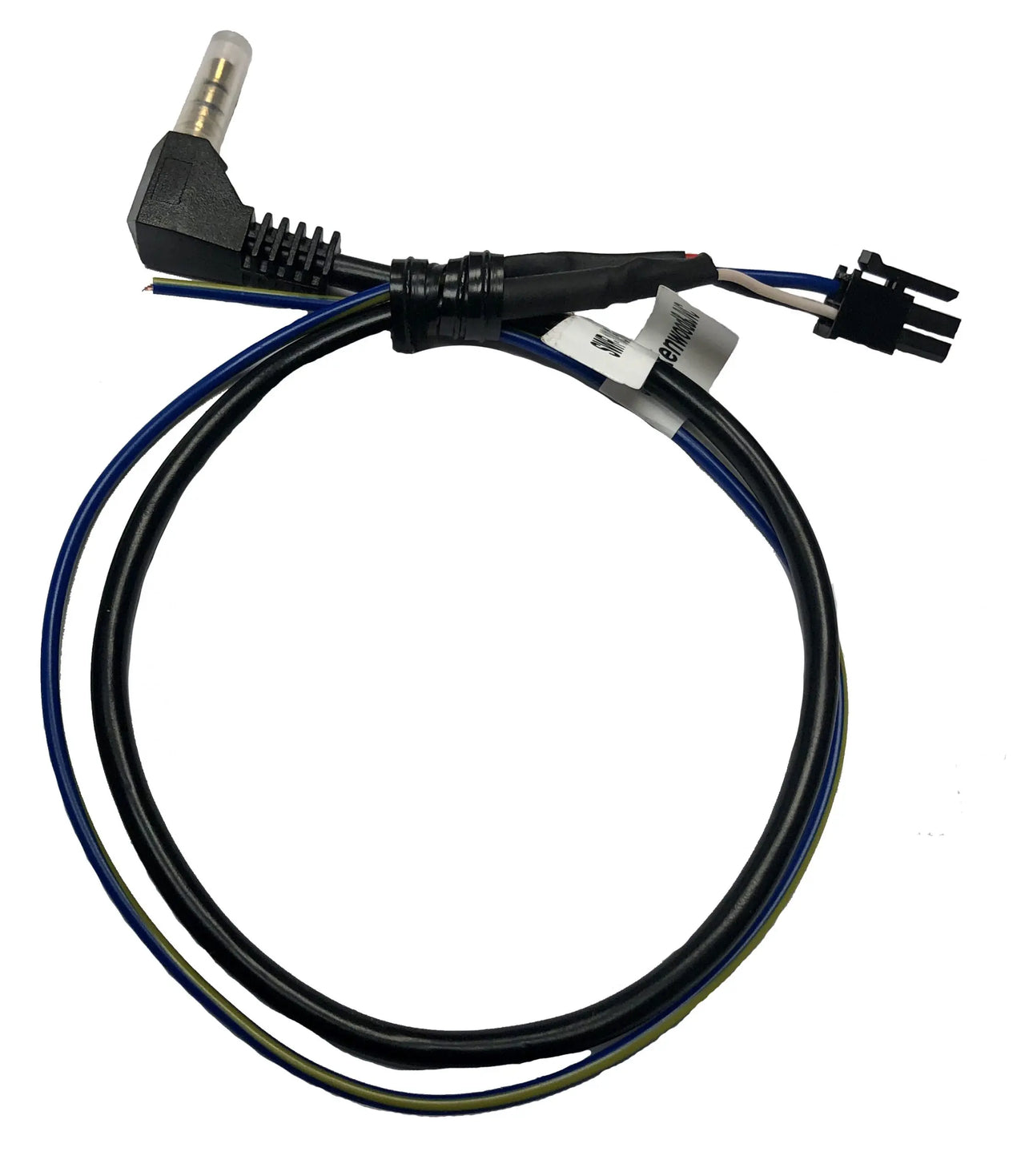

The SOOGM-16 includes a built-in, pre-programmed interface designed to retain compatible factory steering wheel audio controls.

• Built-In Steering Wheel Control Interface

• Pre-Programmed for Compatible Applications

• Retains Compatible Volume Controls

• Retains Compatible Track / Seek Controls

• Retains Other Supported Steering Wheel Audio Functions

• Exact retained functions depend on vehicle and aftermarket radio compatibility

Factory Bluetooth Retention

In compatible 2008-up vehicles equipped with the supported OnStar device, the SOOGM-16 is designed to retain factory Bluetooth functionality.

• Retains Compatible Factory Bluetooth

• Applies to Supported 2008-Up Vehicles

• Vehicle Must Be Equipped with Compatible OnStar Hardware

• Functionality May Vary by Vehicle Configuration

Bose & Non-Bose Audio Compatibility

• Supports Compatible Bose Amplified Systems

• Supports Compatible Non-Bose Systems

• Compatible with Supported Amplified Models

• Compatible with Supported Non-Amplified Models

• Factory Audio Configuration Should Be Verified Before Installation

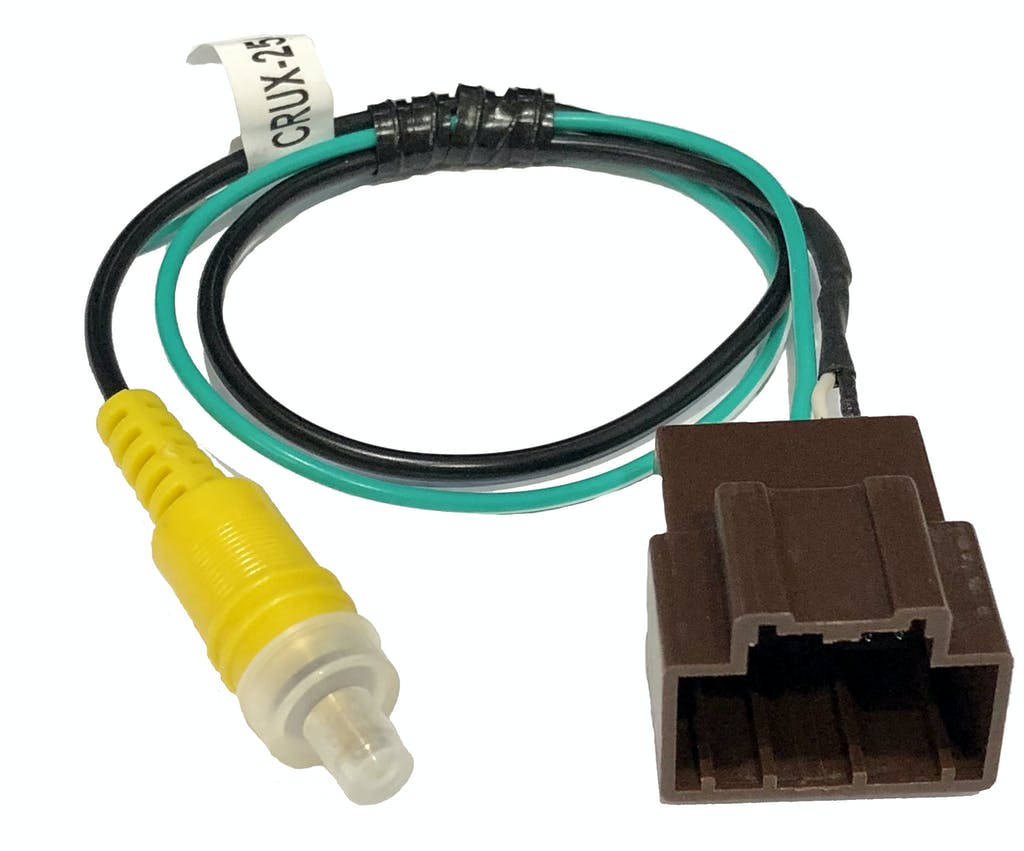

Factory Backup Camera Retention

• Retains Compatible Factory Backup Camera

• Designed to Integrate Factory Camera with Supported Aftermarket Receivers

• Camera Retention Depends on Vehicle & Factory Camera Configuration

Factory Warning Chime Retention

The SOOGM-16 retains compatible factory safety and warning chimes that may otherwise be lost when replacing the original radio.

• Retains Factory Safety Chimes

• Retains Supported Warning Chimes

• Helps Maintain Important Vehicle Audible Alerts

Retained Accessory Power – RAP

• Retains R.A.P. – Retained Accessory Power

• Provides 12-Volt Accessory Power

• Maximum Accessory Output: 10 Amps

• Helps Maintain Normal Aftermarket Radio Accessory Operation

Rear Seat Entertainment Retention

Compatible factory Rear Seat Entertainment audio and video functions can be retained using the optional CRUX-2333A cable.

• Retains Compatible Rear Seat Entertainment

• Supports Factory Audio / Video RSE Functions

• Requires CRUX-2333A Cable

• CRUX-2333A Sold Separately

Dual-Zone Function Retention

• Retains Supported Independently Controlled Dual-Zone Functions

• Functionality Depends on Vehicle & Factory Entertainment Configuration

Factory XM Notice

Factory XM satellite radio is not retained with the CRUX SOOGM-16.

• Does Not Retain Factory XM

• Satellite Radio May Be Added Through a Compatible Aftermarket Receiver and Separate Tuner if Supported

Micro-B USB Updatable

• Micro-B USB Update Port

• Supports Compatible Firmware Updates

• Helps Maintain Interface Compatibility When Updates Are Available

Vehicle Compatibility

Buick Enclave

• 2008-2017 Buick Enclave

Buick Lucerne

• 2006-2011 Buick Lucerne

Cadillac Escalade / ESV / EXT

• 2007-2014 Cadillac Escalade

• 2007-2014 Cadillac Escalade ESV

• 2007-2014 Cadillac Escalade EXT

Cadillac SRX

• 2007-2009 Cadillac SRX

Chevrolet Avalanche

• 2007-2013 Chevrolet Avalanche*

Chevrolet Equinox

• 2007-2009 Chevrolet Equinox

Chevrolet Express

• 2008-2016 Chevrolet Express

Chevrolet Impala

• 2006-2013 Chevrolet Impala

• 2015 Chevrolet Impala

Chevrolet Impala Classic

• 2014 Chevrolet Impala Classic

• 2016 Chevrolet Impala Classic

Chevrolet Monte Carlo

• 2006-2007 Chevrolet Monte Carlo

Chevrolet Silverado

• 2007-2014 Chevrolet Silverado*

• 2014 Chevrolet Silverado HD

Chevrolet Suburban

• 2007-2014 Chevrolet Suburban*

Chevrolet Tahoe

• 2007-2014 Chevrolet Tahoe*

Chevrolet Traverse

• 2009-2017 Chevrolet Traverse

GMC Acadia

• 2007-2016 GMC Acadia

• 2017 GMC Acadia Classic

GMC Savana

• 2008-2017 GMC Savana

GMC Sierra

• 2007-2014 GMC Sierra*

• 2007-2014 GMC Sierra HD

GMC Yukon / Yukon XL

• 2007-2014 GMC Yukon*

• 2007-2014 GMC Yukon XL*

Hummer H2

• 2008-2009 Hummer H2

Pontiac Torrent

• 2007-2009 Pontiac Torrent

Saturn Outlook

• 2007-2010 Saturn Outlook

Saturn Vue

• 2008-2010 Saturn Vue

Suzuki XL7

• 2007-2008 Suzuki XL7

Important Compatibility Notes

• Designed for compatible GM LAN 29-Bit vehicles

• Supports compatible Bose-amplified and non-Bose audio systems

• Retains compatible OnStar, steering wheel controls, warning chimes, backup camera, and retained accessory power

• Retains compatible factory Bluetooth on supported 2008-up vehicles with the required OnStar device

• Factory XM is not retained

• Rear Seat Entertainment retention requires the optional CRUX-2333A cable

• Factory feature retention varies by vehicle, trim, original radio, and audio system

2012-2014 Navigation Compatibility Notice

The supplied product information contains conflicting instructions for certain 2012-2014 applications. One section states to use the CRUX SOOGM-16W for vehicles without navigation, while another states that 2012-2014 vehicles with navigation are not supported and to use SOOGM-16W instead. Because these statements conflict, verify the factory navigation configuration and the correct CRUX interface before ordering.

What's in this Package

• (1) CRUX SOOGM-16 OnStar Radio Replacement Interface with Steering Wheel Control Retention

Installation Notes

• Designed for compatible Buick, Cadillac, Chevrolet, GMC, Hummer, Pontiac, Saturn, and Suzuki applications listed above.

• Provides 12-volt accessory power up to 10 amps.

• Factory OnStar, steering wheel controls, warning chimes, backup camera, and other features are retained only in supported applications.

• Factory XM is not retained.

• The optional CRUX-2333A cable is required for compatible Rear Seat Entertainment audio/video retention.

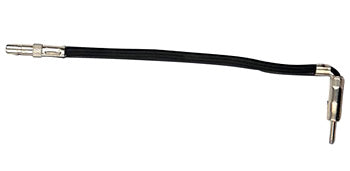

• Additional dash kits, antenna adapters, or radio-specific installation accessories may be required depending on the vehicle.

• Verify vehicle year, model, trim, GM LAN 29-Bit system, factory radio, Bose / non-Bose configuration, navigation system, and aftermarket receiver compatibility before installation.

• Professional installation is recommended.

• Your supplied title states 2006-2017, while one General Features line states 2006-2020. The detailed compatibility list provided reaches 2017, so the vehicle-specific application list above should be used for fitment.
