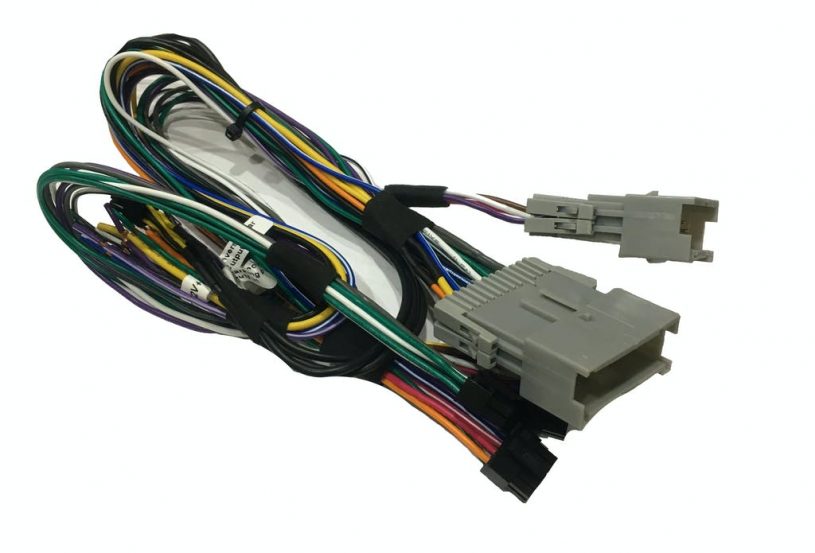

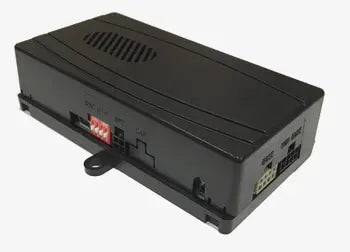

CRUX SOOGM-15 OnStar Radio Replacement Interface with Steering Wheel Control Retention Compatible Fit Select GM Class II Vehicles with Bose & Non-Bose Systems

Replace the factory radio in select General Motors Class II Data-Bus vehicles while retaining compatible OnStar, factory warning chimes, retained accessory power, steering wheel controls, and supported factory audio functions with the CRUX SOOGM-15. Designed for compatible amplified and non-amplified GM systems, the interface supports non-Bose, standard Bose, and Y-91 Bose audio configurations while providing useful navigation and vehicle outputs for aftermarket multimedia receivers.

General Features

• CRUX SOOGM-15 Radio Replacement Interface

• Designed for Select General Motors Class II Data-Bus Vehicles

• Designed for Aftermarket Car Stereo Installation

• Retains Compatible Factory OnStar

• Retains Factory Warning Chimes

• Retains Compatible Factory Steering Wheel Controls

• Pre-Programmed Steering Wheel Control Interface

• Supports Vehicles with Compatible Digital SWC Signals

• Supports Non-Bose Audio Systems

• Supports Standard Bose Systems

• Supports Y-91 Bose Amplified Systems

• Compatible with Amplified & Non-Amplified Applications

• Retains R.A.P. – Retained Accessory Power

• Provides 12-Volt Accessory Power

• Accessory Output Rated up to 4 Amps

• Provides Parking Brake Output

• Provides Reverse Gear Output

• Provides Vehicle Speed Signal (VSS)

• Retains Balance

• Retains Front / Rear Fade in Supported Systems

• Micro-B USB Updatable

• 1-Year Manufacturer Warranty

Factory OnStar Retention

The CRUX SOOGM-15 is designed to retain compatible factory OnStar functionality after replacing the original GM radio with a supported aftermarket receiver.

• Retains Compatible Factory OnStar

• Designed for GM Class II Data-Bus Vehicles

• Maintains Supported OnStar Audio Integration

• OnStar Audio Output Defaults to Low Gain

• OnStar service availability depends on vehicle equipment and service status

Factory Warning Chime Retention

The SOOGM-15 retains supported warning chimes that may otherwise be lost when the factory radio is removed.

Retained Chimes Include

• Seat Belt Warning

• Check Engine Alert

• Key-in-Ignition Warning

• Low Fuel Warning

• Low Oil Warning

• Lights-On Warning

Steering Wheel Control Retention

The interface is pre-programmed to retain compatible factory steering wheel audio controls in vehicles using supported digital steering wheel control signals.

• Built-In SWC Retention

• Pre-Programmed for Compatible Applications

• Retains Compatible Volume Controls

• Retains Compatible Track / Seek Controls

• Retains Other Supported Steering Wheel Audio Functions

• Exact functions depend on vehicle and aftermarket receiver compatibility

Bose & Non-Bose Audio Compatibility

The SOOGM-15 supports multiple factory GM audio configurations.

• Compatible with Non-Bose Systems

• Compatible with Standard Bose Systems

• Compatible with Y-91 Bose Systems

• Supports Amplified Applications

• Supports Non-Amplified Applications

• Retains Balance in Supported Systems

Y-91 Bose System Note

Front-to-rear fading is not retained when the interface is used with the Y-91 Bose audio system.

• Y-91 Bose Systems Supported

• Front / Rear Fade Not Retained with Y-91 Bose

• Balance and other retained functions may depend on vehicle configuration

Retained Accessory Power – RAP

• Retains R.A.P. – Retained Accessory Power

• Provides 12-Volt Accessory Power

• Maximum Accessory Output: 4 Amps

• Helps Maintain Normal Aftermarket Radio Accessory Operation

Navigation & Vehicle Outputs

The SOOGM-15 provides vehicle signals commonly required by compatible aftermarket navigation and multimedia receivers.

• Parking Brake Output

• Reverse Gear Output

• Vehicle Speed Signal (VSS)

• Useful for Compatible Navigation Receivers

• Useful for Compatible Backup Camera Integration

Micro-B USB Updatable

• Micro-B USB Update Port

• Supports Compatible Firmware Updates

• Helps Maintain Interface Compatibility When Updates Are Available

Vehicle Compatibility

Buick Century

• 2004-2005 Buick Century

Buick LaCrosse

• 2005-2007 Buick LaCrosse

Buick Rainier

• 2004-2007 Buick Rainier

Buick Rendezvous

• 2003-2007 Buick Rendezvous

Buick Terraza

• 2005-2007 Buick Terraza

Cadillac Escalade

• 2004-2006 Cadillac Escalade

Chevrolet Avalanche

• 2003-2006 Chevrolet Avalanche

Chevrolet Cavalier

• 2000-2005 Chevrolet Cavalier

Chevrolet Colorado

• 2004-2011 Chevrolet Colorado

Chevrolet Express

• 2004-2007 Chevrolet Express

Chevrolet Impala

• 2000-2005 Chevrolet Impala

Chevrolet Malibu

• 2001-2003 Chevrolet Malibu

Chevrolet Monte Carlo

• 2000-2005 Chevrolet Monte Carlo

Chevrolet S-10

• 2003-2004 Chevrolet S-10

Chevrolet Silverado

• 2003-2006 Chevrolet Silverado

• 2007 Chevrolet Silverado Classic

Chevrolet SSR

• 2003-2006 Chevrolet SSR

Chevrolet Suburban

• 2003-2006 Chevrolet Suburban

Chevrolet Tahoe

• 2003-2006 Chevrolet Tahoe

Chevrolet TrailBlazer

• 2002-2009 Chevrolet TrailBlazer

Chevrolet Uplander

• 2005-2008 Chevrolet Uplander

Chevrolet Venture

• 2003-2005 Chevrolet Venture

GMC Canyon

• 2004-2011 GMC Canyon

GMC Envoy

• 2002-2009 GMC Envoy

GMC Savana

• 2003-2007 GMC Savana

GMC Sierra

• 2003-2006 GMC Sierra

• 2007 GMC Sierra Classic

GMC Yukon / Yukon XL

• 2003-2006 GMC Yukon

• 2003-2006 GMC Yukon XL

Hummer H2

• 2003-2007 Hummer H2

Hummer H3

• 2005-2010 Hummer H3

Isuzu Ascender

• 2003-2008 Isuzu Ascender

Oldsmobile Alero

• 2001-2004 Oldsmobile Alero with RDS Radio

Oldsmobile Bravada

• 2002-2004 Oldsmobile Bravada

Oldsmobile Silhouette

• 2000-2004 Oldsmobile Silhouette

Pontiac Aztek

• 2001-2005 Pontiac Aztek

Pontiac Grand Am

• 2001-2005 Pontiac Grand Am

Pontiac Grand Prix

• 2004-2008 Pontiac Grand Prix

Pontiac Montana

• 2000-2006 Pontiac Montana

Pontiac Sunfire

• 2000-2005 Pontiac Sunfire

Saab 9-7X

• 2005-2008 Saab 9-7X

Saturn Relay

• 2005-2007 Saturn Relay

Important Compatibility Notes

• Designed for compatible GM Class II Data-Bus vehicles

• Supports compatible Non-Bose, Standard Bose, and Y-91 Bose systems

• Retains compatible factory OnStar functionality

• Retains supported factory warning chimes

• Retains steering wheel controls in supported vehicles using digital SWC signals

• Front / rear fading is not retained on Y-91 Bose systems

• OnStar volume output defaults to low gain

• Factory feature retention varies by vehicle, factory radio, and audio configuration

What's in this Package

• (1) CRUX SOOGM-15 OnStar Radio Replacement Interface with Steering Wheel Control Retention

Installation Notes

• Designed for the compatible Buick, Cadillac, Chevrolet, GMC, Hummer, Isuzu, Oldsmobile, Pontiac, Saab, and Saturn applications listed above.

• Accessory output is rated up to 12 volts / 4 amps.

• Parking brake, reverse, and vehicle speed outputs are provided for compatible aftermarket receivers.

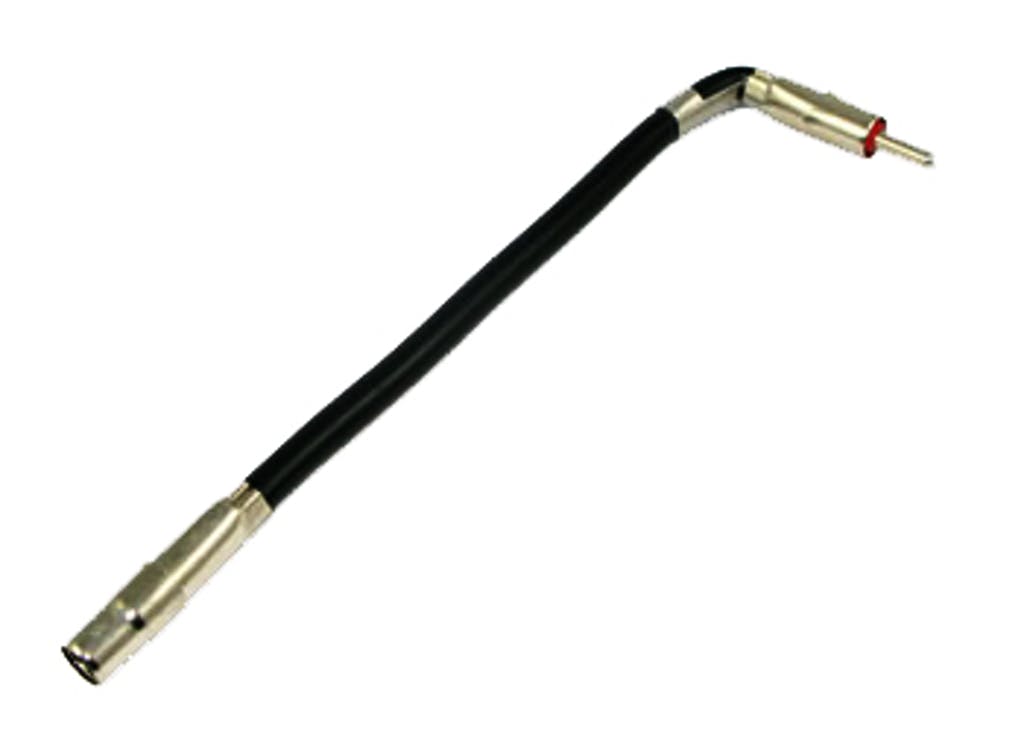

• Additional dash kits, antenna adapters, or radio-specific installation accessories may be required depending on the vehicle.

• Verify vehicle year, model, trim, Class II Data-Bus system, Bose / non-Bose configuration, OnStar equipment, and aftermarket radio compatibility before installation.

• Professional installation is recommended.

• Your supplied title says 2000-2013, while the detailed application list provided extends only as far as 2011 for the vehicles shown. The supplied General Features also mention 2000-2023, which conflicts with the detailed fitment list. I used the detailed compatibility list above rather than extending fitment beyond the specific applications provided.
