Crunch GP-2000.2 GROUND POUNDER with QTD Technology delivers 2000 watts to subwoofers and includes built-in electronic crossovers.
General Features:
-
Low Noise Preamplifier Circuit
Maximum low voltage signal from the source unit comes into the amplifier through a low voltage circuit which delivers minimal distortion through the amplification process. -
RCA Inputs
Highest sound quality connection with quality RCA materials helps prevent interference and minimize distortion in the signal path. -
High Level Inputs
Easily tie into OEM audio systems that do not offer RCA output to maximize after market amplifier power. -
Operation Mode
Stereo, Bridged Mono or Stereo/Bridged Mono Simultaneously -
Crossover Type
Variable Electronic 12dB Per Octave -
Electronic Equalizer
Fully Adjustable 12dB Crossovers -
Class / Topology
Class A/B: High sound quality circuit that allows POWER DRIVE to develop high levels of power with minimal distortion. -
Output Device Technology
Exclusive Crunch SPEED-FET MOSFET components maximize power efficiency while improving sound quality and minimizing distortion. -
Heat Sink
QTD Technology Aluminum: Quick Thermal Dispersion Technology assures additional mass in the aluminum heat sink keeps the amplifier running cool with nearly undetectable distortions during normal music listening. -
Power Supply
High energy Pulse Width Modulated Power Supply delivers power with minimal impact on the electrical system. -

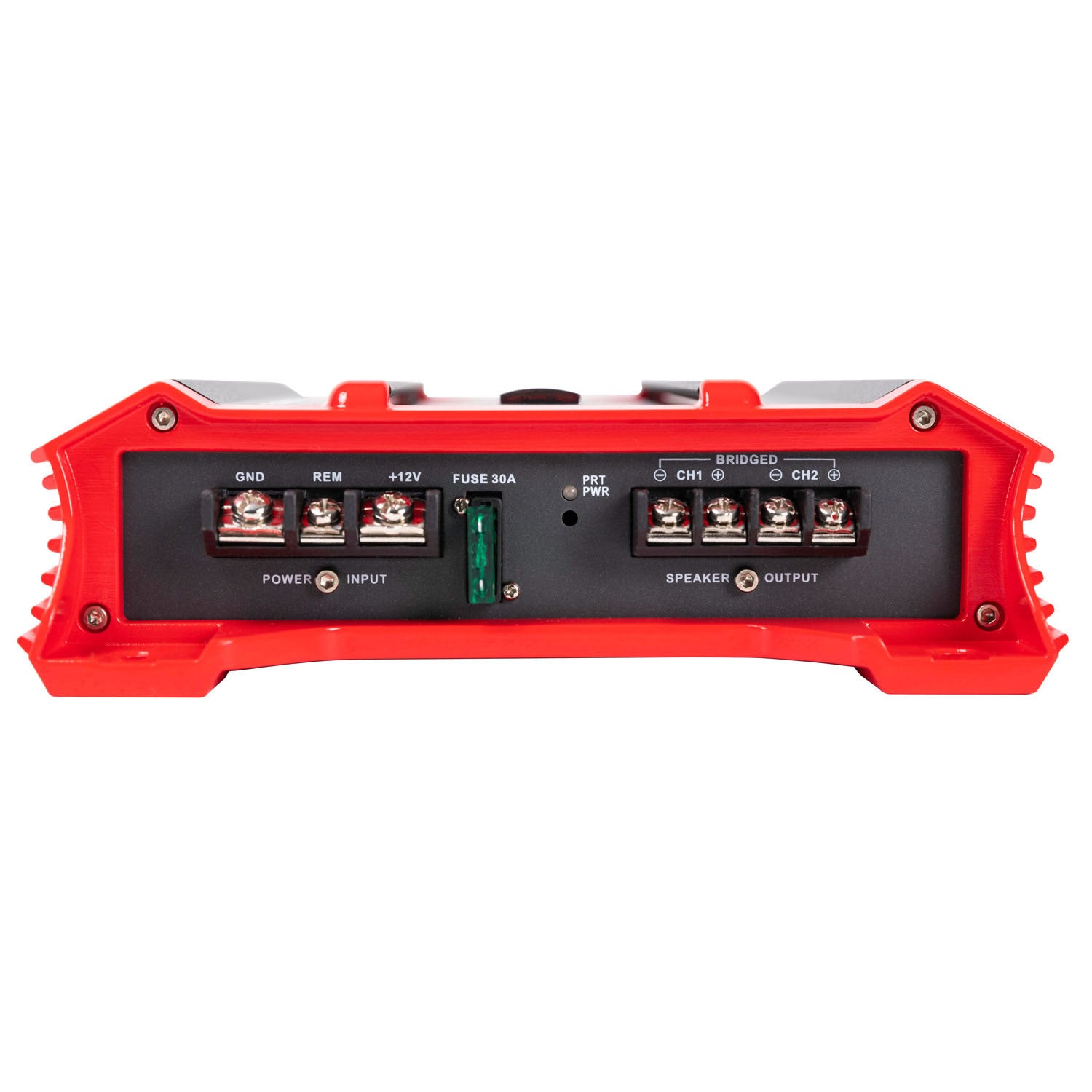

Output Connections
Nickel Plated Brass Connection with terminals allow for secure connection while resisting corrosion. -
Connection Type
Screw Down Connectors: Easy access for hand tool allowing a quick and secure connection. -
LED System Protection Circuitry Diagnostics
Monitor overload and speaker short protection with lighted indicators on the amplifier end panel.
Specifications:
-
Type
Amplifier -
Brand
Crunch -
Series
GROUND POUNDER -
Category
Mobile -
Condition
New -
Color
Black/Red -
Model Replaced
PD-2000.2 -
Warranty
1 Year -
Compatible Vehicles
Universal -
Amp Class
Class A/B -
Amp Total Channels
2 -
Amp Max Power (watts)
2000 -
Amp Power @ 2 Ohms (ch x watts)
2 x 1000 -
Amp Power @ 4 Ohms (ch x watts)
2 x 500 -
Amp Mono Bridged @ 4 Ohms (ch x watts)
1 x 2000 -
Amp Crossover
Variable Electronic 12dB Per Octave -
Amp Tone Control / Parametric EQ
Built-in Bass Control -
Amp Bass Boost
Switchable: 0/+6/+12dB -
Amp Variable Voltage
0.2-9V -
Amp Frequency Response
10Hz-22kHz -
Amp Speaker Level Audio Inputs
Yes -
Amp Power Terminal 12v/GND
4 AWG -
Amp Speaker Terminal Wire Gauge
12 AWG -
Amp Fusing
30A
