Mackie DL16SE 16-Channel Digital Rack Mixer

Mackie DL16SE 16-Channel Digital Rack Mixer

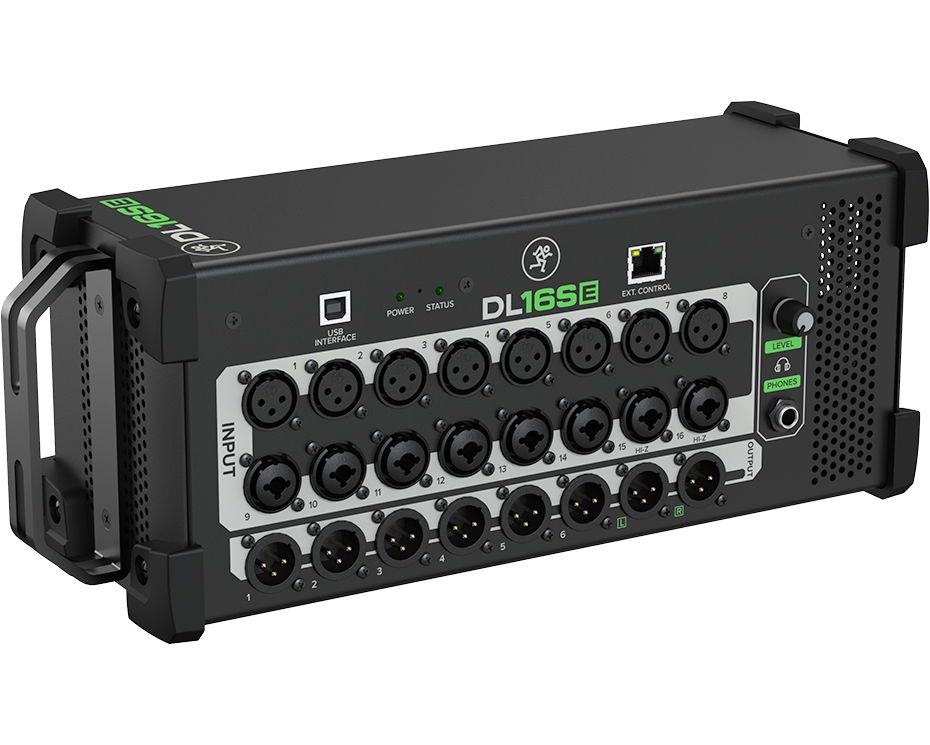

The Mackie DL16SE digital mixer delivers proven mixing power with legendary Onyx+ mic preamps in a stage-friendly, rack-mountable design. Just connect to your wireless router and take total control with the intuitive Master Fader SE app.

Command Your Mix

The Mackie DL16SE digital mixer delivers proven mixing power with legendary Onyx+ mic preamps in a stage-friendly, rack-mountable design made to withstand real-world abuse. Connect to your wireless router and get mixing quickly with the industry-leading, multi-platform Master Fader SE app. Create stunning multitrack recordings and get playback for a virtual soundcheck via USB I/O. Loaded with per-channel and output DSP plus 4 FX processors, DL16SE gives you all the mixing power you need for proven professional sound.

Master Fader SE

Master Fader SE is the main user interface for your DL16SE and DL32SE digital mixer. Rather than knobs, faders and buttons on a large piece of hardware, you get powerful mixing tools on your tablet, Mac or PC — up to 20 different devices simultaneously. The proven design of the Master Fader SE app makes managing your mix, large or small, easy and efficient. Organize your channels with view and mute groups, utilize subgroups with full bus processing, control levels of channel groups simply with VCAs, and even lock out devices from specific capabilities within the app. And when you get a mix you like, you can save it all into a snapshot.

Powerful Processing

From EQ to compression, every bit of signal processing is implemented with the highest quality possible to maintain the fidelity of each source. Every channel and output bus gets its own dedicated processing.

The 4-band parametric EQ on each channel and output features a dedicated high-pass filter (plus low-pass on the outputs), modern and vintage modes, and built-in RTA for maximum versatility and detailed analysis of each source. The clear UI makes it easy to make adjustments, view settings and choose presets.

Each FX processor features tons of studio-quality reverbs and delays plus effects like chorus, tremolo, flanger and sweep filter. Fine tune each effect with advanced parameters and EQ — and since each processor has its own send and return, you won’t use up any other busses.

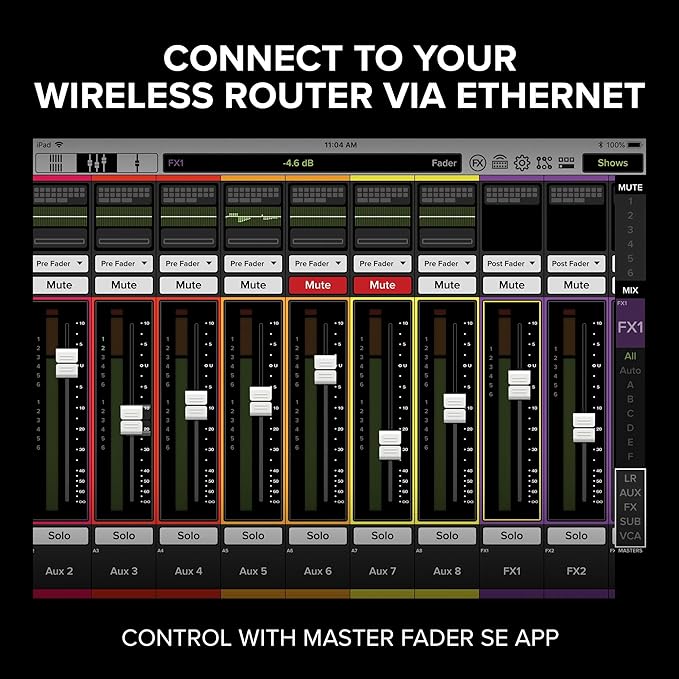

CONNECT TO YOUR WI-FI ROUTER OF CHOICE

Connect Mackie DL16SE or DL32SE to a wireless router and control via Master Fader SE on up to 20 different iOS, Android, macOS and Windows devices at once. Wireless control also means you can put the mixer and router where it makes the most sense for application, while judging the sound from anywhere on the floor.

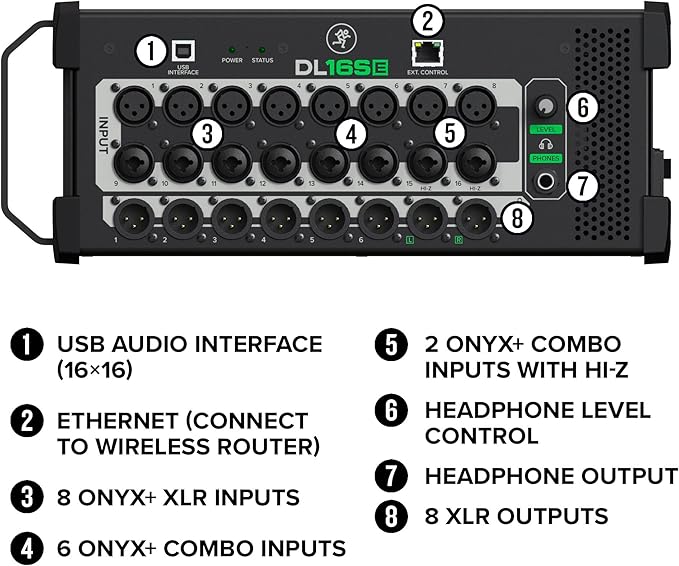

General Features:

MAIN FEATURES

• Convenient stagebox/rack design with built-in handle

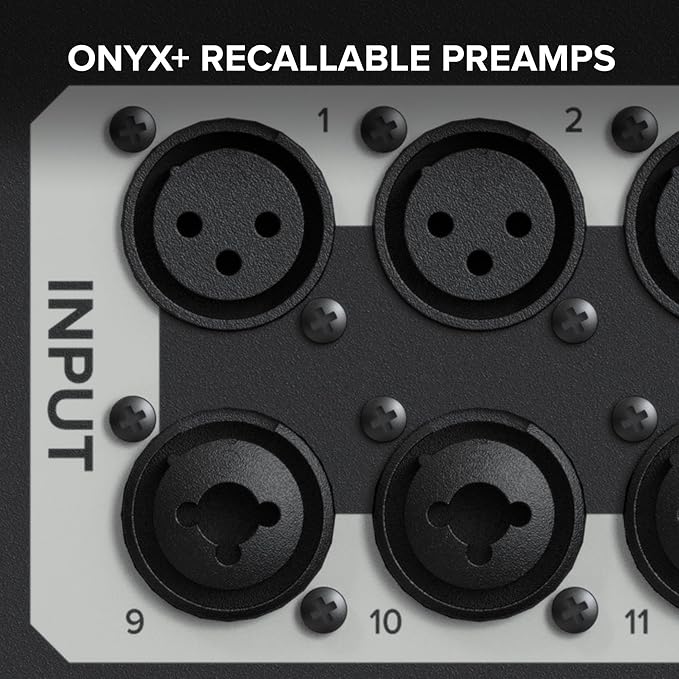

• 16 input channels with Onyx+ preamps (8 XLR, 8 XLR/TRS combo with 2 Hi-Z)
• 8 fully assignable XLR outputs plus headphone output
• Connect to your wireless router and control with Master Fader SE app
• Per-channel EQ, filters, gate, compression and RTA/Spectrograph
• 4 stereo FX busses with studio-quality reverbs, delays, chorus and more

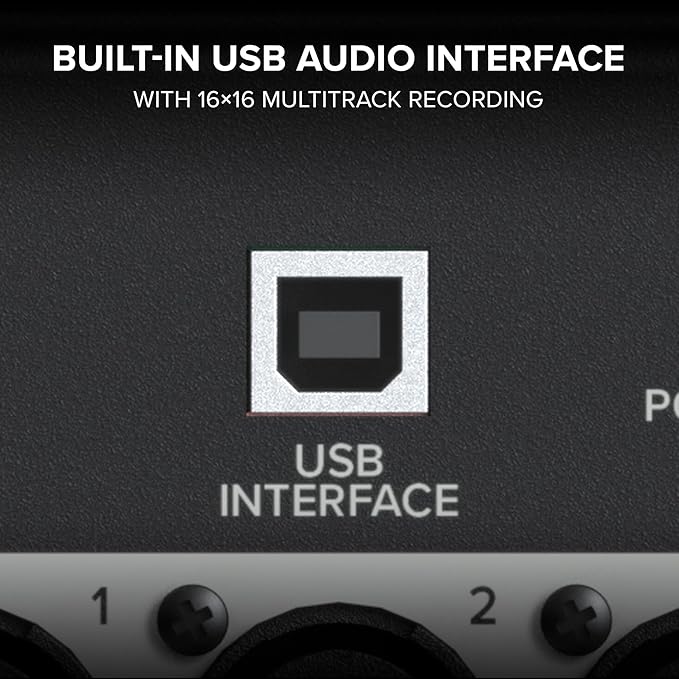

• Multitrack 16x16 USB audio interface for recording and playback
• Waveform OEM professional software and plugins included

WIRELESS MIXING

• Take complete control via iOS, Android, macOS or Windows devices
• No set FOH position — mix from anywhere
• Control from up to 20 separate devices at once
• Access Limiting allows performers to control their own monitor mixes without giving access to critical mixer functionality
• Universal Ethernet connection supports your wireless router of choice

POWERFUL PROCESSING & ROUTING

• 16 preamps with 4-band PEQ + HPF, gate, compression and RTA/Spectrograph
• 16 stereo-linkable input channels plus stereo return channel
• 8 output busses with 4-band PEQ + HPF/LPF, 31-band GEQ, comp/limiter, alignment delay and RTA/Spectrograph
• 6 stereo-linkable aux sends
• 6 stereo-linkable subgroups
• Main L/R bus
• 6 VCAs and 6 mute groups
• 4 stereo FX processors featuring studio-quality reverbs, delays, choruses, flangers and many more with dedicated sends and returns
• Full I/O routing with A/B sources per channel
• Assignable oscillator including pink/white noise and sine waves
• Modern and Vintage options for comp/gate and EQ

MULTITRACK RECORDING & PLAYBACK

• 16x16 USB 2.0 audio interface for Mac or PC
• Record the show for later mixdown
• Perform a virtual sound check
• Play intermission music, backing tracks and more directly into a dedicated stereo return channel
• Flexible, low-cost studio recording solution
• Utilize Mac or PC audio plug-ins in a live environment

MASTER FADER SE CONTROL APP

• Intuitive and easy to master
• Fast navigation with view groups and overview
• Quick setup with tons of factory and user-definable presets
• Access Limiting allows flexible customization of the user interface and prevents unwanted adjustments from other users
• Quickly access channel processing, signal routing and a massive suite of great sounding effects with presets to get you started
• Export presets, shows and complete system backups via Dropbox, email and more
• Set up the show before you arrive at the venue with offline show creation
• Available on iOS, Android, macOS and Windows

RECORD & PRODUCE LIKE A PRO

• Waveform™ OEM professional software and plugin packages included
• The DAW Essentials™ Bundle for Waveform OEM includes 16 powerful plugins like Equalizer, Compressor, Reverber8 and Limiter
