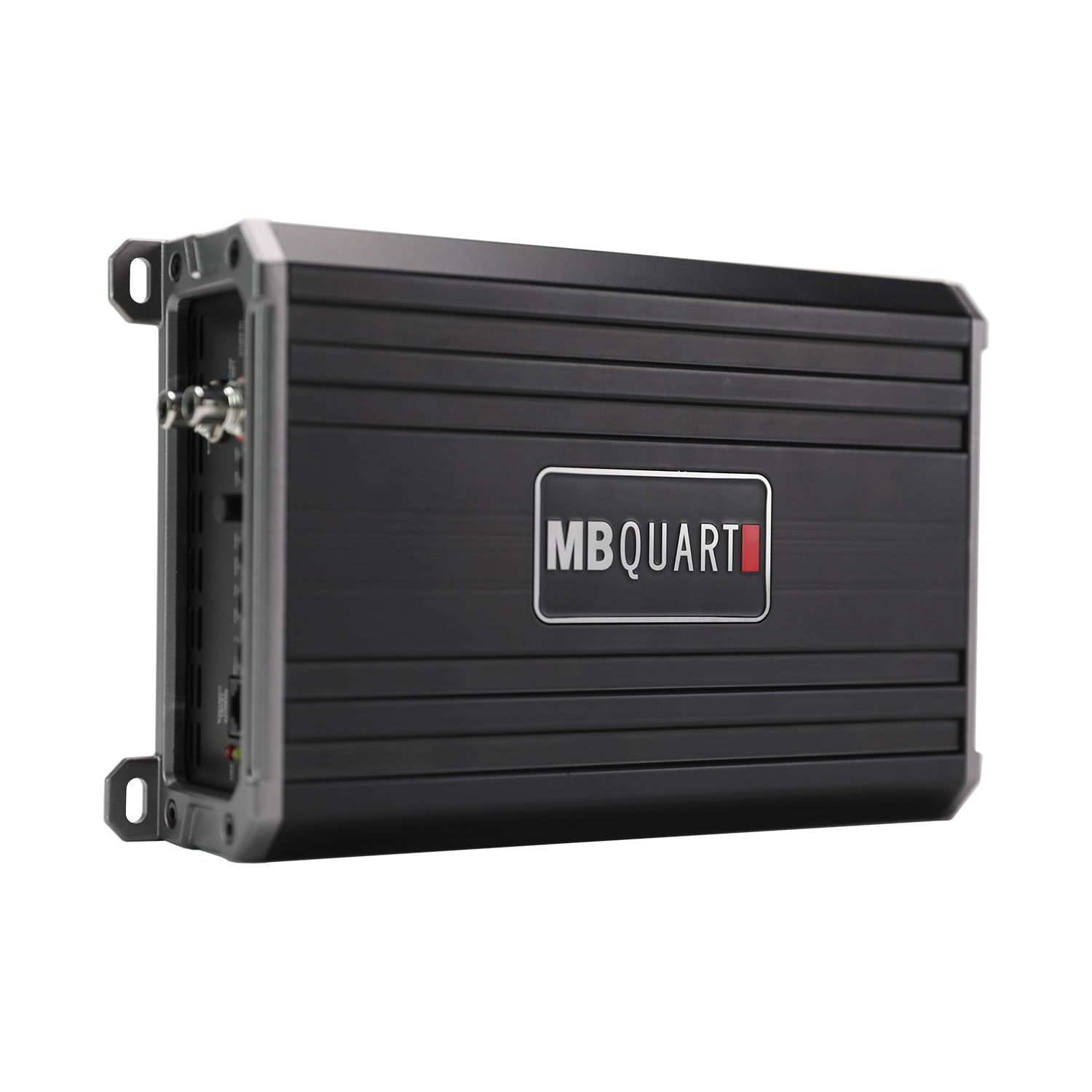

MB Quart PA1-3000.1 Premium Pro 3000 watt mono-block subwoofer amplifier designed to produce higher power output in an efficient form factor. Bass remote included.
General Features:
-
Low Noise Preamplifier Circuit
Engineered pre-amplifier stage reduces incoming noise from source units and dramatically improves sound quality. -

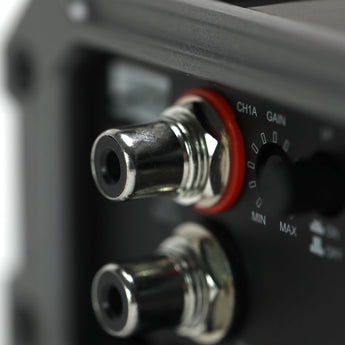

RCA Inputs
1 pair tiffany style nickel-plated RCA jacks create an efficient connection that is corrosion-resistant. -
High Level Inputs
Easily tie into OEM audio systems that do not offer RCA output to maximize after market amplifier power. -
Operation Mode
Mono operation: Designed to power 1 subwoofer or subwoofer system. -
Crossover Type
Switch LPF On / Off: Complete control of amplifier signal, essential when using two or more amplifiers. -
Class / Topology
Full Range Class D: Highly efficient circuit topology which helps the amplifer develop a lot of power in a very small heatsink. -
Output Device Technology
PWM MOSFET Power Supply: Stable power through the PC board with minimal heat generation. -
Heat Sink

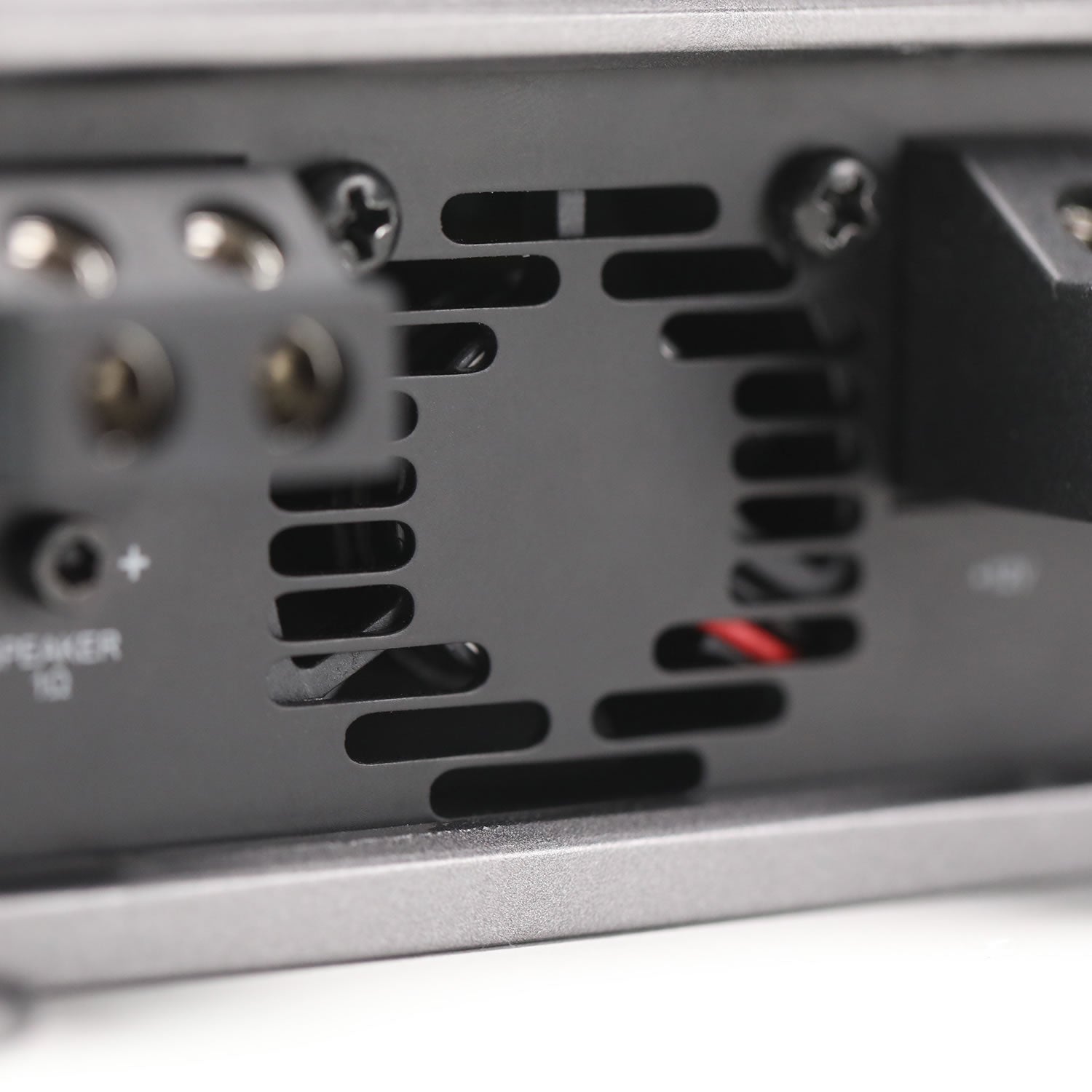

Extruded aluminum heat sink paired with built in fans quickly dissapates heat to allow the amplifer to run lower impedance for longer duration. -
Power Supply
MOSFET Pulse Width Modulation power supply that allows the amplifier to produce efficient power without taxing the electrical system. -

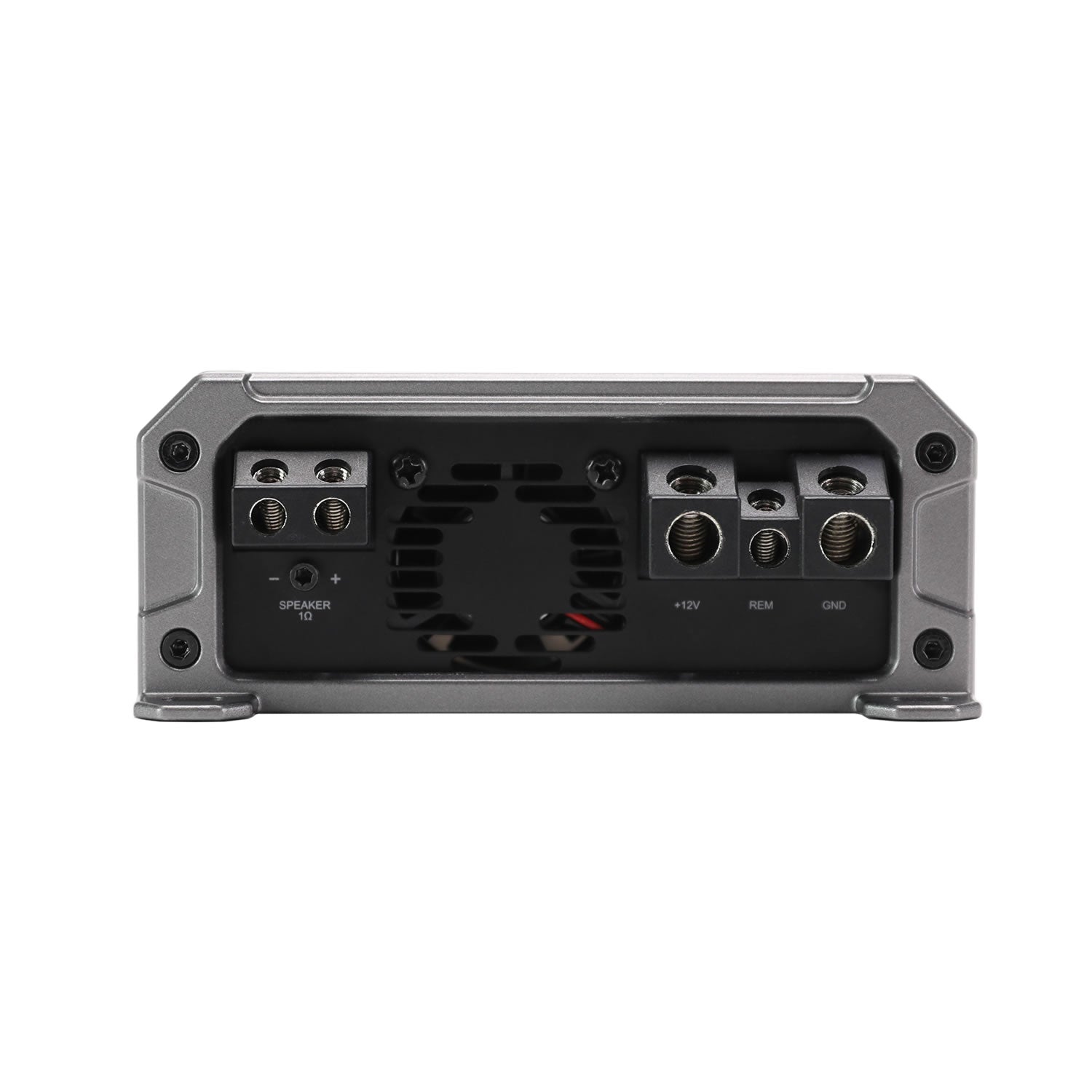

Output Connections
Heavy duty output terminals allows for secure connection so electrical signal can pass into wiring and resist corrosion. -
Connection Type
Nickel plated corrosion resistant connections. -
LED System Protection Circuitry Diagnostics
Three-stage protection circuits: Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel. -

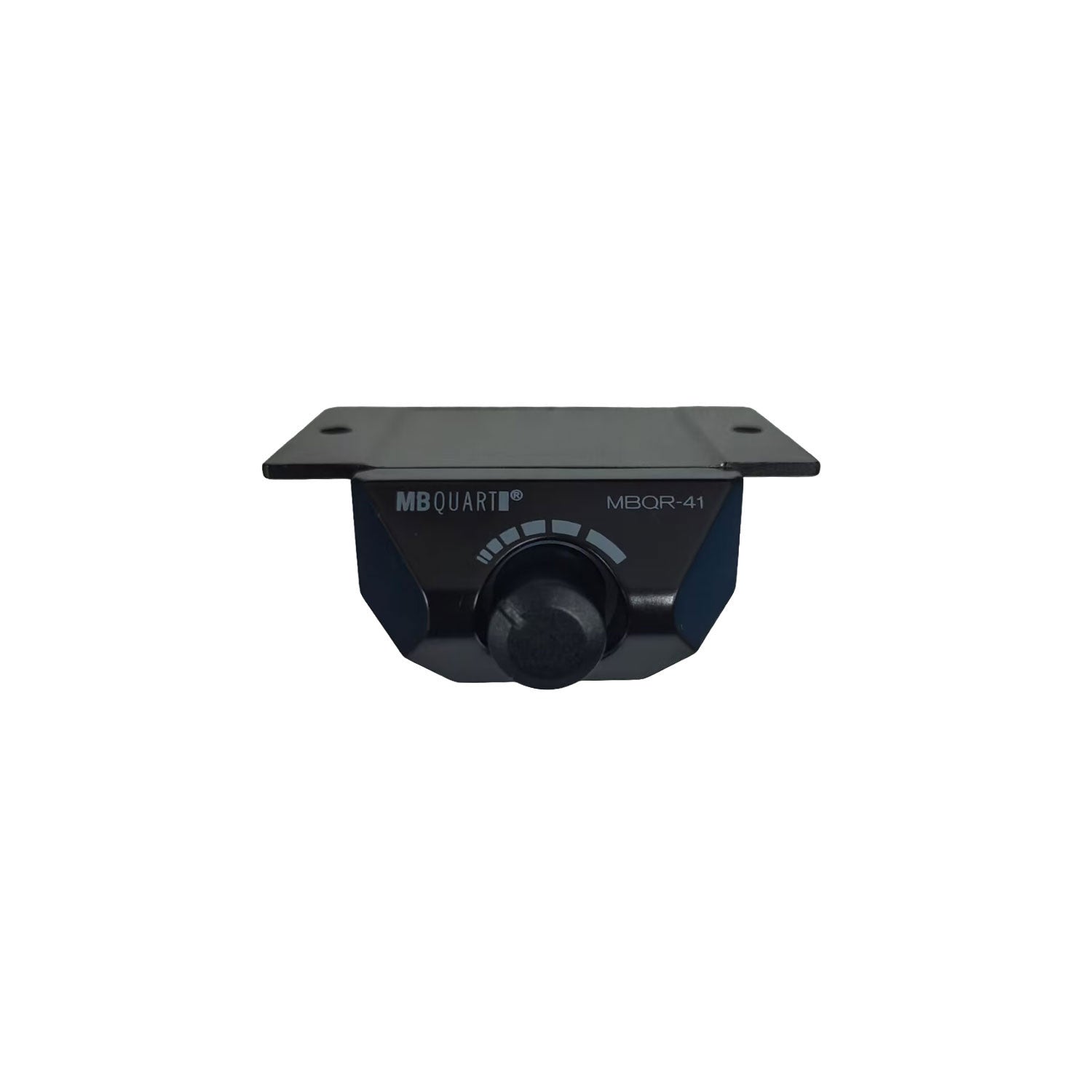

Bass Remote Included
Included: Wired Bass Remote allows adjustments to gain level to be made from the control mounted anywhere in the vehicle.
Specifications:
-
Type
Amplifier -
Brand
MB Quart -
Series
Premium -
Category
Mobile -
Condition
New -
Color
Black -
Warranty
1 Year -
Compatible Vehicles
Universal -
Amp Class
Full Range Class D -
Amp Total Channels
Mono -
Amp Max Power (watts)
3000 -
Amp Power @ 1 Ohm (ch x watts)
1 x 3000 -
Amp Power @ 2 Ohms (ch x watts)
1 x 1500 -
Amp Power @ 4 Ohms (ch x watts)
1 x 1000 -
Amp Crossover
Variable Electronic 12dB Per Octave, Switched LPF On/Off -
Amp Variable Low Pass Crossover 12dB per Octave
50Hz-500Hz -
Amp Tone Control / Parametric EQ
Built-in Bass Control -
Amp Bass Boost
0-12dB -
Amp Subsonic Filter
5Hz-40Hz -
Amp Variable Voltage
High: 2.9-40V, Low: 0.3-5.5V -
Amp Signal to Noise
> 102dB -
Amp Frequency Response
10Hz-30kHz -
Amp Total Harmonic Distortion (THD)
1.0% -
Amp Speaker Level Audio Inputs
Yes -
Amp Power Terminal 12v/GND
4 AWG -
Amp Speaker Terminal Wire Gauge
8 AWG -
Amp Fusing
External 250A
