Hifonics BRUTUS BRL6000.1 mono block amplifier delivering 6000 watts RMS with a built-in VU meter and Intelligent Power Management System.
General Features:
-
Ultra-High Efficient Design
A thoughtful power supply design coupled with carefully selected parts results in ultra-high efficient amplifier. -
Half Bridge Design
A more efficient design with fewer components results in higher power output. -
Ultra-Low EMI Design
Minimal interface with other vehicle electronic systems. -
Mass-Loaded Heat Sink
The mass-loaded extruded aluminum heat sink results in better thermal management and output performance. -
High-End Preamplifier Circuit
Accepts a wider range of input signals. -
RCA Inputs
Nickel-plated RCA jacks create an efficient connection that is corrosion-resistant. -
High Tolerance Output Device
Ultra-Fi MOSFETS are designed for high output power and thermal dissipation through a proprietary coupling method. -
Operation Mode
Mono only -
Clean Board Construction
Multi-layer printed circuit boards (PCB) with surface mount components require fewer parts and result in a cleaner design. -
Class / Topology
BRL amplifiers feature a Class-D chipset, making them more efficient and allowing for a wide frequency range. -
Power Supply
Iron core transformer assists in the ultra-low EMI design while providing high power at an unmatched value. -
Delayed Turn-On Function
Ensures compatibility with a wide range of source units to eliminate any unwanted turn-on/off noises like hisses and pops. -
Connection Type
Secure molded connection terminal for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire mangement profile. -
Stylized Badging

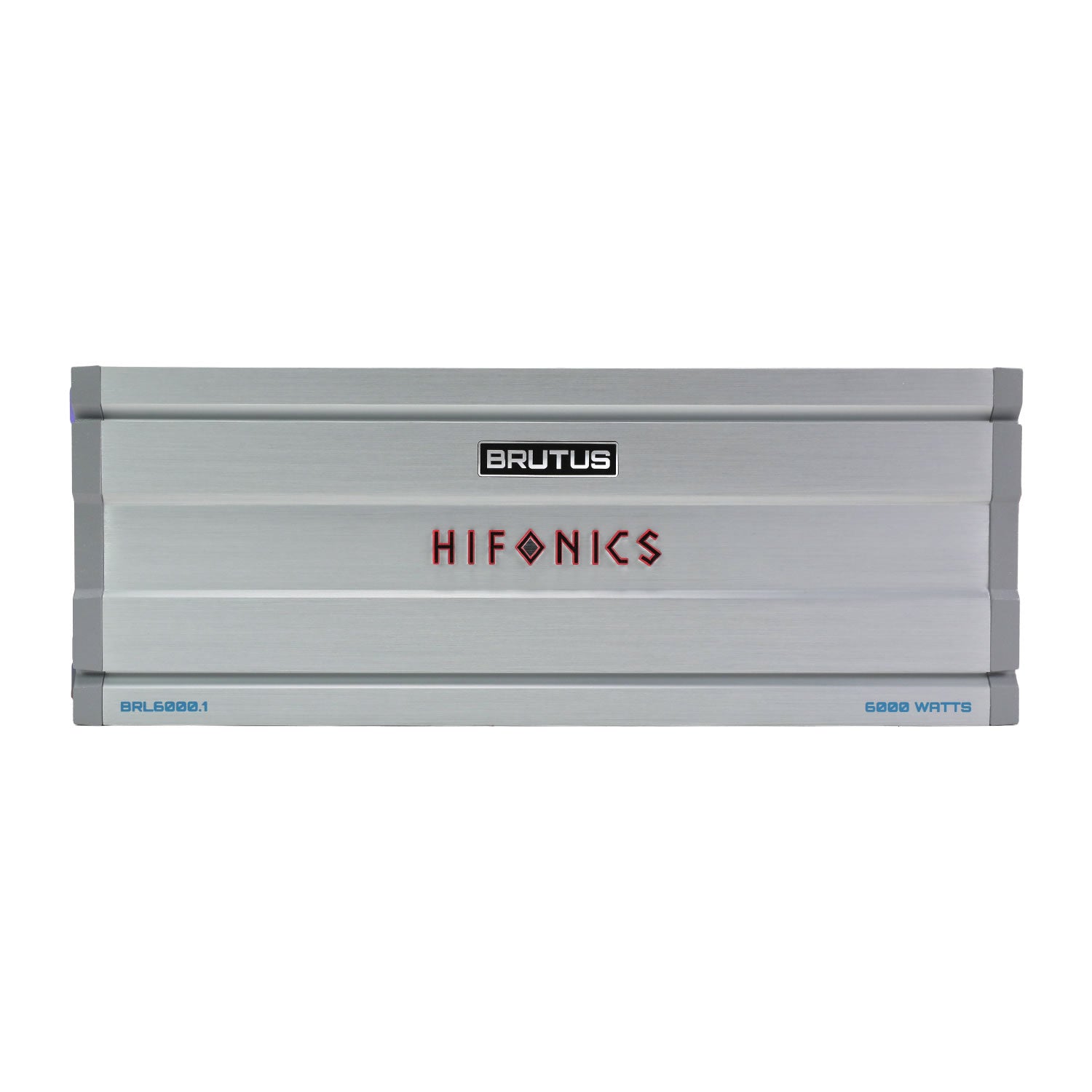

Switch between full constant blue LED lights, VU Meter mode, or full off. When switched to VU Meter mode, the amplifier’s logo reflects the audio level, making it useful for gain adjustment. -
Triple Protection Circuits
Over/under voltage, short circuit, overcurrent, and thermal protection circuits are built-in safe guards to protect your audio system and vehicle under most circumstances. -
Bass Remote Included
The included bass remote on mono models allows you to adjust the bass level relative to the setting on the amplifier’s end panel. The LED indicator light displays green when the amplifier is powered on and red if the amplifier enters protect.
Specifications:
-
Type
Amplifier -
Brand
Hifonics -
Series
BRUTUS BRL -
Category
Mobile -
Condition
New -
Color
Black -
Warranty
1 Year -
Compatible Vehicles
Universal -
Amp Class
Super D Class™ -
Amp Total Channels
1 -
Amp Max Power (watts)
6000 -
Amp Power @ 1 Ohm (ch x watts)
1 X 6000 -
Amp Power @ 2 Ohms (ch x watts)
1 x 4200 -
Amp Power @ 4 Ohms (ch x watts)
1 x 2400 -
Amp Crossover
Variable Electronic 12dB Per Octave -
Amp Variable High Pass Crossover 12dB per Octave
15Hz-1KHz -
Amp Variable Low Pass Crossover 12dB per Octave
50Hz-10KHz -
Amp Tone Control / Parametric EQ
Built-in Bass Control -
Amp Bass Boost
0-12dB -
Amp Variable Voltage
0.2-9V -
Amp Signal to Noise
101dB -
Amp Frequency Response
10Hz-10kHz -
Amp Total Harmonic Distortion (THD)
< 0.5% -
Amp Power Terminal 12v/GND
0 AWG -
Amp Speaker Terminal Wire Gauge
12 AWG -
Amp Fusing
External 500A
