Axxess
Axxess AXLOC-HN3 2-Channel line Output Converter - Fits Honda 2016-Up
Pickup available at 1800 E Washington Blvd
Usually ready in 24 hours
Have Questions?
- Tel: +1 213 744 11 44
- Tel: +1 800 674 27 24
Brand: Axxess
Description
Axxess AXLOC-HN3 2-Channel Line Output Converter with T-Harness for Select 2016-Up Honda Vehicles – Non-Amplified Systems
Add an aftermarket amplifier to a compatible factory Honda audio system without replacing the original radio using the Axxess AXLOC-HN3 vehicle-specific 2-channel line output converter. The included T-harness connects to the factory system and provides two channels of low-level audio output to power speakers or a subwoofer.
General Features
-
Vehicle-Specific 2-Channel Line Output Converter
-
Designed for Select Honda Vehicles
-
Designed for Non-Amplified Factory Audio Systems
-
Provides 2 Channels of Low-Level Audio Output
-
Allows Addition of an Aftermarket Amplifier
-
Suitable for Speaker or Subwoofer Amplifier Installations
-
Vehicle-Specific T-Harness Design
-
Helps Simplify Installation
-
Gain Controller Included
-
Adjustable Overall Output Level
-
12V / 500mA Remote Turn-On Output
-
Signal-Sensing Remote Activation
-
Rated for Up to 55 Watts per Channel
-
Helps Integrate Aftermarket Amplification with Factory Radio
Vehicle-Specific T-Harness Integration
The AXLOC-HN3 uses a vehicle-specific T-harness to connect to the compatible factory audio system, simplifying amplifier integration and reducing the need to modify the original radio wiring.
Line Output Converter Features
-
2-Channel Low-Level Output
-
Converts Compatible Factory Speaker-Level Signal for Amplifier Connection
-
Designed for Aftermarket Amplifier Integration
-
Works with Speaker or Subwoofer Amplifier Applications
-
Up to 55 Watts per Channel Input Capability
-
Adjustable Gain Control
-
Signal-Sensing Remote Turn-On
Included Gain Controller
The included gain controller lets you adjust the converter's overall output level so the signal matches the connected aftermarket amplifier.
Remote Amplifier Turn-On
The AXLOC-HN3 provides a 12-volt, 500mA remote turn-on output activated through signal sensing, helping switch a connected compatible amplifier on and off with the factory audio system.
Multiple Amplifier Installations
When installing multiple amplifiers, Axxess recommends using a single-pole double-throw (SPDT) relay rather than using the interface's remote output to directly trigger several amplifiers.
Vehicle Compatibility
Honda Civic
-
2016 Honda Civic
-
2017 Honda Civic
-
2018 Honda Civic
Honda Civic Hatchback
-
2017 Honda Civic Hatchback
-
2018 Honda Civic Hatchback
Honda CR-V
-
2017 and Up Honda CR-V
Honda Fit
-
2018 and Up Honda Fit
Honda HR-V
-
2019 and Up Honda HR-V
Honda Insight
-
2019 and Up Honda Insight
Important Compatibility Requirement
-
Designed for non-amplified factory audio systems
-
Not intended for factory-amplified applications unless specifically confirmed compatible
-
Vehicle trim and factory audio configuration should be verified before installation

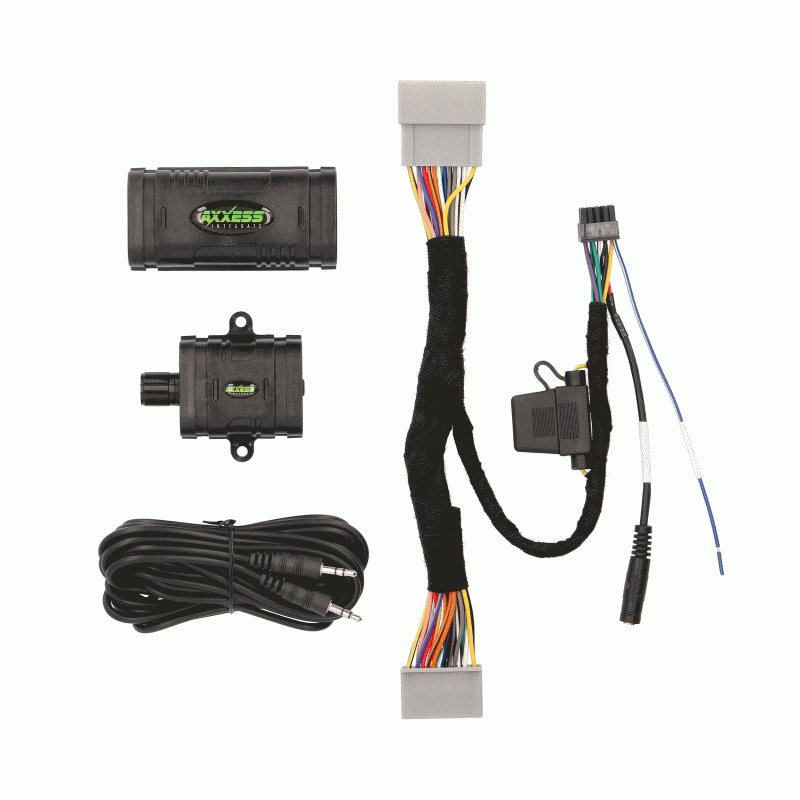

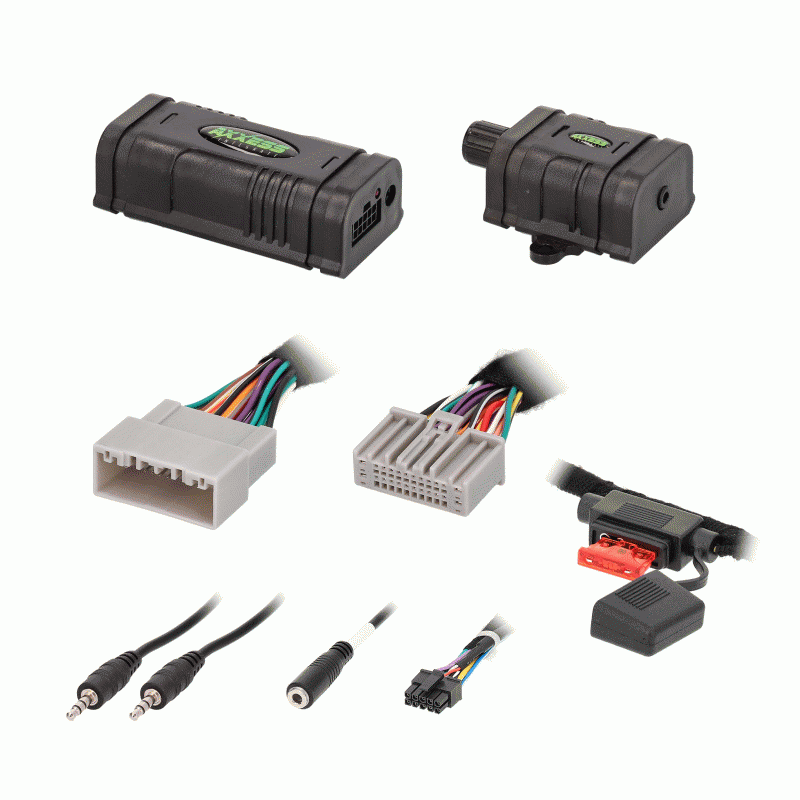

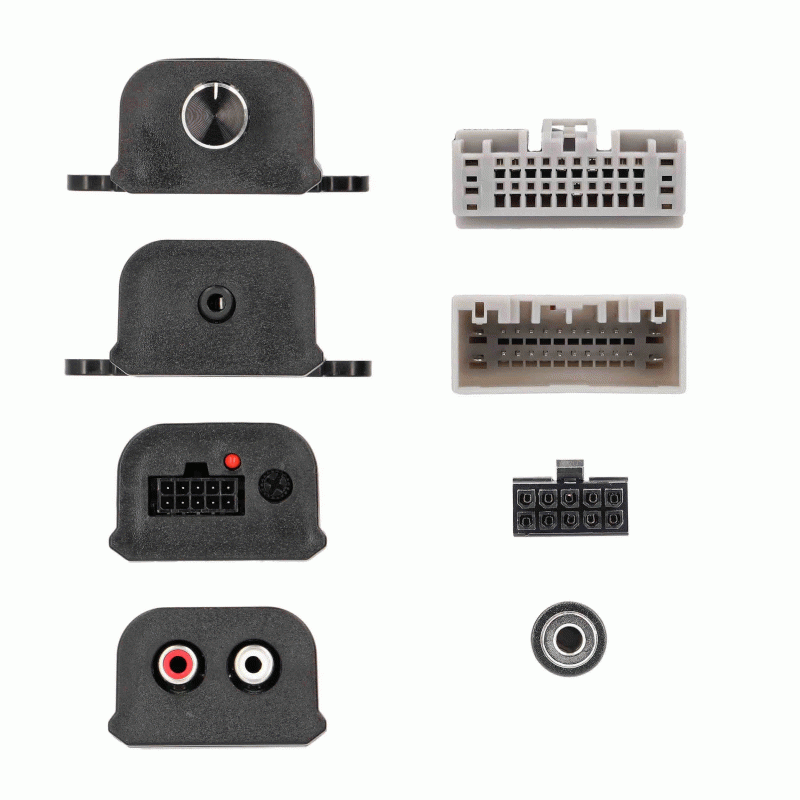

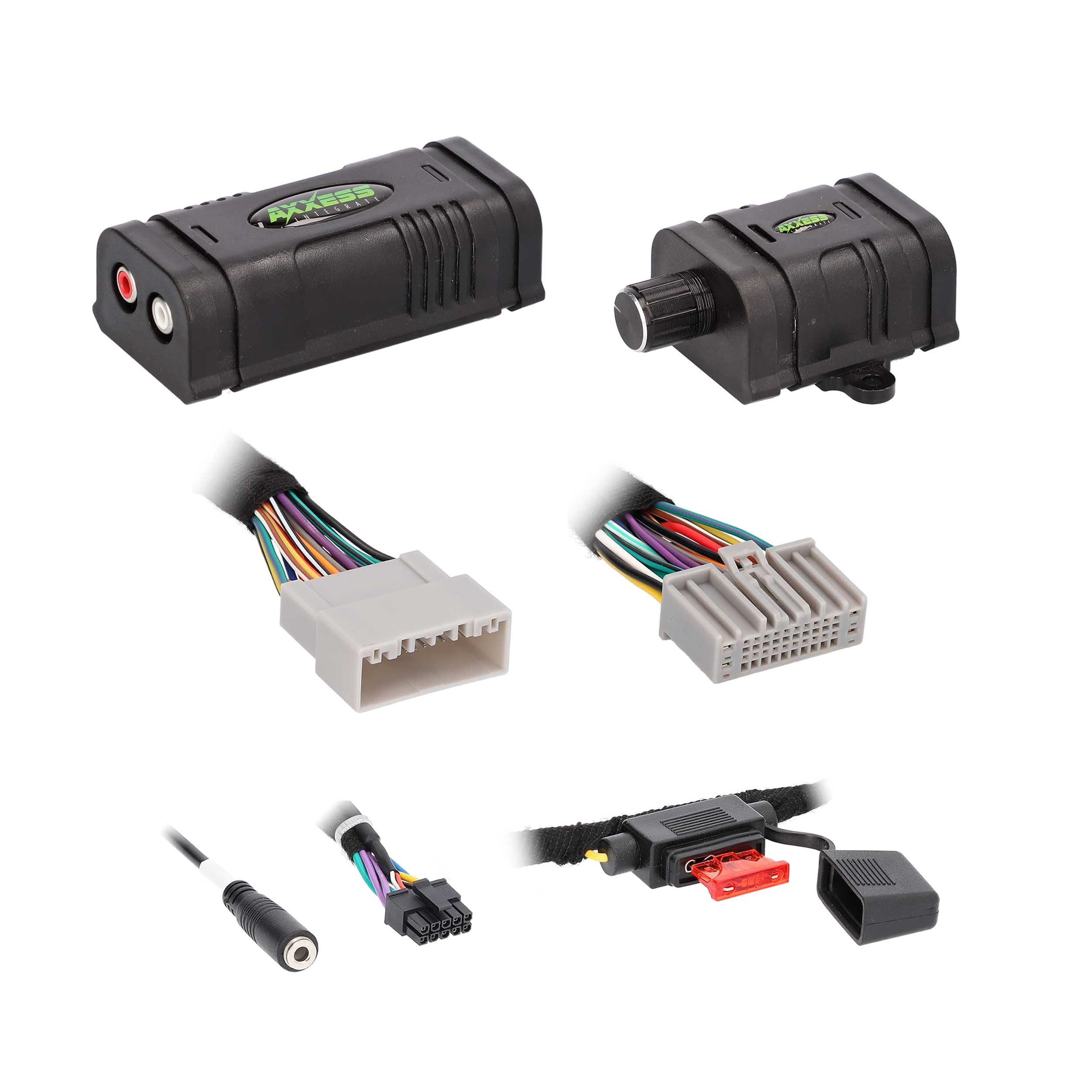

Interface Components
-
AXLOC-HN3 Vehicle-Specific Wiring Harness
-
Gain Controller
-
12V / 500mA Remote Turn-On Wire
-
Auxiliary Cable
What's in this Package
-
(1) Axxess AXLOC-HN3 2-Channel Line Output Converter with Honda-Specific T-Harness
Installation Notes
-
Designed to add an aftermarket amplifier while retaining the compatible factory radio.
-
Verify that the vehicle has a non-amplified factory audio system before purchasing.
-
The interface provides two low-level audio output channels.
-
You may need a separate amplifier wiring kit, RCA cables, fuse protection, power wiring, ground wiring, and speaker/subwoofer wiring.
-
For multiple amplifier installations, we recommend an SPDT relay for the remote turn-on circuit.
-
Professional installation is recommended.
