Alpine Halo9 iLX-F511 Digital multimedia receiver an 11" touchscreen
Guaranteed Fitment
Always the correct partIn-House Experts
We know our products
Alpine Halo9 iLX-F511 Digital multimedia receiver an 11" touchscreen that fits in a DIN dash opening (does not play discs)
When you want to go big, Alpine takes you there. Their iLX-F511 Halo11 digital media receiver boasts an 11" floating touch display yet fits in most single-DIN (2" tall) dash openings, with plenty of adjustabilities to ensure a great viewing angle and access to your climate controls. The screen boasts a higher resolution to complement your favorite media sources, plus improved responsiveness for the speedy delivery of information and images. You'll enjoy top-notch smartphone integration along with compatibility with the iDatalink Maestro module so you can keep your cherished factory features.

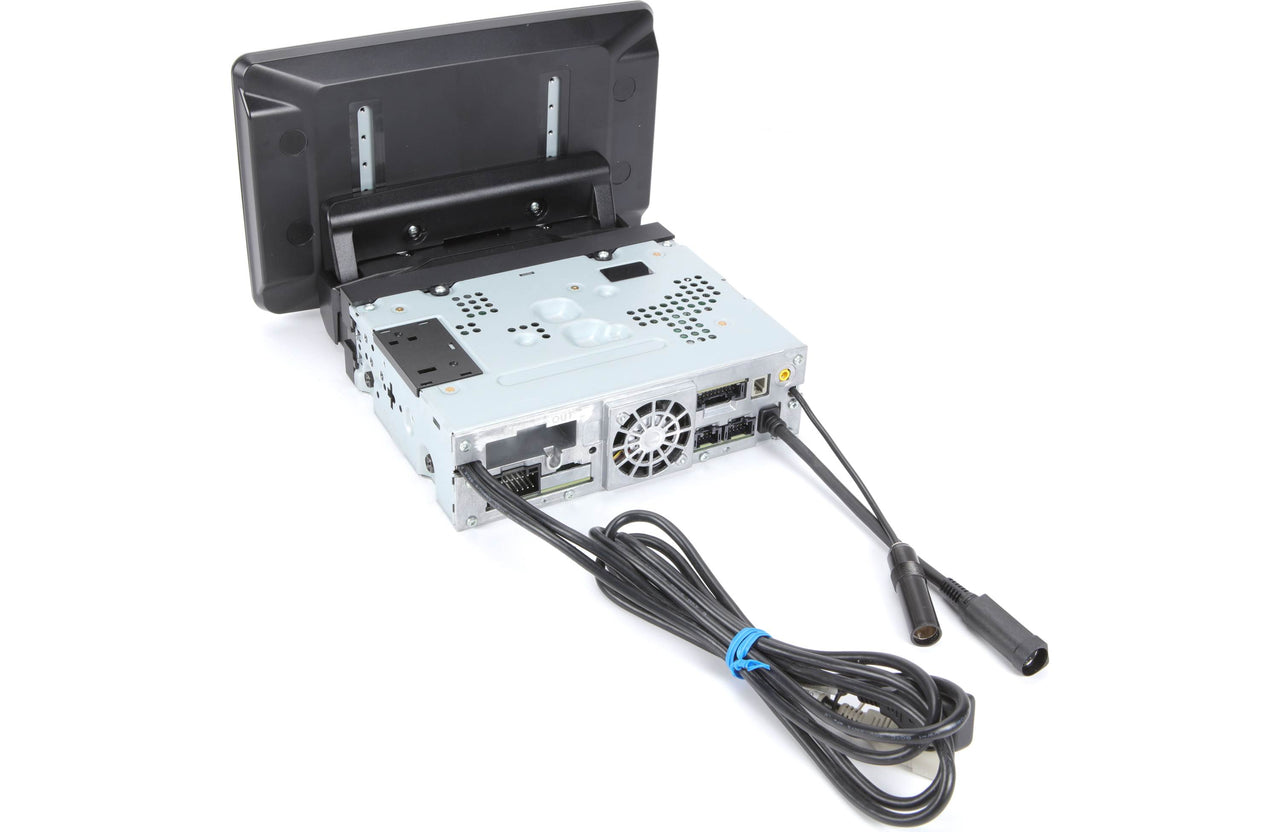

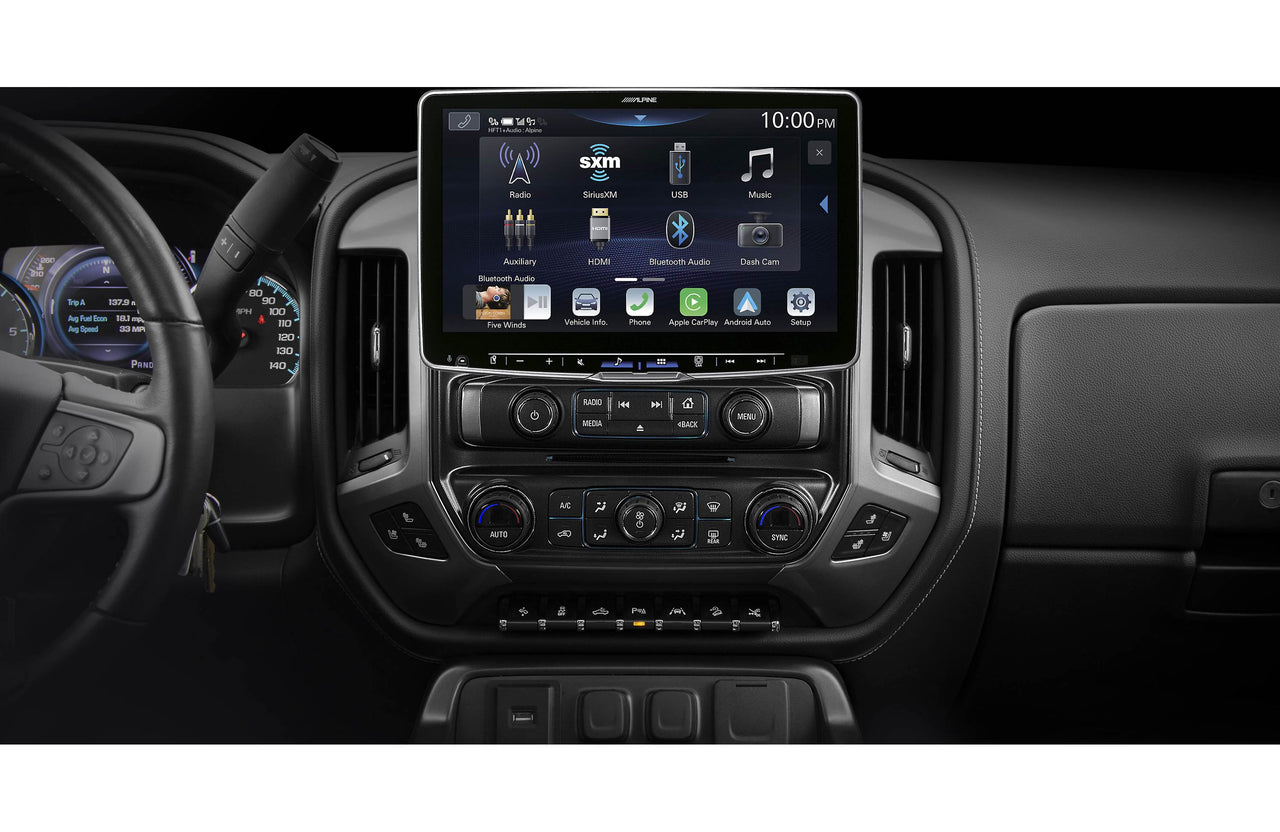

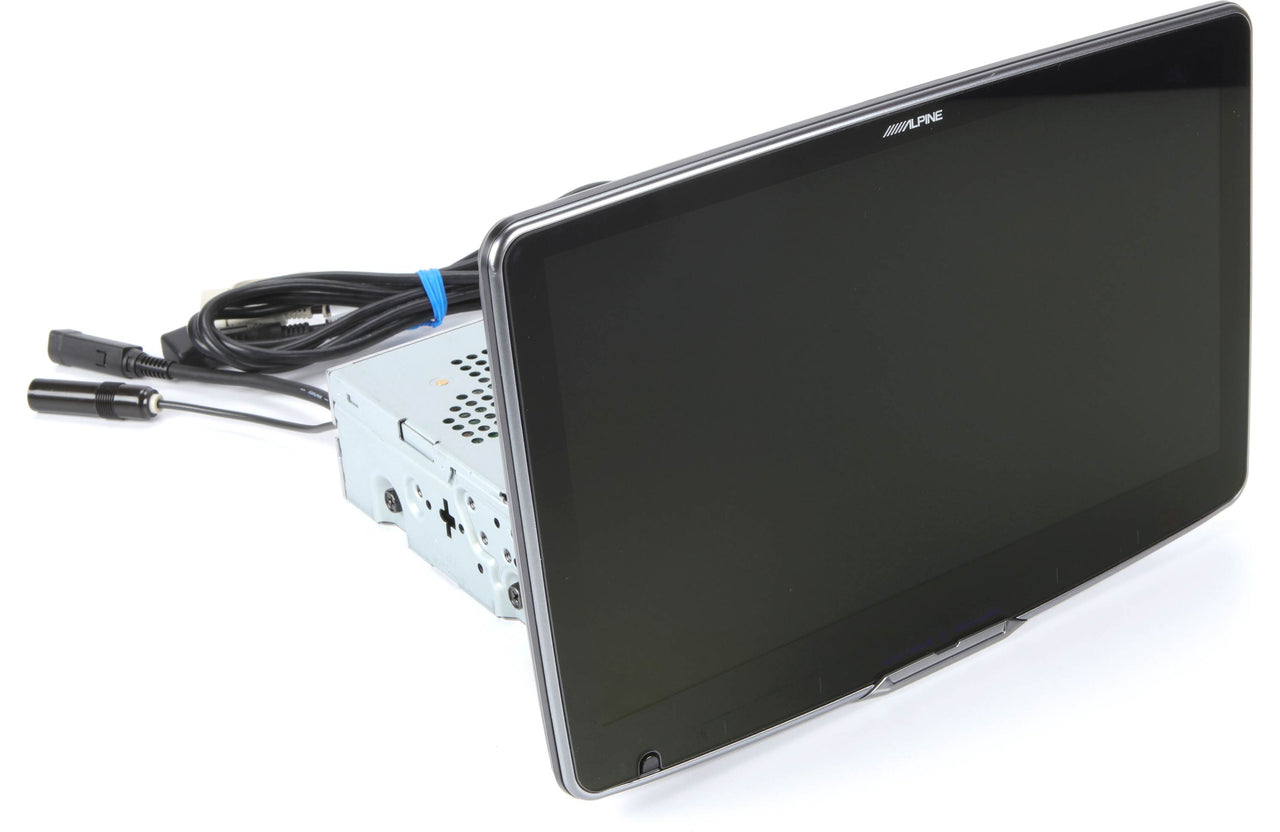

The iLX-F511 comes in two pieces: a 2" tall chassis and an 11" floating touchscreen display. The chassis fits in most single-DIN dash openings, and since there's no disc player, the mounting depth shouldn't be an issue for most vehicles. Once you've mounted the chassis in your dash opening, you can choose from five available vertical mounting positions and two separate depths for the screen, allowing you to position the radio without blocking essential dash climate controls. Alpine designed the radio to function under typical in-vehicle temperatures, even if your vents are partially blocked.
General features:
- digital multimedia receiver with AM/FM tuner (does not play discs)
- 11" hi-res capacitive touchscreen with adjustable vertical mounting positions and viewing angles
- high-resolution (1280x720 pixels) display
- fits single-DIN dash openings
- HD Radio tuner built-in
- Bluetooth hands-free calling and audio streaming

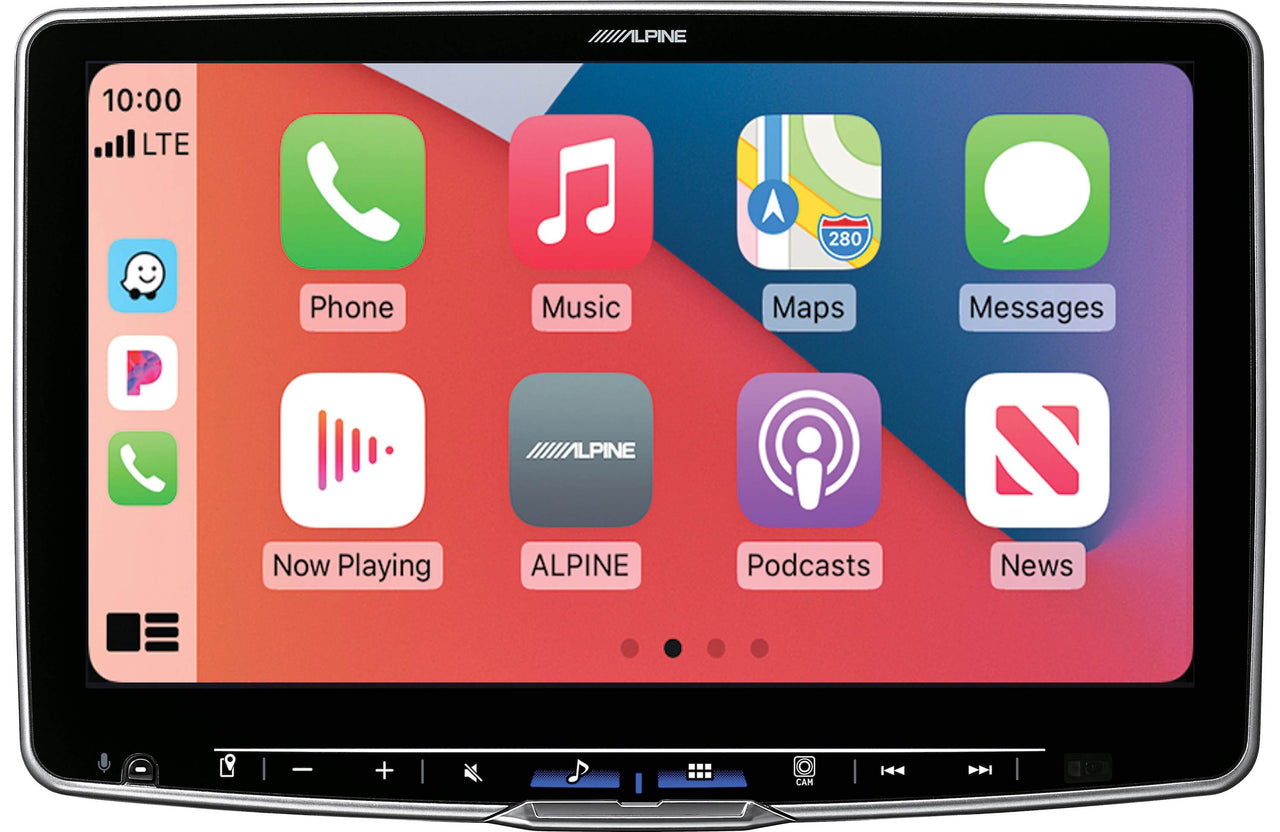

- Apple CarPlay compatible (wired and wireless)
- Android Auto compatible (wired and wireless)
- built-in iPod, iPhone, and iPad control
- playback and control of music files on compatible Android devices
- Pandora, Spotify, and Tidal control with iPhone and Android
- plays MP3, WMA, AAC, APE, and FLAC music files (see Details tab for full capabilities)
- plays AVC, FLV, H,264, MP4, MPEG-4, and MOV video files
- plays lossless FLAC audio files up to 96kHz/24-bit
- 24-bit digital-to-analog converter (DAC)

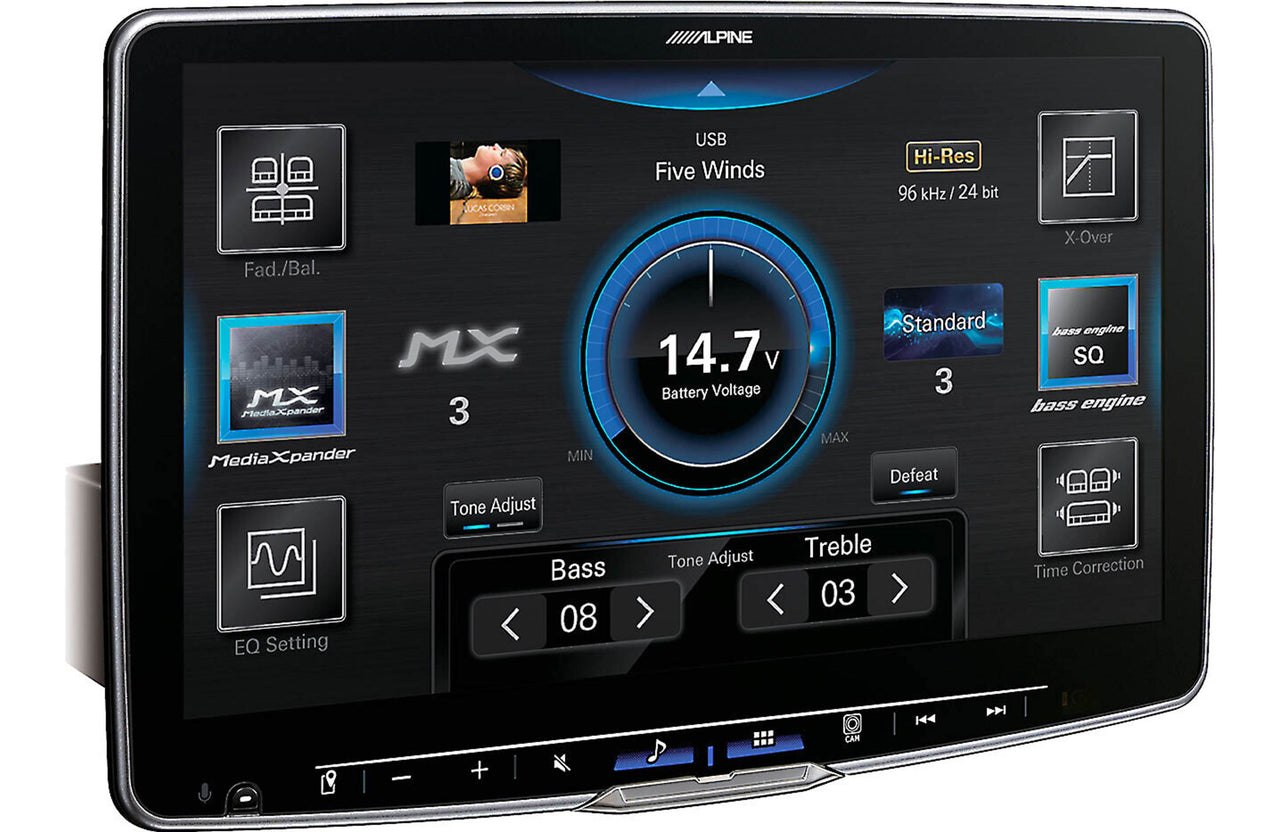

- 13-band parametric equalizer (Basic and Advanced options)
- 6-channel time correction
- high- and low-pass filters
- Bass Engine SQ
- MediaXpander HD
- works with Sirius XM SXV300 tuner—supports Tune Mix, Traffic & Weather Now, and Sports Flash features
- compatible with the optional Halo wireless level controller
- compatible with an optional 2-camera switcher
- compatible with optional HD dash cam with rear-view camera
- inputs: 2 rear USB ports; rear HDMI input; rear auxiliary input; 2 camera inputs (RCA)
- outputs: HDMI output; 6-channel preamp outputs (4-volt front, rear, subwoofer)
- wired connection to the parking brake is required to access settings, video display, and other features on this receiver (the parking brake must be connected and set, released, and set again)
- built-in internal amp (16 watts RMS CTA-2006/50 peak x 4 channels)
- compatible with most factory steering wheel audio controls (adapter required)
- CTA-2006 compliant
- compatible with iDatalink Maestro
- retains factory features in a wide selection of vehicles
- displays engine performance data on a touchscreen
What's in the iLX-F511 package:
- iLX-F511 owner's manual
- 11" Touchscreen monitor
- Source unit
- Wiring harness (15A fuse)
- Preout harness
- iDatalink/Driver Recorder/Front Camera harness
- Camera input adapter
- harness
- Mic/SWC harness
- Microphone
- Surface-mount bracket
- Two-sided tape
- GPS antenna
- Self-adhesive mounting pad
- 3 Self-adhesive cable clamps
- Power-plate
- 2 Rear covers
- HDMI connector clamp
- 4 Pan-head ISO screws (M5x8mm)
- 4 Counter-sunk ISO screws (M5x8mm)
- 3 Display screws (M5x8mm)
- 2 Hinge screws (M3x4mm)
- 2 Rear cover screws (M2.6x6mm)
- 4 Rectangle self-adhesive sheets
- 4 Square self-adhesive sheets
- 2 Round self-adhesive sheets
- 2 Semi-oval self-adhesive sheets
- Quick Reference Guide
