MR DJ DXO300 Stereo 2/3 Way Plus Subwoofer Crossover PA DJ Sound System

MR DJ USA DXO300+ Professional Stereo 2/3-Way Electronic Crossover with Dedicated Subwoofer Output, Balanced XLR & 1/4" Connectivity

The MR DJ USA DXO300+ is a professional rackmount electronic crossover engineered to optimize speaker performance in PA systems, DJ rigs, clubs, houses of worship, recording studios, and live sound installations. Featuring Stereo 2-Way and Mono 3-Way operation, a dedicated subwoofer output, balanced XLR outputs, and precision frequency management, the DXO300+ delivers accurate crossover performance for professional audio systems.

Key Features

🎚️ PROFESSIONAL 2-WAY / 3-WAY ELECTRONIC CROSSOVER – Operates in Stereo 2-Way or Mono 3-Way modes, providing flexible speaker management for a wide variety of professional sound systems.

🔊 DEDICATED SUBWOOFER OUTPUT – Optimizes low-frequency routing for powered or passive subwoofer systems, delivering tighter bass response and improved system performance.

🎤 PROFESSIONAL XLR & 1/4" CONNECTIVITY – Features balanced XLR outputs with XLR and 1/4" TRS inputs for reliable signal transmission and seamless integration with professional audio equipment.

⚙️ PRECISION FREQUENCY MANAGEMENT – Accurately separates low, mid, and high frequencies to improve speaker efficiency, clarity, and overall sound quality.

🛠️ PROFESSIONAL 19-INCH RACKMOUNT DESIGN – Rugged rackmount chassis is ideal for mobile DJ racks, PA systems, clubs, theaters, churches, recording studios, and permanent audio installations.

Product Description

The MR DJ USA DXO300+ Professional Electronic Crossover is designed to maximize the performance and efficiency of professional loudspeaker systems by dividing incoming audio signals into dedicated frequency bands for subwoofers, midrange speakers, and high-frequency drivers.

Supporting Stereo 2-Way and Mono 3-Way operating modes, the DXO300+ offers flexible system configuration for portable PA systems, concert sound, DJ rigs, installed audio systems, and live performance venues.

A dedicated subwoofer output directs low-frequency content to powered or passive subwoofers while midrange and high-frequency signals are routed to their appropriate speaker components, resulting in improved clarity, higher efficiency, reduced distortion, and greater overall system performance.

Professional balanced XLR outputs, XLR and 1/4" inputs, switchable 110V / 220V operation, and a rugged rackmount chassis make the DXO300+ a dependable solution for mobile entertainers, houses of worship, event production companies, recording studios, clubs, and permanent installations.

General Features

• Professional Stereo / Mono Electronic Crossover

• Stereo 2-Way Operation

• Mono 3-Way Operation

• Dedicated Subwoofer Output

• Professional 19-Inch Rackmount Design

• Precision Frequency Management

• Balanced XLR Outputs

• XLR & 1/4" TRS Inputs

• Optimized for Professional Sound Reinforcement

• Switchable 110V / 220V Operation

• Rugged Steel Chassis

• Designed for Portable & Permanent Installations

Specifications

Operating Modes

• Stereo 2-Way

• Mono 3-Way

Audio Performance

• Frequency Response: 25 Hz – 25 kHz

• Signal-to-Noise Ratio: 80 dB

Crossover Frequency Ranges

• Subwoofer: 50 Hz – 250 Hz

• Low / High: 70 Hz – 1,000 Hz

• Mid / High: 480 Hz – 7,000 Hz

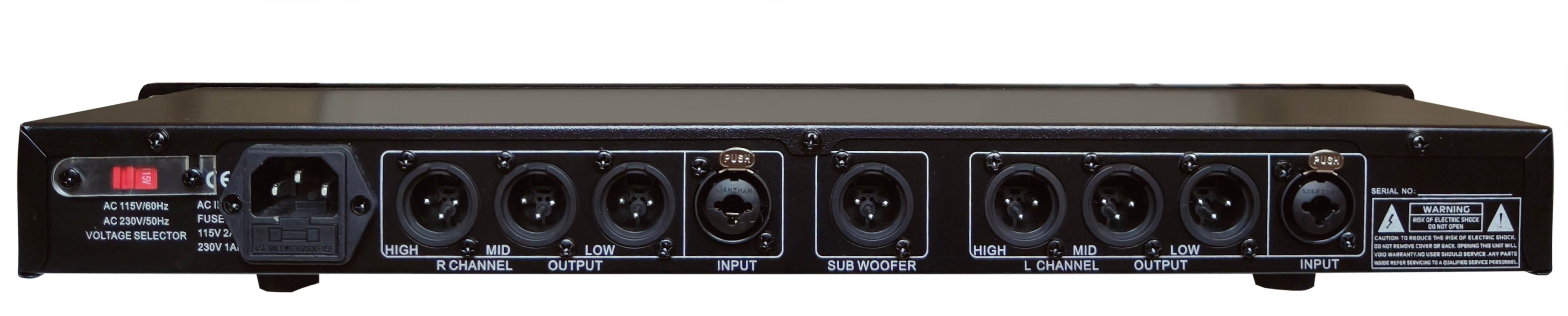

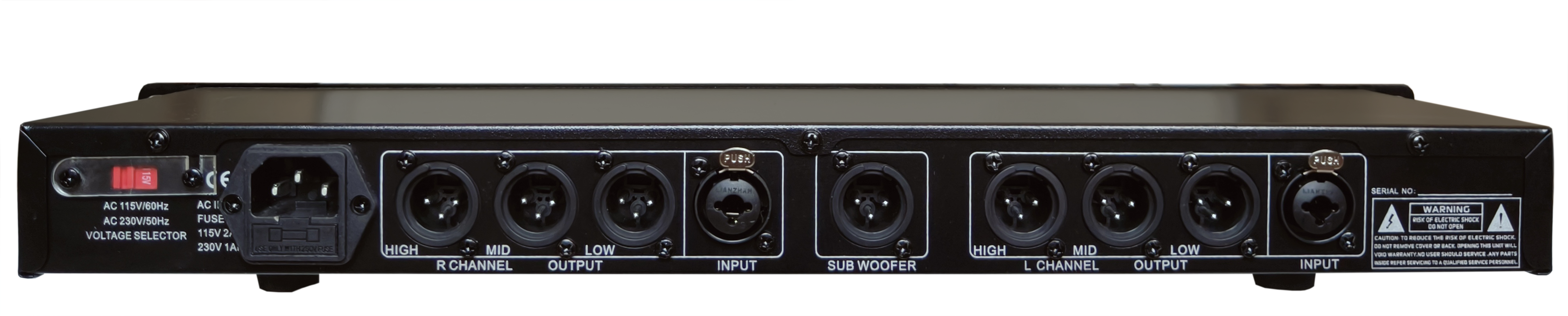

Connectivity

Inputs

• Balanced XLR Inputs

• 1/4" TRS Inputs

Outputs

• Balanced XLR Outputs

• Dedicated Subwoofer Output

Electrical Specifications

• Input Impedance: 100k Ohms

• Output Impedance: 220 Ohms

• Power Input: Switchable 110V / 220V

Physical Specifications

• Model: DXO300+

• Brand: MR DJ USA

• Rack Size: 1U

• Dimensions: 19" W × 5.75" D × 1.75" H

• Product Weight: 4.4 lbs.

• Finish: Black

Perfect For

• Professional PA Systems

• DJ Sound Systems

• Live Sound Applications

• Concert Sound Reinforcement

• Clubs & Nightclubs

• Houses of Worship

• Recording Studios

• Multi-Amplifier Speaker Systems

• Bi-Amp Speaker Systems

• Subwoofer Management

• Event Production

• Auditoriums

• Theaters

• Permanent Commercial Installations

Package Includes

• (1) MR DJ USA DXO300+ Electronic Crossover

• (1) AC Power Cord

• (1) Owner's Manual

Warranty

• 1-Year Manufacturer's Warranty

Warning:
This product can expose you to chemicals known to the State of California to cause cancer. For more information, go to P65Warnings.ca.
