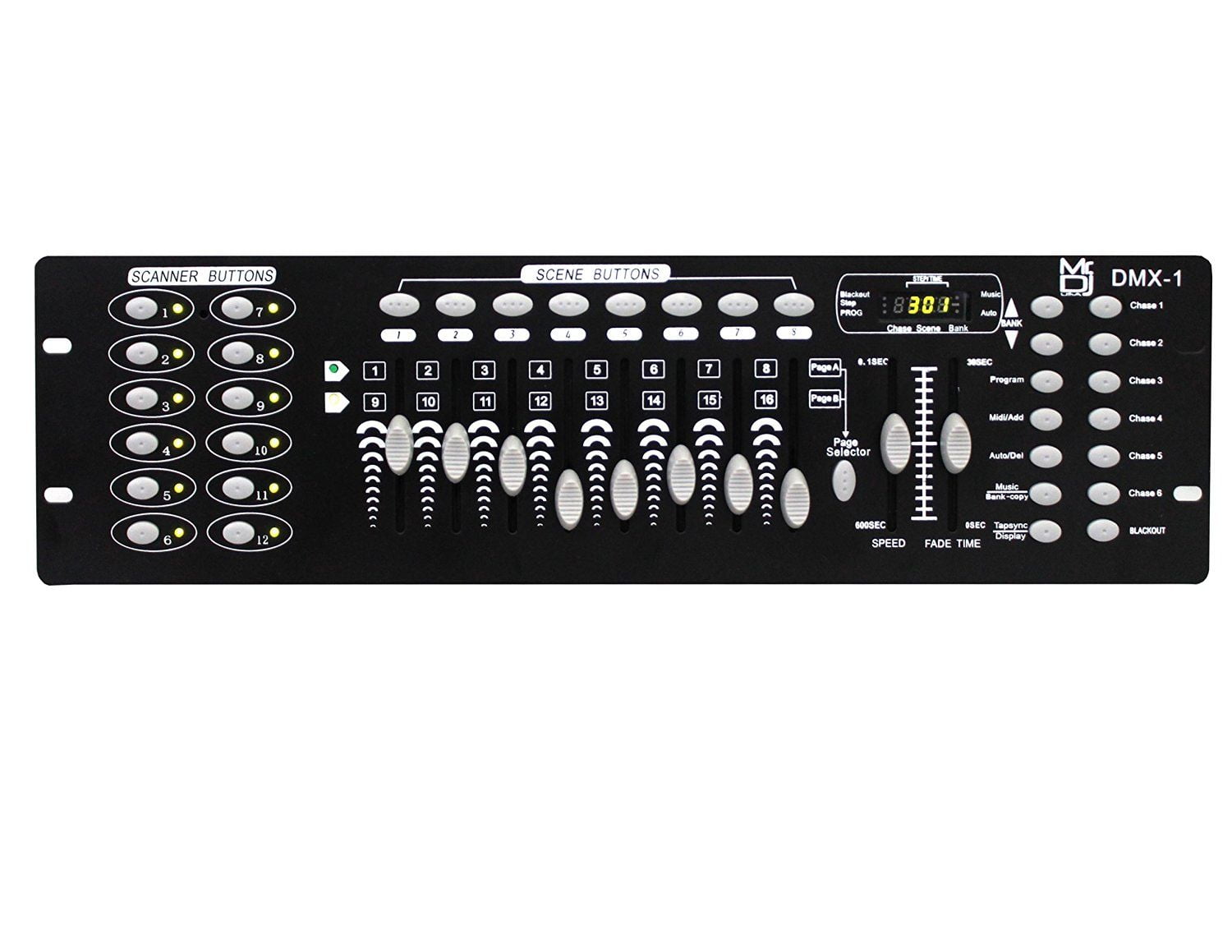

MR DJ DMX1 192-Channel DMX Lighting Controller Console for LED PAR, Moving Head, Stage, DJ & Party Lights

The MR DJ DMX1 is a 192-channel DMX lighting controller designed for DJs, clubs, stages, parties, event production, and other compatible lighting systems. It can control up to 12 compatible fixtures with up to 16 DMX channels per fixture, providing flexible control for LED PAR lights, moving heads, effect lights, and other DMX-compatible equipment.

Featuring programmable scenes, multiple chase programs, eight adjustable channel faders, sound-active triggering, TAP SYNC, fade-time control, blackout, MIDI remote-control capability, and an easy-to-read 4-digit LED display, the DMX1 provides a practical control solution for both mobile and installed lighting applications.

Key Features

🎛️ 192-CHANNEL DMX CONTROLLER – Provides control of up to 192 DMX channels for compatible stage and entertainment lighting equipment.

💡 CONTROL UP TO 12 FIXTURES – Supports up to 12 compatible fixtures with as many as 16 DMX channels assigned to each fixture.

🎬 PROGRAMMABLE SCENES – Supports programmable lighting scenes for creating repeatable stage looks and lighting sequences.

🔄 6 PROGRAMMABLE CHASES – Create and run up to six customized chase programs for dynamic lighting effects.

🎚️ 8 CHANNEL FADERS – Eight adjustable potentiometers provide hands-on control over selected DMX channel values.

🎤 SOUND-ACTIVE CONTROL – Built-in microphone supports sound-triggered lighting operation for parties, clubs, and live entertainment.

⏱️ TAP SYNC & SPEED CONTROL – Automatic sequence timing can be adjusted using TAP SYNC or the dedicated speed control.

🌅 FADE TIME CONTROL – Dedicated FADE TIME control adjusts transition timing between programmed lighting steps.

⬛ BLACKOUT FUNCTION – Instantly disables DMX output for quick lighting blackout control.

🎹 MIDI REMOTE CONTROL SUPPORT – Selected blackout, chase, and control functions can be operated through compatible MIDI control.

📟 4-DIGIT LED DISPLAY – Clear digital display assists with bank, scene, chase, channel, and timing information.

🔌 DMX OUTPUT POLARITY SELECTION – Provides selectable DMX output polarity for compatible lighting systems.

General Features

• 192 DMX control channels

• Controls up to 12 compatible fixtures

• Up to 16 DMX channels per fixture

• Programmable scene operation

• Multiple scene banks

• 6 programmable chases

• 8 adjustable control faders

• Built-in microphone

• Sound-active triggering

• Automatic triggering

• TAP SYNC control

• Speed adjustment

• Fade-time adjustment

• 4-digit LED display

• Manual blackout function

• MIDI remote-control capability

• Chase programming

• Chase playback

• DMX output polarity selection

• Designed for compatible LED PAR lights

• Designed for moving-head fixtures

• Suitable for stage and DJ lighting systems

Specifications

• Brand: MR DJ

• Model: DMX1

• Product Type: DMX Lighting Controller

• DMX Channels: 192

• Maximum Fixture Control: 12 Fixtures

• Maximum Channels Per Fixture: 16

• Programmable Chases: 6

• Control Faders: 8

• Built-In Microphone: Yes

• Sound-Active Operation: Yes

• TAP SYNC: Yes

• Speed Control: Yes

• Fade Time Control: Yes

• Blackout Function: Yes

• MIDI Remote-Control Capability: Yes

• Display: 4-Digit LED

• DMX Output Polarity Selection: Yes

• Input Voltage: AC 90-240V

• Frequency: 50/60Hz

• Product Dimensions: Approximately 48.3 x 13.4 x 7 cm

• Product Dimensions in Inches: Approximately 19.0" x 5.3" x 2.8"

• Weight: Approximately 1.55 kg / 3.42 lbs

• Certifications Stated by Manufacturer: CE / RoHS / UL / SAA

Scene & Chase Control

• Programmable scene storage

• 23 scene banks stated

• 8 programmable scenes per bank

• 6 programmable chase sequences

• Manual chase operation

• Automatic chase operation

• Sound-triggered chase operation

• MIDI-supported chase control

• Adjustable speed

• Adjustable fade time

Compatibility

Designed for compatible DMX512 lighting equipment including:

• LED PAR lights

• Moving-head lights

• Wash lights

• Effect lights

• DJ lighting

• Stage lighting

• Club lighting

• Disco lighting

• Compatible DMX fog and effects equipment

• Other compatible DMX512 fixtures

Fitment Note

Before connecting lighting fixtures, verify each fixture's DMX channel mode, starting address, polarity, and total channel requirements.

The DMX1 supports up to 192 total DMX channels and up to 12 fixture selections with 16 channels available per fixture. Fixtures using more than 16 channels may require a different controller configuration or may not provide access to all functions through a single fixture selection.

Ideal Applications

• Mobile DJs

• Stage performances

• Nightclubs

• Bars

• Disco venues

• Wedding events

• Birthday parties

• School events

• Hotels

• Event production

• Live entertainment

• Houses of worship

• Retail displays

• Small venues

• Lighting practice setups

• Permanent lighting installations

Package Includes

• (1) MR DJ DMX1 192-Channel DMX Lighting Controller

• Power Supply / Power Cable as supplied

• User Documentation as supplied
